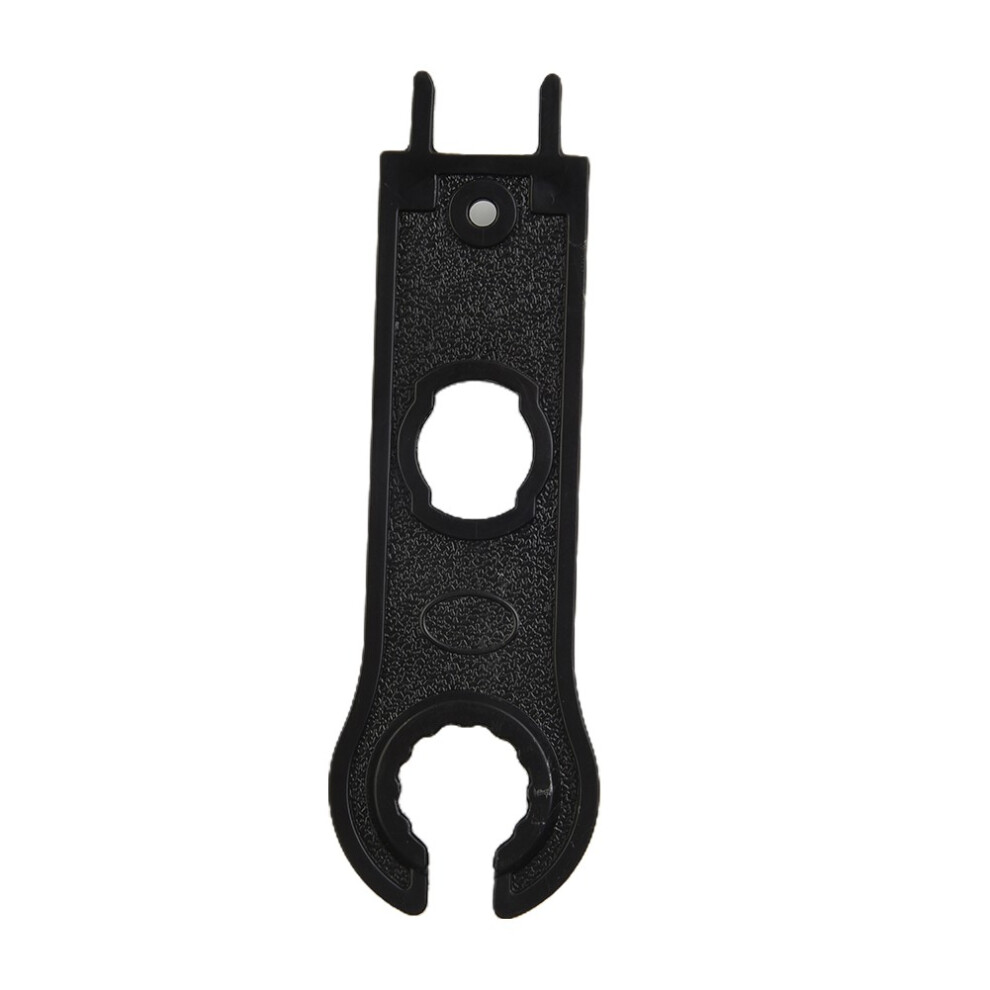

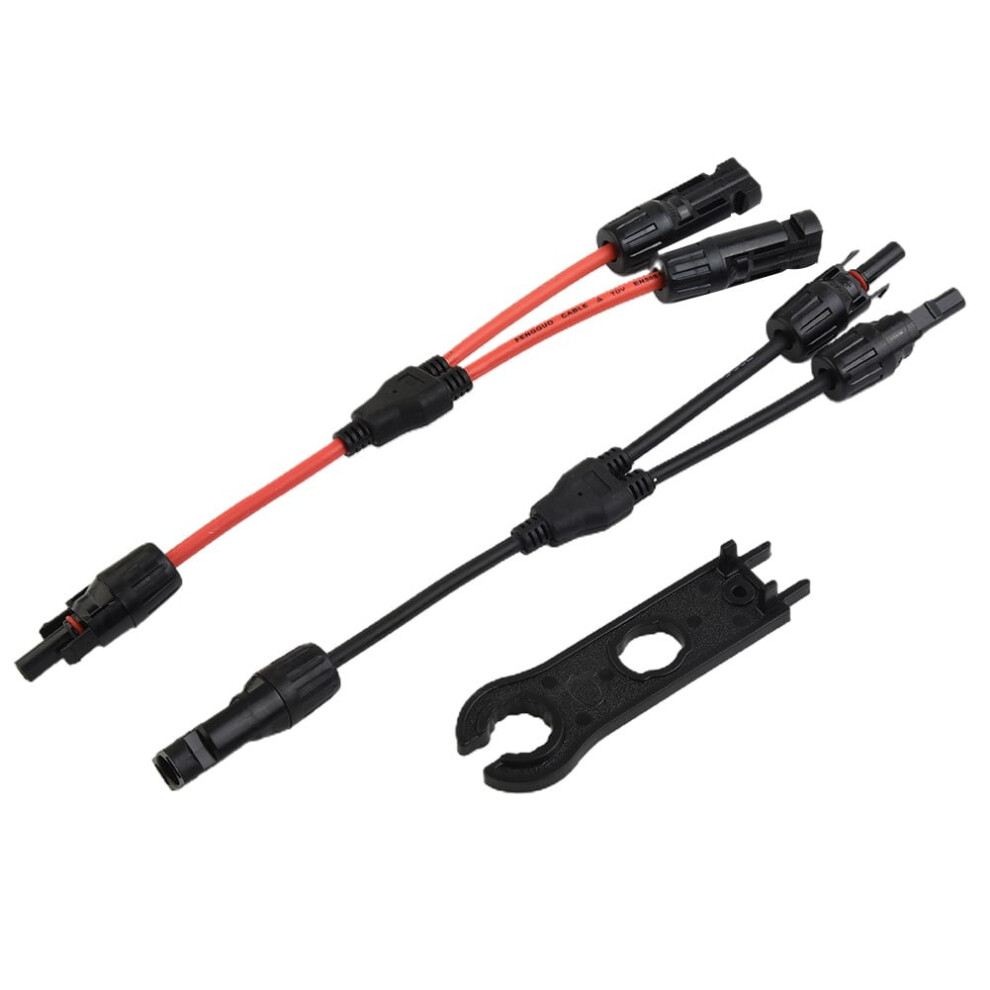

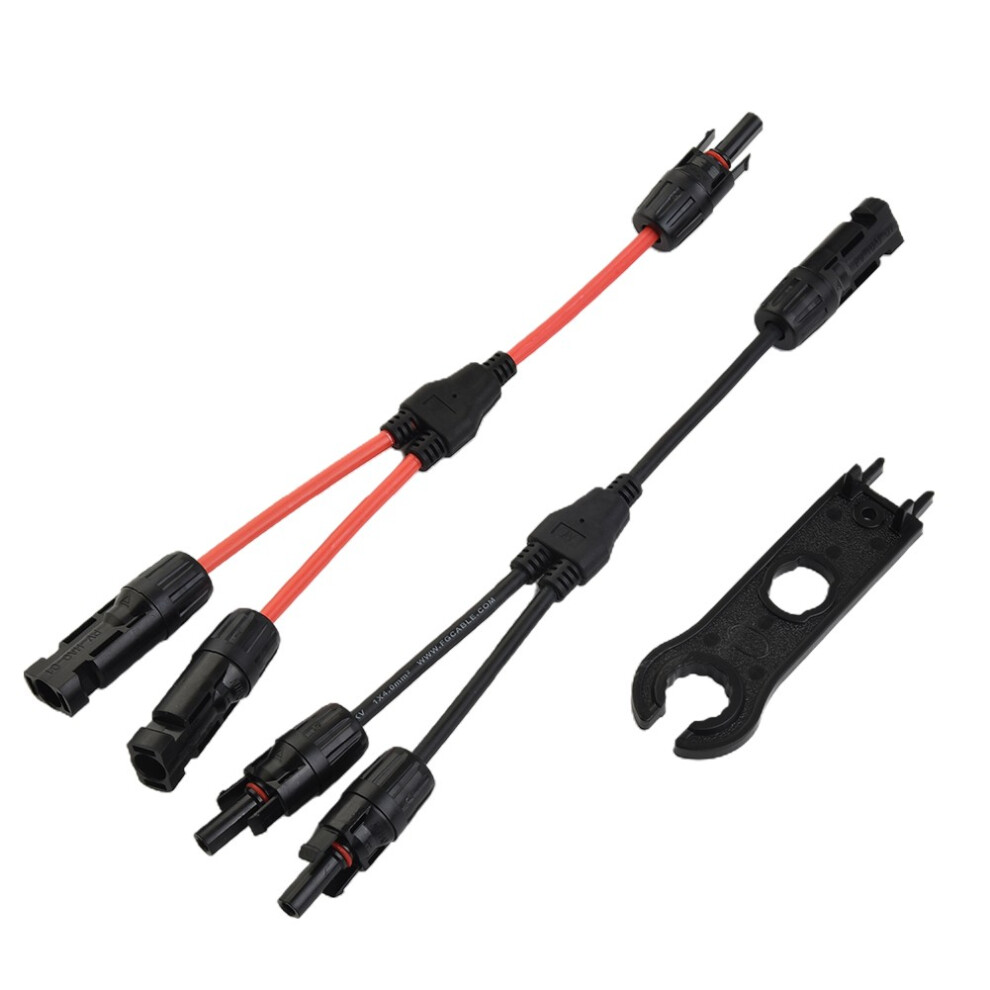

Solar PV Y-branch cable waterproof adapter with wrench 1

Solar PV Y-branch cable waterproof adapter with wrench 1 Description

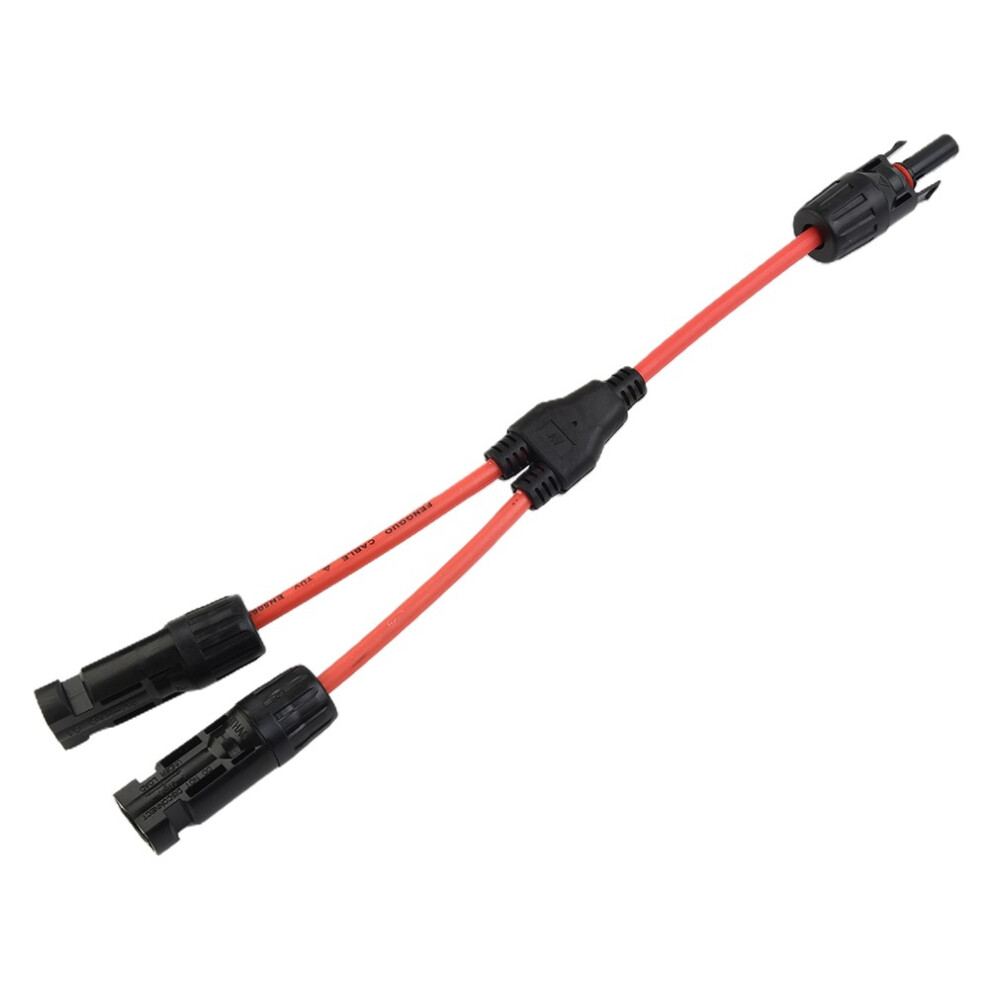

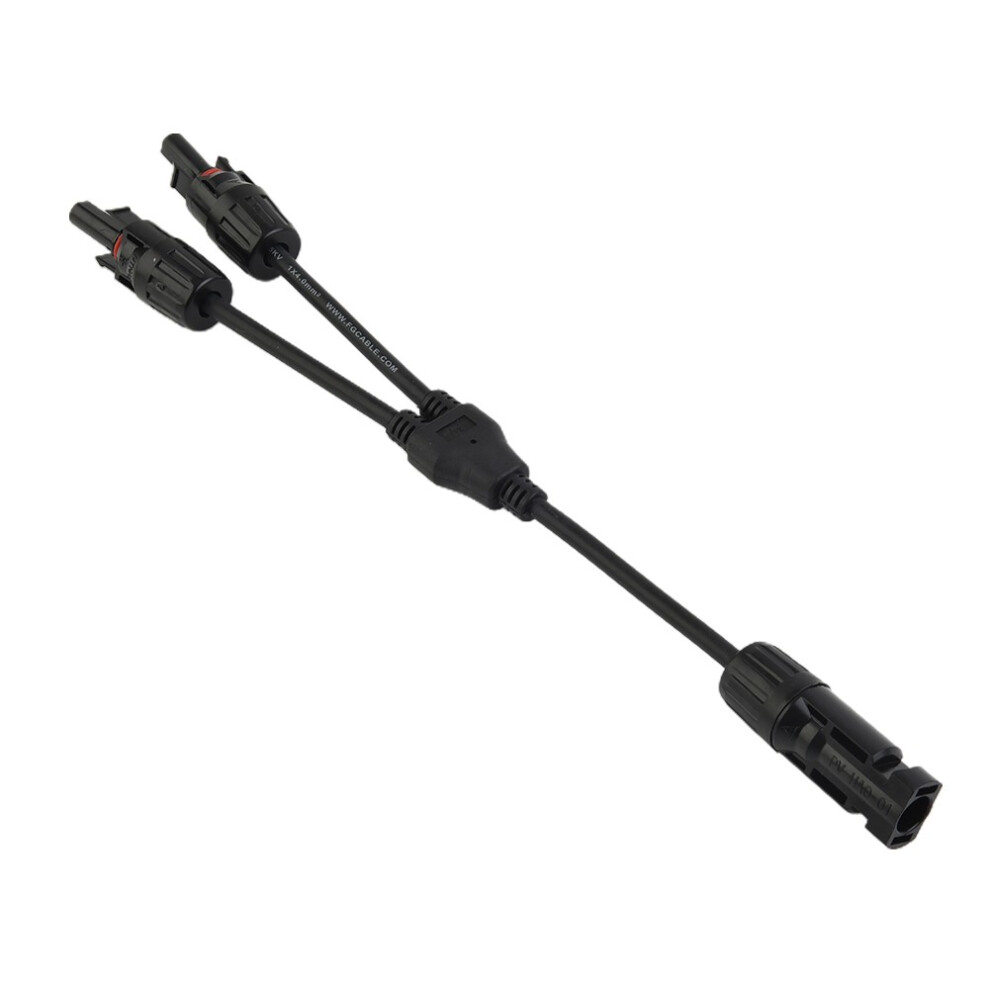

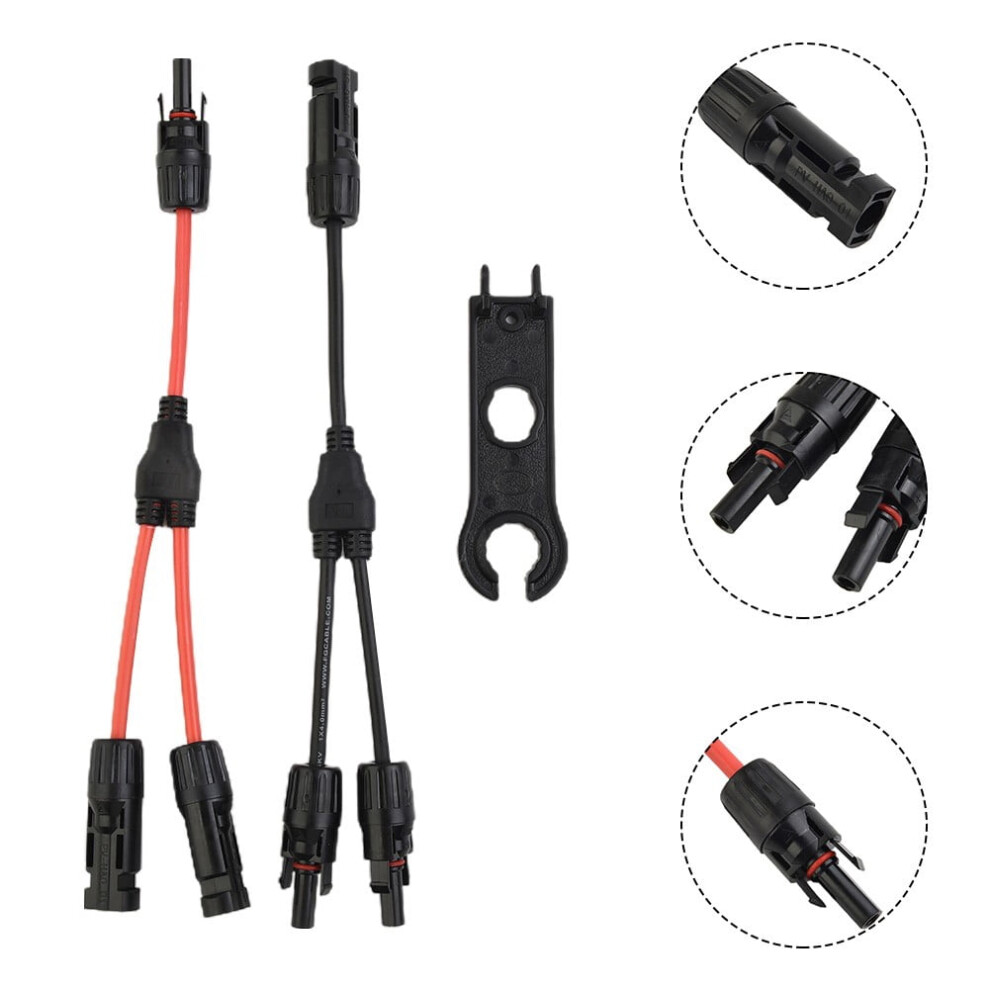

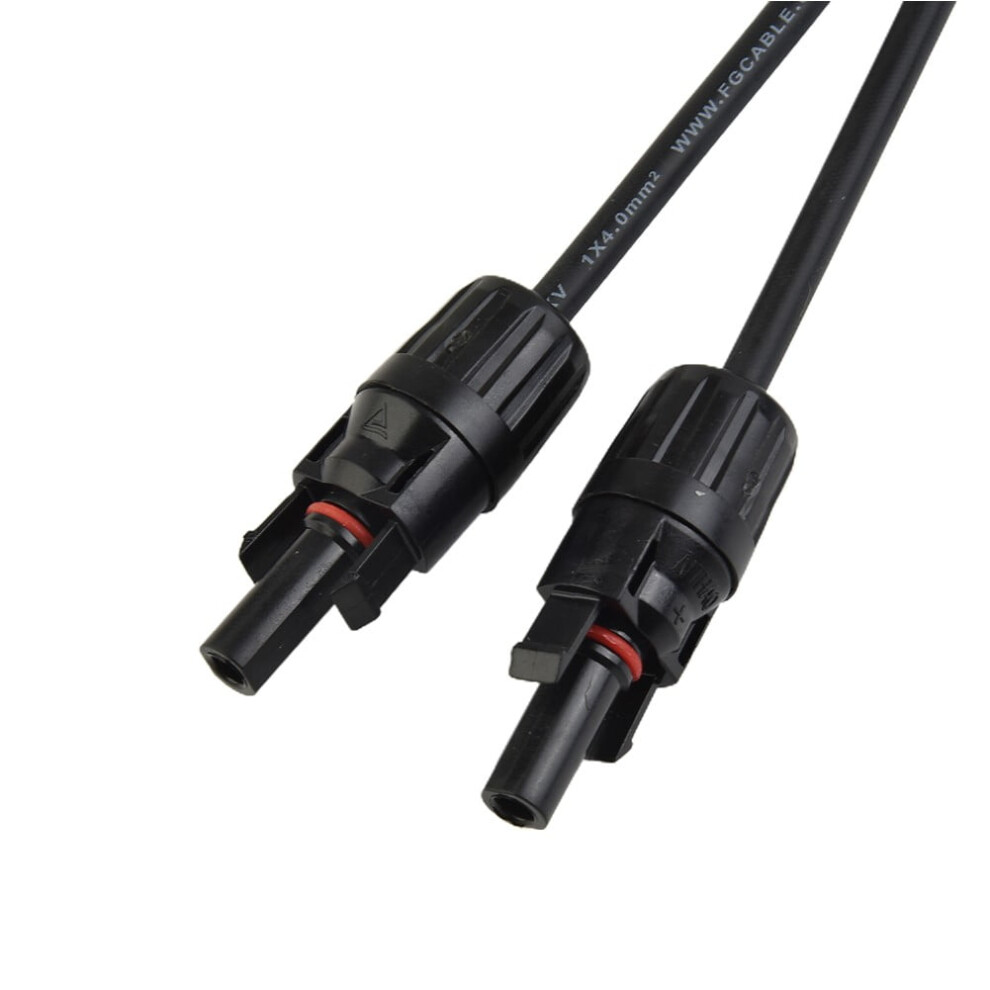

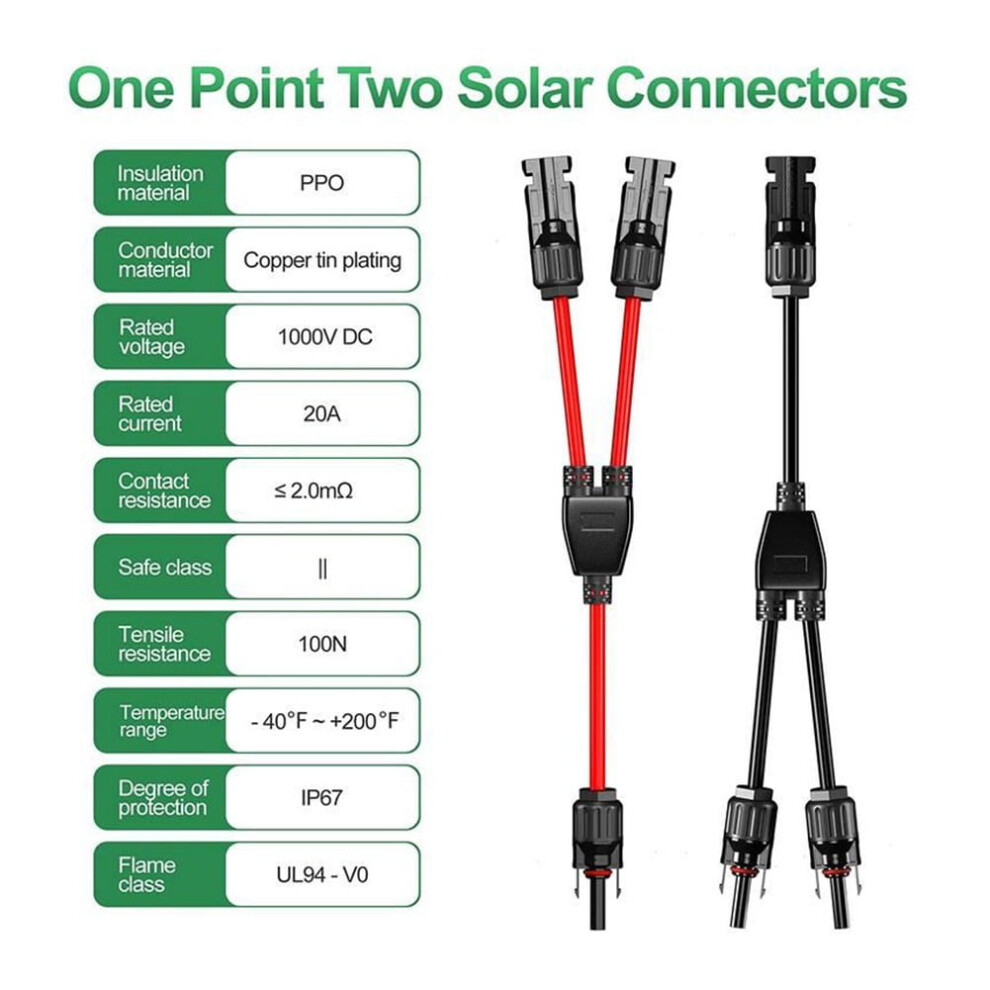

Features: - Brand new and high quality - Made of high quality materials, durable - This Y-shaped solar cable connector kit is the perfect solution for connecting multiple panels together in parallel. - Simple and fast help and simple plugin for the whole process without any additional equipment. - High temperature resistance, material does not melt or flow well cold elastic, long service life. - Electron beam crosslinking compound UV and ozone resistant to hydrolysis. Specification: - Model: 1 to 2 - Rated current: 20A(4mm²)30A(6mm²) - Rated voltage: 1000V DC - Contact resistance: 500mΩ - Applicable single-core cable section: 2.5mm2, 4mm2, 6mm2 - Cable outer diameter: Φ5mmΦ7mm - Connector insulation material: PPO - Protection class: IP67 - Working temperature range: -40+105 - Model : 1 to 3 - Rated voltage: TUV1000V DC /UL 600V DC - Current: 20A~30A - Wire gauge: 2.5mm²~6mm² / 14AWG~10AWG - Terminal specification: φ4.0mm - High voltage: TUV6000V AC(1min) /UL 2200V DC(1min) - Security: II - Connector conductor material: copper, silver plated - Contact resistance: 5mΩ - Material: PPO - Protection class: IP68 (IEC 60529) - Temperature level: -40 degrees to +85 degrees - Flame retardant grade: UL94V-O - Model : 1 to 4 - Can be used in harsh environments - Create a sealed, dust-proof design - Strong pulling ability - Lower contact resistance - High current and high voltage load capacity - Double sealing ring, better waterproof effect - Has excellent anti-aging and anti-ultraviolet ability - Compatible with photovoltaic cables with different insulation diameters - Resistant to high and low temperature, fireproof - Quick and easy assembly handling and simple plug removal without any additional tools Package Included: 1*Pair Y-Branch Solar Panel Cable Connector (Optional) 1*Wrench Notes: 1. Due to various factors such as display brightness and light brightness, the actual color of the product may be slightly different from the website picture. 2. Please allow a slight deviation between the data and the manual measurement.
