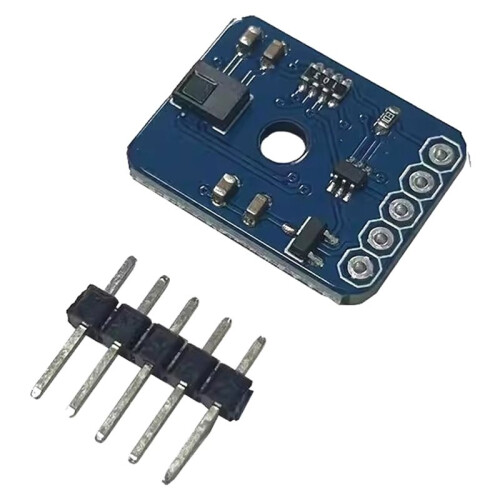

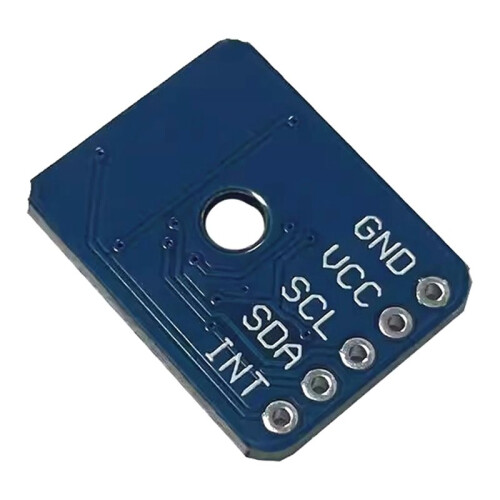

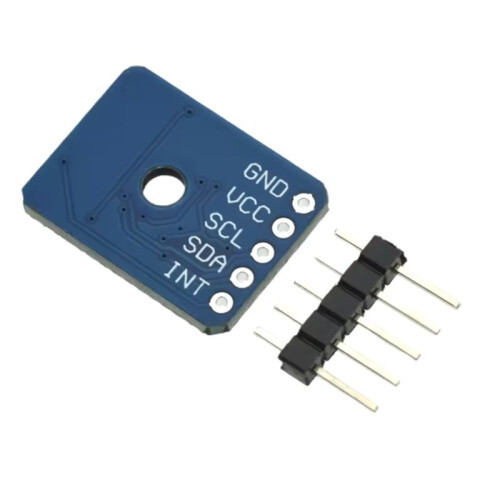

STHS34PF80 High Sensitive Infrared Human Body Sensing Module Static Human Body Sensing Field Motion Detection

STHS34PF80 High Sensitive Infrared Human Body Sensing Module Static Human Body Sensing Field Motion Detection Description

The STHS34PF80 high-sensitivity infrared sensor is an uncooled, factory-calibrated infrared sensor with a working wavelength range of 5μm to 20μm. The STHS34PF80 sensor is designed to accurately sense the absolute temperature of objects within its field of view.
This information is digitally processed by the ASIC and can be programmed to monitor movement, presence or overheating conditions.
High-sensitivity infrared field and motion sensors;Without using a lens, it can detect targets within 4 meters (RTrobot testonly1.2meters). Integrated silicon infrared filter;Be capable of detecting stationary targets;
Be capable of distinguishing between stationary and moving targets;80º field of view;After factory calibration;Low power consumption;I2C interface;Working voltage: 3.3V-5V;
Embedded intelligent algorithms can achieve presence/motion detection;Embedded temperature sensors should be evaluated and compared based specific application requirements;
Color:
Material: Metal+Plastic

Package Contents:
1*STHS34PF80 sensing module
