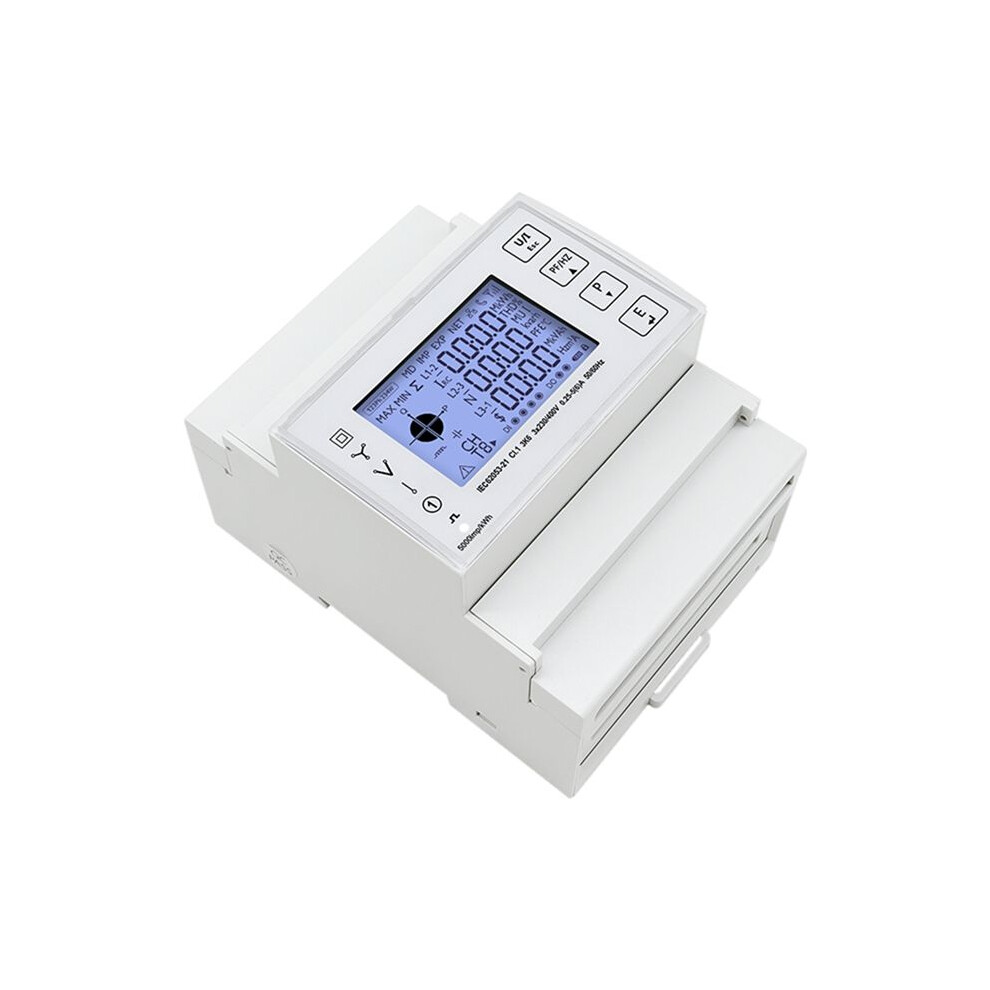

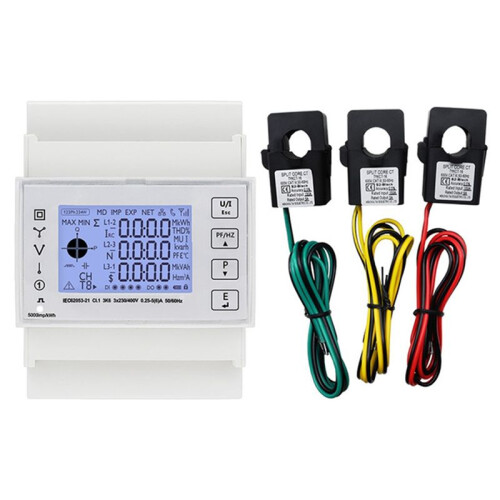

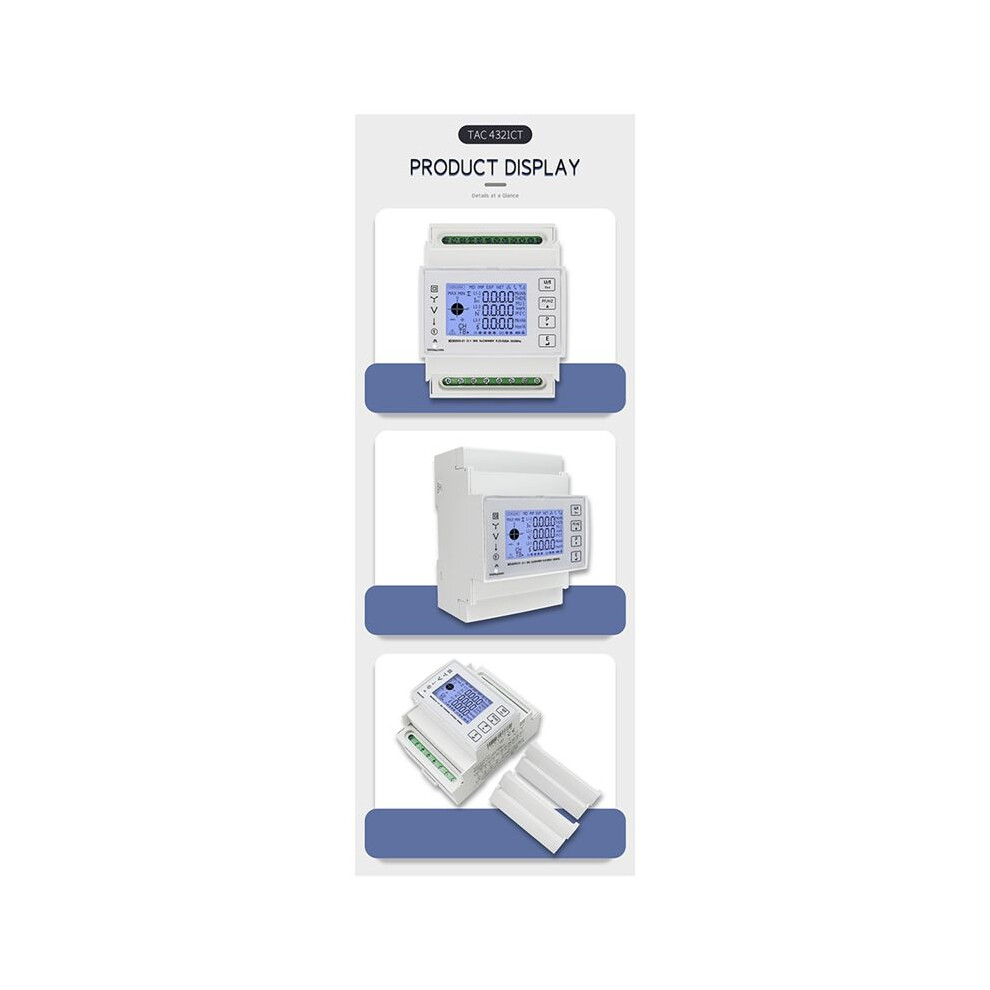

TAC4321CT Three Phase Din Rail WiFi Tuya Mutil-Function Meter with KCT16 Current Transformer 230/400VAC

TAC4321CT Three Phase Din Rail WiFi Tuya Mutil-Function Meter with KCT16 Current Transformer 230/400VAC Description

External current of output types such as 5A/1A are supported. With the current transformer reverse connection correction function.Support external voltage transformer access, input voltage minimum support 30V.

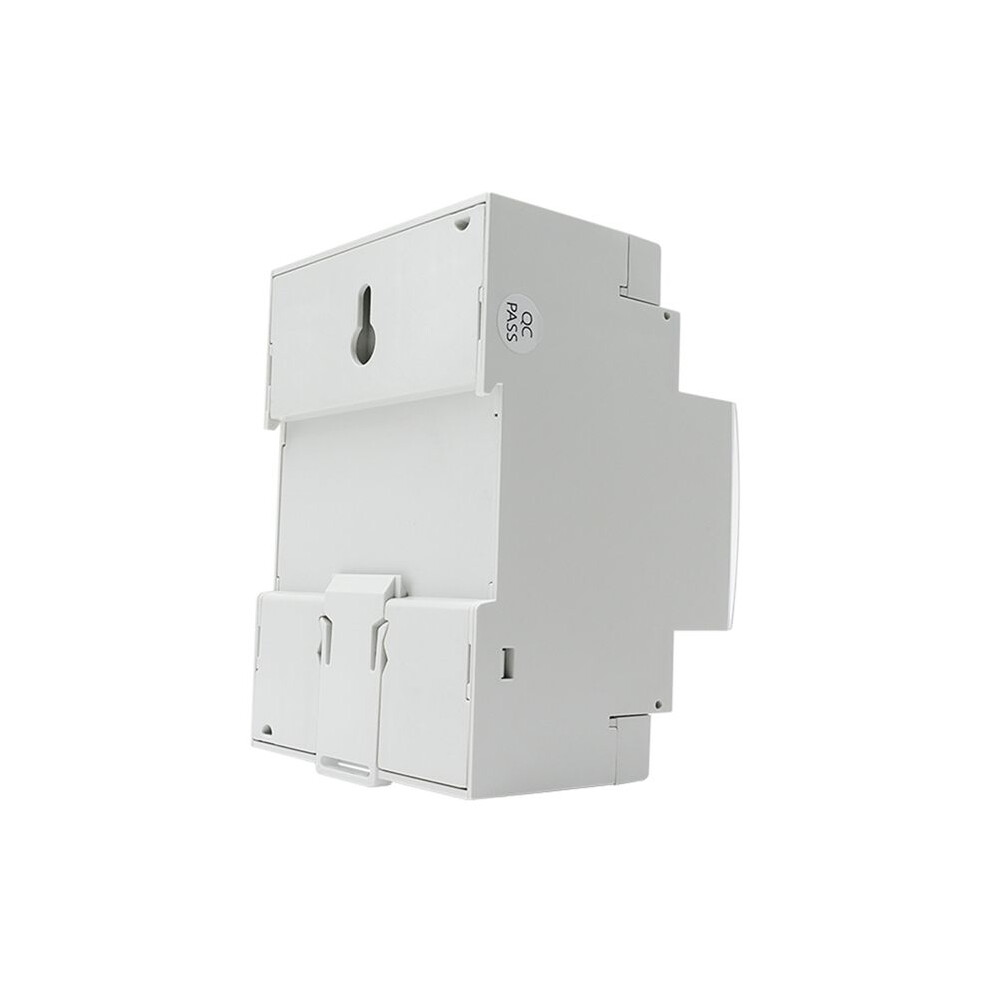

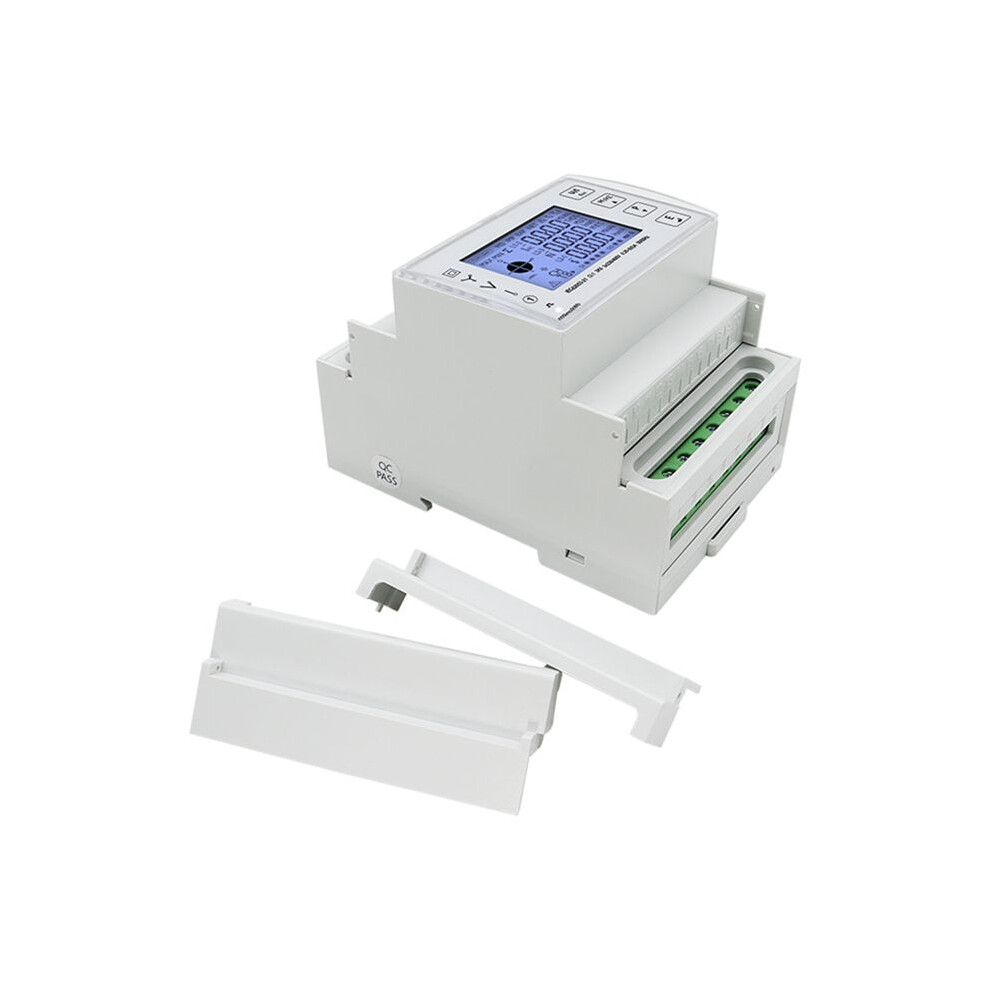

DIN Rail mounting, standard 4 modulus width.Touch button design improves button operability and reduces button failure rate

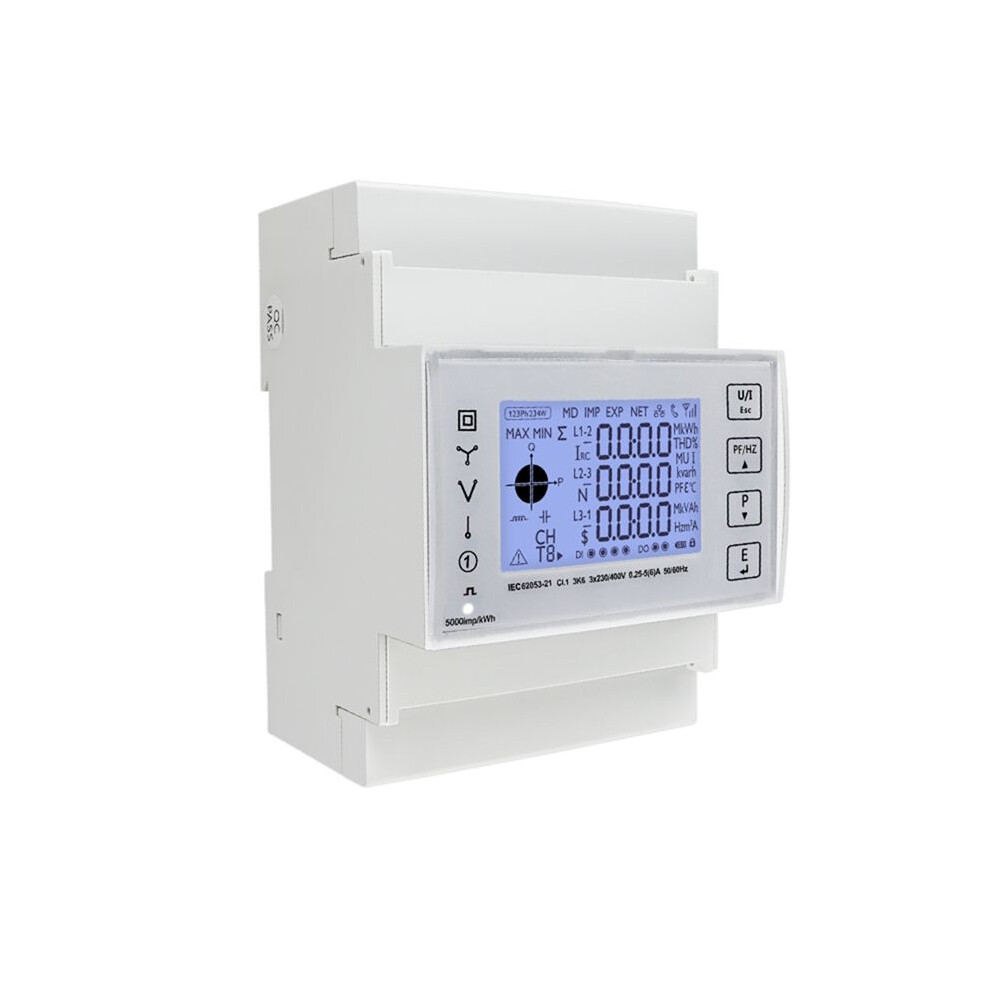

Multi-function parameter measurement, providing voltage, current, active power, reactive power, apparent power, power factor, phase Angle, etc.
To provide the analytical data of the total harmonic contents of voltages and currents,Provide a variety of statistical data and local storage functions, such as two-way power, demand and other statistical data. Provide monthly electricity consumption statistics for the last 12 months and daily electricity consumption statistics for the last 31 days
Supports the dual-timing function of the meter startup running and load running .Support RS485 communication function, baud rate to 38400bps, support Modbus RTU, Mbus(Option) protocol.

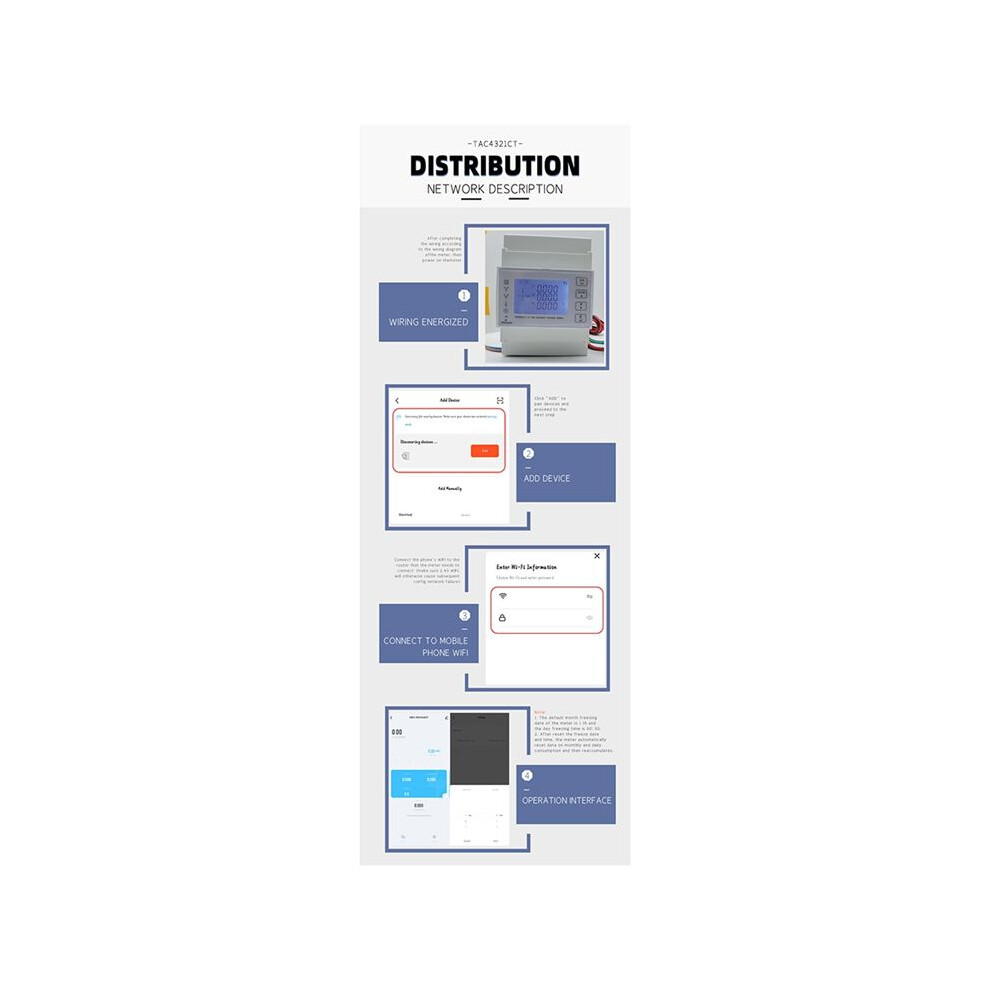

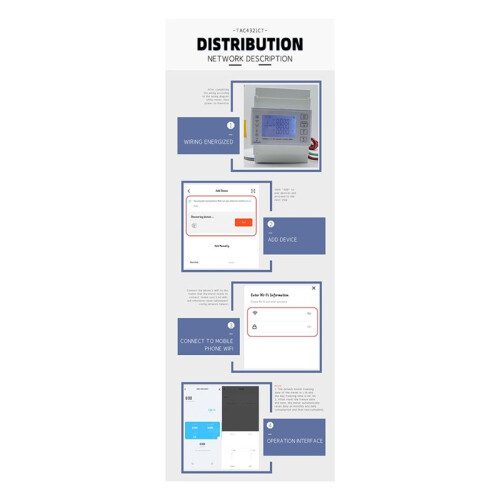

Support WIFI wireless communication.
Supports one optocoupler pulse output interface, and output parameters can be set.
Rate Voltage: 230 Vac (L-N) / 400 Vac (L-L)
Frequency: 45-65HZ
Measured Voltage Range: 30 to 300 Vac (L-N), 30 to 500 Vac (L-L)
Maximum current of the instrument itself: 5A (transformer 100A )
Buad Rate: default is 9600 bps

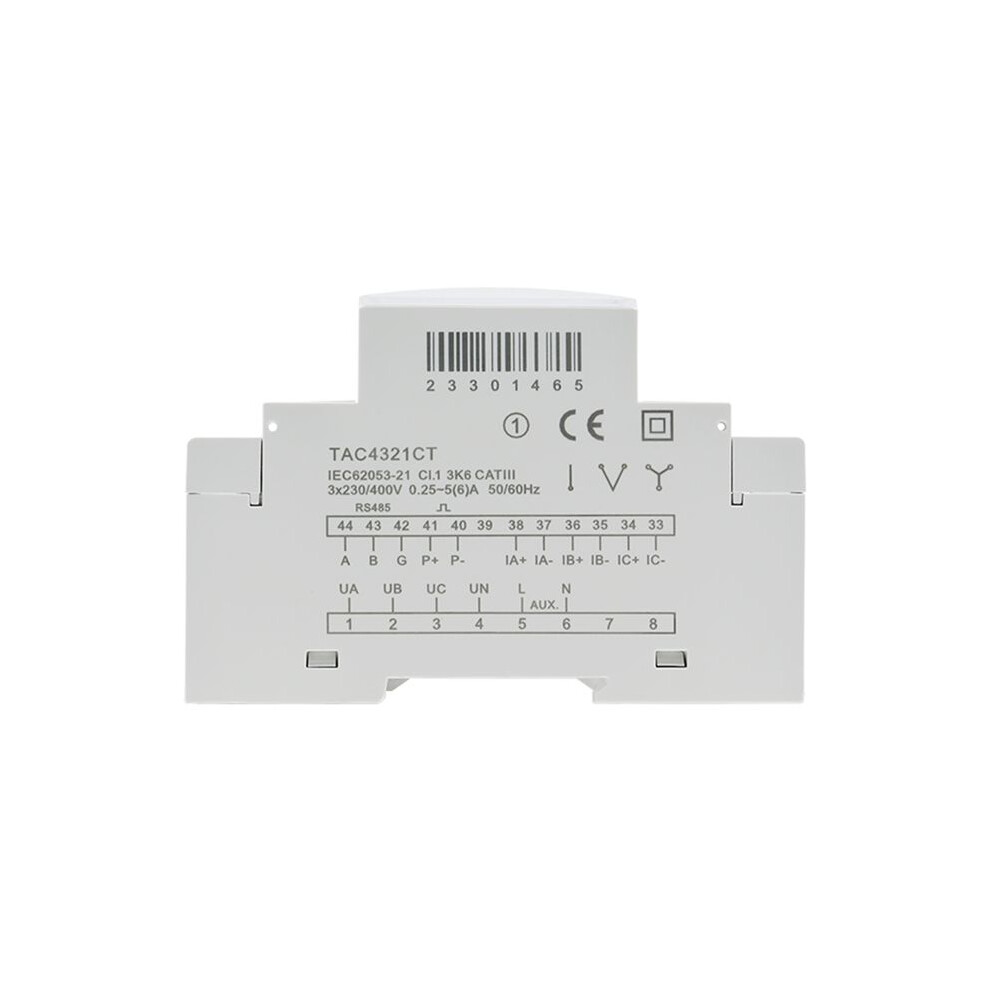

Interfaces standard and protocols: 2-wire RS485, Modbus RTU
Due to different product batches, the appearance may vary, which does not affect the use
Colour:As Shown
Material:plastic
Size:72x100x66mm(WxHxD)

Package Contents:
1 x Meter
3PCS x KCT16 Current Transformer
