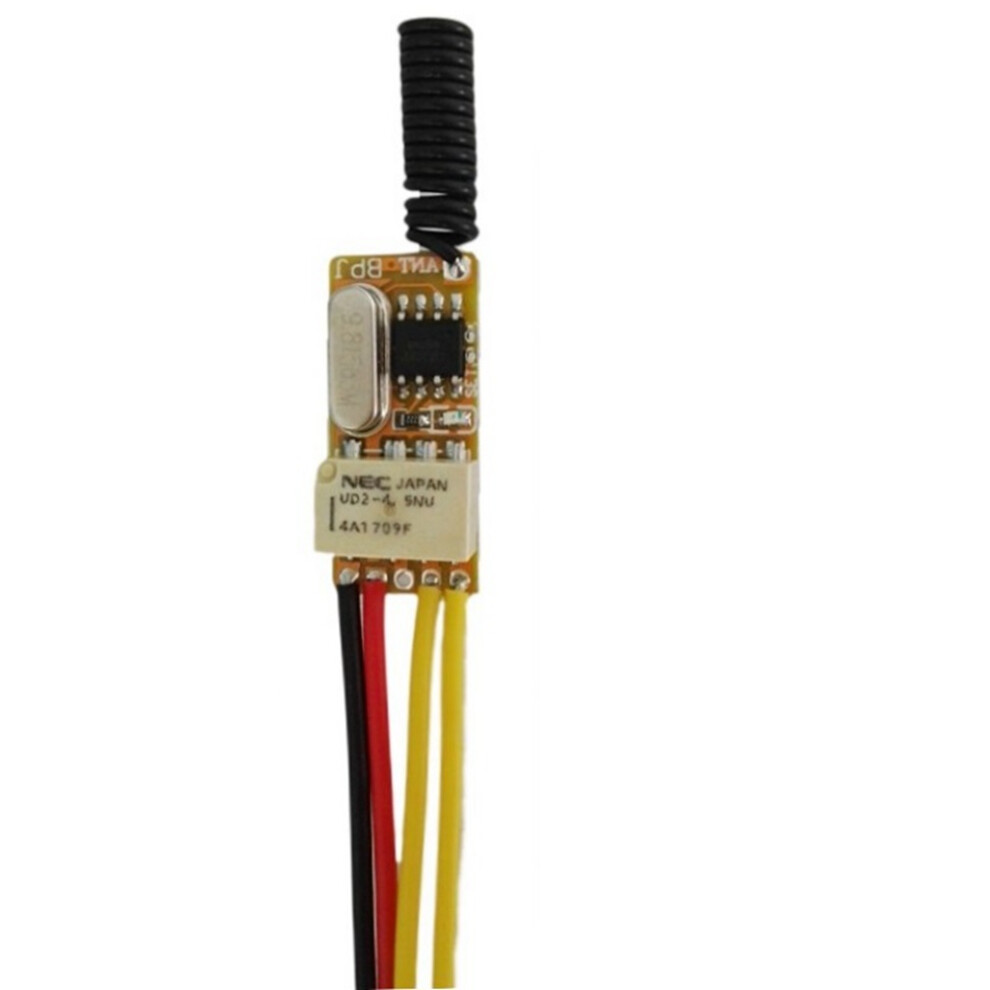

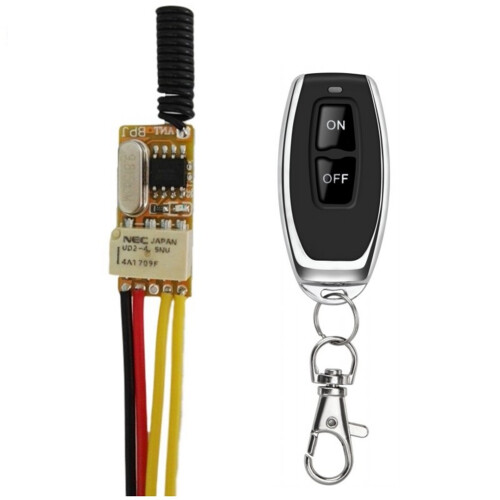

Tiny RF Remote Switch 433MHZ 4.2V 4.5V 5V 6V 7.4V 9V 12V Small Relay

Tiny RF Remote Switch 433MHZ 4.2V 4.5V 5V 6V 7.4V 9V 12V Small Relay Description

Working Voltage: DC3.5V-DC12V (Wide Range Working Voltage DC3.7V 4.5V 5V 6V 9V 12V all is ok) (it can work with DC Power / Rechargeable lithium battery / Rechargeable Pal)
Max Load: 1A (have better Load less than 700ma)
Quiescent Current: 5ma
Relay Working Current: 20-30ma

Size: 25 x 11 x 8mm
Working frequency: 433MHZ
Working mode: jog, self-locking, interlocking, welding spot switching
Working Mode: Momentary Toggle Optional by leaving massage
Encoding Type: Learning Dot to add Transmitter
Normally Open Port (NO) Common Port (COM) Normally Close Port (NC)
Input DC3.5V-DC12V Output 0V Switching Value use Relay NO COM NC
Momentary----- and Hold---ON, Release----OFF
Toggle------- one time ----ON. it again ----OFF
Latched-------- A ----ON, B-----OFF
Material: PCB+plastic
colour: as shown

Package Contents:
1 x Receiver

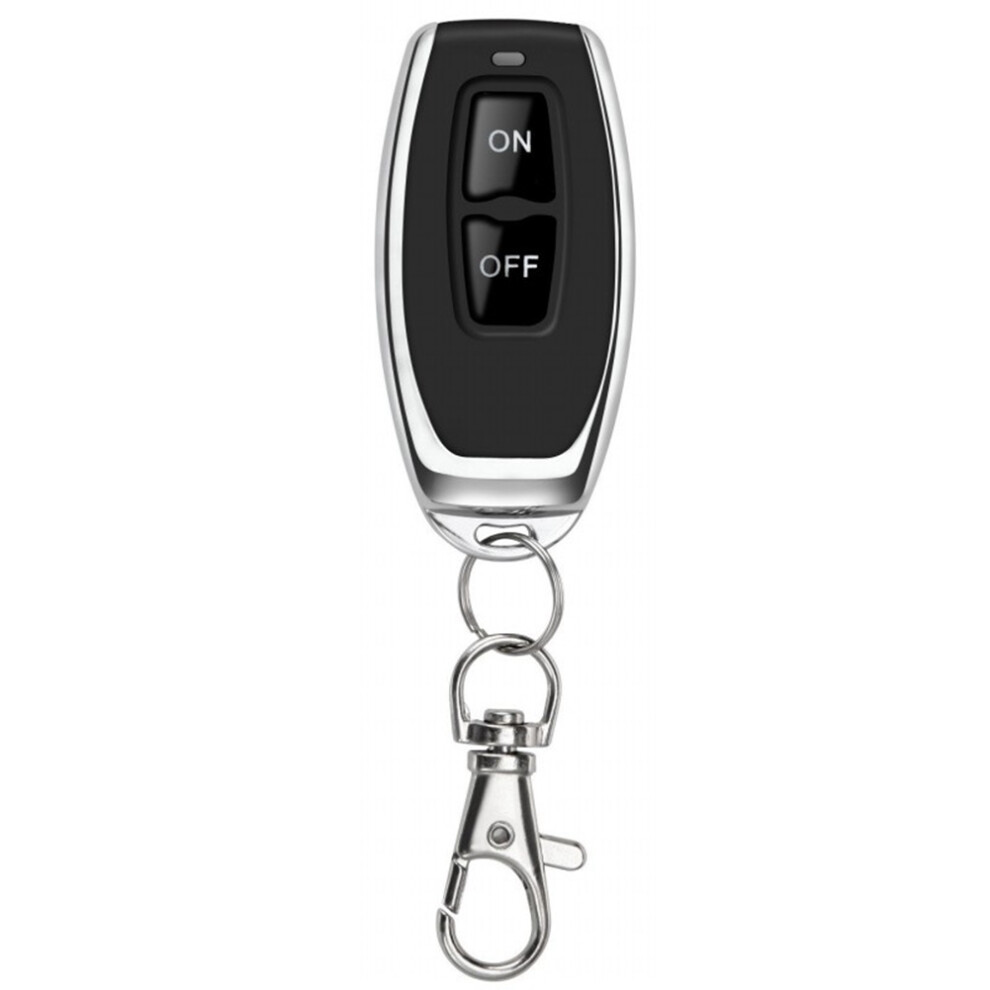

1 x Remote(2 CR2016 button batteries not included)

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
