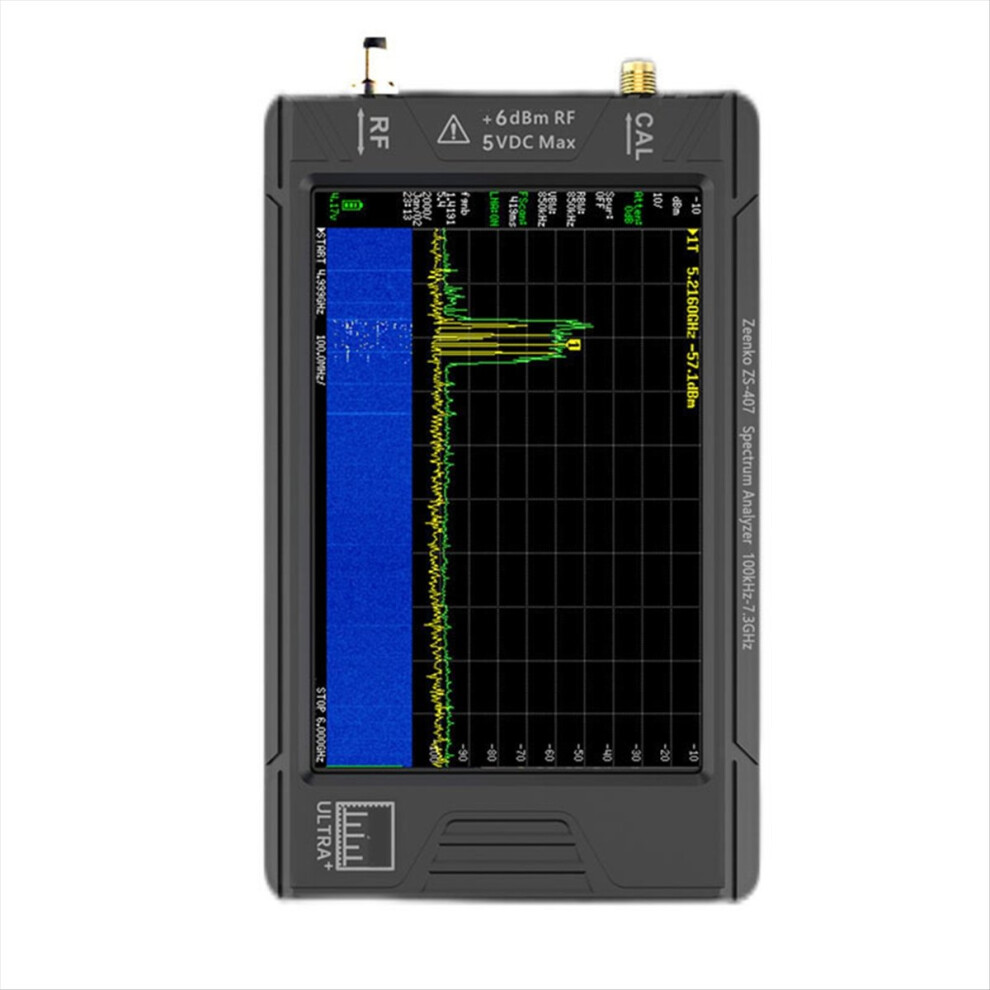

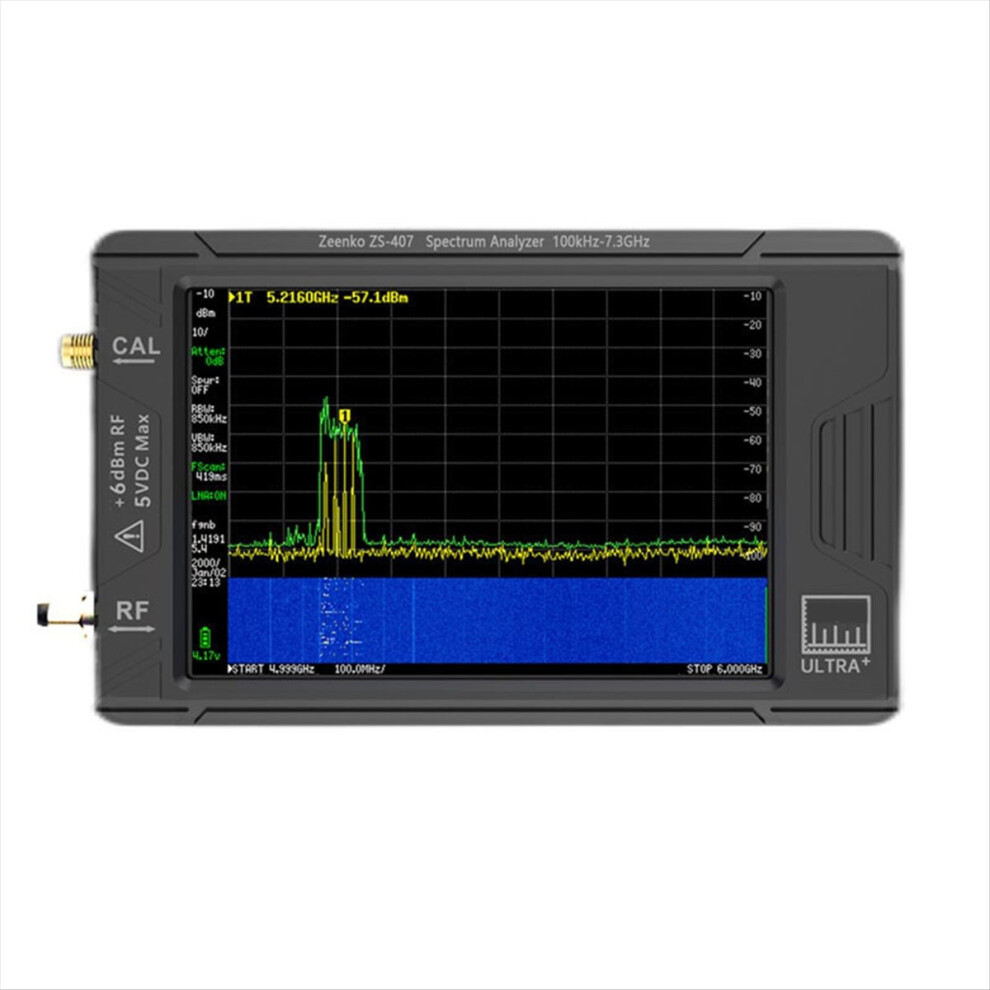

TinySA ULTRA Plus New 7.3GHz ZS407 Handheld Tiny Spectrum Analyzer

TinySA ULTRA Plus New 7.3GHz ZS407 Handheld Tiny Spectrum Analyzer Description

Now tinySA ULTRA has been upgraded to tinySA ULTRA Plus, the normal mode has been increased to 900MHz, and the sensitivity of ULTRA mode has been improved.
The ZS406 version is used to replace the old tinySA ULTRA, the ULTRA mode has been increased to 5.4GHz, and the dynamics of frequencies above 3GHz have been improved.
The ZS407 version is up to 7.3GHz, the LNA is effective in the full frequency band, and the high sensitivity covers all NR-FR1 bands. Since the LNA of ZS407 is an ultra-wideband LNA, in order to obtain flat gain in a wider frequency range, the noise figure is 2-3DB worse than that of ZS406 when it is below 20MHz. Please refer to the description of DANL below to reasonably choose a suitable model.
The LNA of ZS407 is still effective above 7.3GHz, up to 14GHz, but due to the use of harmonic mixing above 7.3GHz, we cannot guarantee the reliability. If you need to use it beyond 7.3GHz, please evaluate it yourself.

Specifications
Hign-concerned Chemical: None
DIY Supplies: ELECTRICAL
Covered frequency: 100k-7.3GHz (MHz)
Application scope: spectrum analysis, signal measurement
(The product appearance and printed words may vary depending on the batch, but this does not affect use)
Colour: As Shown
Material: Metal

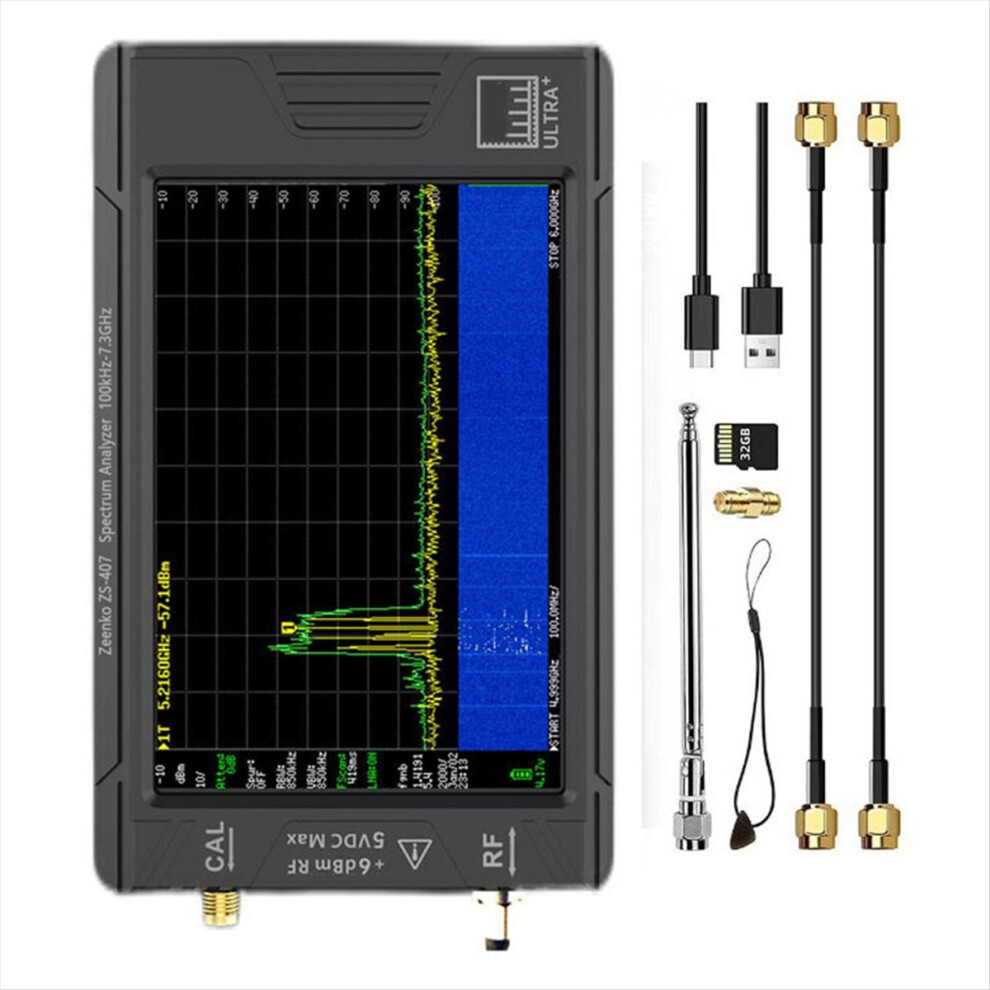

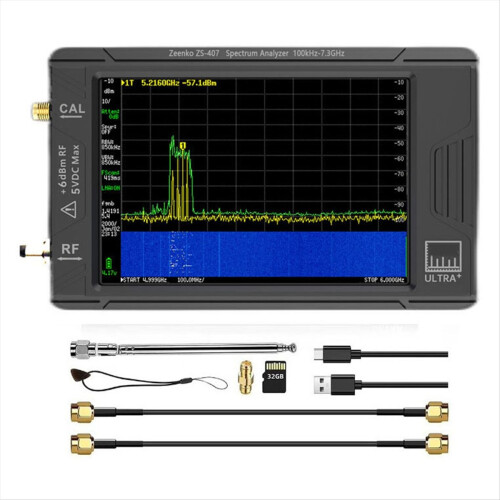

Package Contents:
1set x spectrum analyzer with accessories

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
