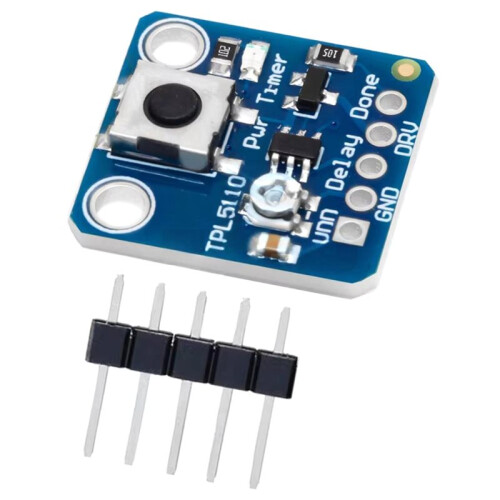

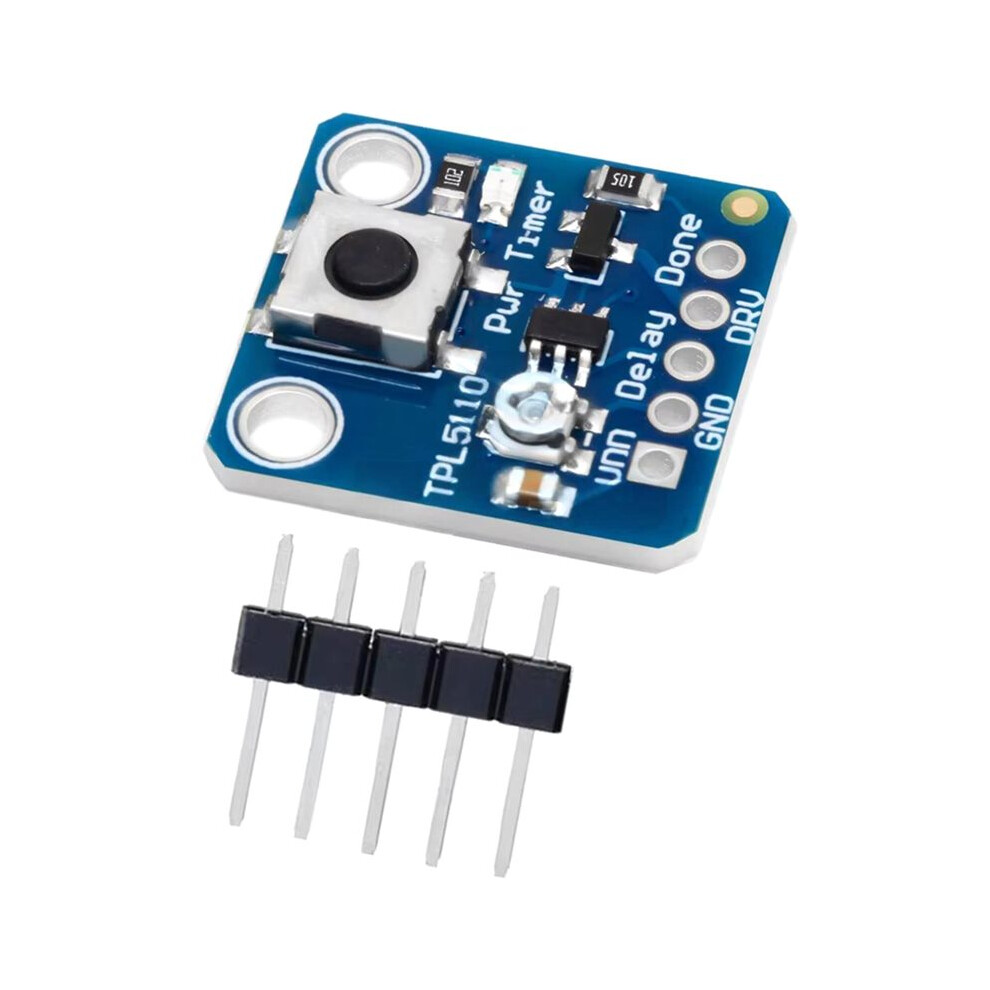

TPL5110 Low Power Timer Breakout Module Development Board Tool 20uA Electronic Timer Module Evaluate Development Board

TPL5110 Low Power Timer Breakout Module Development Board Tool 20uA Electronic Timer Module Evaluate Development Board Description

The TPL5110 Power Timer is a stand-alone breakout that will turn any electronics into low-power electronics! It will take care of turning your project /off using a built in timer that can vary from once every 100ms to once every two hours.
Basically, the TPL will turn periodically, adjustable by potentiometer or resistor, and turn your project's power. It will then wait until a signal is received from the project to tell the TPL that it can safely turn off the power. If the TPL does not receive a signal by the set -out, it will reset the device like a watchdog timer.
Usage is easy. First, set your desired delay by adjusting the -board trim pot: nearly-all-the-way-to-the-left is "once per 100ms" and all-the-way-to-the-right is "once every 2 hours". Then, connect VDD to your 3-5V power supply and then your project's power-in to the Drive pin.
Finally, select a signal pin from your project to the Done pin. In your project's code or design, just make sure that it sets the Done pin high once it is completed with its task.
While the TPL5110 is running (but the remainder of the project is de-powered) the current draw is about 20uA (according to our Monsoon Power Meter).

Color:
Material: plastic

Package Contents:
1*TPL5110 Development Board
