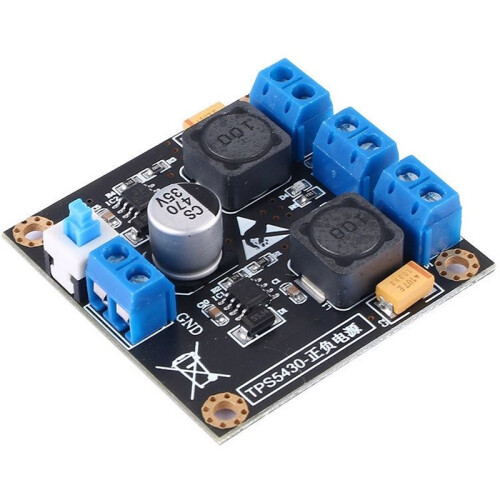

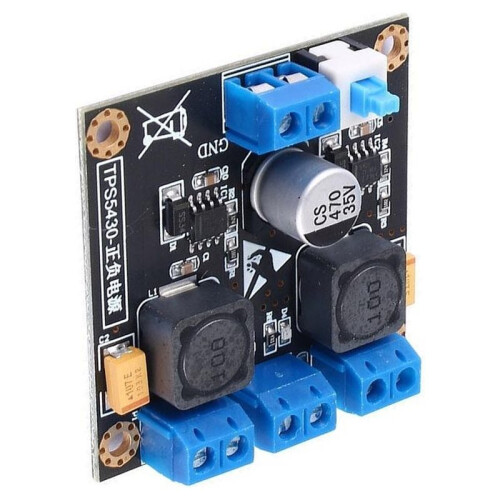

TPS5430 Power Supply Module Positive and Negative Dual Power Supply 12V Output Voltage Stabilization Power Board

TPS5430 Power Supply Module Positive and Negative Dual Power Supply 12V Output Voltage Stabilization Power Board Description

TPS5430 power module is a high current output: 3A ( 4A), wide voltage input range: 5-28v power module.
The optimal theoretical conversion rate can reach 95%.
The TPS5430 module has a positive and negative power output, and the actual measured efficiency is approximately 88%. The negative pressure conversion rate is lower than the positive pressure.

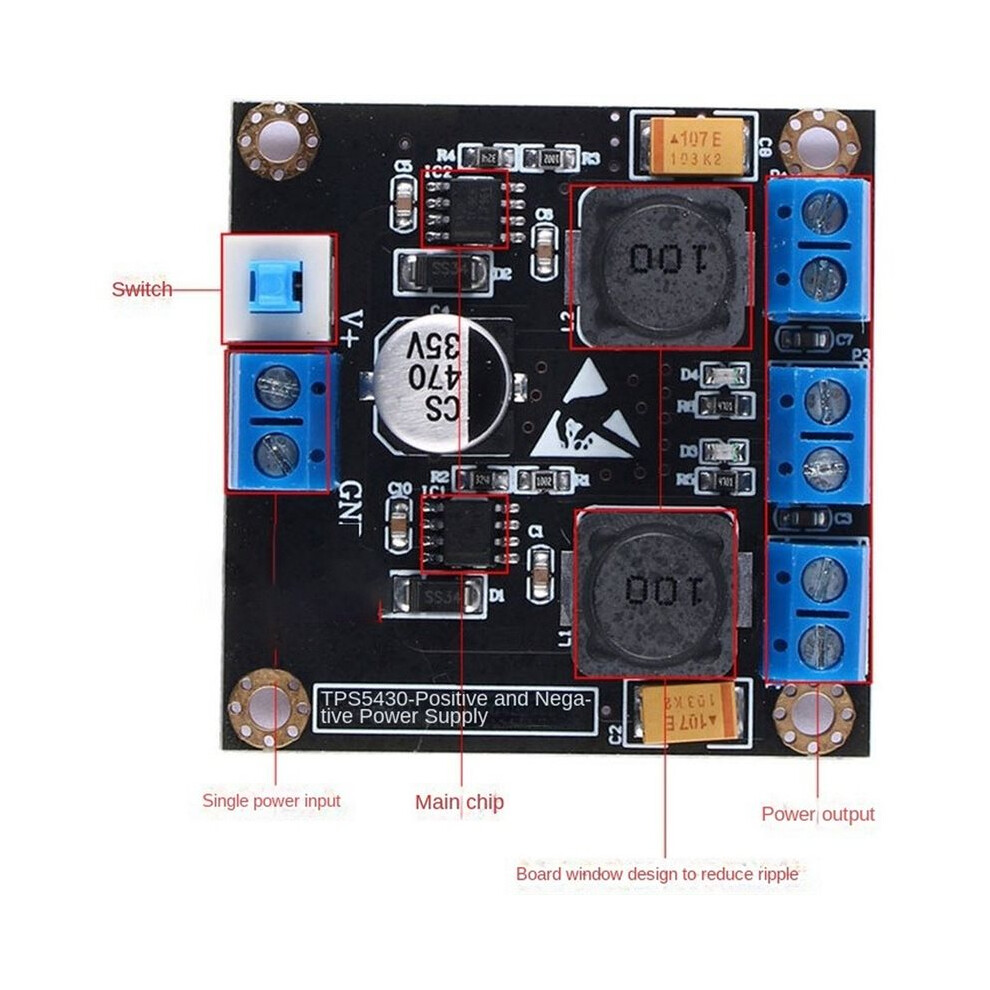

The layout is regular, the layout and wiring are strictly in accordance with the design specifications of the power circuit, the material is generous, the ripple is small, and the positive and negative power output is convenient and practical.
Features include overcurrent protection, thermal shutdown, and an enable pin. In the disabled state, the quiescent current is only 17µA. It also incorporates a soft-start function. Compared to other similar - switching regulator chips, the TPS5430D stands out for its superior conversion efficiency.

Module type: Switching power supply
Input voltage: 5-28V
Output voltage: 12V
Output current: 3A (MAX);
continuous high-current operation is not recommended;
negative rail: 2.5A (MAX)
Color: Black
Material: PCB

Package Contents:
1 * TPS5430 Power Supply Module

Only the above package content, other products are not included.
