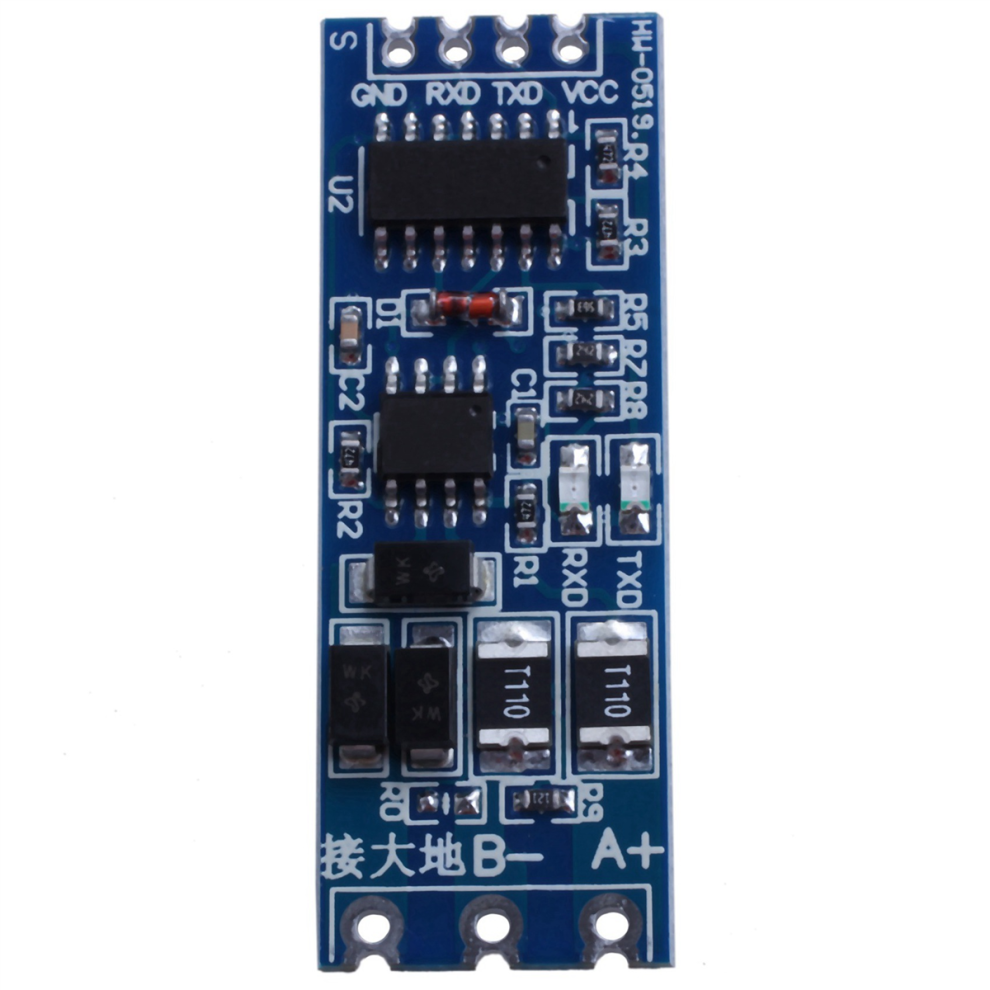

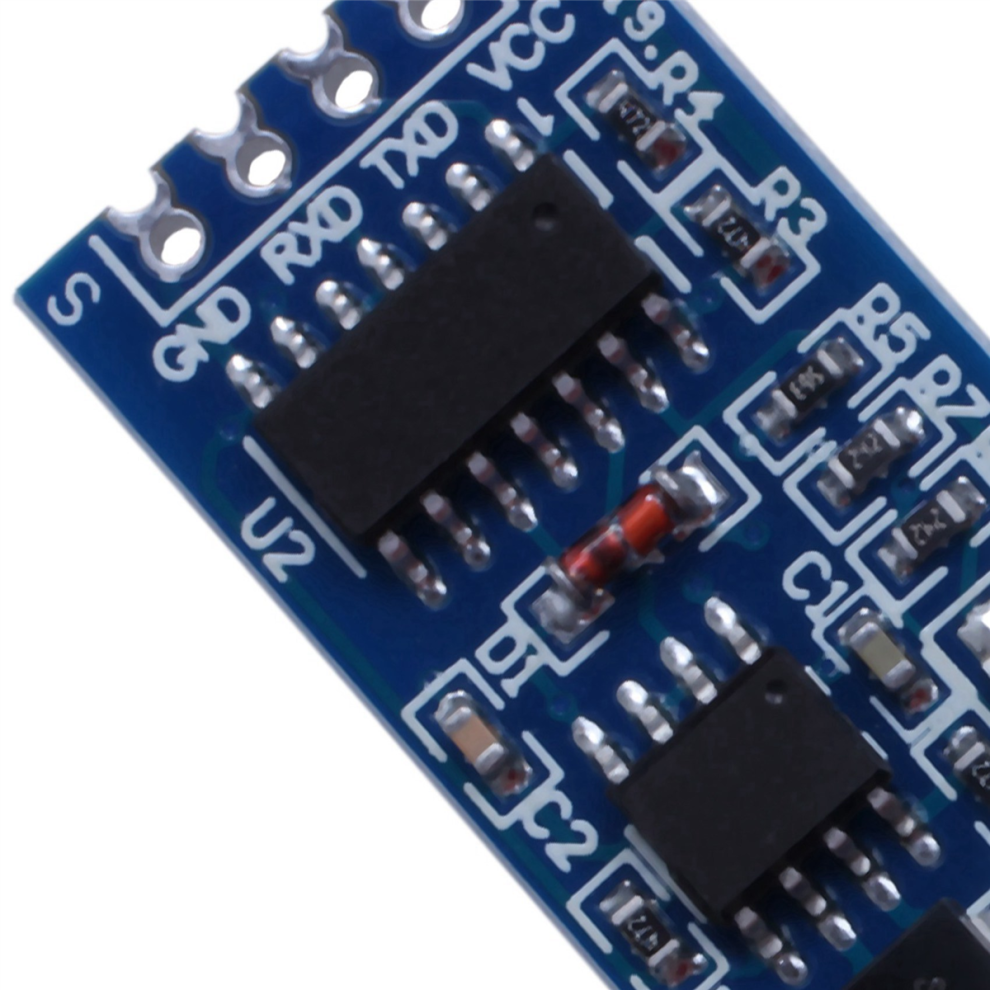

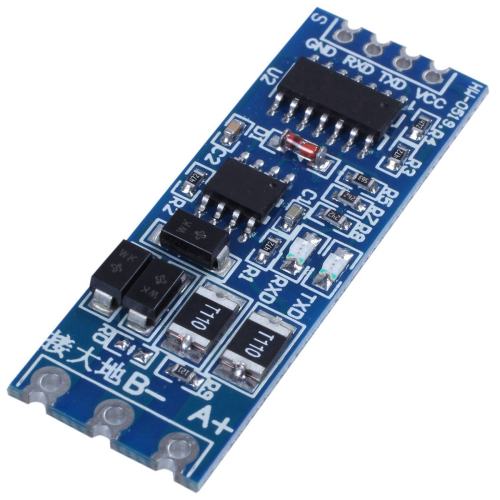

TTL To RS485 Adapter 485 Serial Port UART Converter Module 3.3V 5V

TTL To RS485 Adapter 485 Serial Port UART Converter Module 3.3V 5V Description

Single chip microcomputer ,TTL turn RS485 module, 485 turn UART serial port, Level transfers, Hardware automatic flow control
Only one in the whole network, 3.3V and 5.0V power supply, RS485 signal perfectly compatible with automatic flow control module.

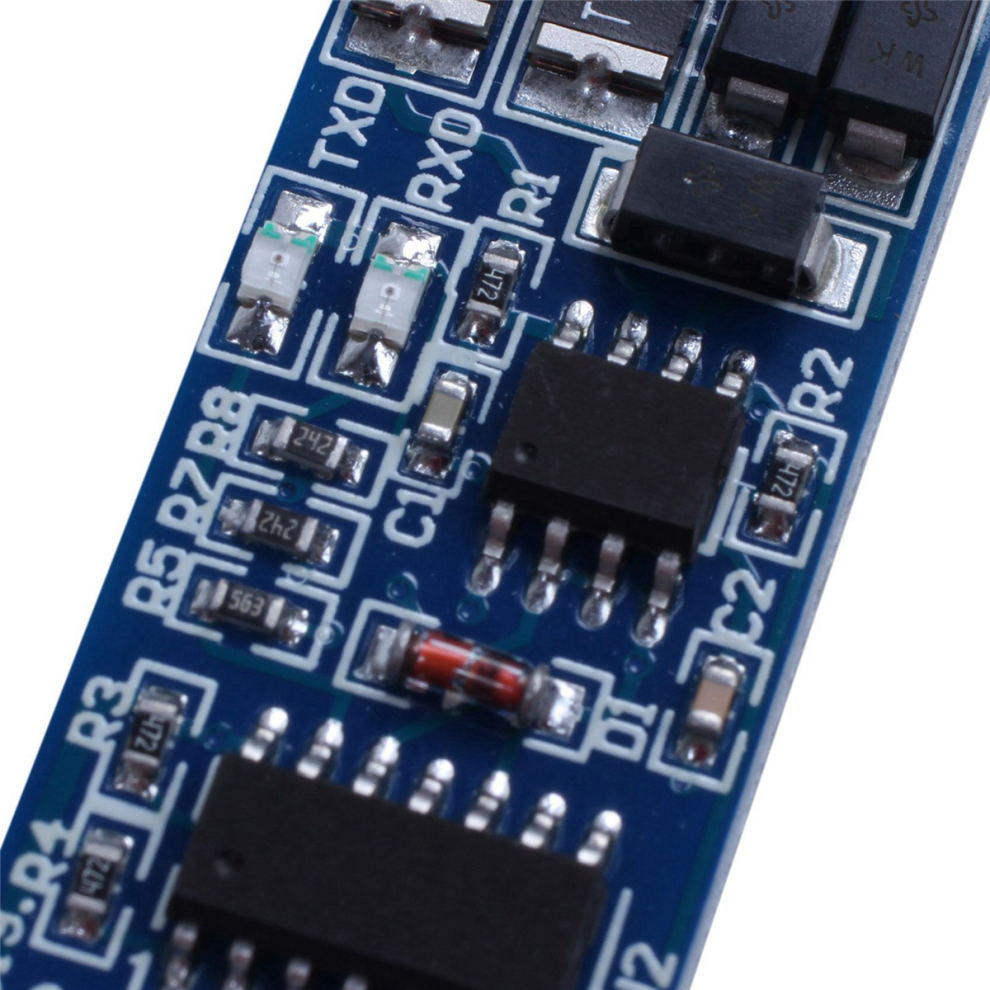

Has RXD, TXD signal indicator light, monitor send and receive status
Using the standard 2.54 pitch design, easy secondary development.
Colour:blue

Material: metal
Operating Temperature: -40 Degrees Celsius ~ + 85 Degrees Celsius.
Size: 42.8mm x 15.22mm x 0.8mm.
Absolute adopts chip, industrial design, strong anti-interference ability, at the same time more effective -protection design, 485 can be used in industrial field and field under the harsh environment. (Using 850 meters with 2 x 1.5 cable to do the test, it is recommended to be used within the 800 meters, more than 800 m, please add extra repeaters).

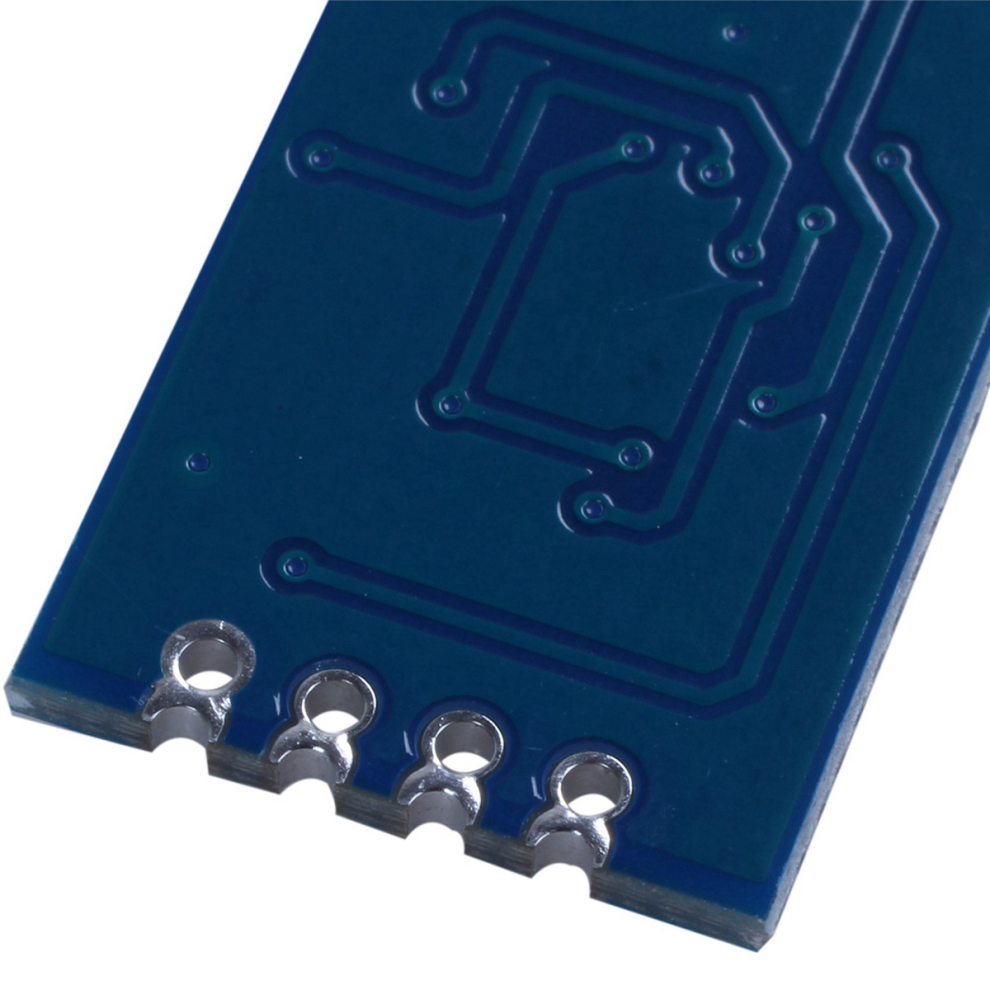

Use half hole process design, thickness of 0.8 mm, can be used easily as a child motherboard, also can be used welding terminals.
With 120 European match resistance, can make short sub R0 can match resistance, proposed the short answer the long distance transport.
Support multiple machine communications, allowed to take in up to 128 devices on the bus.
This module can be hot plug, there be no other 485 chip hotplug phenomenon of signal switch to death.
Large area laying copper, preventing signal interference.

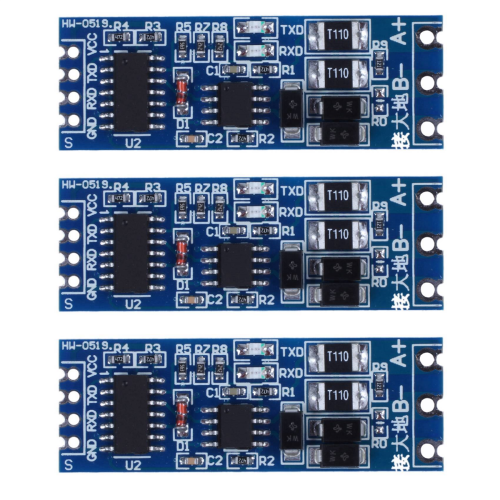

Package Content: 3 x TTL To RS485 Adapter

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
