Universal 4 Wire Full Wave Black Motorcycle Regulator Rectifier 12V DC Bike Quad

Universal 4 Wire Full Wave Black Motorcycle Regulator Rectifier 12V DC Bike Quad Description

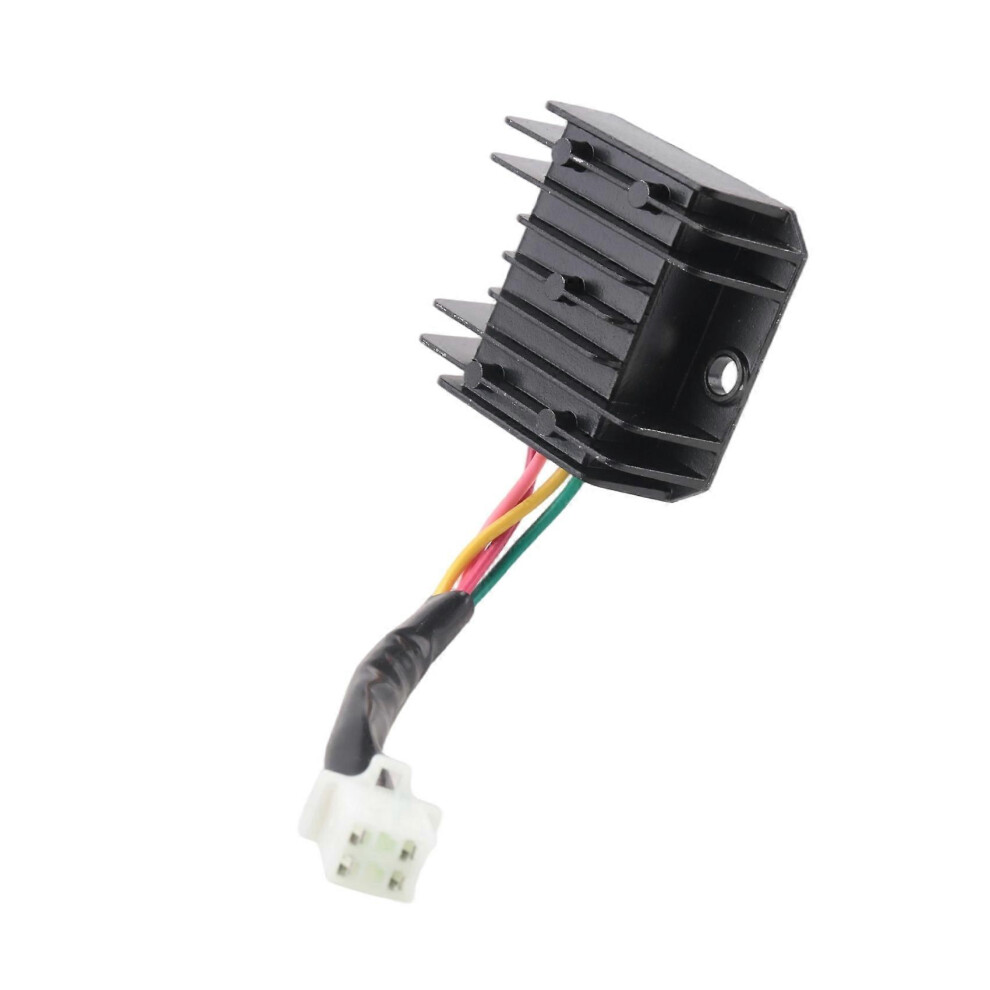

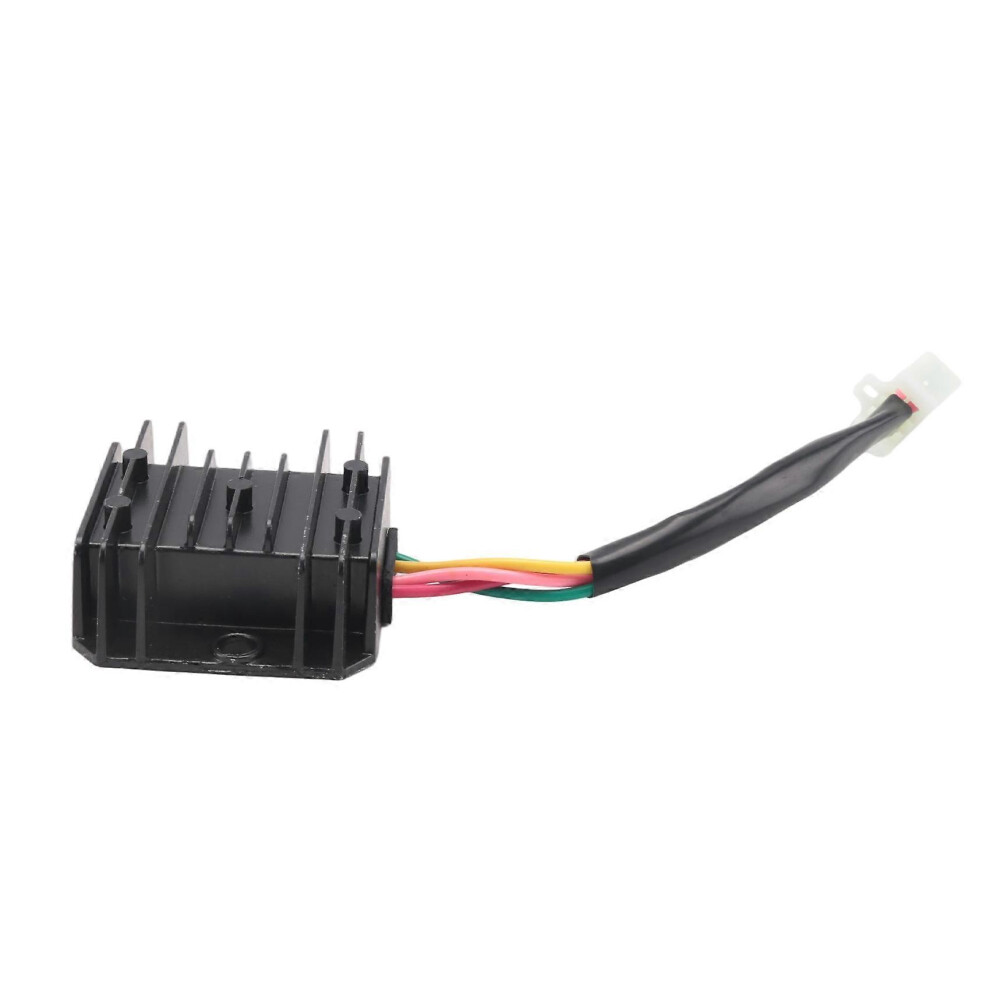

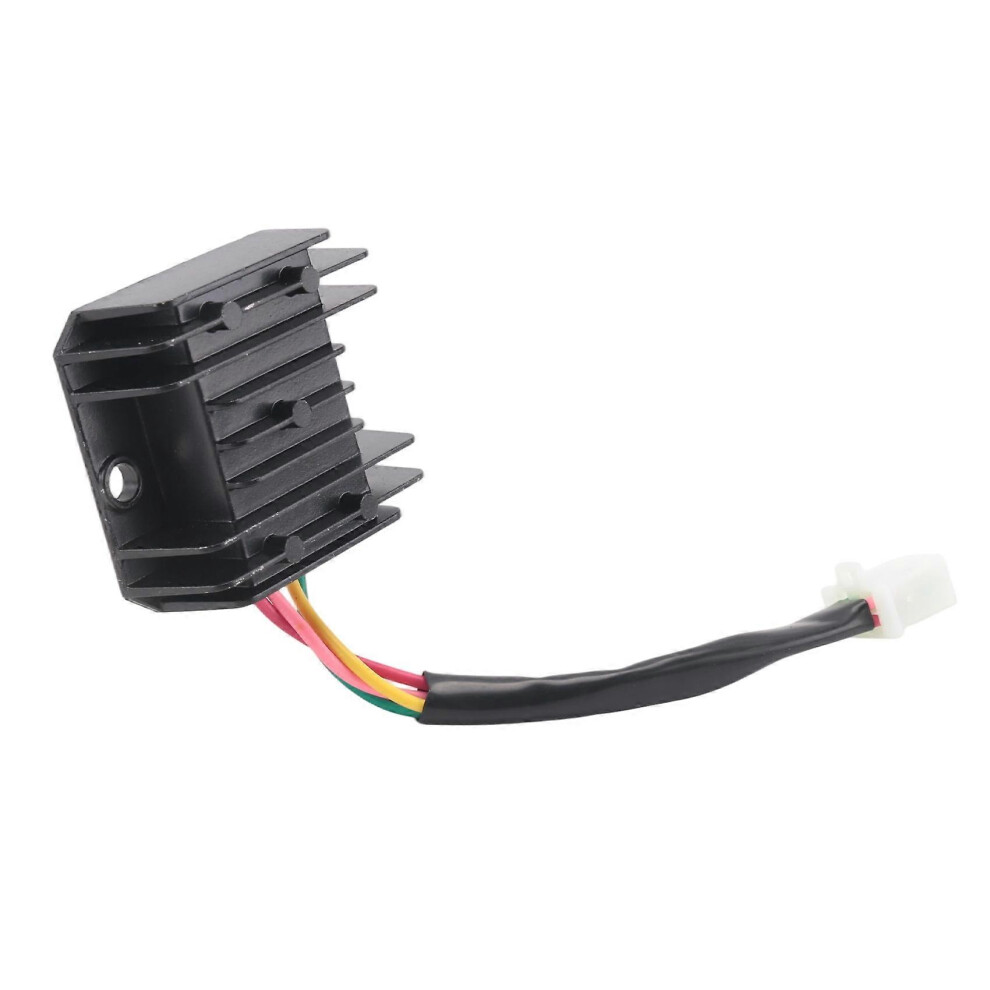

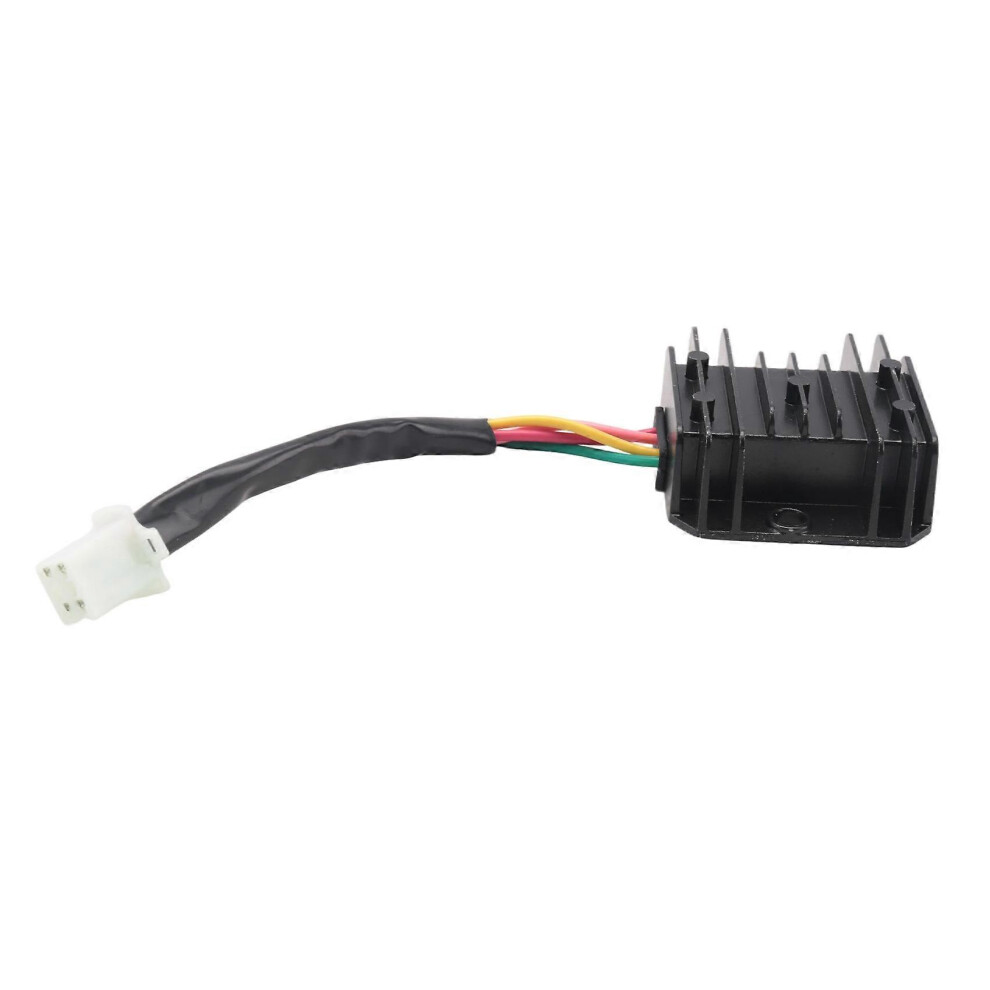

Black or Grey 4 Wire, 2 phase full wave rectifier and 12V DC voltage regulator. Suitable for most motorbikes, scooters and quads and even complete classic bike conversions. Works with kick or electric start engines. If you've only got a kick start you can even throw out your battery and run your electrics solely from this combined unit.

Motorcycle regulator rectifiers convert the fluctuating alternator current into 12Volts DC. Allowing you to run your electrics and charge your battery, all in one unit! Swap out your old unit or even convert an old two-part system. With just 4 wires, you can finally simplify your bikes electrics.

Suitable for any motorcycle with two live output wires from the alternator. The integrated full wave rectifier on each AC input makes this unit Perfect for two phase systems and even single phase systems! Simply connect up your two coil wires then connect up your battery, and you're done!

Wiring your bikes charging circuit has never been so easy! The heat sink on these units is electrically isolated from the internal circuitry, making this 4 Wire regulator rectifier also Perfect for positive earth set ups. Most manufacturers have adopted subtle variations of Honda's standard wiring colours from the classic motorcycles of the 1970's.

Here's a quick fundamental break down of the most commonly used wire colours and what they mean. Of course not all manufacturers use the same wire colours, especially in their wiring looms. So it's always best to check your bikes wiring manual or talking to your local auto-electrician before diving straight in. However, the majority of aftermarket wired regulator rectifiers have adopted these same wire colours.

2 Phase 4 Wire Full Wave Regulator Rectifier Specifications

Type: 12V DC 4 wire Regulator Rectifier

No. of AC Input Phases: 2

Rectification: Full Wave

Connector Type: 4 way 6.3mm Motorcycle Connector

Max watt - 110 watt

Charging output current 0-4A

4 Wire Full Wave Regulator Rectifier is Suitable for...
