Universal Wireless Remote Control Switch DC12V 4CH Relay Module

Universal Wireless Remote Control Switch DC12V 4CH Relay Module Description

Universal Wireless Remote Control Switch DC12V 4CH Relay Module
1. Working Voltage:DC12V
2. Quiescent Current:5mA
3. Working Frequency:433Mhz
4. Receiving Sensitivity:-104dBm
5. Function option:Momentary/Toggle/Latched
6. Modulation Mode:ASK
7. Matching Mode: Intelligent Learning code
8. Output Mode:Dry contact /Voltage output
9. Shell:Yes
10. Working temperature : -30~+80
11. PCB dimension:68.2x48.2(mm)
+V - Positive pole input
GND - Negative pole input
1 -KC1 Normal Closed of relay (NC)
2 -KC1 Common of relay (COM)
3 -KC1 Normal Open of relay (NO)
4 -KC3 Normal Closed of relay (NC)
5 -KC3 Common of relay (COM)
6 -KC3 Normal Open of relay (NO)
7 -KC2 Normal Closed of relay (NC)
8 -KC2 Common of relay (COM)
9 -KC2 Normal Open of relay (NO)
10 -KC4 Normal Closed of relay (NC)
11 -KC4 Common of relay (COM)
12 -KC4 Normal Open of relay (NO)
color: As shown
Material: PCB
Package Contents:

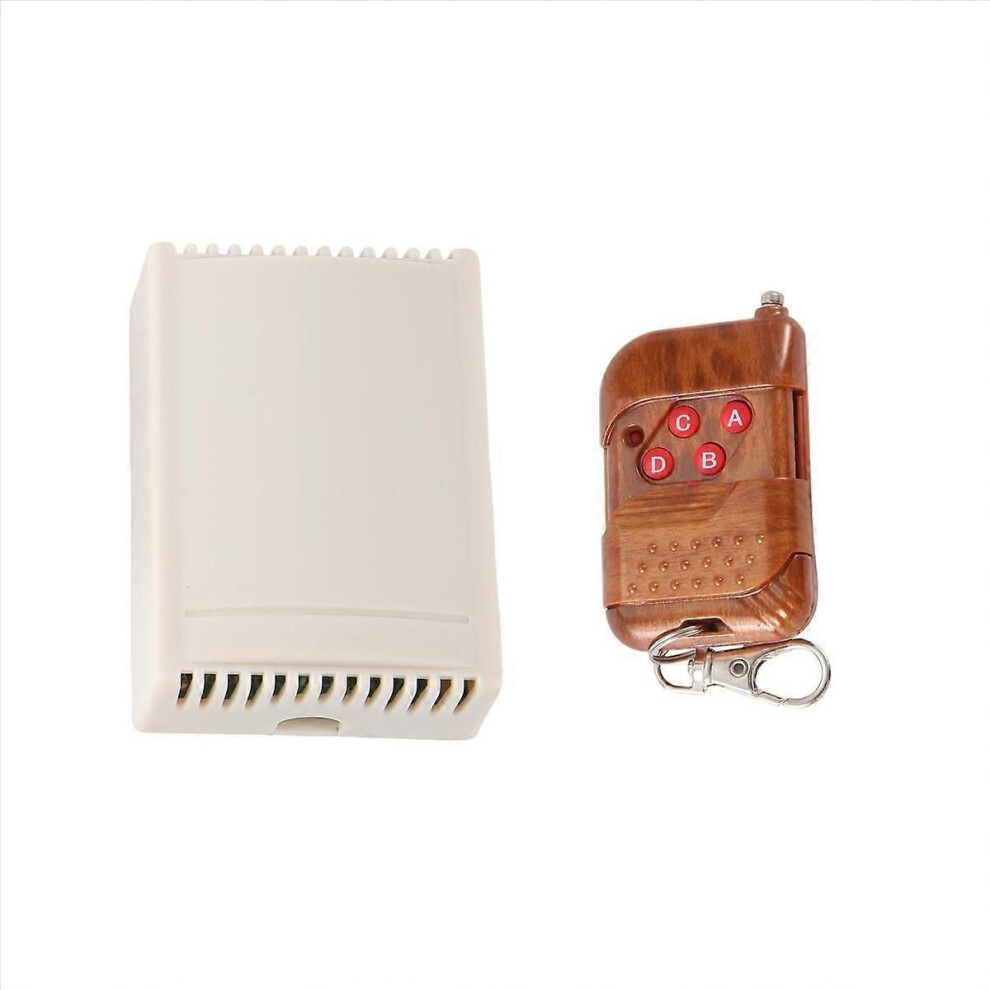

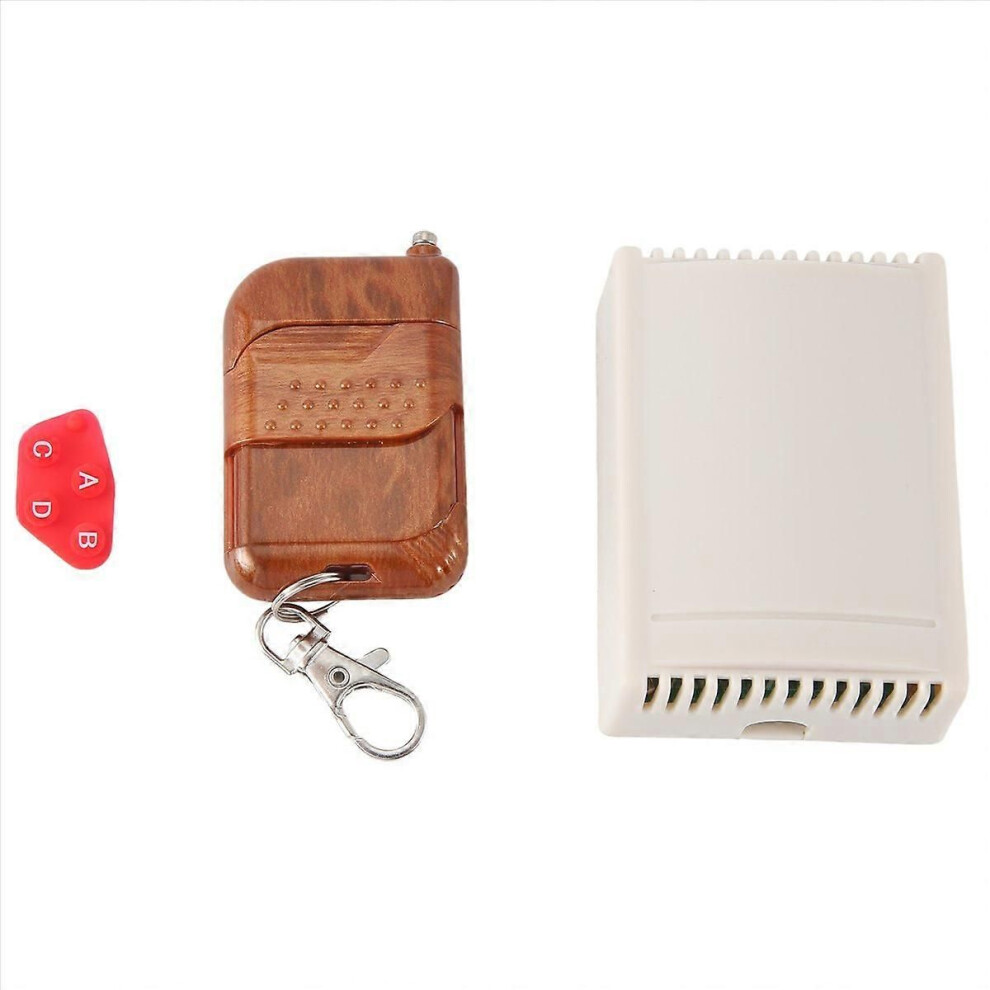

1*Receiver module ( include Shell )

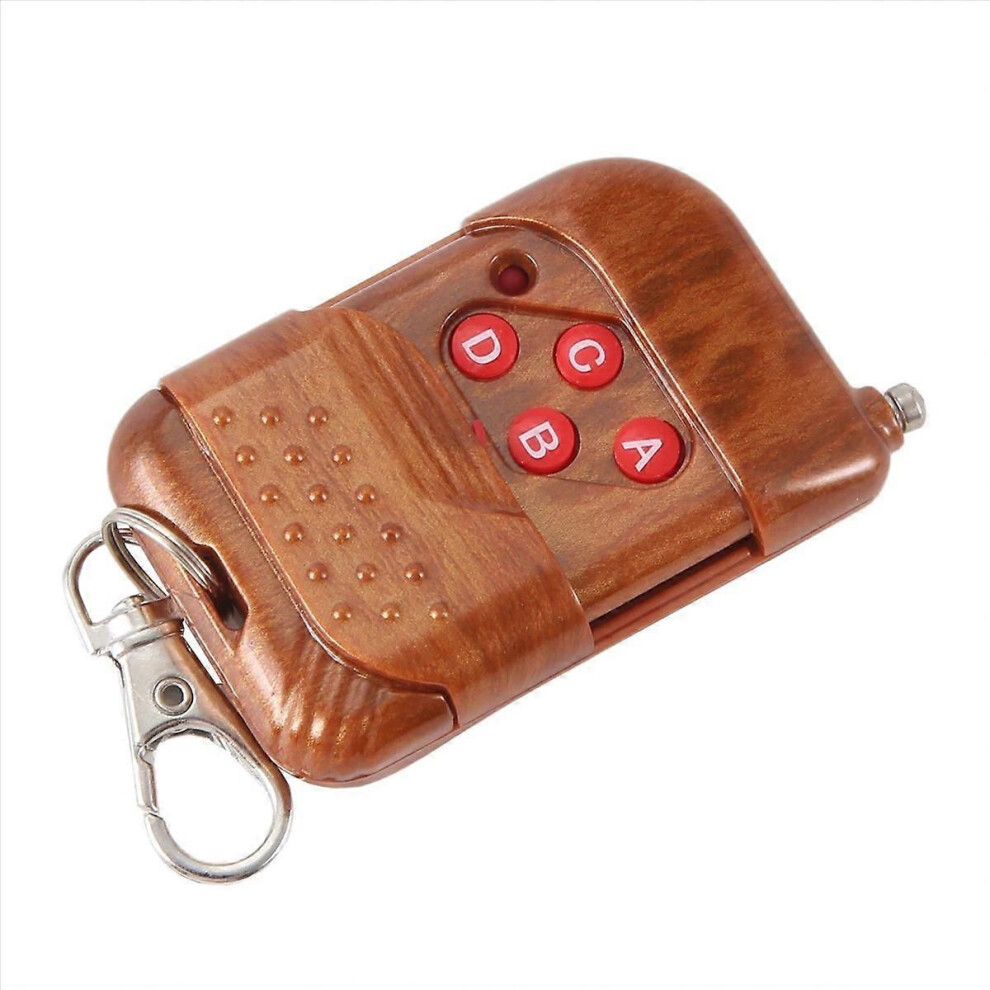

1*Remote Control (include battery )
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
