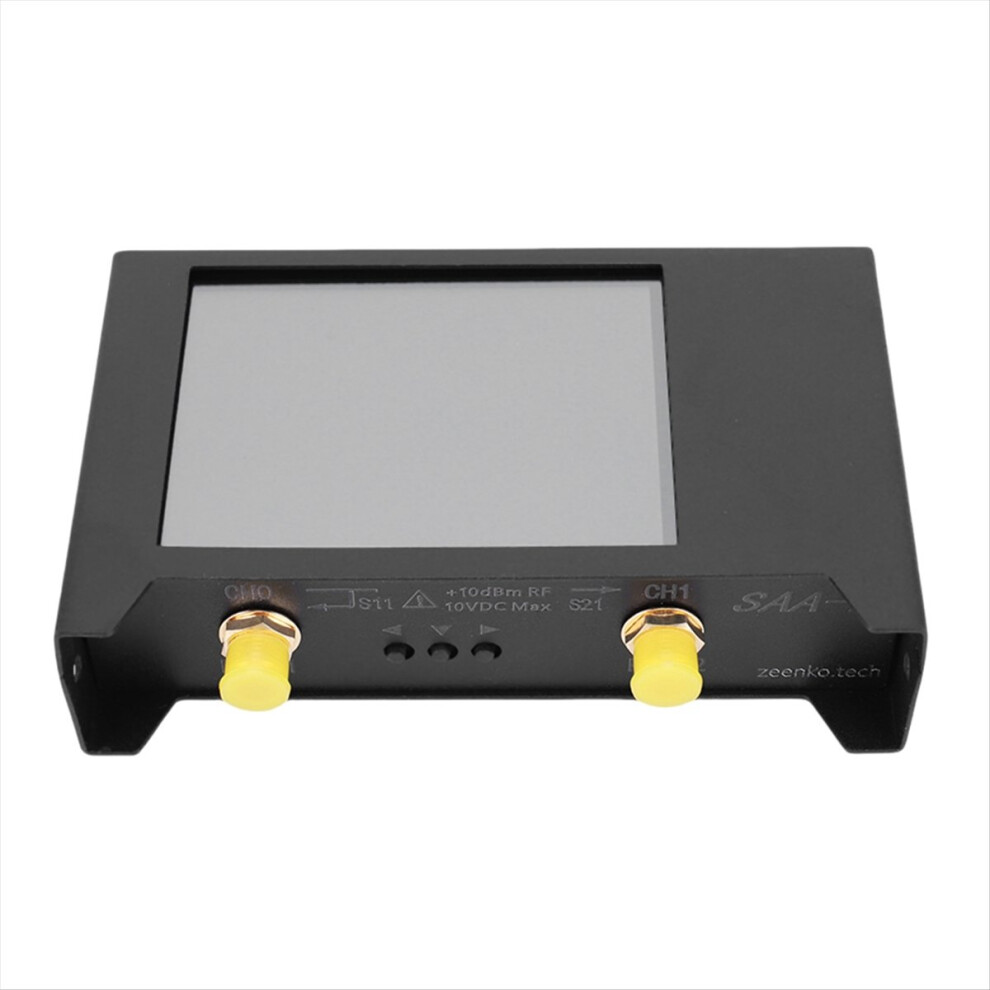

V2 HF VHF UHF VNA 50kHz-3GHz SAA-2 Antenna Analyzer Built-in 2000mAh Battery Handheld Vector Network Analyzer

V2 HF VHF UHF VNA 50kHz-3GHz SAA-2 Antenna Analyzer Built-in 2000mAh Battery Handheld Vector Network Analyzer Description

Comprehensive Vector Network Analysis: The V2 3G is a powerful vector network analyzer capable of measuring and analyzing S-parameters (scattering parameters), including amplitude and phase information, making it an essential tool for any vector network analyzer application.
Wide Frequency Range: This hf vhf uhf vna covers a broad frequency range from 50kHz to 3GHz, encompassing a wide array of radio communication bands, ensuring versatile usage for testing needs.
Portable and Convenient: Designed with portability in mind, the V2 3G is a compact and antenna analyzer, making it perfect for outdoor, laboratory, and mobile scenarios, offering ease of transport and use.
High Precision Measurements: This handheld vector network analyzer boasts high precision measurement capabilities, delivering low-loss and high dynamic range results, ideal for accurate and reliable testing.
Open Source and Versatile Applications: As an open-source project, the V2 3G's hardware and software designs are publicly available, making it a versatile vna analyzer for applications in radio communication, circuit design, antenna analysis, and filter design.

Colour:As shown
Material:Electronic components
Frequency range: 50kHz-3GHz
Frequency error: Less than 2ppm
Frequency temperature: Less than 0.5ppm
System dynamic range (calibrated): 70dB (up to 1.5GHz), 60dB (up to 3GHz)
S11 noise floor (calibrated): -50dB (up to 1.5GHz), -40dB (up to 3GHz)
Scan speed: 100 points/second
Display: SAA2 2.8-inch, 320 x 240; SAA2N 3.95-inch, 320 x 480
port: SAA2 SMA; SAA2N N
(If you need to measure pin-proof SMA devices such as Wi-Fi antennas, please use SMA to RPSMA connector)
USB interface: microUSB
Power supply: USB, maximum charging current 1A
Battery: SAA2 2000mAh Li-ion; SAA2N 3000mAh Li-ion
Battery connector: JST-XH 2.54mm
Maximum scan points (on device screen): 201
Maximum scan points (USB): 1024
Port 2 return loss (1.5GHz): 20dB typical
Port 2 return loss (3GHz): 13dB MIN
VNA-QT software compatible systems: Compatible with Linux/ (7+)/ OS planned
Product size: 97.00x62.00x24.00mm / 3.82x2.44x0.94inch
Note: Please contact customer service about download or installation information before placing order.

Package Contents:
1 * V2

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
