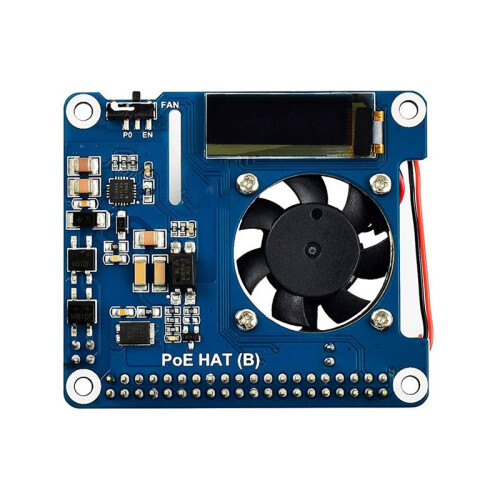

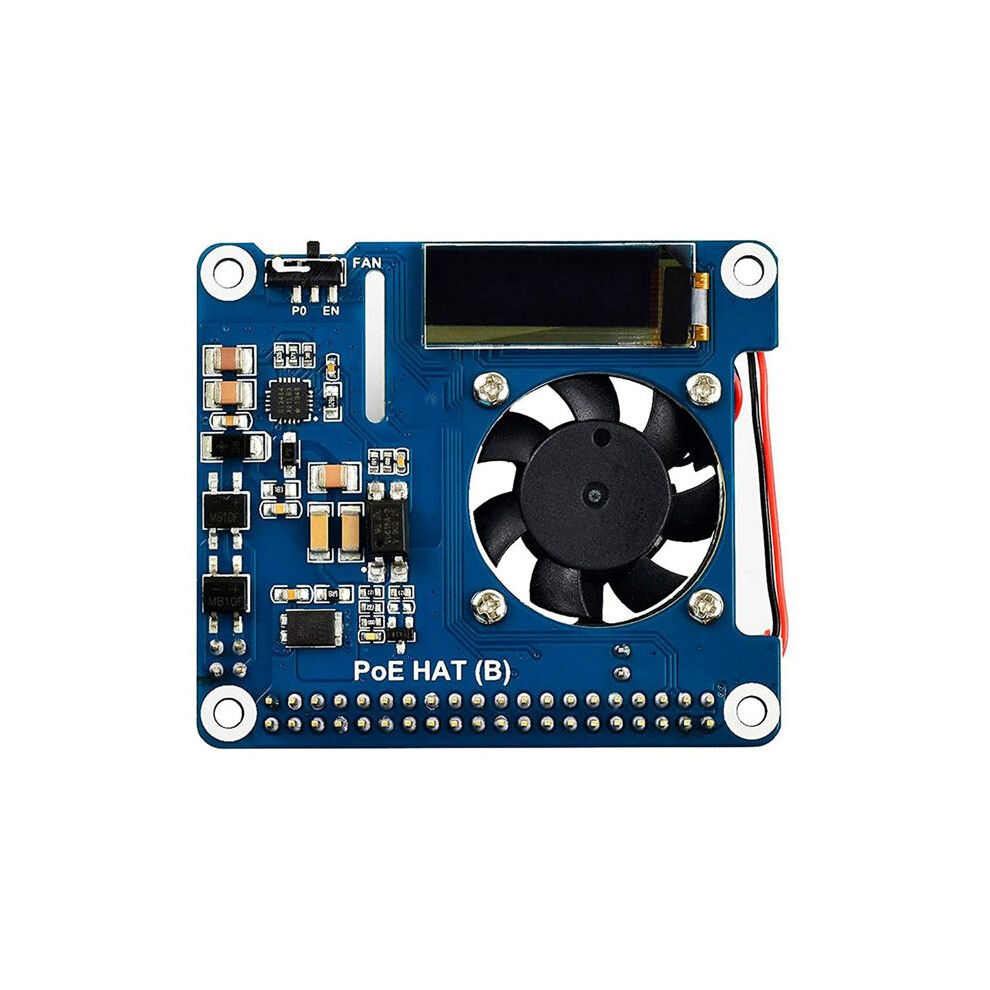

Waveshare Power over Ethernet HAT Support 802.3Af PoE Network Expansion Board with OLED for Raspberry Pi 4 Model B / 3B+
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 132,000 Trustpilot reviews and an 'Excellent' rating
Interest-free payment options available
See full product description & details
Delivery: Standard (£0.50) | Tue 1st - Mon 7th Sep
Sold by: Dopipoo
Returns: 30 days
180-day payment protection
You might also like
Summary
- POE HAT (B) for Raspberry Pi 4B/3B+,Power Over Ethernet HAT,Support 802.3af PoE Network,802.3af Power-Sourcing Equipment Required
- Integrates PCF8574 IO expander for I2C bus, providing pin P0 for directly fan control, and more spare IO pins
- 0.91Inch OLED, for monitoring processor temperature, IP address, and fan status in real-time; Onboard cooling fan, allows auto running on powerup OR programmable control, configured by switch
- POE POWER INPUT:37V ~ 57V DC in. POE POWER OUTPUT:5V 2.5A DC out .
- OLED PIXELS:128x32. NETWORK STANDARD:802.3af PoE. OLED DRIVER:SSD1306. OLED DISPLAY COLOR:white.
Waveshare Power over Ethernet HAT Support 802.3Af PoE Network Expansion Board with OLED for Raspberry Pi 4 Model B / 3B+ Description
POE HAT (B) for Raspberry Pi 4B/3B+,Power Over Ethernet HAT,Support 802.3af PoE Network,802.3af Power-Sourcing Equipment Required
Integrates PCF8574 IO expander for I2C bus, providing pin P0 for directly fan control, and more spare IO pins
0.91Inch OLED, for monitoring processor temperature, IP address, and fan status in real-; Onboard cooling fan, allows auto running powerup OR programmable control, configured by
POE POWER INPUT:37V ~ 57V in. POE POWER OUTPUT:5V 2.5A out .
OLED PIXELS:128x32. NETWORK STANDARD:802.3af PoE. OLED DRIVER:SSD1306. OLED DISPLAY COLOR:white.
DESCRIPTION
Power Over Ethernet: Providing Both Network Connection And Power Supply For Your Raspberry Pi In One Cable
Cooling Fan: Allows Auto Running Powerup OR Programmable Control, Configured By ; Automatically Turn /Off Depending The Raspberry Pi Processor Temperature
Onboard PCF8574 Chip: PCF8574 IO Expander For I2C Bus, Providing 8 IO Pins, Of Which P0 For Fan Control; And Extra Spare Pins Solder Pads (P1-P7, INT)
PoE (Power Over Ethernet) capability,802.3af-compliant
Fully isolated switched-mode power supply (SMPS)
colour:
Material: PC board + metal
size: 65x56.5mm
Package Contents:
1*PoE HAT Expansion Board
1*Screws kit
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
Details
| OPC | PTRCKN8 |
|---|---|
| Codes | 6033590001328 (EAN) |
Product Data
| Height | 3cm |
|---|---|
| Width | 7cm |
| Length | 8cm |
| Weight | 0.0815kg |
| Colour | blue |
| Material | PC Board + Metal |
