White Plastic Float Liquid Water Level Control Side Mount for Water Pump for Tan

White Plastic Float Liquid Water Level Control Side Mount for Water Pump for Tan Description

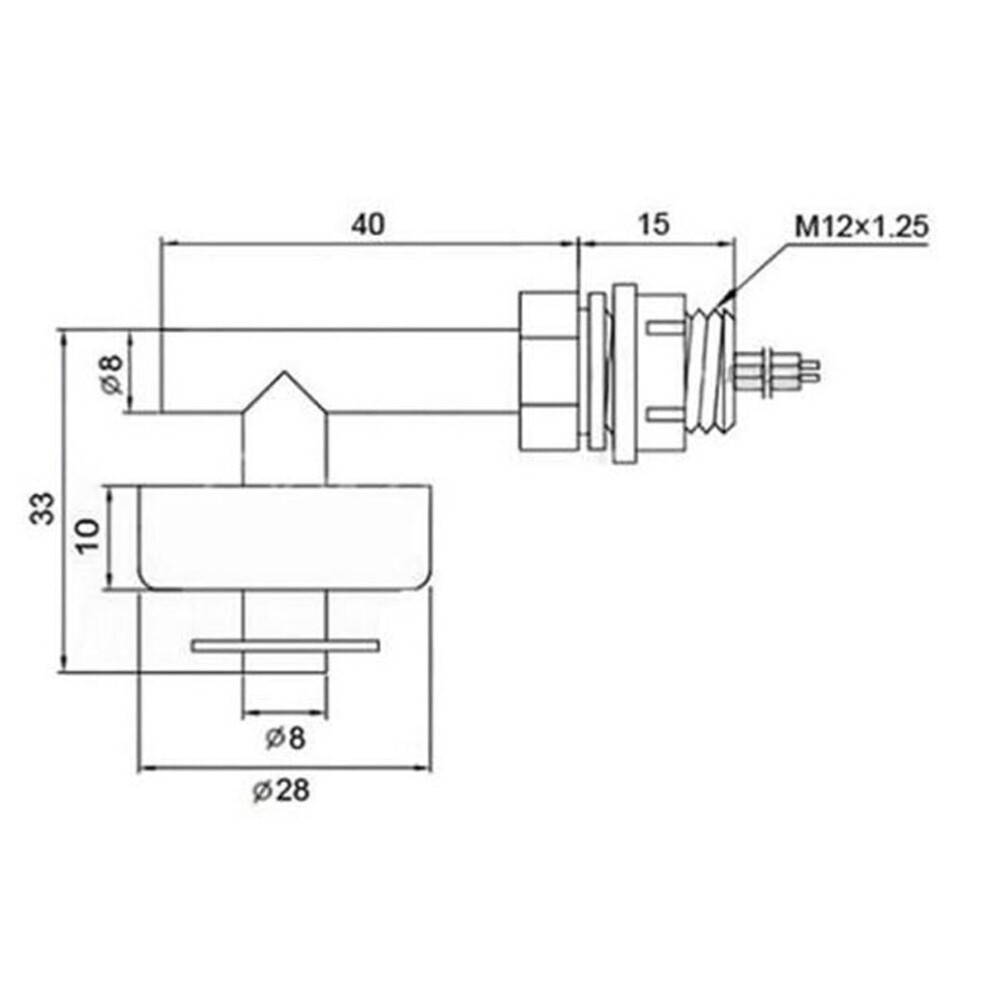

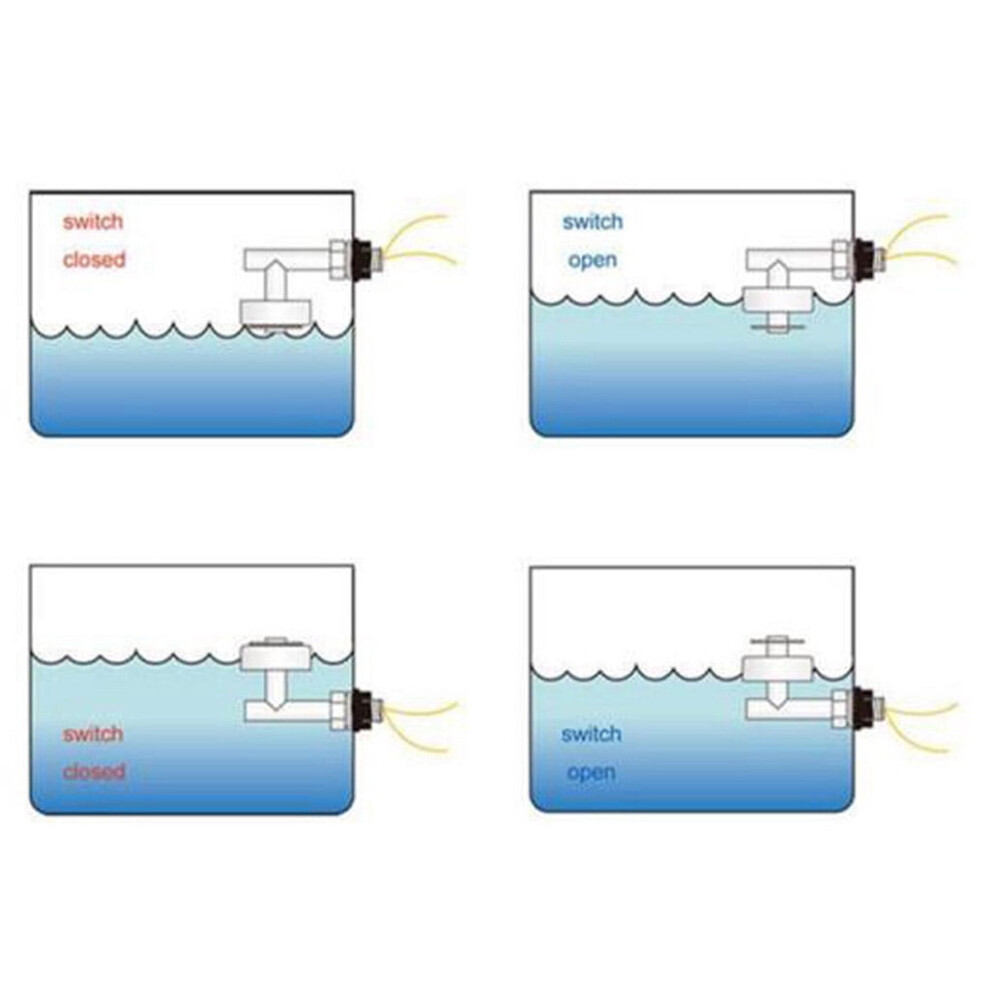

Description: Float level is a simple structure, easy to use level control devices, it does not provide power, no complicated circuit, it has a smaller than the general mechanical,long working life and other advantages. As long as the material selection is correct in shape, and the nature of any liquid or pressure, temperature can be used, which in the shipbuilding industry, generating equipment, petrochemical, food industry, water equipment, dyeing and finishing industry, hydraulic machinery, etc. have been widely applications. How it works: An important level magnetic and the float composed of magnetic material inside the float, set up one or more magnetic in a closed non-magnetic metal pipe or plastic pipe, and then the catheter through a or more with magnetic float, and double loop control with fixed float and in the relevant position, the float rises or falls with the liquid, use inside the ball close to the beginning of the contact, resulting in open and closed action, for level control or direction (when float near the is turned on; off when you leave). Specification: Product Name: Water Level Cable Length: 37cm/ 14.6" Float Ball Size(Approx): 10 x 24mm/ 0.39" x 0.94" (D*H) Thread Dia(Approx): 11.5mm / 0.453"; Hex Nut Size(Approx): 19mm / 0.748" Bottom Clip Dia(Approx): 20.5mm / 0.8"; Total Size: 55 x 35mm/ 2.16" x 1.38" (LxW) x Water Level White PP Float Contact Rating:10W Switching Voltage: 100V Switching Current: 0.5A Breakdown Voltage: 220V Carry Current: 1.0A Contact Resistance: 100mΩ Temperature Rating: -10 ~ +60 C / +85 C Float Ball Material: PP Float Body Material: PP. A float is a device used to the level of liquid within a for tank. The may actuate a pump, an, an alarm, or other device. Color: White & Yellow Net Weight: 13g Package Content: 1 x Water Level. White Plastic Float Liquid Water Level Control Side Mount for Water Pump for Tan White Plastic Float Liquid Water Level Control Side Mount for Water Pump for Tan White Plastic Float Liquid Water Level Control Side Mount for Water Pump for Tan White Plastic Float Liquid Water Level Control Side Mount for Water Pump for Tan
