XHW3005 Humidity Sensor Hygrostat Digital Hygrometer Switch Controller 0-99%R (12V)

XHW3005 Humidity Sensor Hygrostat Digital Hygrometer Switch Controller 0-99%R (12V) Description

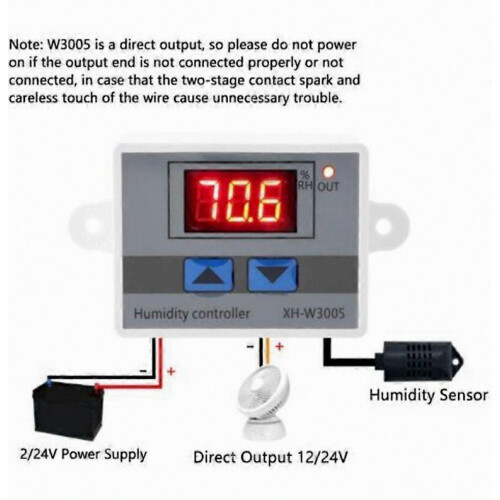

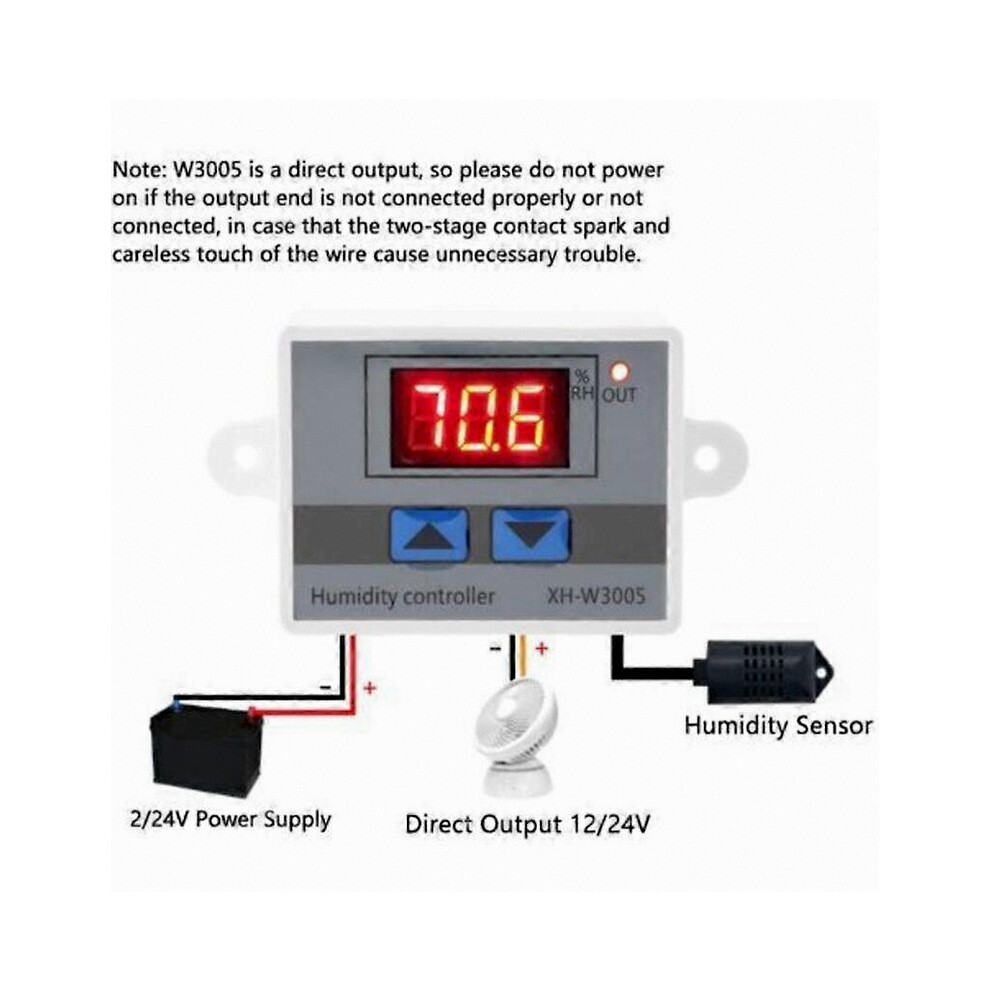

English: Specifications: Model: XH-W3005 Weight: 68g Input voltage: 12V Humidity range: 0% to 99% RH Humidity control accuracy: 0.1% RH Power: 120W Output type: Direct output Hole spacing: 73mm Dimensions: 60 x 45 x 31mm Instructions for use: After connecting the thermostat to the circuit and power supply, the digital display shows the initial temperature and the current humidity setting. Press the "Up" button to display the initial temperature. Press and hold the "Up" button for about 3 seconds to make the initial humidity value flash. This value can be adjusted using the "Up" and "Down" buttons. Setting the humidity stop: Press the "Down" button to display the humidity stop. Press and hold the "Down" button for about 3 seconds to make the digital humidity display stop flashing. Humidity shutoff can be set using the "Up" and "Down" buttons. To reset to factory defaults: With the device turned on, simultaneously press and hold the up and down buttons. The digital display will show 888 and then automatically switch to the humidity reading. This will reset to factory defaults. Package Contents: 1 x Digital Humidity Controller. Note: The W3005 has a direct output. Therefore, do not turn it on if the output is not connected or is incorrectly connected. Otherwise, arcing at contact points and faulty wire connections may cause problems.
