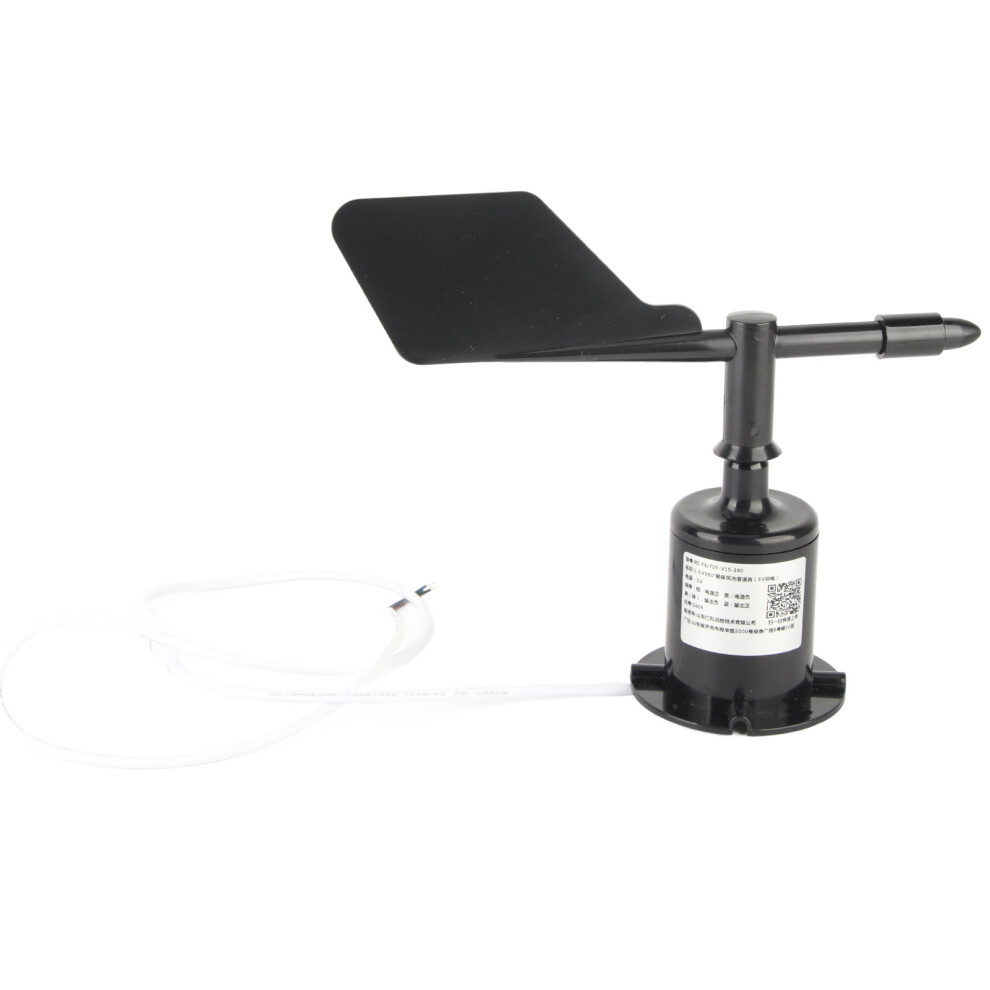

(0-10V 0.7m Patch Cord) 360 Wind Transmitter Anemometer 1-5V 5V Supply

(0-10V 0.7m Patch Cord) 360 Wind Transmitter Anemometer 1-5V 5V Supply Description

1、High performance bearings, small rotational resistance, accurate measurement. 2、Resistance to sun, high impact resistance, and cooperate with the internal smooth bearing system ensure the accuracy of information collection. 3、It is widely used in wind direction measurement of greenhouse, environmental protection, weather station, ship, wharf, aquaculture and other environments. 4、Made of high quality PC material, high mechanical strength, resistant to rust, can be used outdoors for a long time. 5、Compact size and light weight, easy to carry and assemble.
Condition: Brand New
Item Type: Wind Sensor
Material: PC
Color: Black
Size: Approx.23.5x18.5cm / 9.3x7.3in
Weight: Approx.313g/11oz
Application: Widely used in wind direction measurement of greenhouse, environmental protection, weather station, ship, wharf, aquaculture and other environments.
DC Power Supply (Default): 10~30V DC
Transmitter Circuit Working Temperature: -20 - + 60 , 0% RH - 80% RH
Dynamic Response Speed: 0.5s
Electrical Wiring:
Wire color
Description
Power supply
Brown
Power positive
Black
Power negative
Output
Blue
Wind direction signal positive
Green
Wind direction signal negative
Common Problems and Solutions:
Symptom: No output or output error
Possible Reason:
1) PLC calculation error caused by incorrect range measurement. Please refer to the technical specifications in Part 1 for the measurement range.
2) The wiring method is incorrect or the wiring sequence is wrong.
4) The distance between the transmitter and the collector is too long, causing signal disturbance.
5) The PLC acquisition port is damaged.
6) The equipment is damaged.
1 x Wind Sensor
1 x Cable
1 x Bag of Screw Fitting(4pcs Screw,4pcs Nut)
