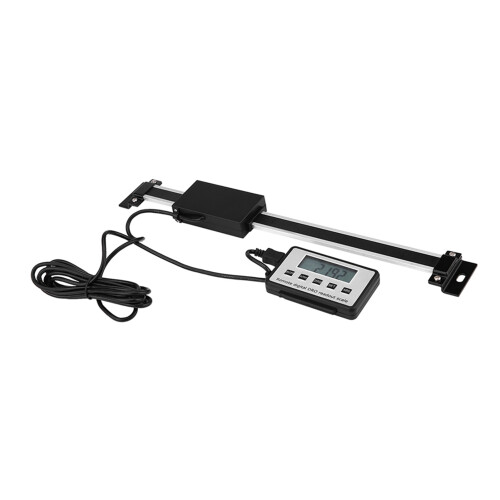

0-200mm Digital Linear Scale LCD Readout Kit for Milling & Lathes

New

£69.13

Similar Products we think you'll like

Scales

A27L/A27L-B (Optional) 75kg/10g Rechargable LCD Display Screen with Tapes Length Measure Function Electronic Hook Scale High Precisions Fiv£16.44FREE Delivery

Muaket 0.001g/50g Digital Milligram Scale, Pocket Micro Scales with 7 Units, Mini Gram Scale, High Precision Mg Scale for Powders, Jewelry, Medicine,

£15.28FREE Delivery

Effluent Pump Switch for Zoeller 53-0001 Mechanical Switch Assembly£25.94FREE Delivery

Digital Vet Scales Heavy Duty Weighing Platform 300kg Pet Dog Animal Livestock

£199.99FREE Delivery

Dog Weight Scale 15kg Electronic Pet Weighing for Home£9.79FREE Delivery

2000KG Digital LCD Crane Scale High Load Industrial Heavy Duty Alloy Hook Lock Weighing Balance N/Lb/Kg Hanging Scales£72.44FREE Delivery

2000KG Digital LCD Crane Scale£60.77FREE Delivery

ON BALANCE Tuff-Weigh Digital Pocket Scale 100g x 0.01g£31.17FREE Delivery

M503 Magnetic Scale Display Integrated Embedded Magnet Measurement System£34.78FREE Delivery

(Orange) Digital Hanging Scale 1000kg/ 2204lbs Portable Heavy Duty Crane Scale Lcd Backlight Industrial Hook Scales Unit Change/ Data Hold/ Tare/ Zero Compitia

Multiple Options Available(Orange) Digital Hanging Scale 1000kg/ 2204lbs Portable Heavy Duty Crane Scale Lcd Backlight Industrial Hook Scales Unit Change/ Data Hold/ Tare/ Zero Compitia£101.22FREE Delivery

50g 0.001g Precision Portable Electronic Jewelry Scales£20.47FREE Delivery

4X SF-400D Analytical Balance Laboratory Electronic Digital Scale Kitchen Scale 500G/0.01G Black£73.40FREE Delivery

Pocket Scale- Ascher Portable Pocket Digital Scale with LCD Display,

£15.38FREE Delivery

Mini Electronic Scale with High Accuracy, Portable Stainless Steel Platform for Precious Metals, Coins, Jewelry, and Foods, Supports Multiple£19.47FREE Delivery

Architectural Scale Ruler, Aluminum Triangular Scale Ruler Metric 1:20, 1:25, 1:50, 1:75, 1:100, 1:125 Standard 12 Inch for Architects, Students,£12.79FREE Delivery

Dog Weight Scale 15kg Electronic Pet Weighing for Home£10.64FREE Delivery

Would you like us to let you know when it's back?

Add to Basket

Description & Details

Summary

This digital readout kit can be installed on a variety of woodworking and metalworking machines allowing conversion to digital readout.
Remote readout LCD display convenient for reading and operation.
The design is novel and has strong anti-interference ability.
Quick response speed of 3 m/s, no over-speed error occurred.
The display has a magnet on the back, which can be attached to iron and is more convenient to use.

0-200mm Digital Linear Scale LCD Readout Kit for Milling & Lathes Description

0-200mm Accurate Digital Linear Scale LCD Readout Kit for Milling Machines Lathes

Features:

This digital readout kit can be installed on a variety of woodworking
and metalworking machines allowing conversion to digital readout.

Remote readout LCD display convenient for reading and operation.

The design is novel and has strong anti-interference ability.

Quick response speed of 3 m/s, no over-speed error occurred.

The display has a magnet on the back, which can be attached to iron and is more convenient e.

It is used to be equipped together with various industry lathes and upgrade old lathe.

Specifications:
Measuring Range: 0-200mm
Accuracy: 0.08
Overall Length: 33.3cm/13.1in
Battery: 2 * 3V CR2032 button cells(NOT included)
Weight: 321g

Buttons:
ON/OFF: Power switch button
ABS: Relative measurement and absolute measurement conversion
mm/in: millimeter and inch standard conversion
ZERO: Data reset(zeroing) at any position
SET:
In the imperial standard measurement state, each time the button is
pressed, the resolution of the fraction part is switched between
1/32,1/64,1/128.

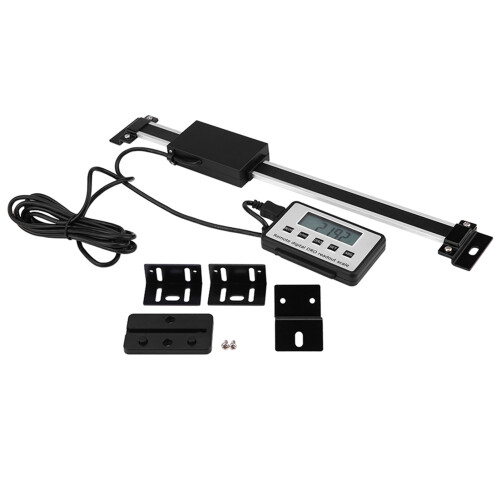

Package Includes:
1 x Digital Readout Kit(batteries are NOT included)
1 set x Mounting Accessories
