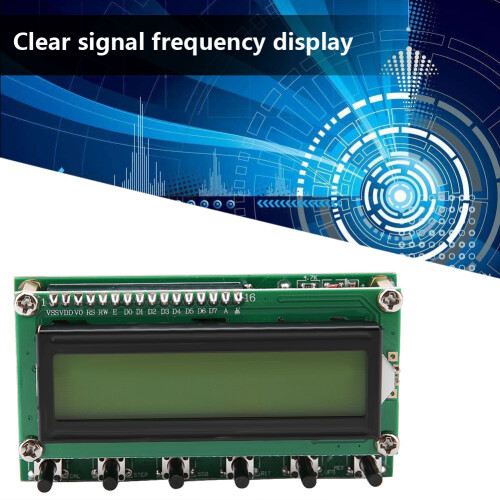

0-55MHz LCD DDS Signal Generator Module Based on AD9850
Hurry only 1 left
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 128,000 Trustpilot reviews and an 'Excellent' rating
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Mon 20th - Wed 22nd Jul
Returns: 30 days
180-day payment protection
Most Popular in Radio Oscillators
Summary
- This is a DDS signal generator based on AD9850 chip, featured with quick response and accurate control.
- It supports continuous frequency adjustment from 0 to 55MHz at 1Hz step.
- Adopt precision electric components integrated circuit for stable running and long lifespan.
- Working mode: LSB, USB, CW, AM.
- Input current at 200mA and 8-9V input voltage would be the ideal voltage.
0-55MHz LCD DDS Signal Generator Module Based on AD9850 Description
0‑55MHz LCD DDS Function Signal Generator Module Based On AD9850
Features:
1. This is a DDS signal generator based on AD9850 chip, featured with quick response and accurate control.
2. It supports continuous frequency adjustment from 0 to 55MHz at 1Hz step.
3. Adopt precision electric components integrated circuit for stable running and long lifespan.
4. Working mode: LSB, USB, CW, AM.
Specification:
Chip: AD9850
DIsplay: LCD screen
Input current: 200mA
Frequency range: 0~55MHz, 1Hz step
Weight: Approx. 77g / 2.7oz
Keys & connection interfaces:
ENC: encoder switch
MEM: switch for memory mode
VFO: transfer from VFO A to VFO B, or from VFO B to VFO A
SSB: working mode change, circulate from USB, LSB, AM, CW
RIT: fine tune the receiving frequency
CAL: setting functions
KB-1 and KB-2 have common shared pin, but is not GND
Package list:
1 * DDS Signal Generator
Details
| OPC | PSX9SG9 |
|---|---|
| Codes | 7891392774135 (EAN) |
