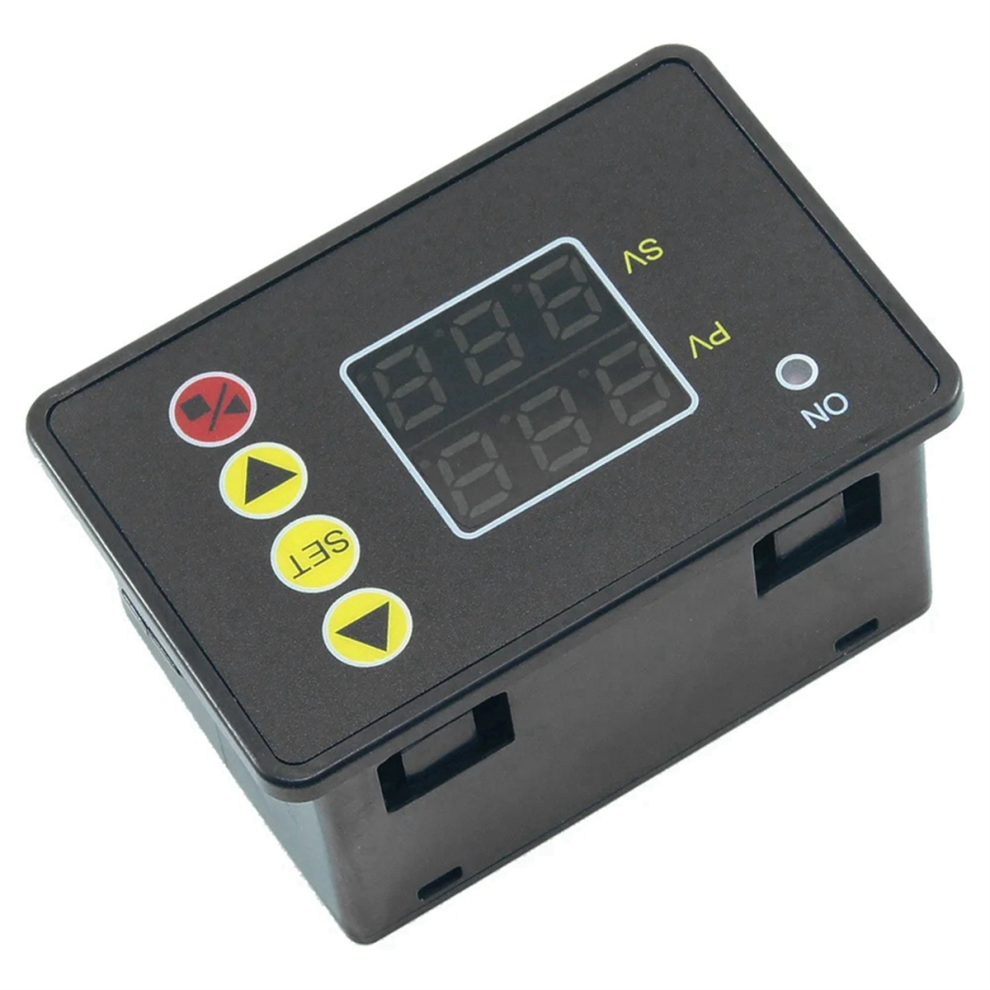

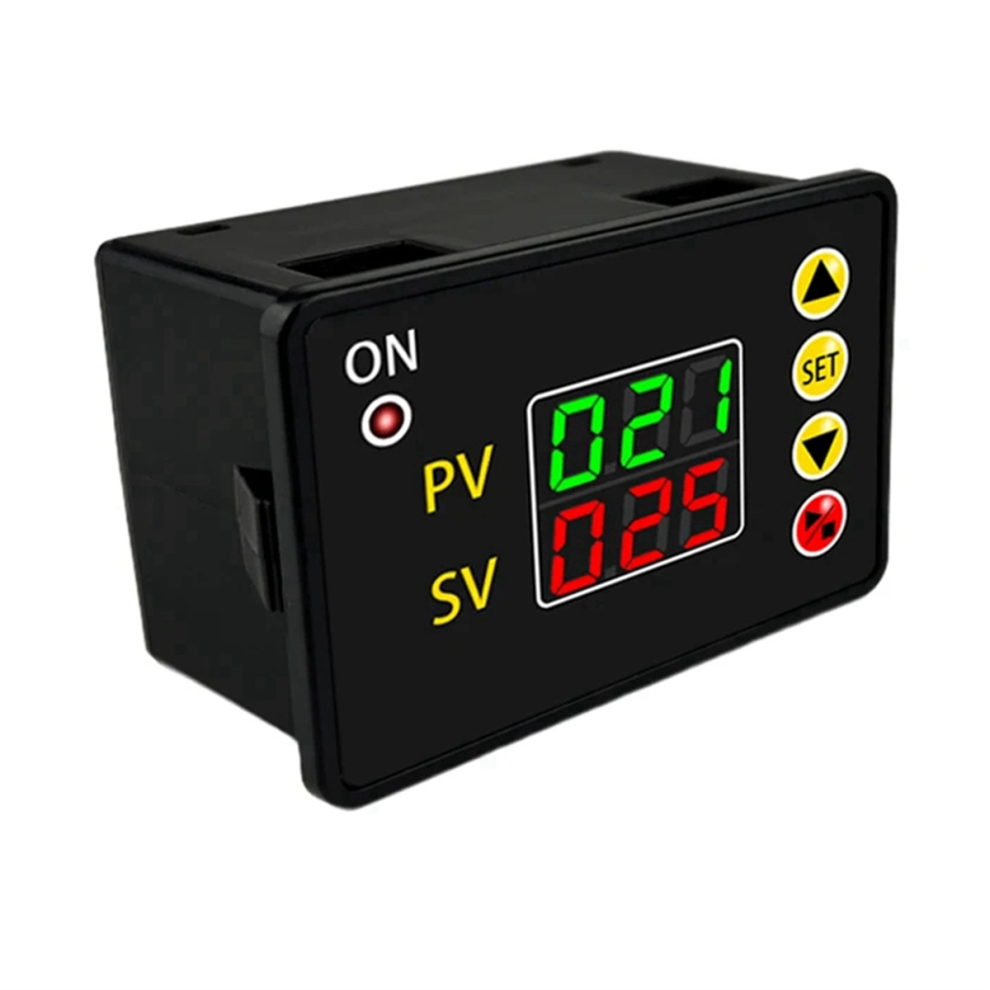

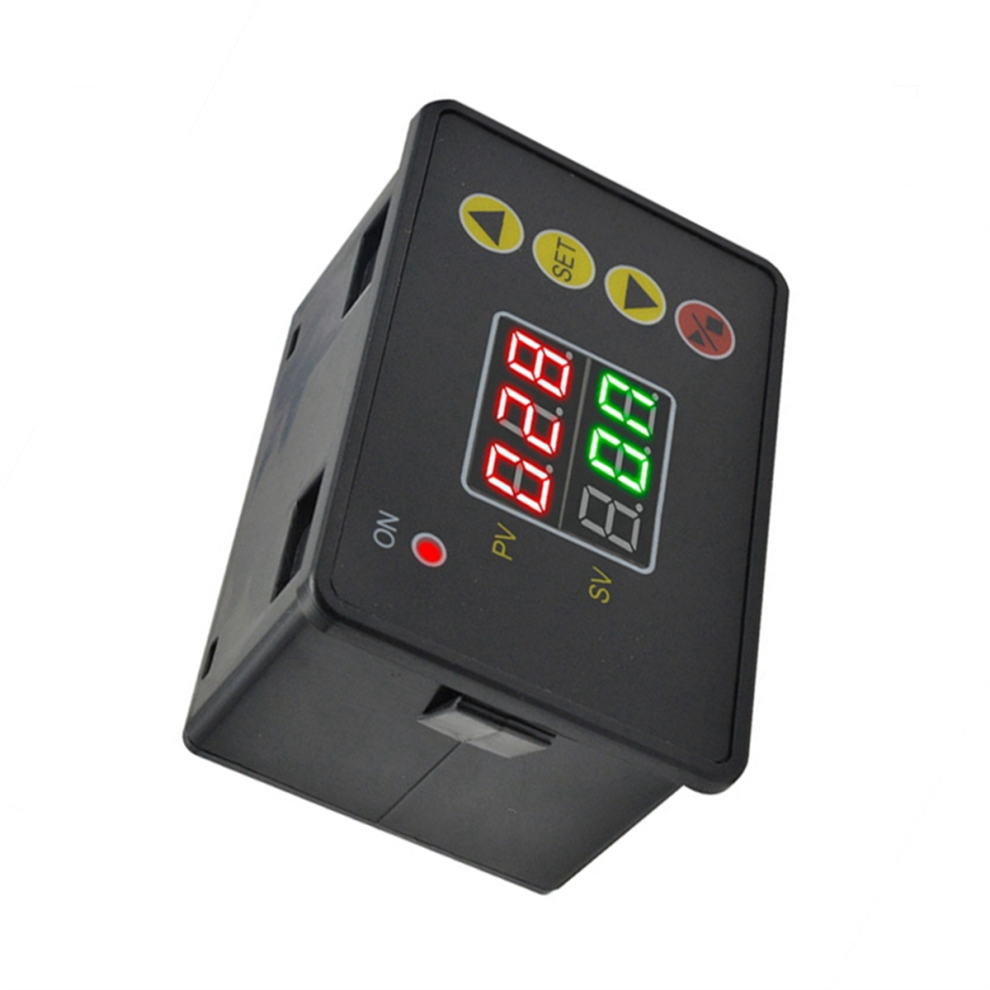

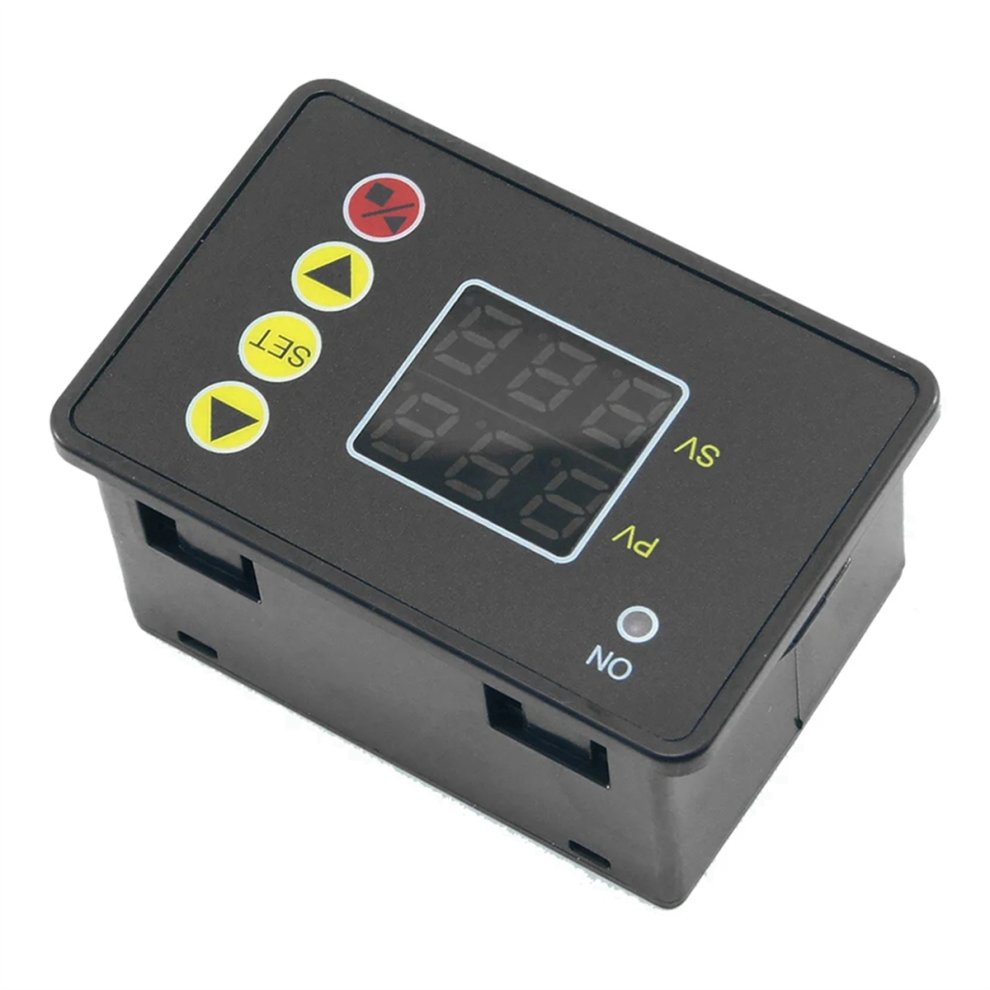

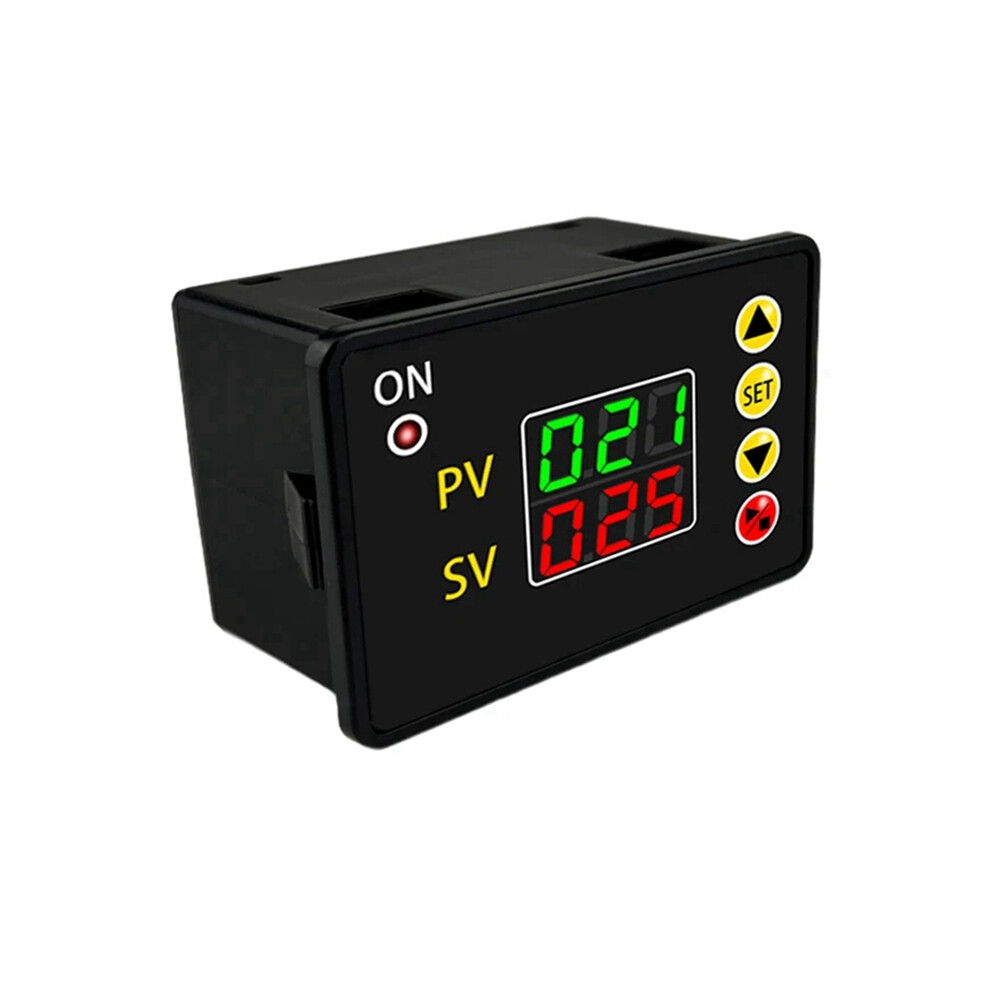

0-999s/Min/Hour DC 24V 480W Digital Time Delay Switch Relay T2310 Open Control Module Power Supply

0-999s/Min/Hour DC 24V 480W Digital Time Delay Switch Relay T2310 Open Control Module Power Supply Description

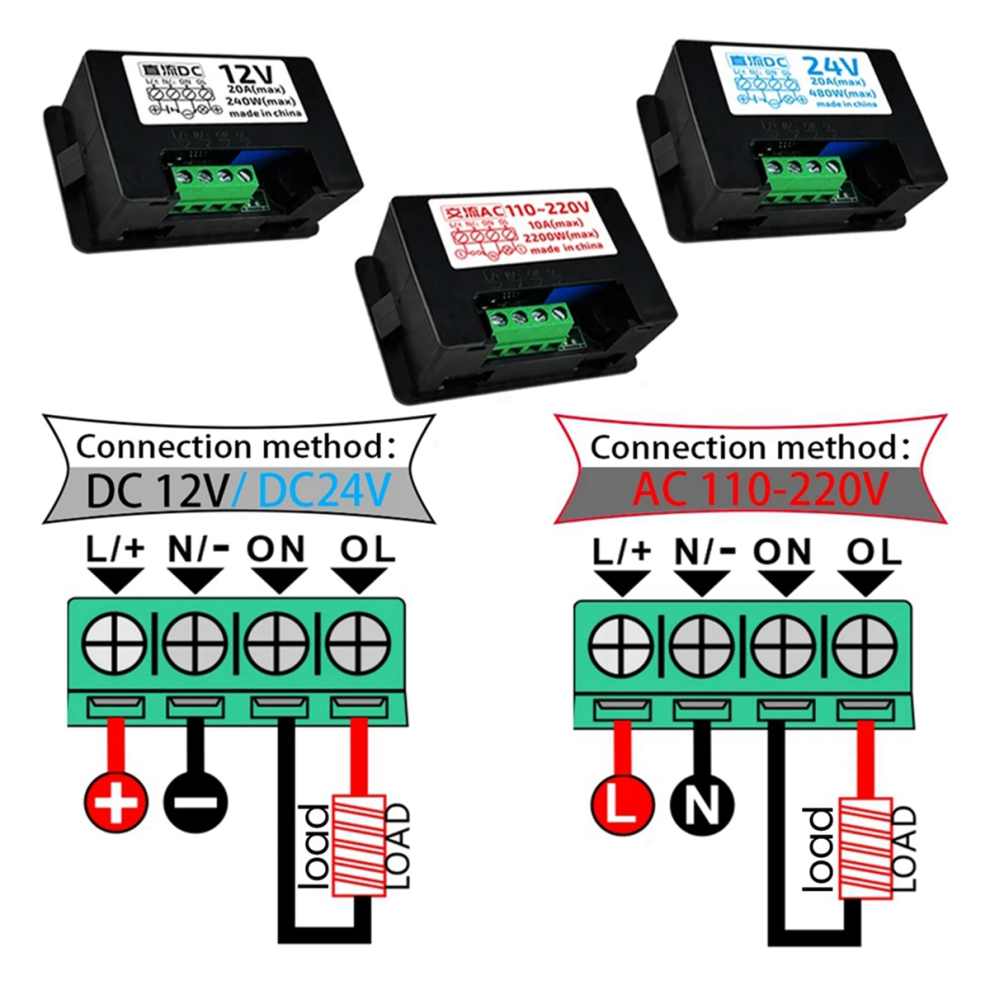

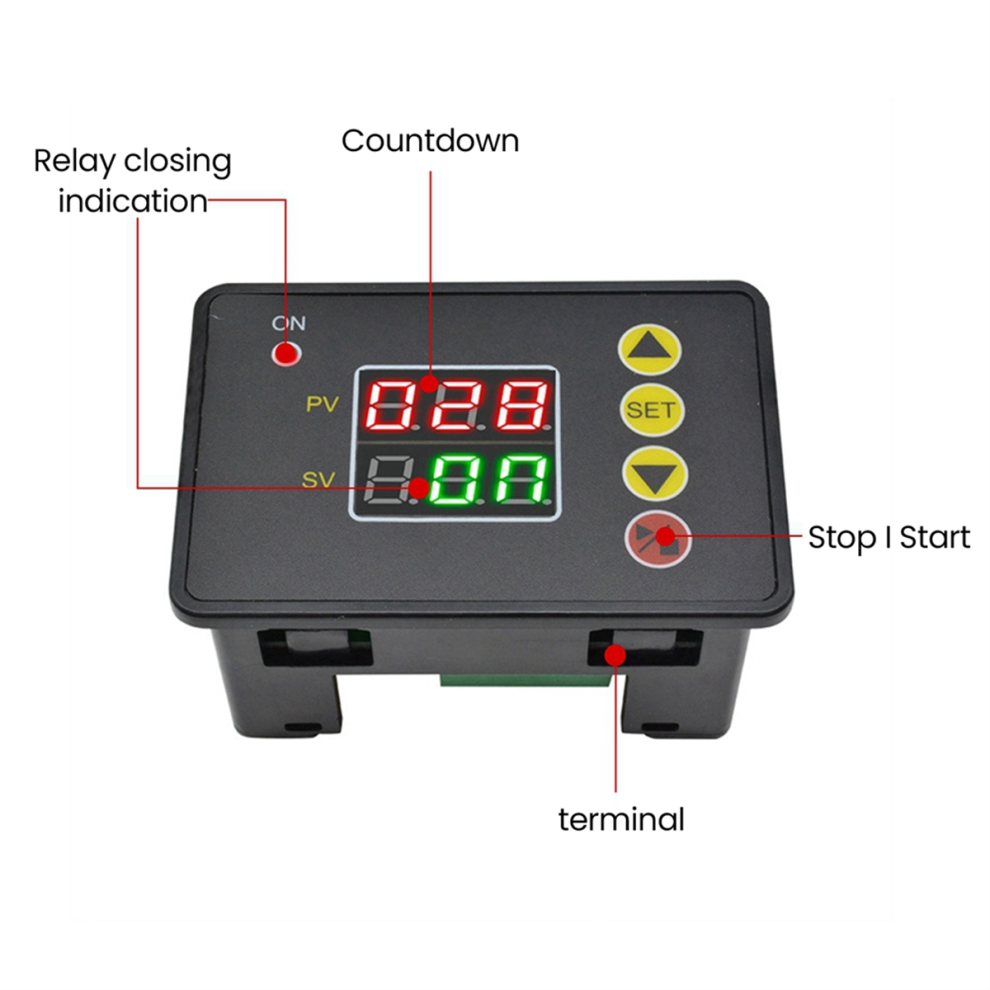

T2310 is a time-controlled relay with 1 normally open relay Fixed bit pass, off timing display Settings, timing unit, so that large time span can be realized Optimized setting operation, timing on, timing off, infinite cycle switch setting more convenient, more intuitive 1-999 times alternate work and infinite cycle work setting, the maximum extent to meet the needs of use Timing range: 0-999 (seconds, minutes, hours) Minimum unit: 1 second Error: 20ppn Timing type: non - clock countdown Timed startup: Supported Timed shutdown: Supported Infinite loop: Supports infinite switching loop Quantitative cycle: Support 1-999 cycle switch timing unit: Supported Program trigger: Support automatic trigger and manual trigger switch, factory default automatic trigger Setting Lock: Supported Power-off save: Only the latest Settings are automatically saved. Relay type: 1 channel normally open relay Output type: contact live, active output Product size: 67x45x34mm Installation hole size: 63x42mm (embedded installation) Operating voltage = Input voltage = Output voltage = label voltage Note: Due to different production batches, there may be slight differences in products. Colour:Black Material:ABS Type:DC 24V 480W Package Contents: 1x Time Relay Only the above package content, other products are not included. Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
