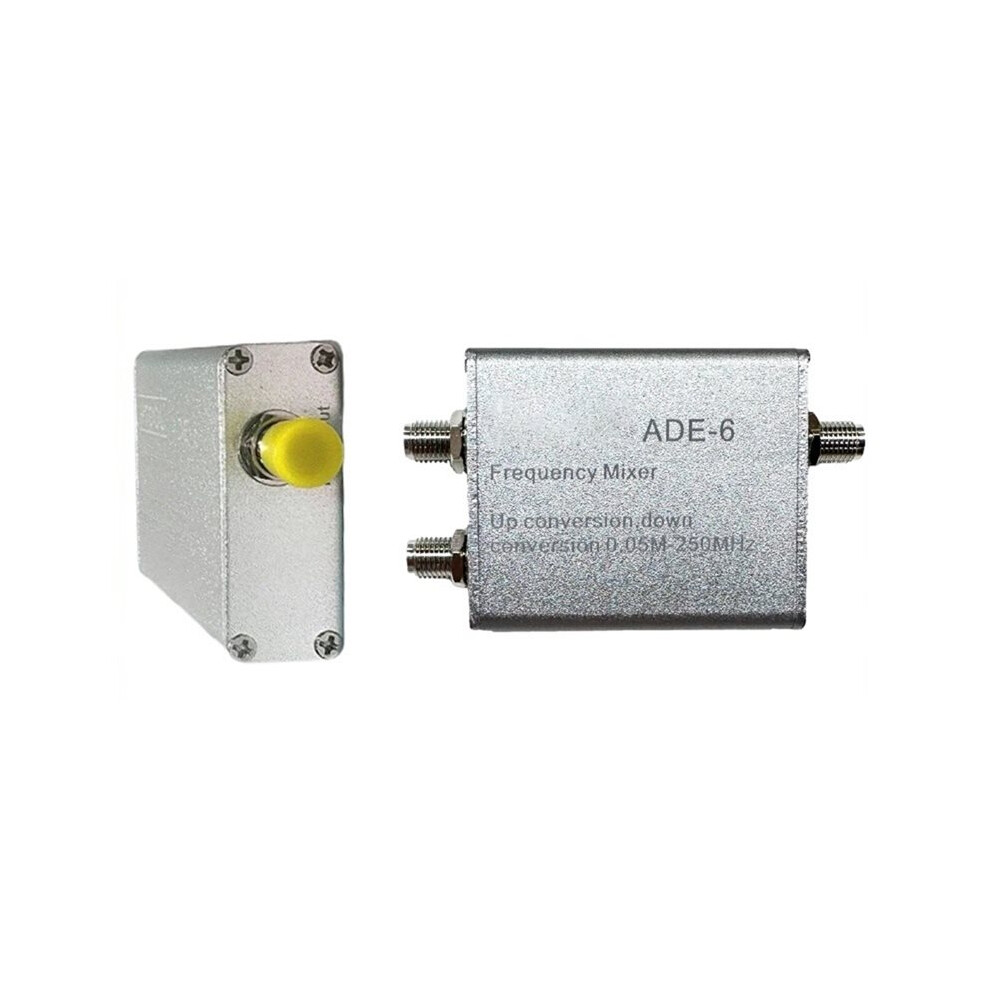

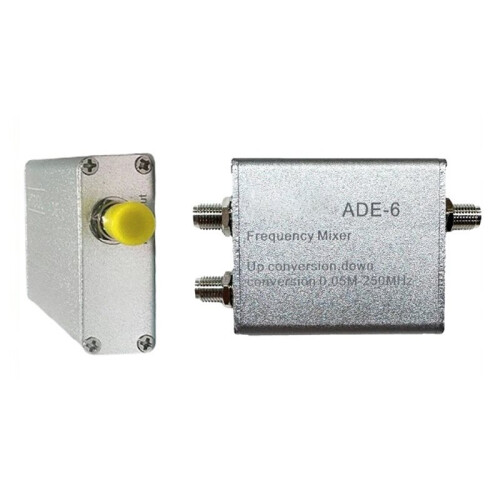

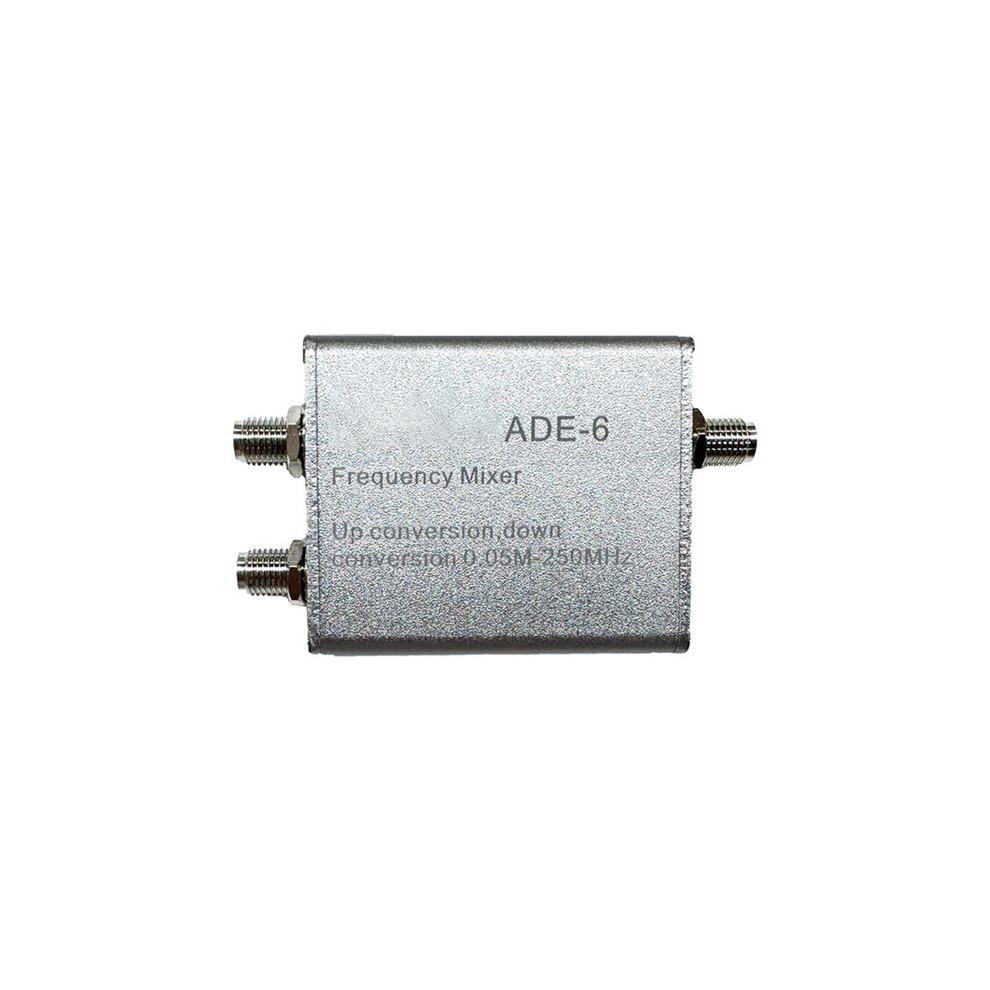

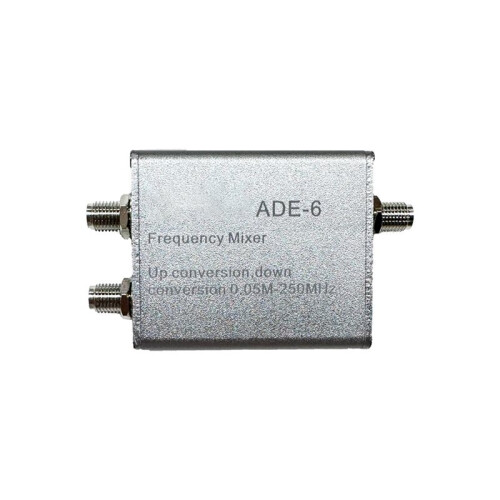

0.05M-250MHz ADE-6 Passive Hybrid Inverter Conversion Down Conversion Mixer Cellular Communication Instruments
Brand Saudism
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 129,000 Trustpilot reviews and an 'Excellent' rating
£23.36
£26.21
11% off!
FREE Delivery
1%
What is instant Cashback?
Learn More
Interest-free payment options available
See full product description & details
Delivery: Priority (Free) | Mon 27th - Wed 29th Jul
Returns: 30 days
180-day payment protection
Most Popular in TV RF Modulators
Description & Details
Summary
- Low-profile package, 0.21-inch height
- Tin-plated leads for good solderability, CD637 package
- Six pins: Pins 1, 4, and 5 are ground; pin 2 is the IF output; pin 3 is the RF input; and pin 6 is the LO input.
- Applications: Suitable for cellular communications, instrumentation, and other fields.
- Please check as much as possible to make sure the item is what you need.
0.05M-250MHz ADE-6 Passive Hybrid Inverter Conversion Down Conversion Mixer Cellular Communication Instruments Description
Low-profile package, 0.21-inch height
Tin-plated leads for good solderability, CD637 package
Six pins: Pins 1, 4, and 5 are ground; pin 2 is the IF output; pin 3 is the RF input; and pin 6 is the LO input.
Applications: Suitable for cellular communications, instrumentation, and other fields.
Please check as much as possible to make sure the item is what you need.
Operating Frequency: LO (Local Oscillator) and RF (Radio Frequency)
Frequency range: 0.05MHz to 250MHz
IF (Intermediate Frequency) frequency range: -200MHz
Performance Parameters:
Typical conversion loss: 4.6dB
Maximum conversion loss: 8.4dB
Typical LO-RF isolation: 40dB
Typical 1dB compression point: +1dBm
Typical center band IP3: 10dBm
Color: As Shown
Material: Metal
Package Contents:
1*ADE-6
Details
| OPC | PTQ22TJ |
|---|---|
| Brand | Saudism |
| Codes | 4713344511779 (EAN) |
Product Data

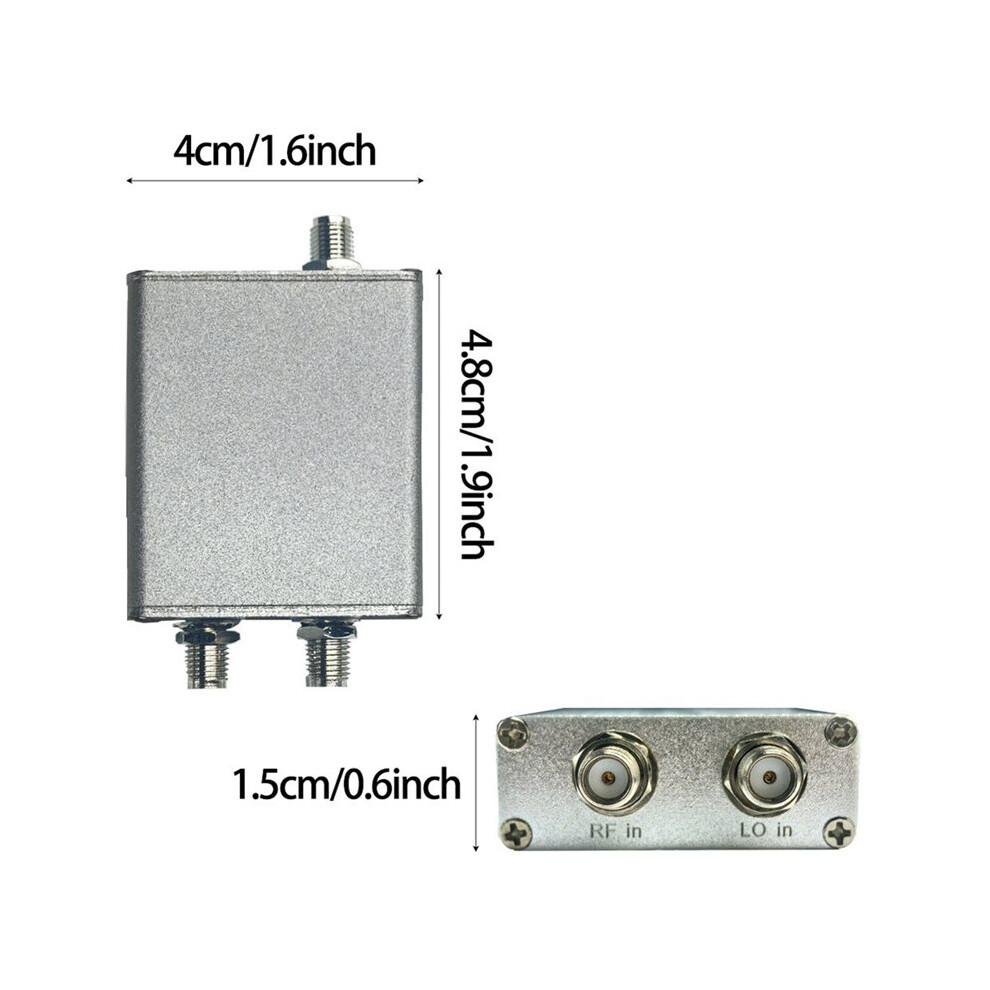

| Height | 3cm |
|---|---|
| Width | 6cm |
| Length | 13cm |
| Weight | 0.12kg |
| Colour | As Shown |
| Material | Metal |
