0.05M-250MHz ADE-6B Active Hybrid Inverter Conversion Down Conversion Mixer Cellular Communication Instruments

0.05M-250MHz ADE-6B Active Hybrid Inverter Conversion Down Conversion Mixer Cellular Communication Instruments Description

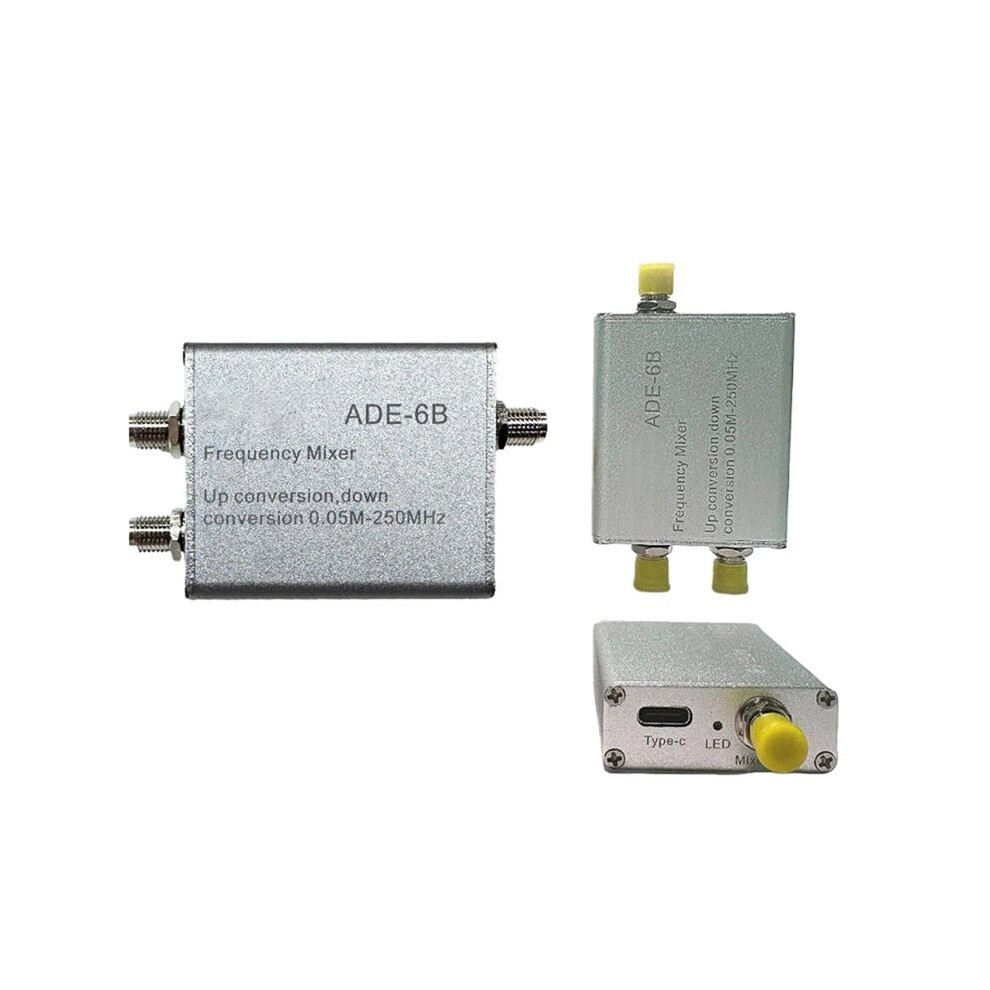

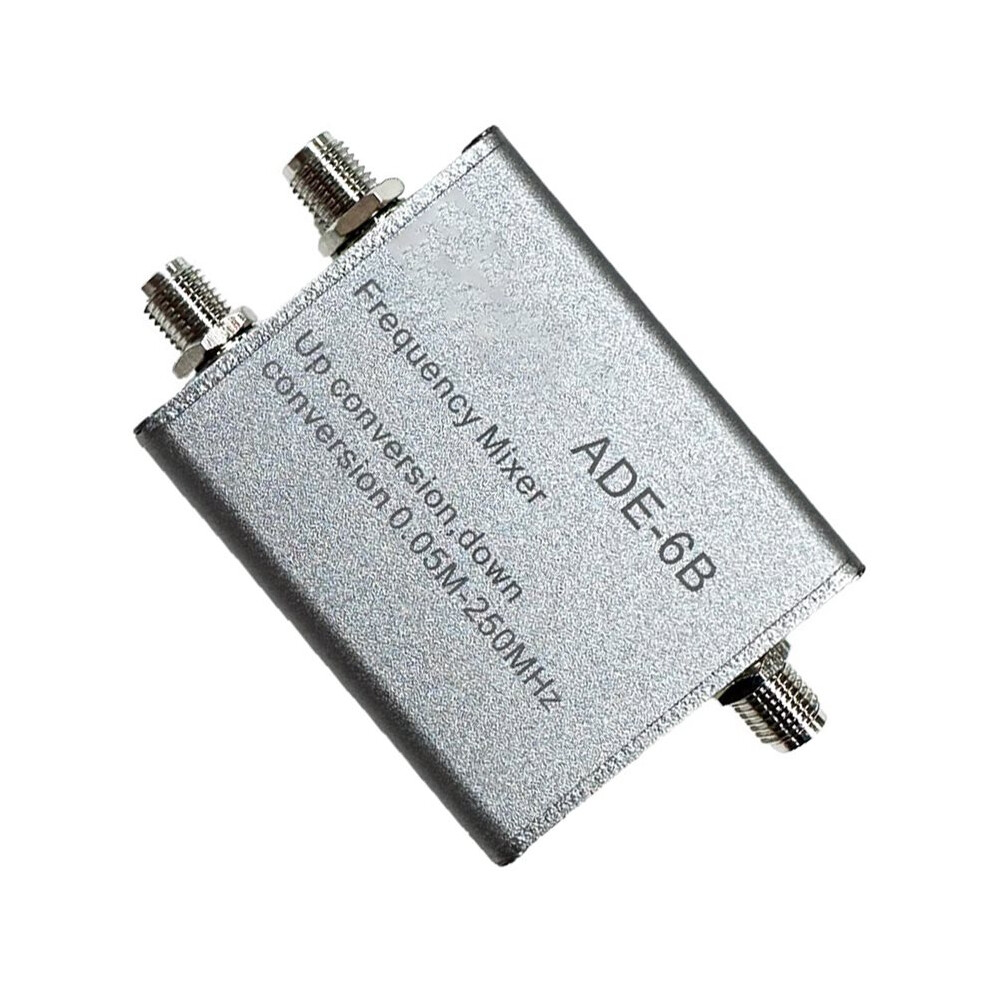

The ADE-6B is a diode-based double-balanced active -conversion/down-conversion mixer with a frequency range of 0.05MHz-250MHz and an intermediate frequency (IF) down to -200MHz. It meets common -conversion and down-conversion requirements in the RF field.
Core Performance: The ADE-6B model has a maximum conversion loss of 8.4dB and an operating temperature range of -40C to 85C, making it suitable for most operating conditions.

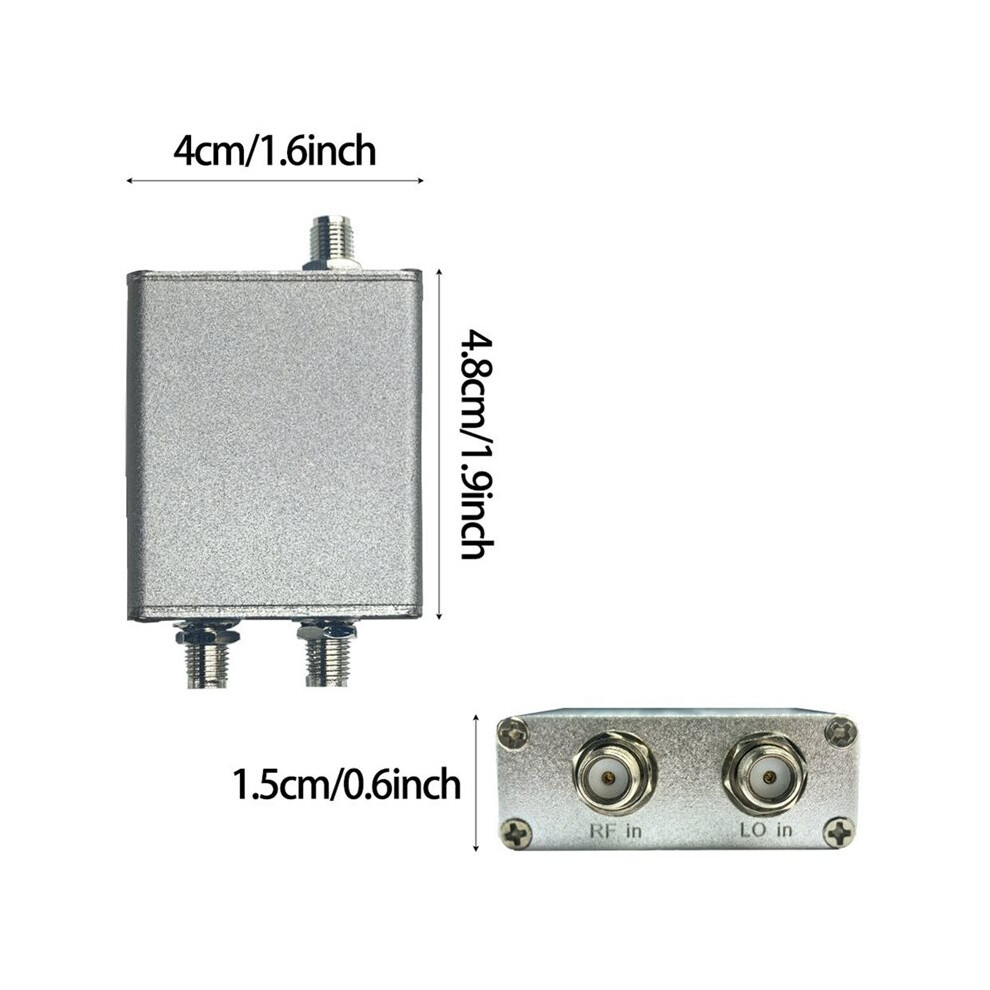

Structure and Compatibility: It uses a surface-mount 6-pin CD637 package, making it compact and easy to integrate into various RF devices. Some modules integrate a high-linearity RF amplifier at the back end and also support +5V power supply for subsequent gain compensation to compensate for the losses of passive components.
The ADE-6B series mixers are commonly used in RF communications, microwave measurements, and other scenarios requiring frequency conversion.
Please check as much as possible to make sure the item is what you need.
ADE-6B Series Mixers
Frequency range: 0.05MHz-250MHz
Intermediate frequency (IF) to -200MHz
Maximum conversion loss: 8.4dB
Operating temperature range: -40C to 85C
Applications: RF communication, microwave measurement, and other applications requiring frequency conversion.
Color: As Shown
Material: Metal

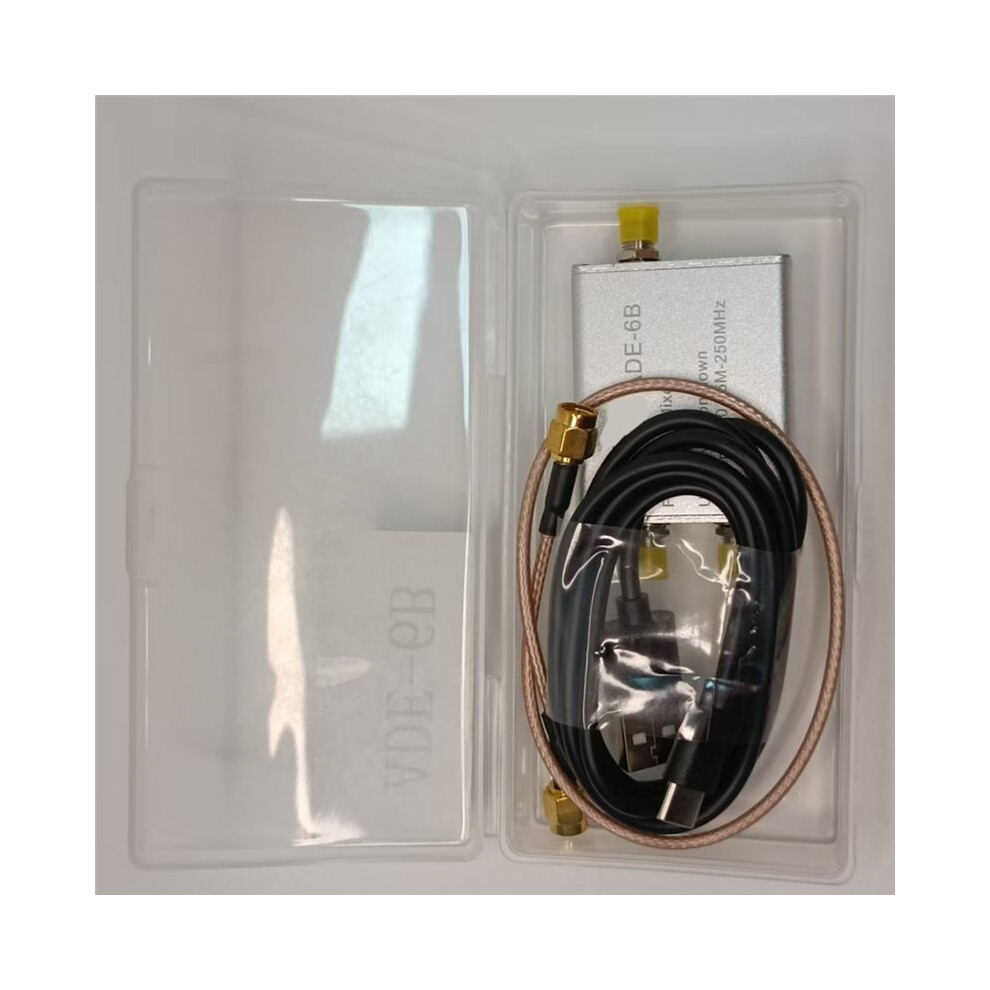

Package Contents:
1*ADE-6B
