0.1-6GHz RF Switch QM-SW-4ST RF Switch 4 Microwave Electronic Switches

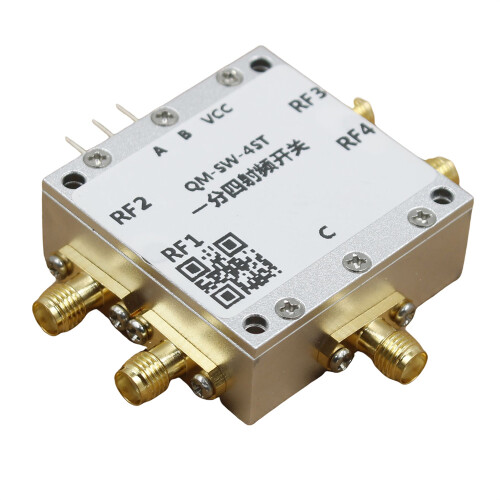

0.1-6GHz RF Switch QM-SW-4ST RF Switch 4 Microwave Electronic Switches Description

Features:

Microwave switch, also known as RF switch, achieves the role of controlling the conversion of microwave signal channels,

This module adopts SP4T single-pole, four-throw mode to achieve the switching of four signals, because of its low insertion loss,

Wide bandwidth, high isolation, widely used in communication system equipment, the use of CNC structural shell, easy to install, stable and reliable performance;

Specification:

Model: QM-SW-4ST

Working frequency: 0.1-6G;.

Working mode: one choice four;

Typical insertion loss: 1dB;

Port isolation: 45dB typical;.

Impedance: 50??;

Maximum input power: 28dBm;

Switching switching time: 150ns;

Power supply: +3.3 to +5V;

Input and output interface: SMA (external screw and internal hole);

Module size: 40*40*15mm (without connector);

With mounting positioning holes;

Weight: 80g;

Control mode:

Control port A: L ,Control port B:L RF output to RF1.

Control port A: H ,Control port B:L RF output to RF2.

Control port A: L ,Control port B:H RF output to RF3.

Control port A: H ,Control port B:H RF output to RF4.

(External voltage control, H:3.3-5V,L:0V or ground)

Package Includes:

1*RF Switch
