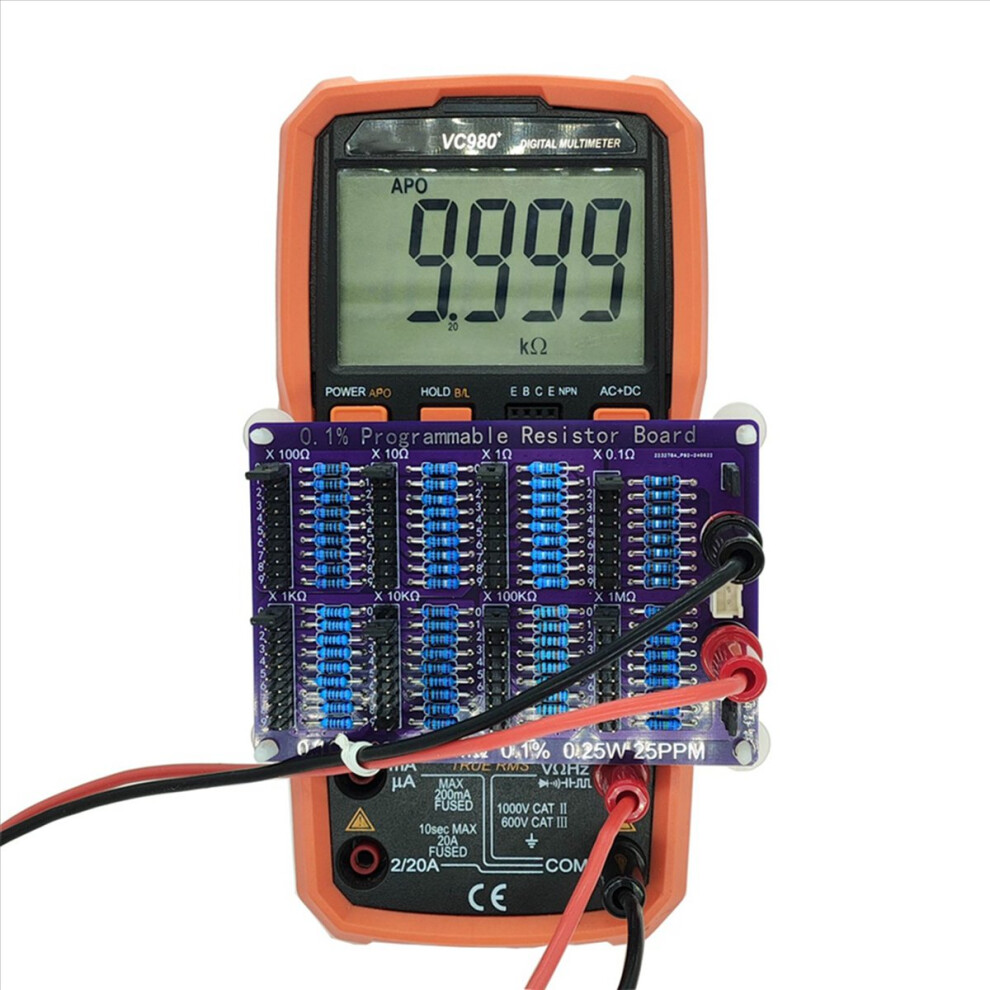

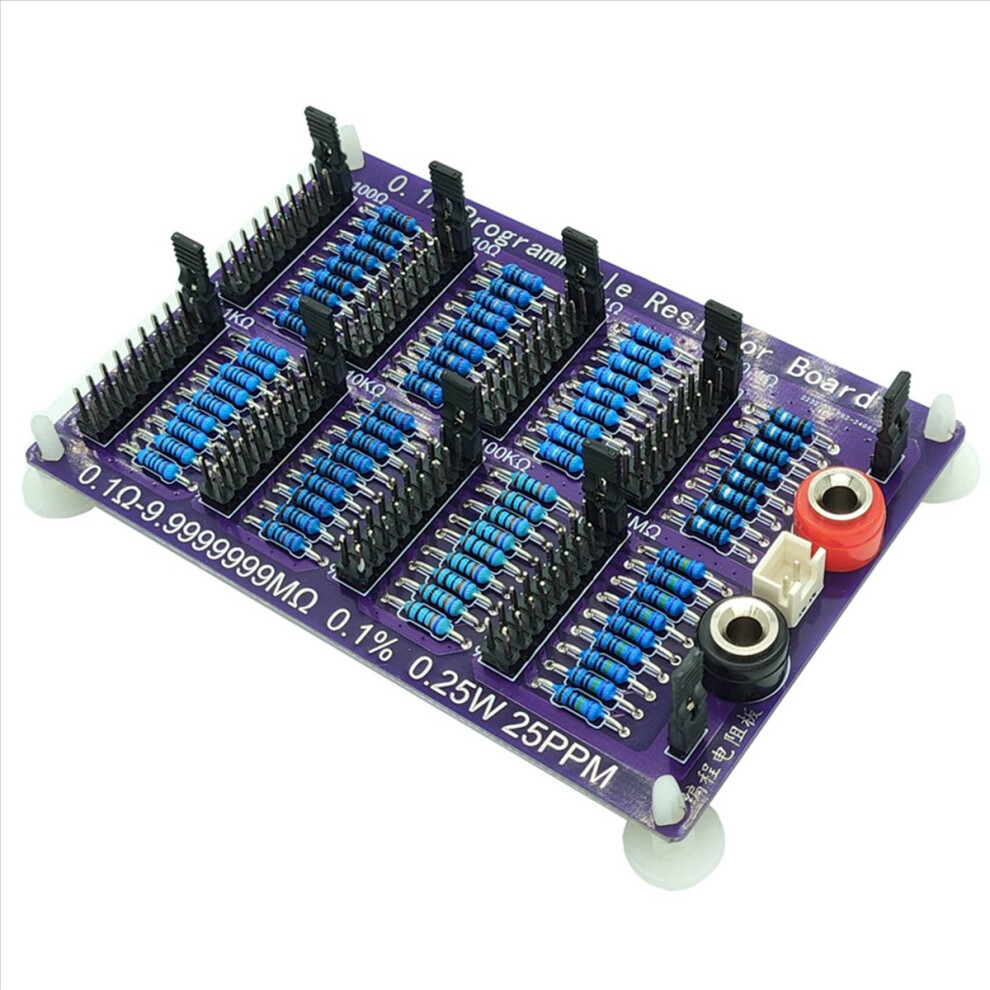

0.1Ω-9.9999999MΩ 0.1% 0.25W 25PPM Programmable Resistor Board

0.1Ω-9.9999999MΩ 0.1% 0.25W 25PPM Programmable Resistor Board Description

1. The resistor board uses 0.1% resistors, not 1% ordinary resistors.
2. The resistor is plug-in, not patch. The distance between the two pins of the patch is small, moisture makes the resistance value smaller, and the stability
is poor.
3. Instead of using a DIP switch, -plated pin is used. The contact resistance of the DIP switch is too large, which affects the accuracy of the small resistance value. The contact resistance of the gold-plated pin is more than half smaller than that of the DIP switch.

Name:8 Segment decimal programmable resistor board (one thousandth)
Resistance range:0.1Ω-9.9999999MΩ
Resistance power:0.25W
Note:There are differences in the factory batch number silk screen, which does not affect the use.
Colour:
Material:PCB+electronic components

Package Contents:
2 x Resistance box

Only the above package content, other products are not included.
