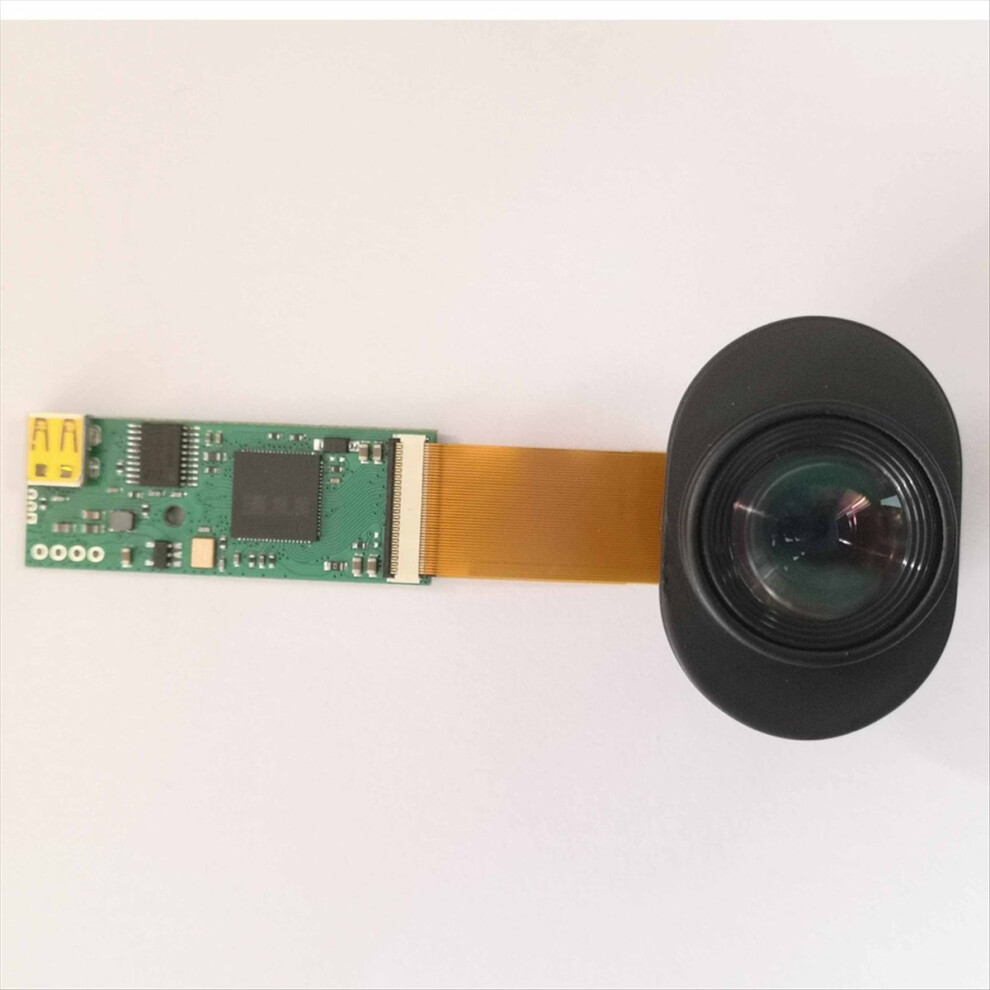

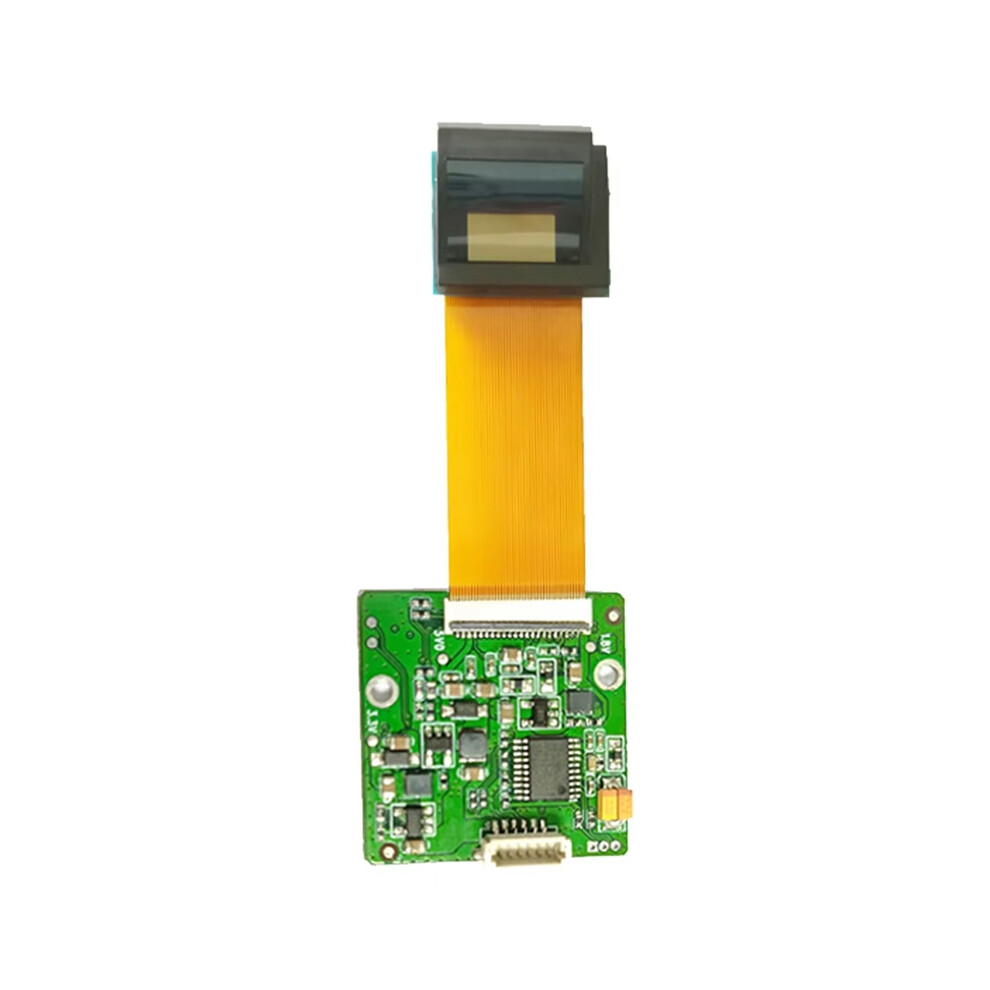

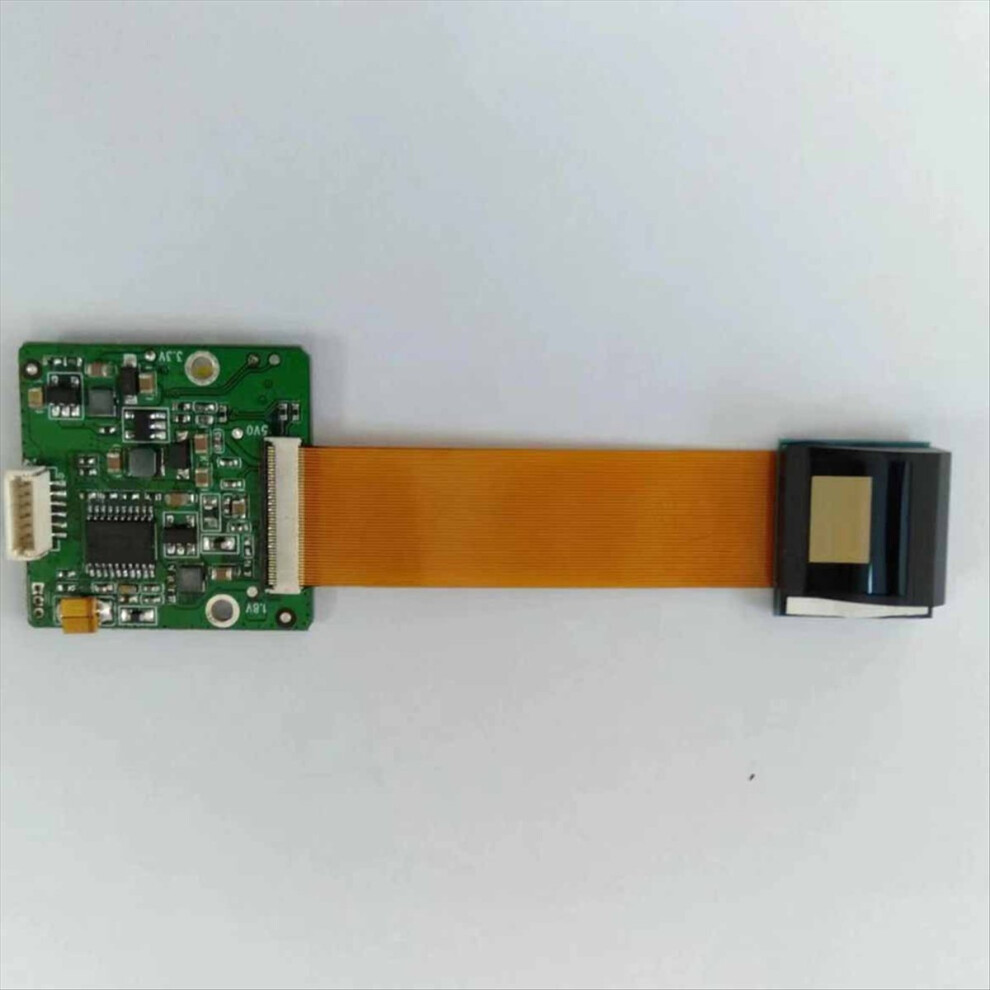

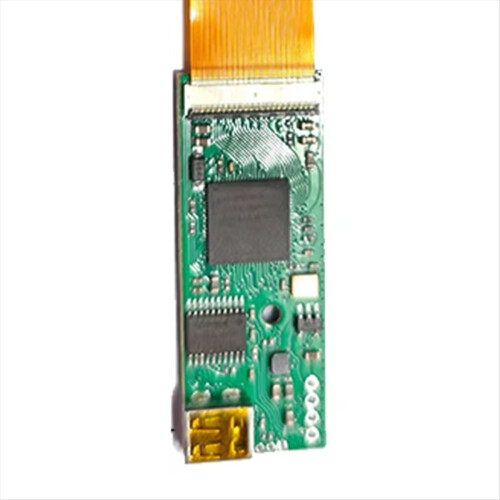

0.4 Inch HD EVF Viewfinder Integrated Display Modules Monocular Microdisplay Electronic for Camera A

0.4 Inch HD EVF Viewfinder Integrated Display Modules Monocular Microdisplay Electronic for Camera A Description

Model: FL09-, display model is FL1401 or FL1307
Resolution: 1280 x 960
Size: 0.4 inches
Equipped with magnifying lens: optional resin aspheric lens and glass optical eyepiece 12.5X
signal driver board size: 16X32MM

This display module is born to reduce customer development cycle and customer development cost. It is compact and can be easily applied to customer product development and design.
Adopt FLCOS ferroelectric liquid crystal display.
Resolution: 1280 x 960, good display color, high contrast, low power consumption, low cost, clearer and more delicate picture, extremely realistic.
Working mode: digital
Power consumption: small
Working temperature: -10~70
Storage temperature: -30~83
Brightness can be adjusted, and circuit function can be adjusted, added or deleted. It can be modified and customized according to customer needs, and technical support can be provided.
Specifications: A:AV
Color: As shown
Material: Metal+Plastic

Package Contents:
1 * Module

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
