0.96 Inch OLED ATU-100 Automatic Antenna Adjuster DIY Kits Mini Automatic Antenna Tuner Antenna Coupler

0.96 Inch OLED ATU-100 Automatic Antenna Adjuster DIY Kits Mini Automatic Antenna Tuner Antenna Coupler Description

1. DIY kit requires welding ability.

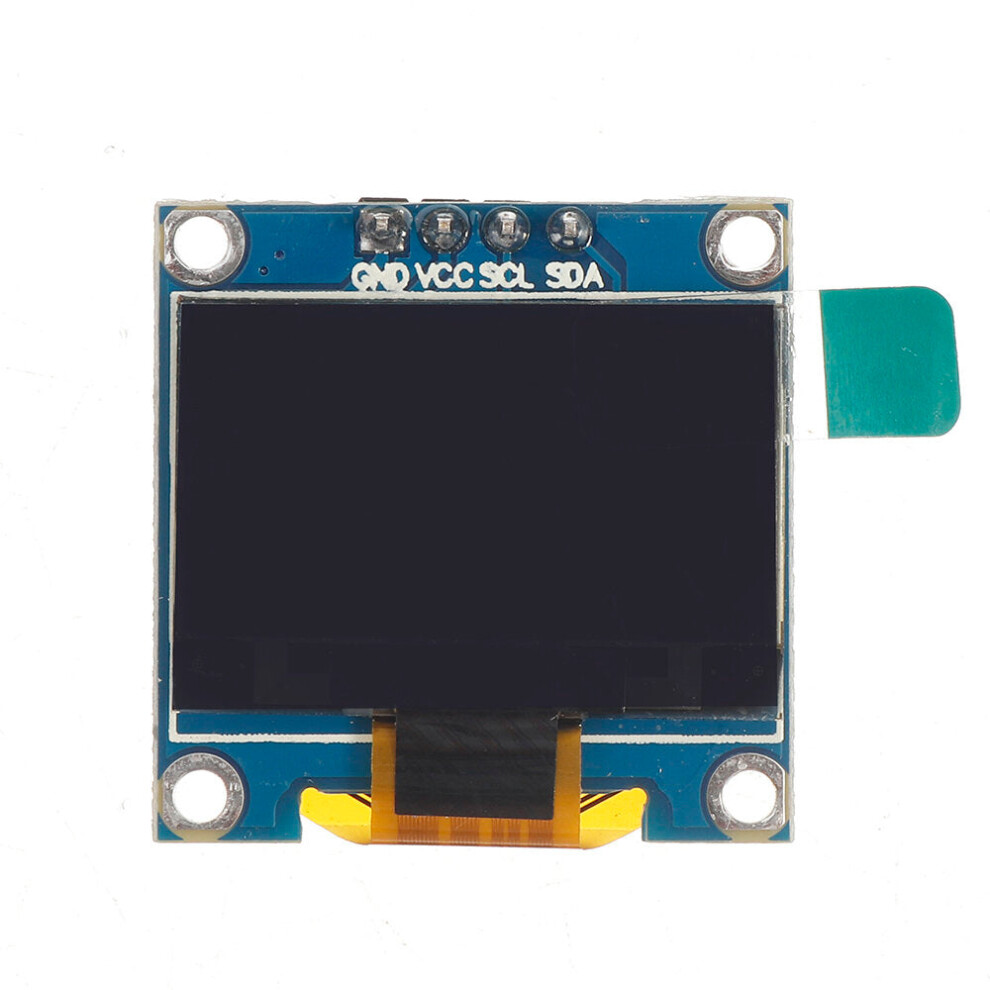

2. 0.96 inch OLED screen.
3. For circuit diagrams and firmware, please contact the store.
4. Weight: about 200 grams.
5. Carton packaging size: 15 * 10 * 4CM.

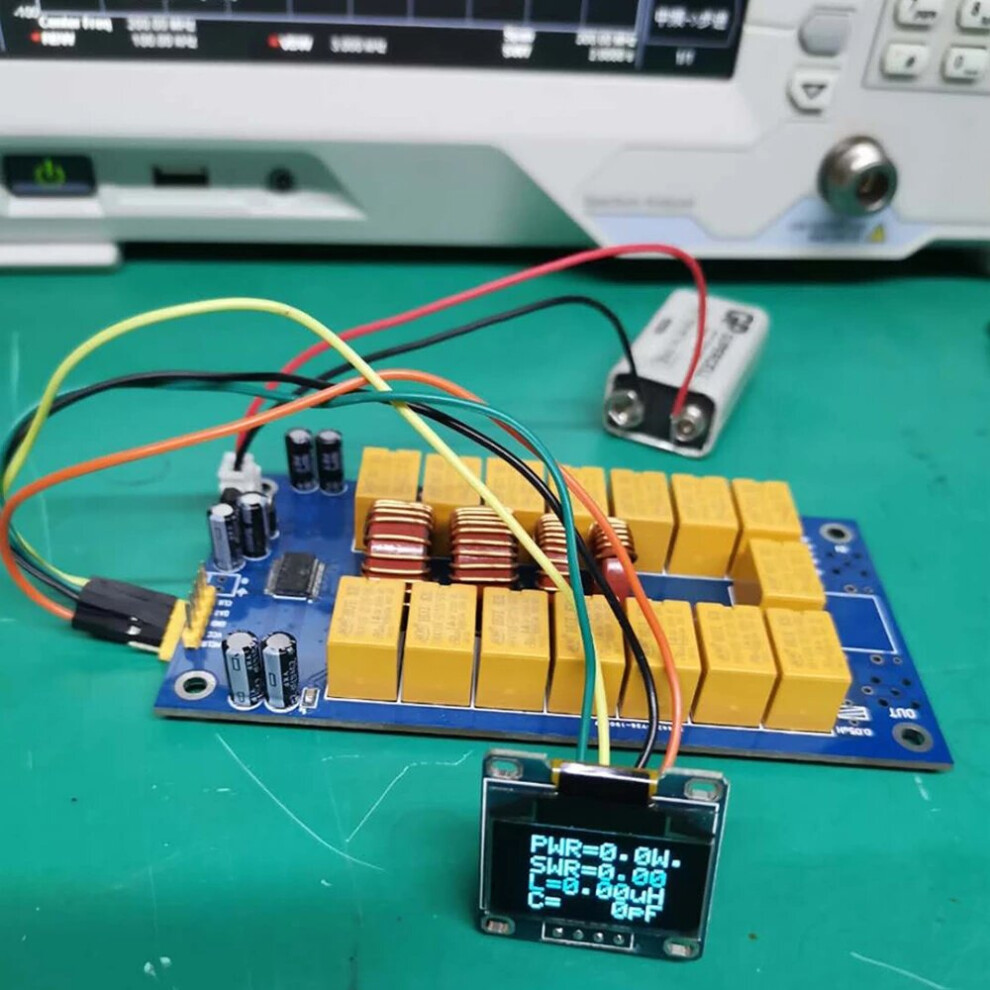

6. 0.96 inch OLED automatic adjustment.
Main feature:

Allowable power supply voltage range when operating at a frequency of 10-15V DC at 1.8-50 MHz;
Maximum current consumption: 300 mA;
Maximum working power: 100 watts;
Maximum possible power: 150 watts;
1 watt: you need to start setting the minimum power;
Minimum possible power: 0.1 watts;
Up to 10W measurement step: 0.1W;
Powerful measurement step, 10 watts higher than STI: 1 watt;
Power measurement accuracy: 10%;
Maximum specified inductance: capacity 8.4 uH;
Minimum installation step length of inductance: 0.05h;
Maximum installed capacity: 1870 pF capacitor;
Minimum installation steps: 10 pF.


Package included:

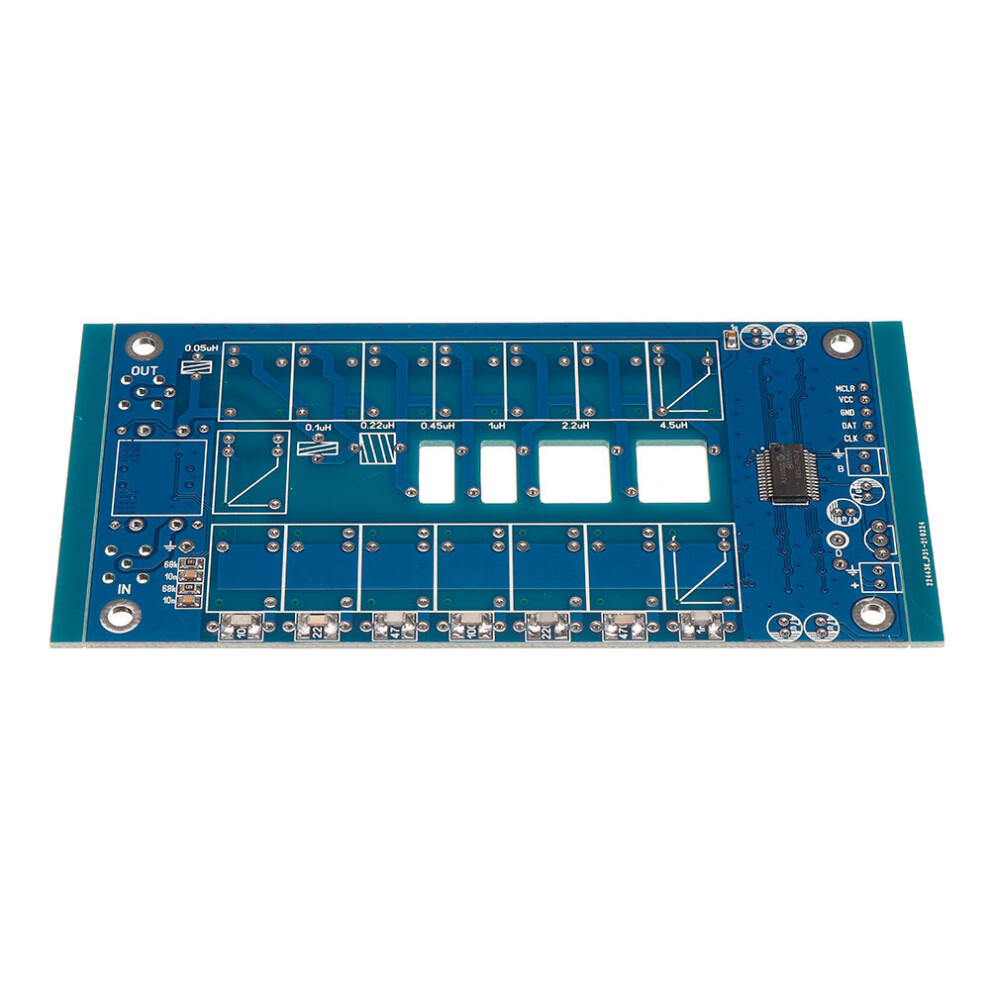

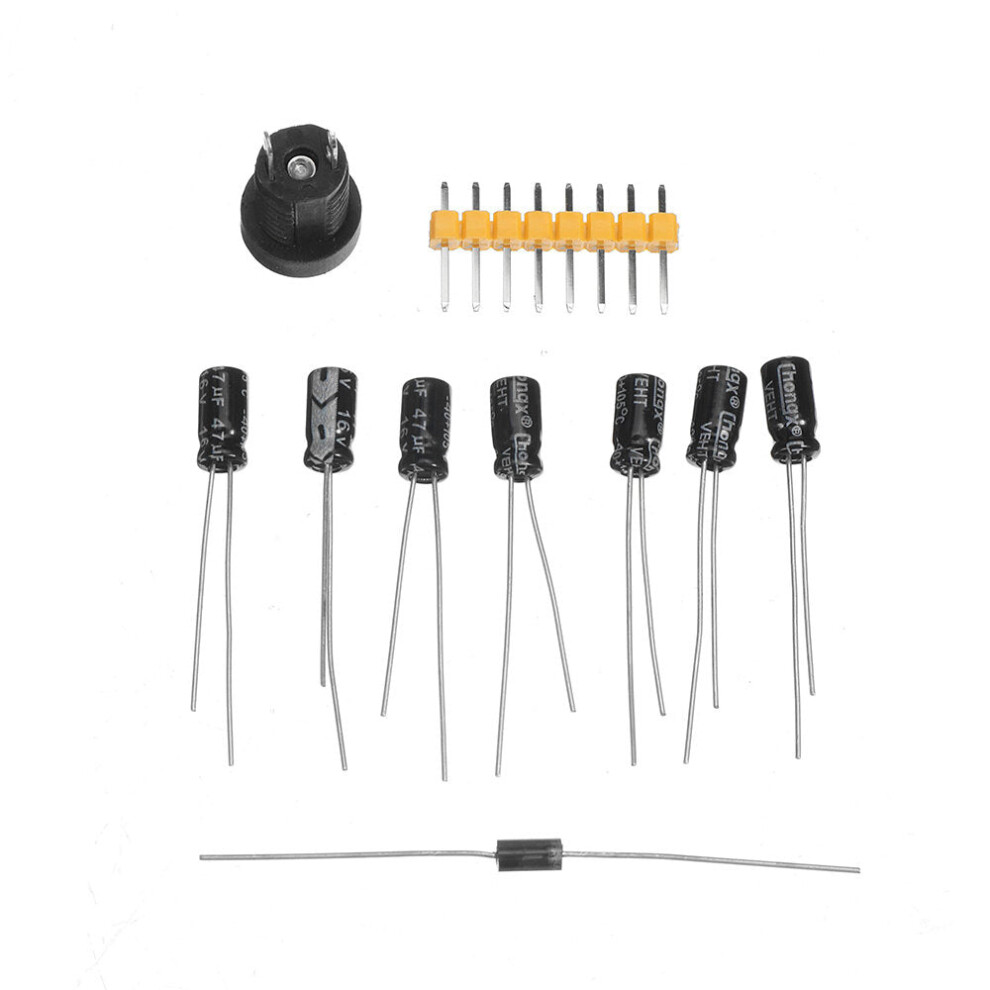

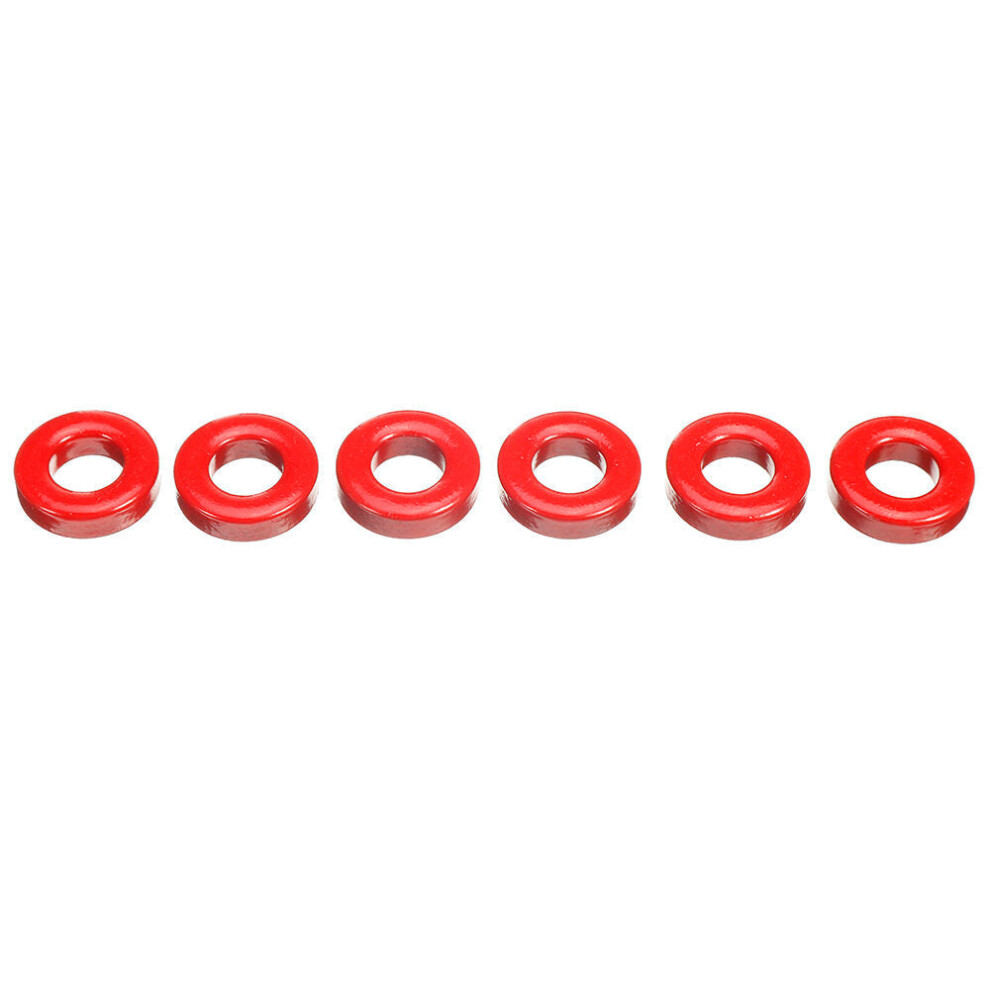

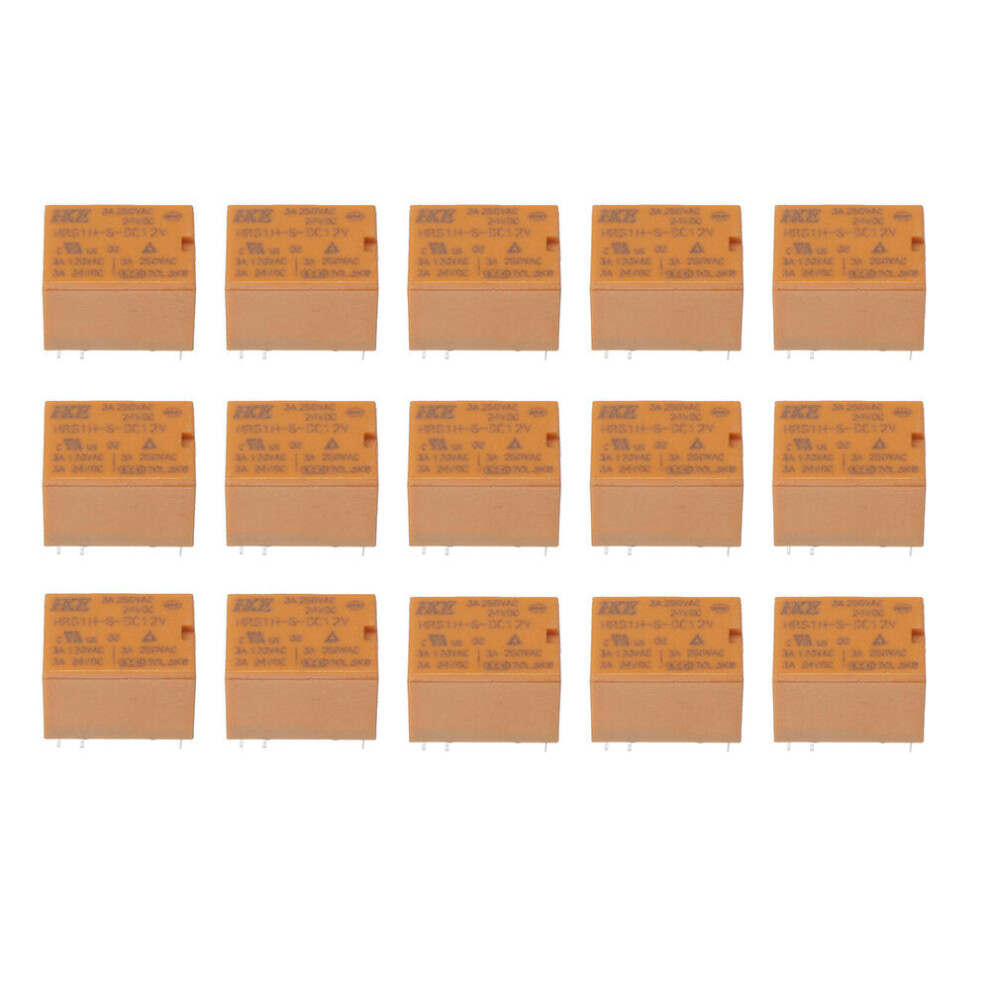

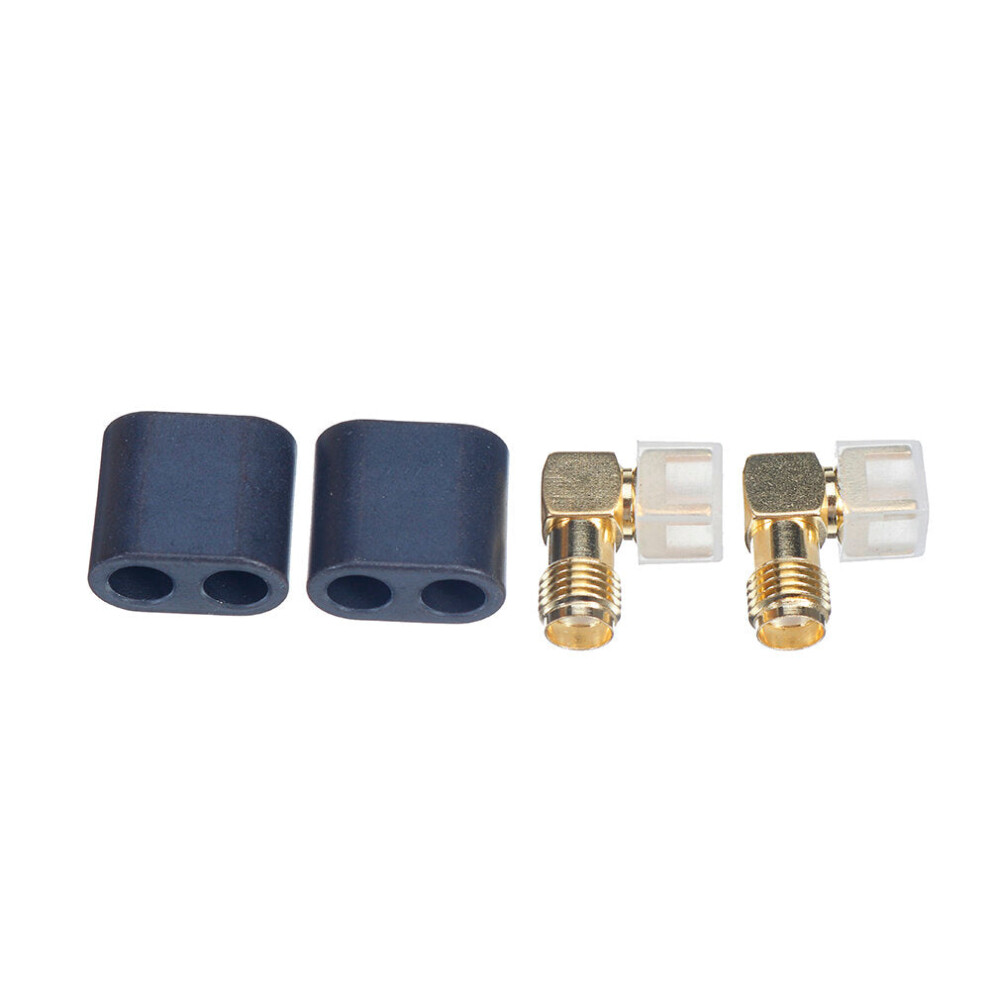

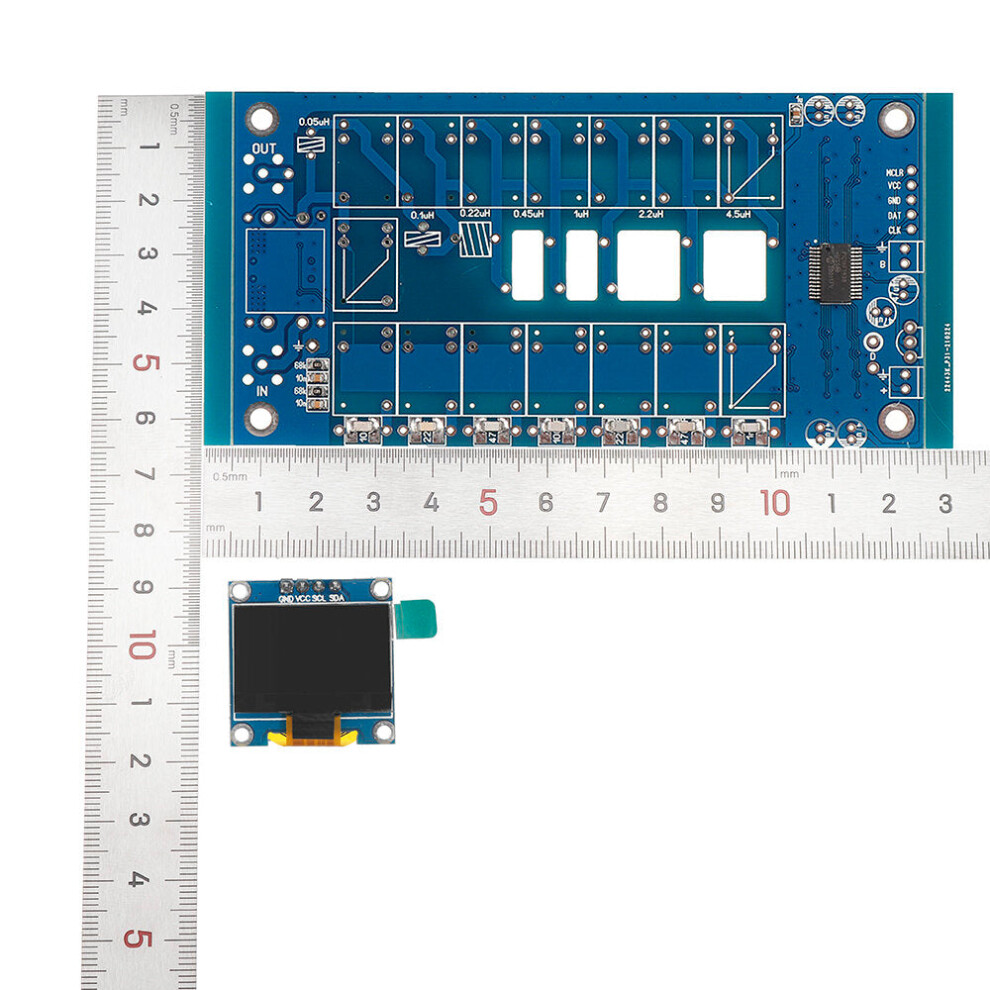

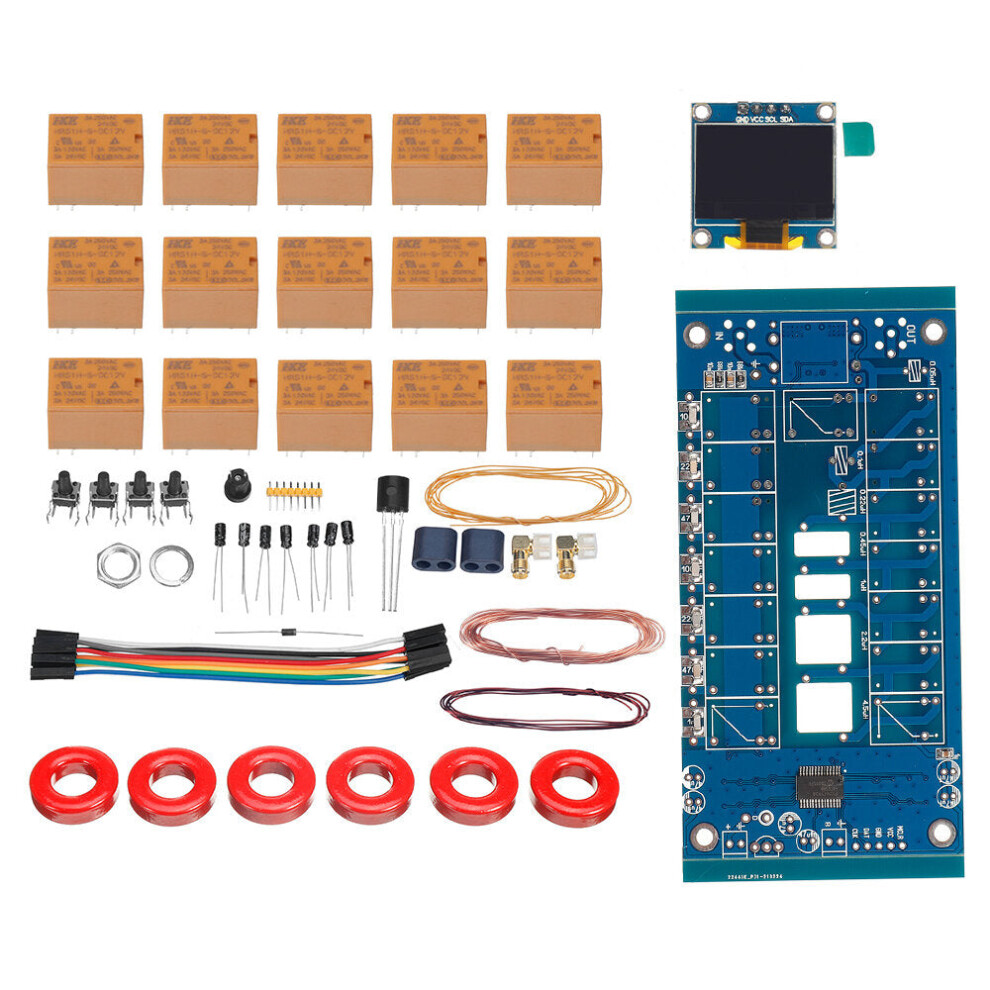

1 xAutomatic Antenna Adjuster DIY Kits
