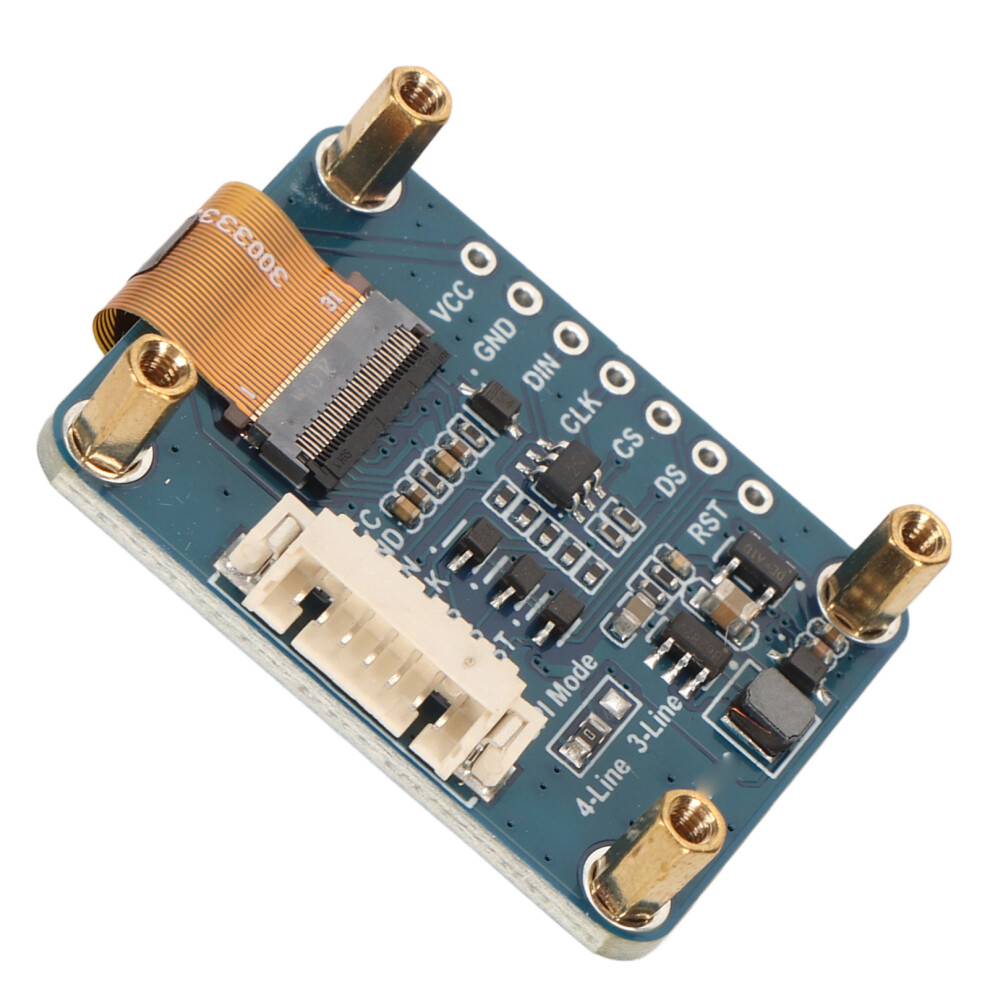

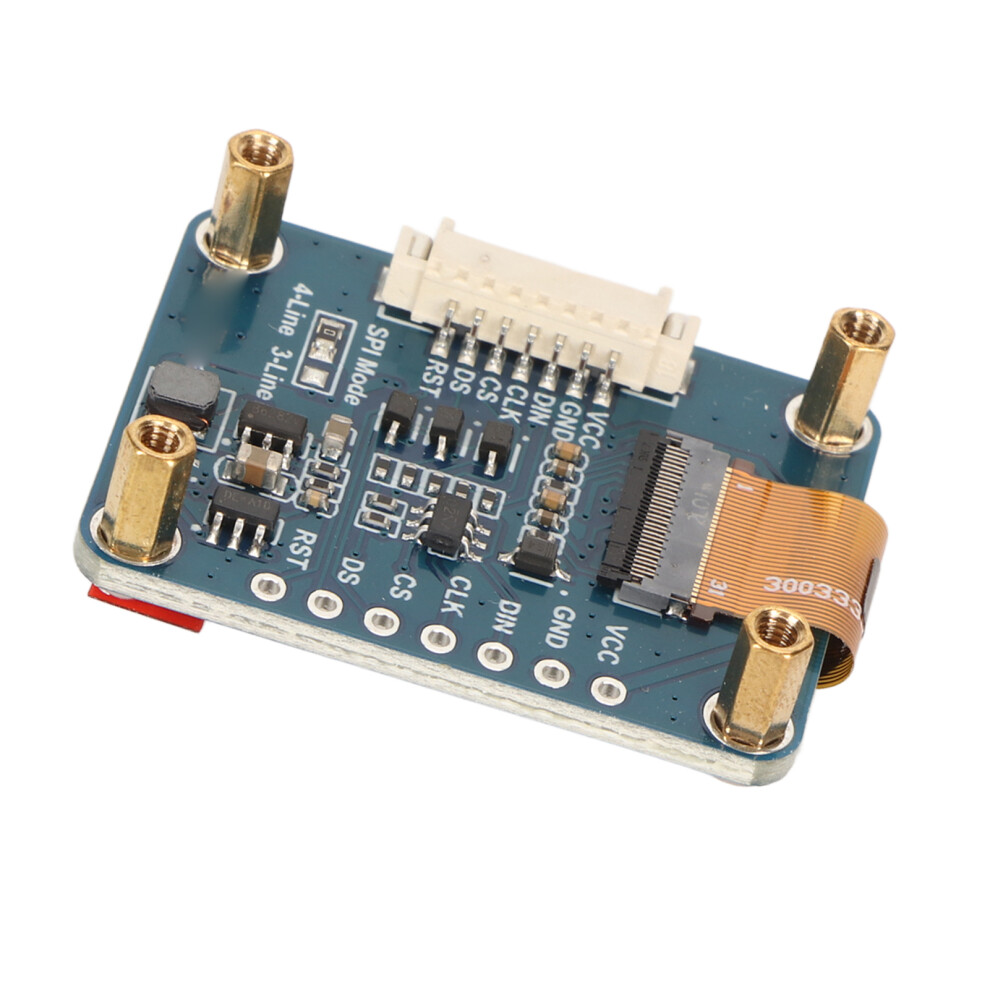

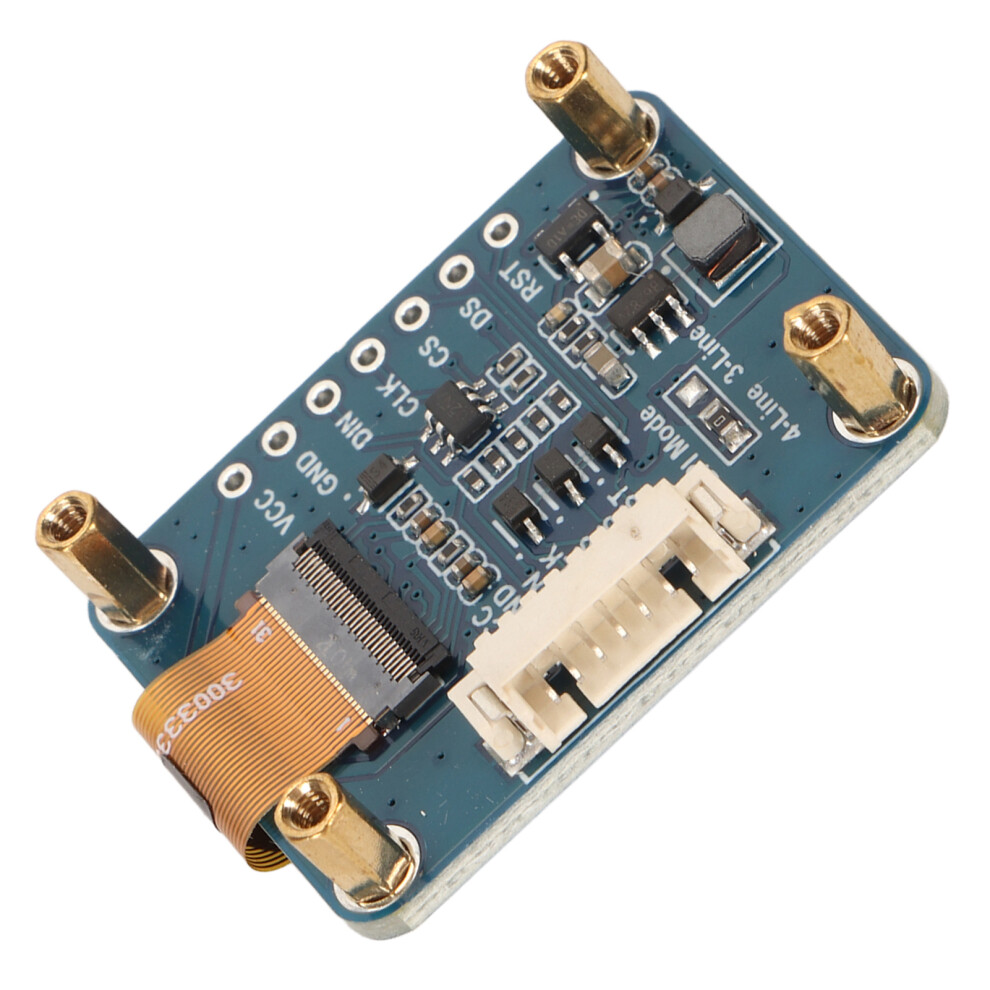

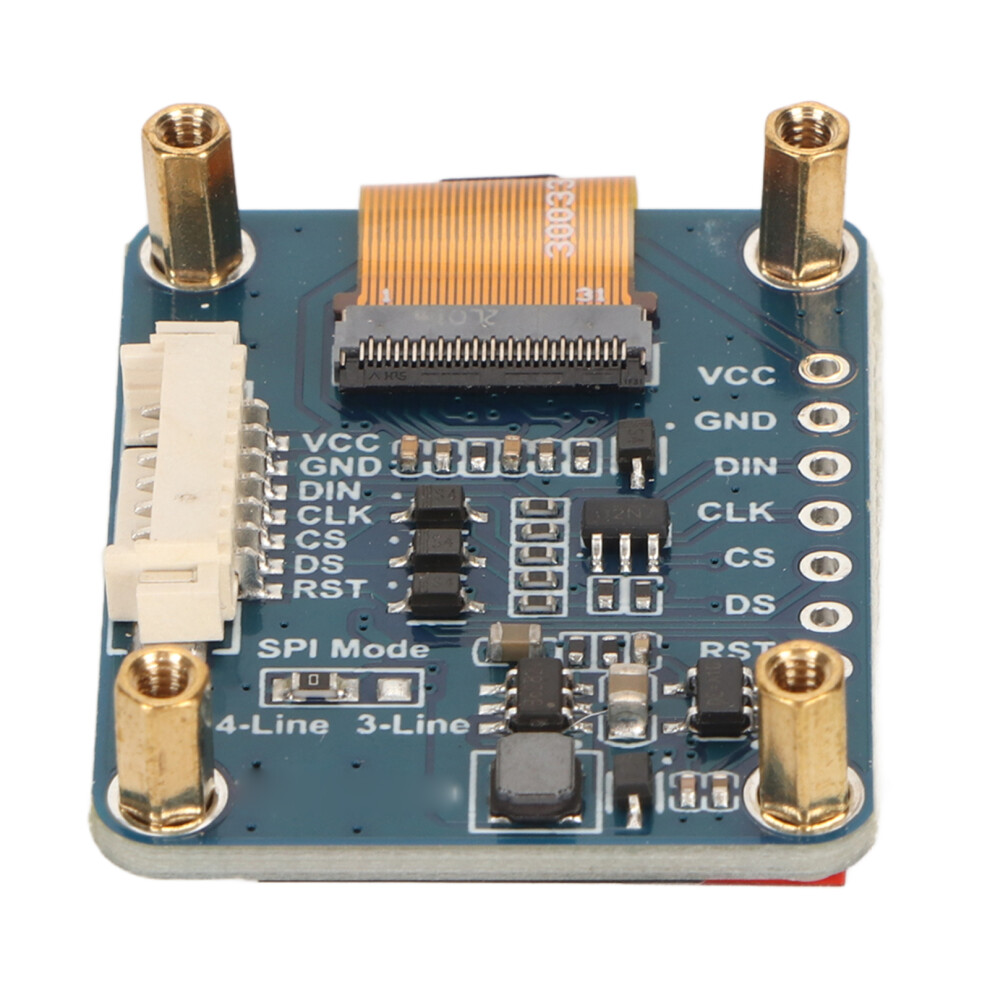

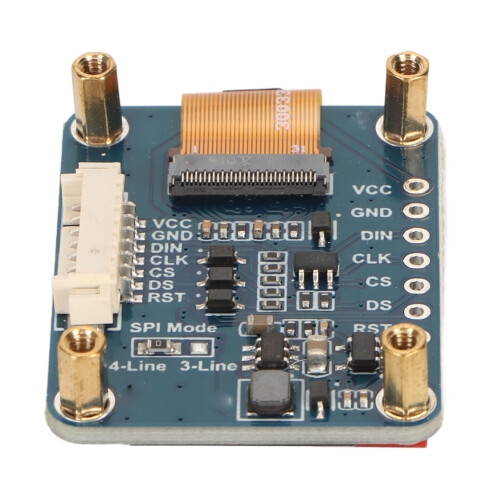

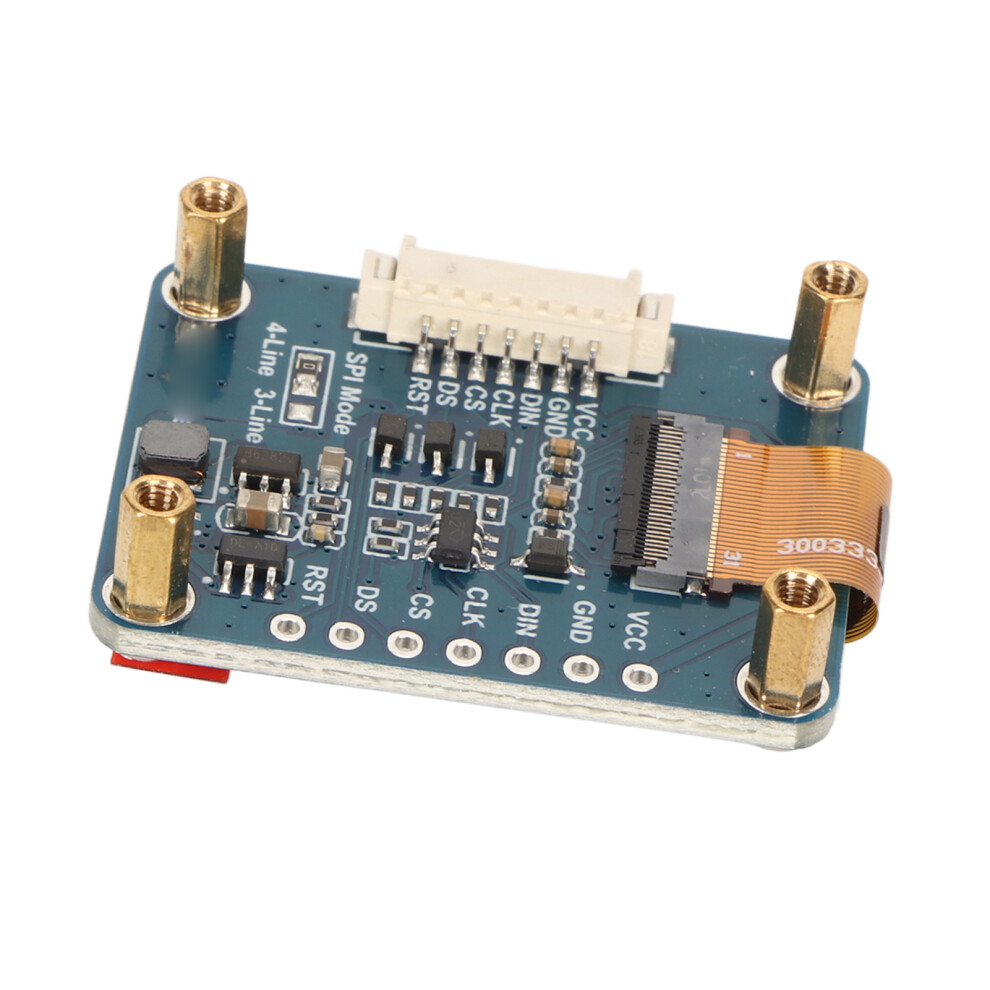

0.96inch RGB SPI Module 65K Color 64x128

0.96inch RGB SPI Module 65K Color 64x128 Description

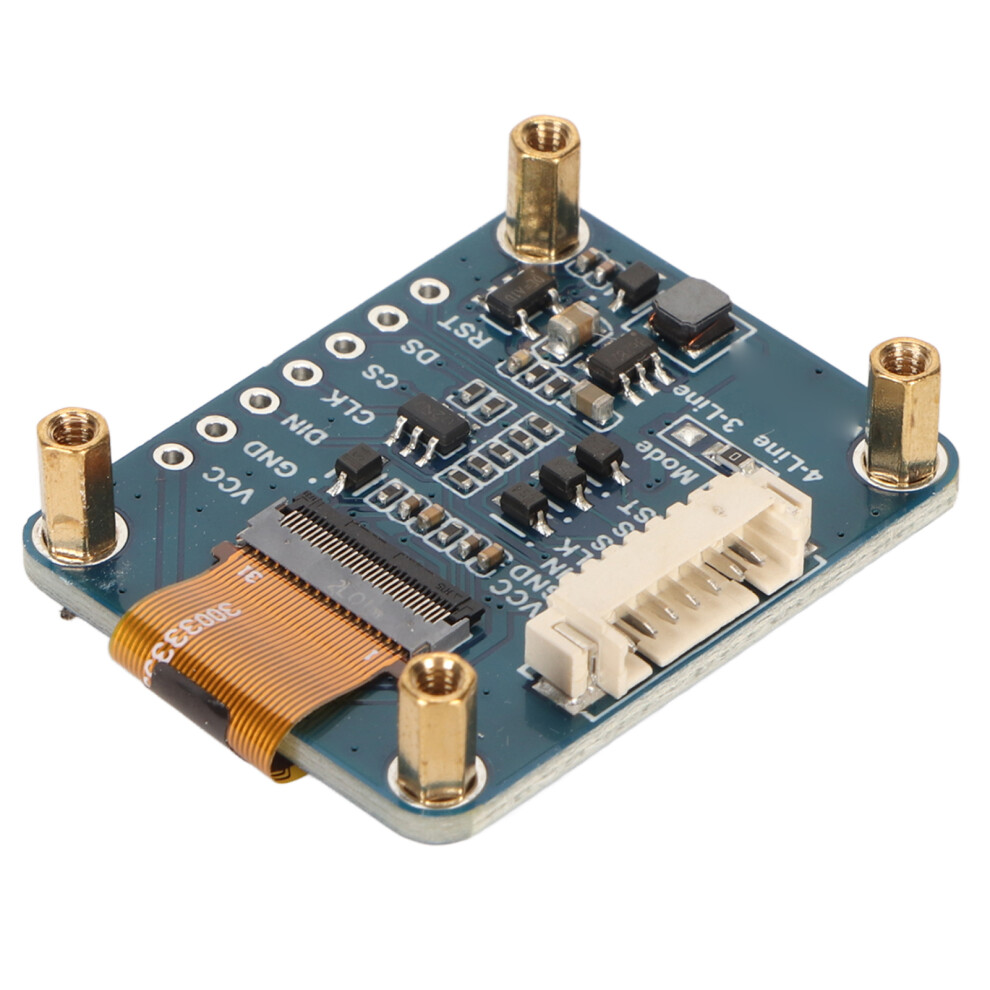

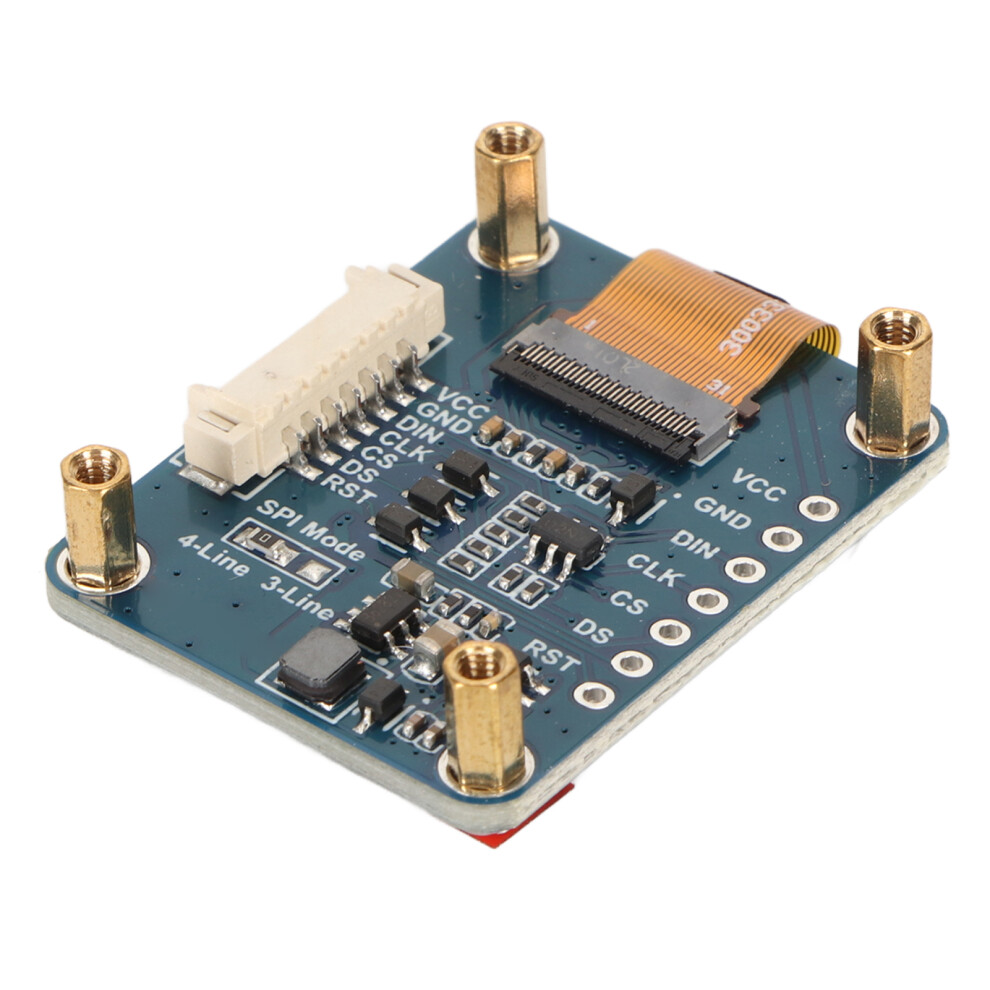

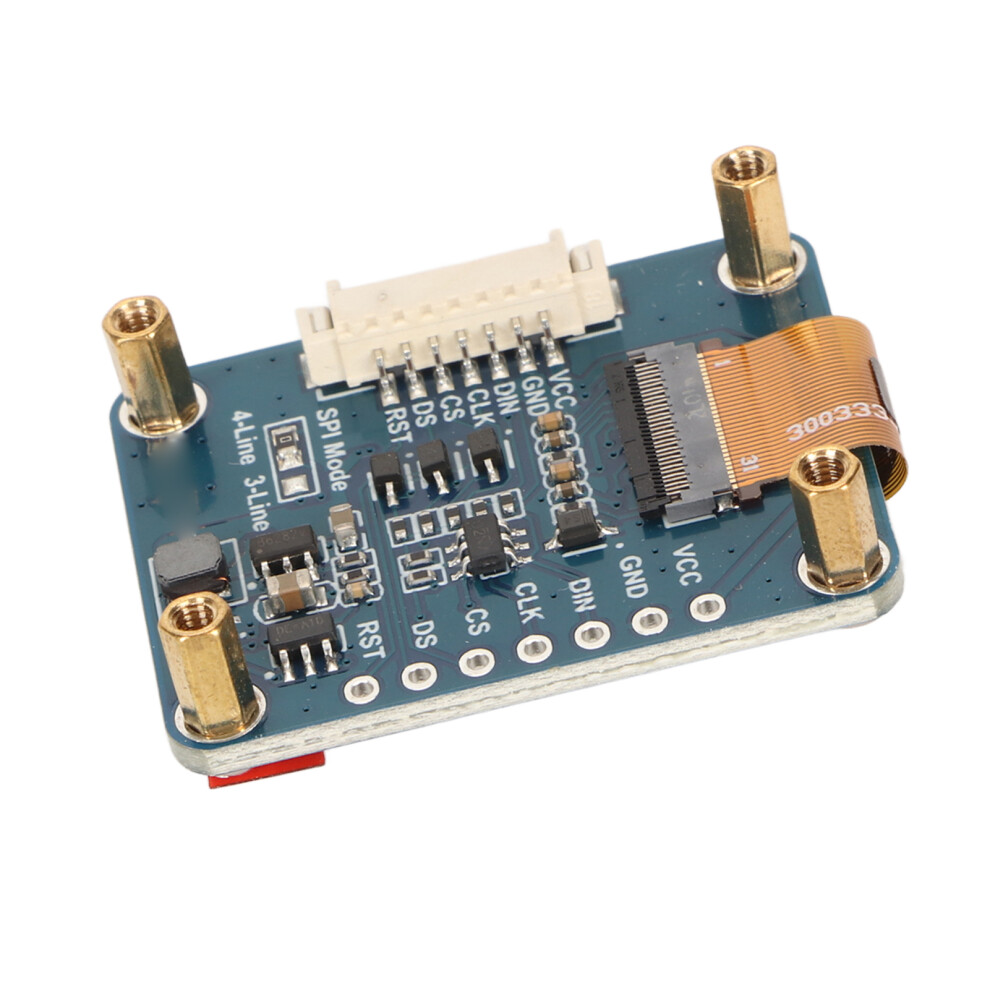

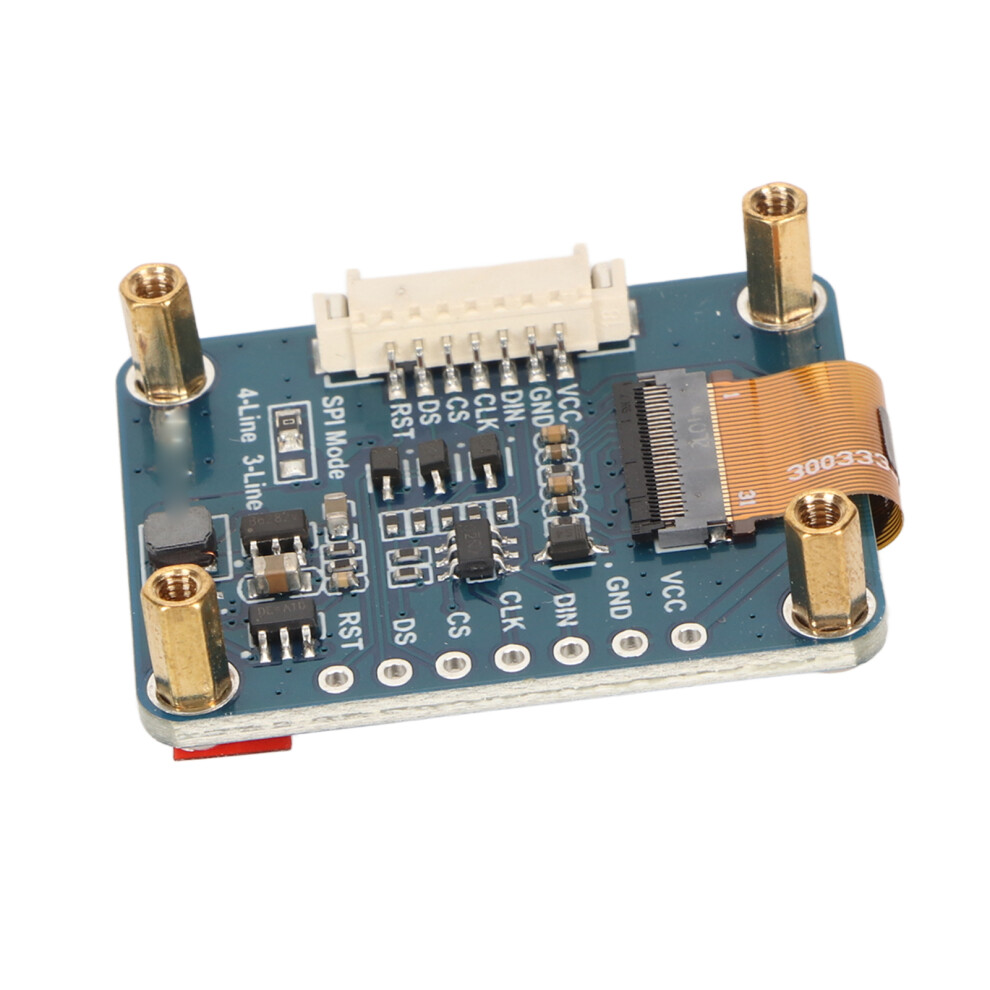

0.96inch RGB SPI Module 65K Color 64x128 Resolution SSD1357 Driver Chip LCD Display Module for Motherboard



1、65K COLOR: LCD display module built in driver is SSD1357, 64(RGB)x128 Dot lattice PLED controller, there is an internal 64x128x18bit SRAM as display buffer, support 256 contrast ratio and 65K color. 2、SUPPORT COMMUNICATE MODE: 0.96inch LCD display module supports 8bit 8080 parallel, 8bit 6800 parallel, 3wire SPI and 4wire SPI communicate mode. 3、SPI CONTROL: 0.96inch display module uses SPI control to ensure that it does not take up too much interface pin resources. 4、REDUCED AREA: This module chooses 4 wire SPI and 3 wire SPI as the communicate method, which reduces the area of the module and saves the IO resources of the controller at the same time. 5、PCB MATERIAL: 0.96inch LCD display module is made of PCB material, which can ensure the stability for a long time without deformation.



Item Type: 0.96inch RGB SPI Module Material: PCB Operating Voltage: 3.3V / 5V (Please Ensure That the Power Supply Voltage and LogicVoltage Are the Same, Otherwise It Will Generate to Failure of Normal Operation) Supported Interfaces: 4 Wire SPI, 3 Wire SPI Driver Chip: SSD1357 Resolution: 64 (RGB) x 128 Display Size: WxH, Approx. 10.8624 x 21.736mm / 0.43 x 0.86in PX Size: WxH, Approx. 0.0327 x 0.146mm Display Color: 65K Color



1 x 0.96inch RGB SPI Module 1 x Connecting Line
