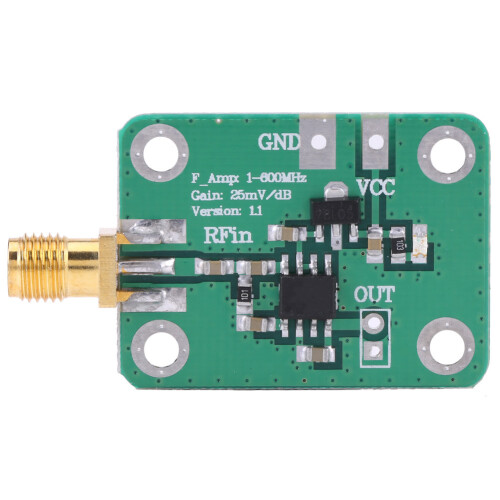

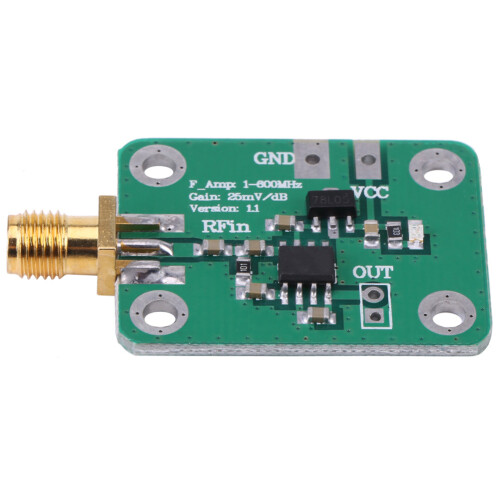

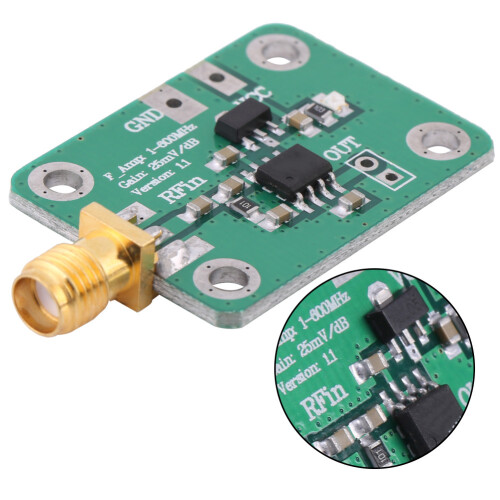

1-600MHz RF Logarithmic Power Detector -74dBm to 18dBm
New
£11.40
Would you like us to let you know when it's back?
Description & Details
Summary
- The detector is is used for RF signal power detection of frequency range between 1MHZ and 600MHZ
- It can detect a rf signal of power from -74dBm to 18dBm, and convert the RF signal into a DC voltage output
- The higher radio frequency signal range or power is, the higher output voltage will be; output voltage is proportional to logarithm of input signal range
- Widely used for RF signal detection, signal power measurement, environment field strength detection, can also be used as a part of automatic gain control and automatic level control
- It can be made into 1mw ~ 1kw RF power meter after appropriate transformation
1-600MHz RF Logarithmic Power Detector -74dBm to 18dBm Description
1-600MHz RF Signal Power Meter Logarithmic Detector -74dBm to 18dBm Radio Frequency Detection
Features:
The detector is is used for RF signal power detection of frequency range between 1MHZ and 600MHZ.
It can detect a rf signal of power from -74dBm to 18dBm, and convert the RF signal into a DC voltage output.
The higher radio frequency signal range or power is, the higher output voltage will be; output voltage is proportional to logarithm of input signal range.
Widely used for RF signal detection, signal power measurement, environment field strength detection, can also be used as a part of automatic gain control and automatic level control.
It can be made into 1mw ~ 1kw RF power meter after appropriate transformation.
Specifications:
Working Frequency: 1MHZ---600MHZ
Measuring Power: -74dBm to +18dBm
Output Voltage: 0---2.5V
Detection Slope: 25mV/dBm (typical)
Input Impedance: 50ohm
Power Supply Voltage: 6-15V
RF Input Connector: SMA-female
OUT: Detection Output
VCC: DC Power Supply
Package Includes:
1 x RF Logarithmic Detector
