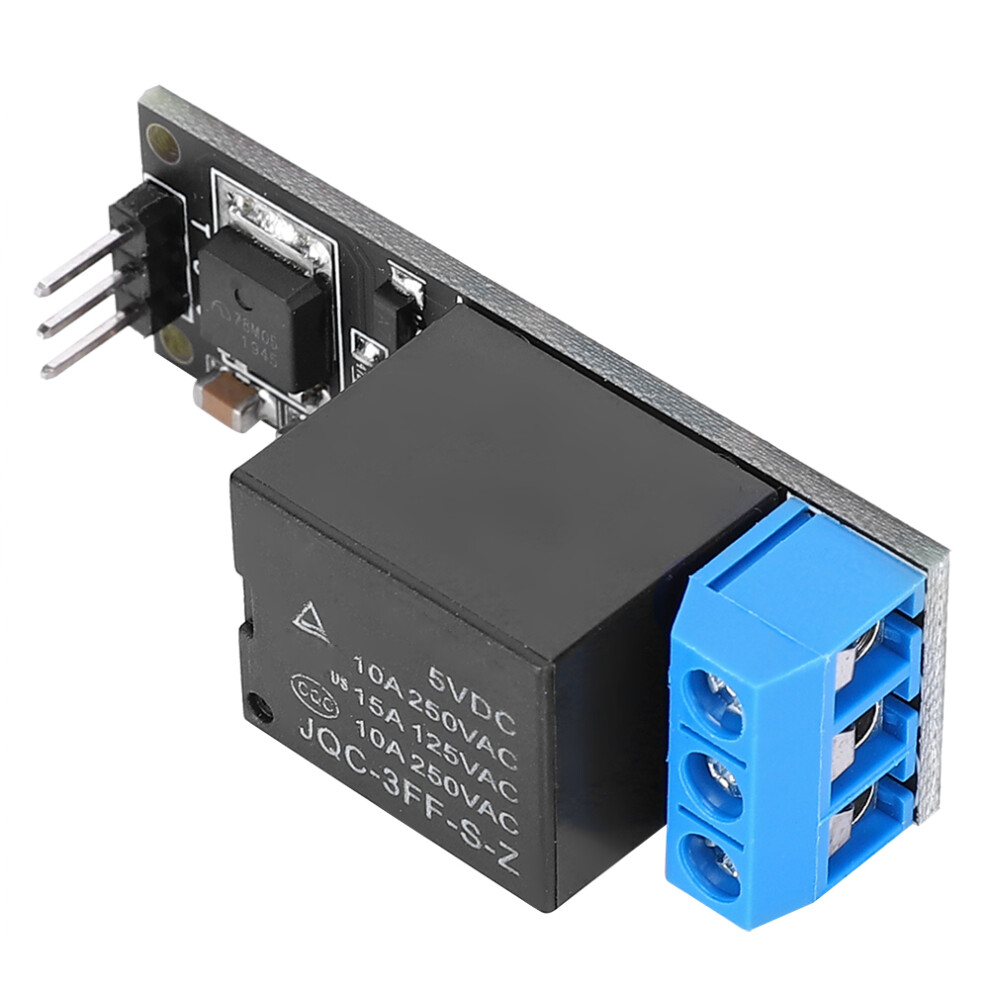

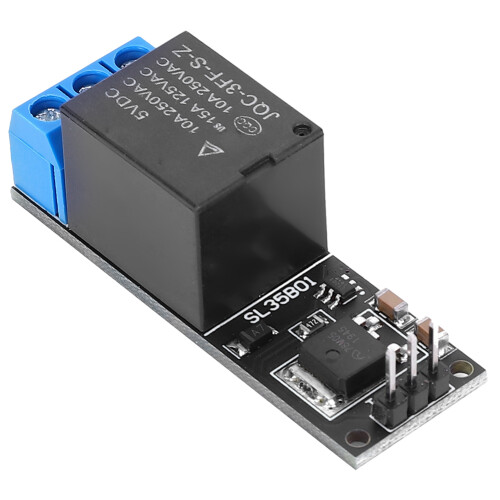

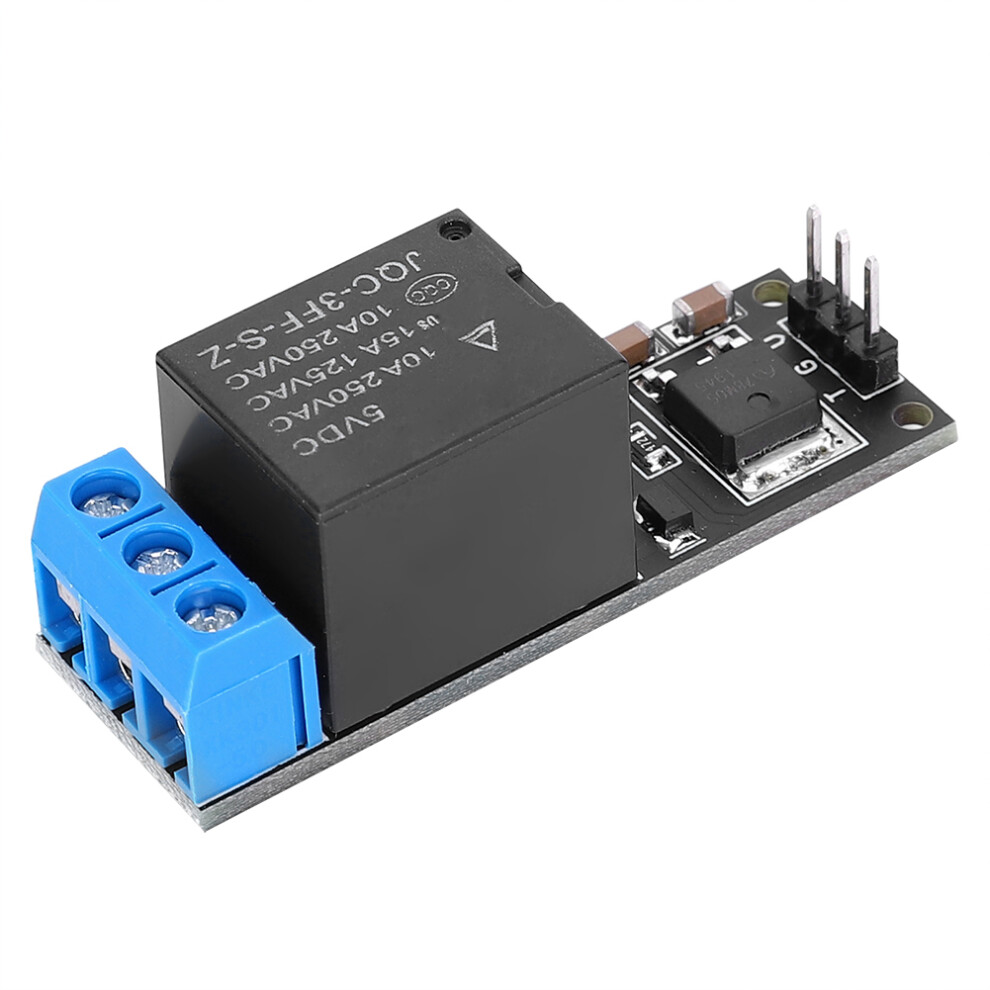

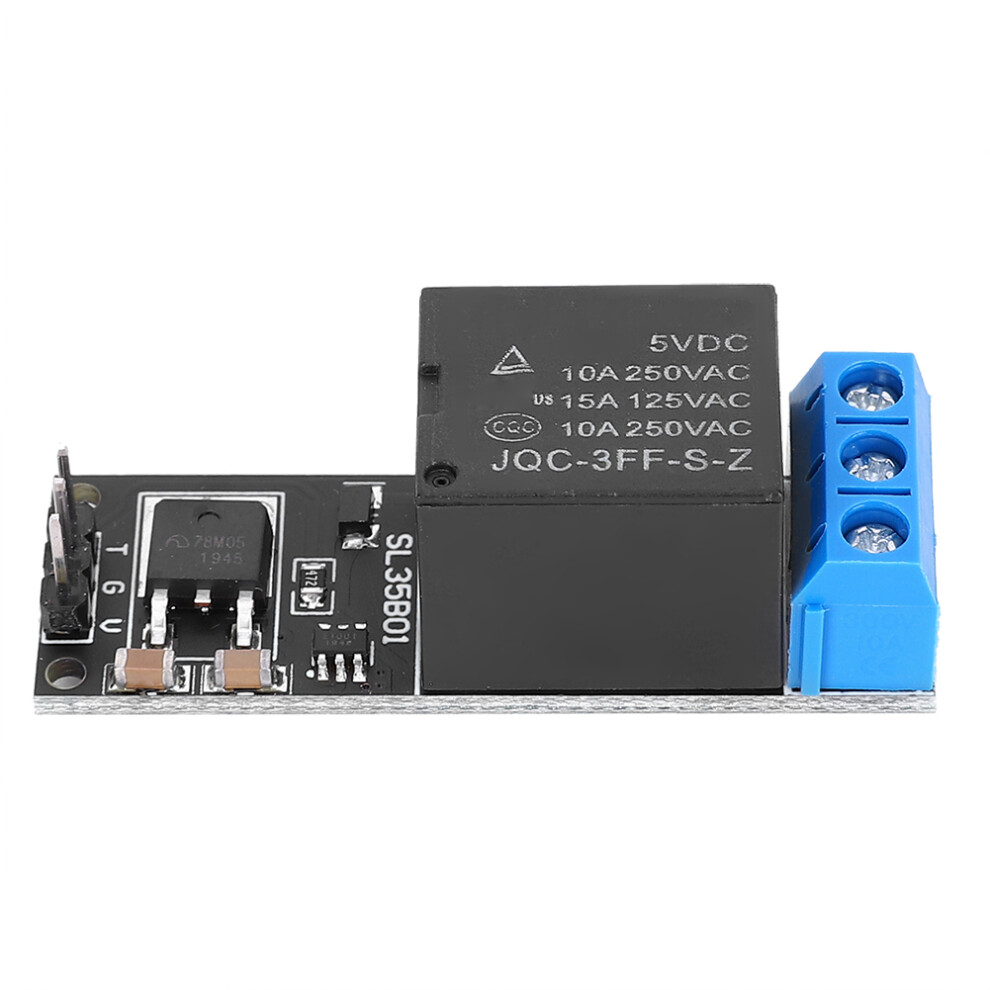

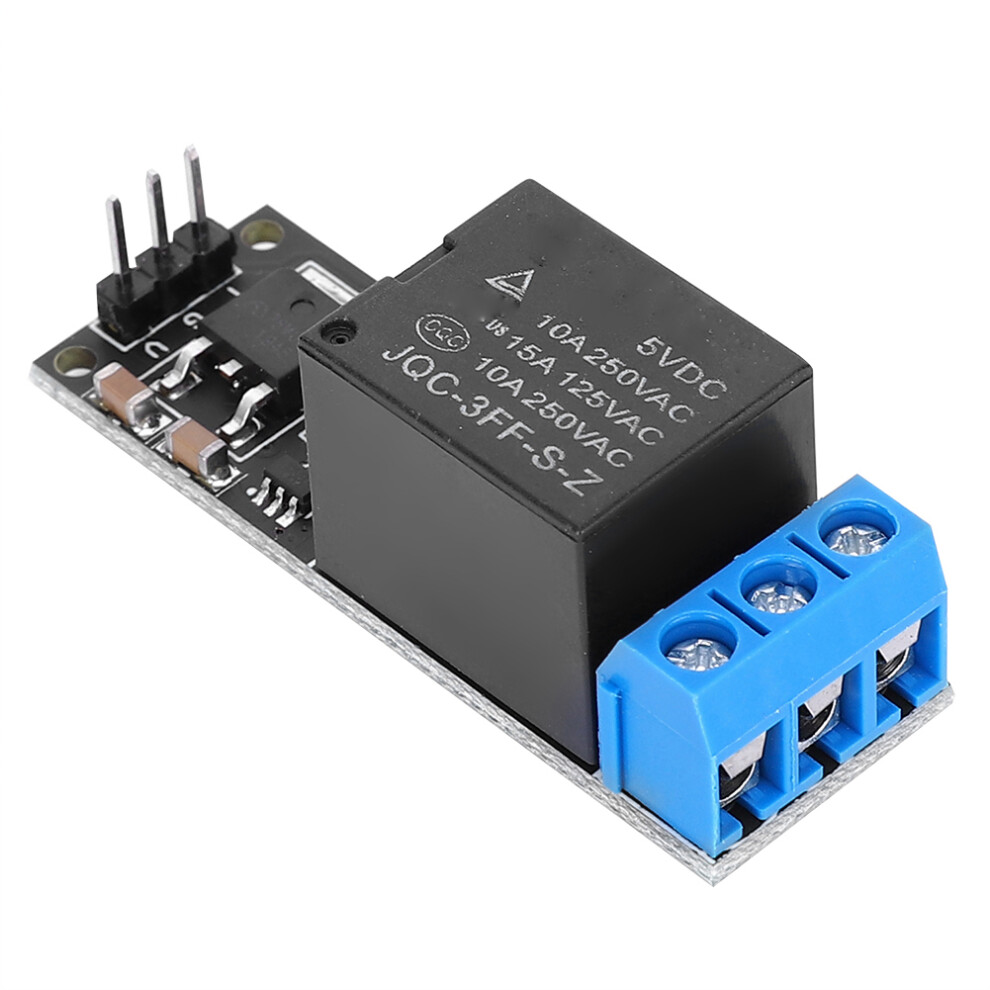

1 Channel Bistable Self Locking Trigger Button MCU Relay 12V

1 Channel Bistable Self Locking Trigger Button MCU Relay 12V Description

1、Keeps high durability and high accuracy, such relay switch can be easy to use in the practical life. 2、With guaranteed quality, relay module can be used with confidence, light and practical. 3、1-channel relay is built to strict quality control standards, improved for more durability. 4、As a low pulse trigger, trigger mode supports high performance according to strict rule. 5、Supports simple installation, relay board with strong stability not requires particularly complicated operations.
Item Type: Relay module
Model: SL35B01
Working Voltage: DC 6-24V (recommended DC 9V 12V)
Working Current: 60-70MA
Static Working Current: 0.12mA
Relay Load Current: AC 250V / 10A, DC 30V / 10A
Trigger Mode: Low level trigger
Pin Description:
V: Positive power supply
G: Negative terminal of power supply and ground terminal of trigger signal;
T (T1 / T2 / T3 / T4): Trigger signal input (0.2-2 second low pulse).
NO: Relay normally open port
COM: Relay common port
NC: Relay normally closed port
Instructions:
When power on, the relay opens. Click the trigger port (T1 / T2 / T3 / T4 port) relay to pull in (and hold). Then click the relay again to disconnect and so on.
1 x Relay Module
