1 Tonne Folding Engine Crane - Side Pump Access - Heavy Duty Castors - Workshop

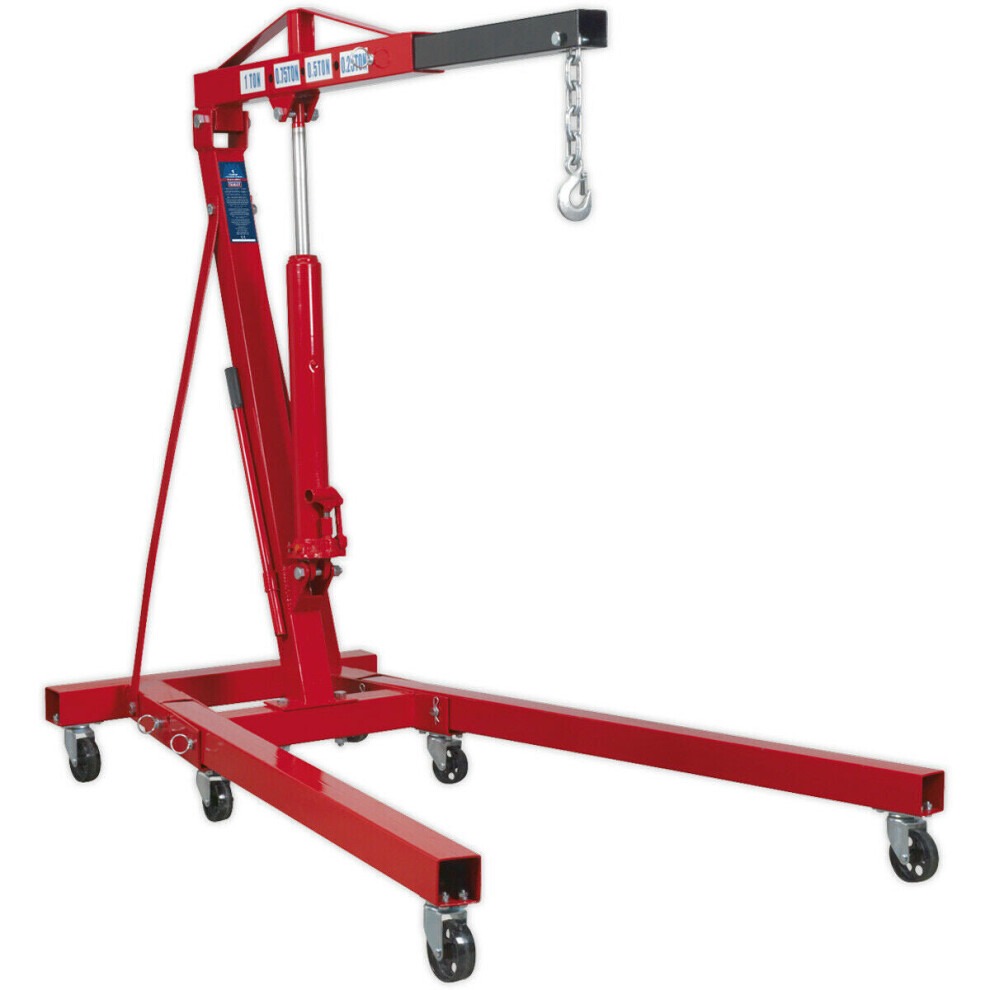

1 Tonne Folding Engine Crane - Side Pump Access - Heavy Duty Castors - Workshop Description

1 Tonne Folding Engine Crane - Side Pump Access - Heavy Duty Castors - Workshop

Overview:

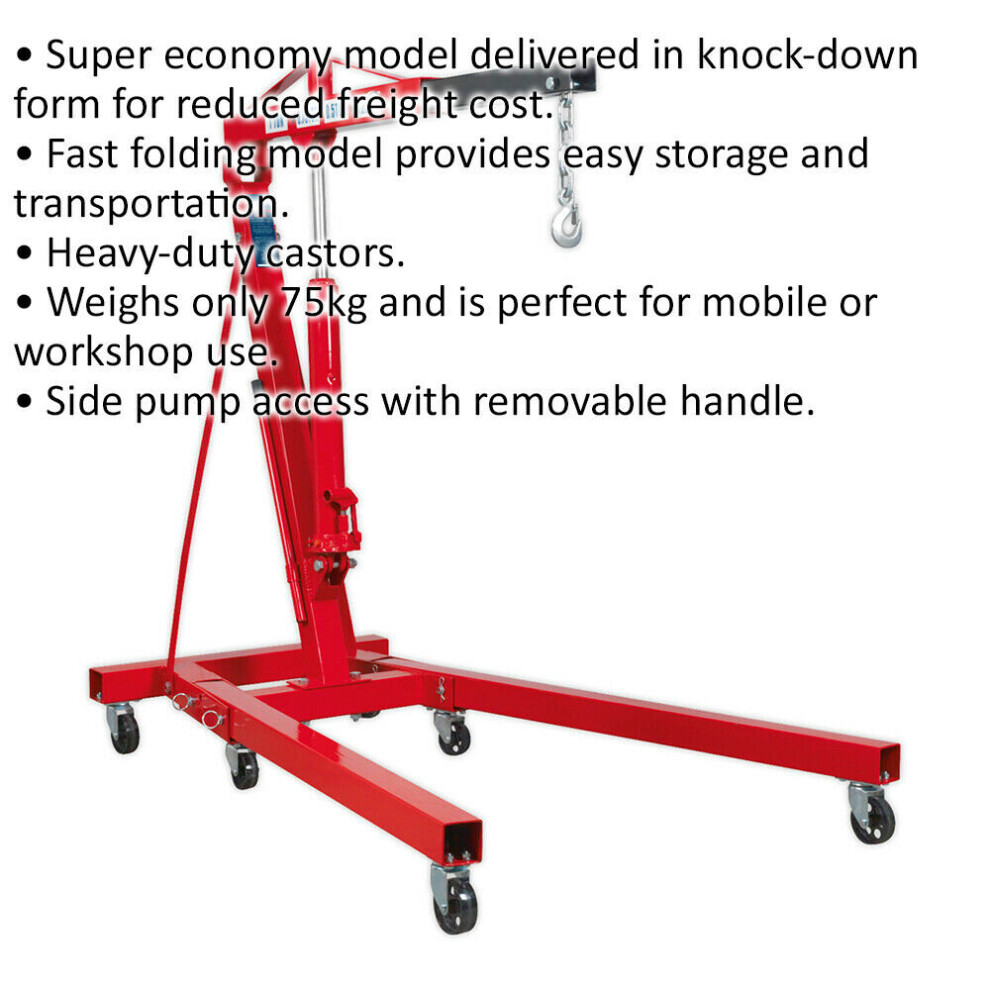

Super economy model delivered in knock-down form for reduced freight cost. Fast folding model provides easy storage and transportation with heavy-duty castors. Weighs only 75kg and is perfect for mobile or workshop use. Side pump as with removable handle.

Features:

• Lifts 1000kg at 830mm jib extension.
• Fast folding design.
• Heavy-duty castors.
• Weighs only 75kg.

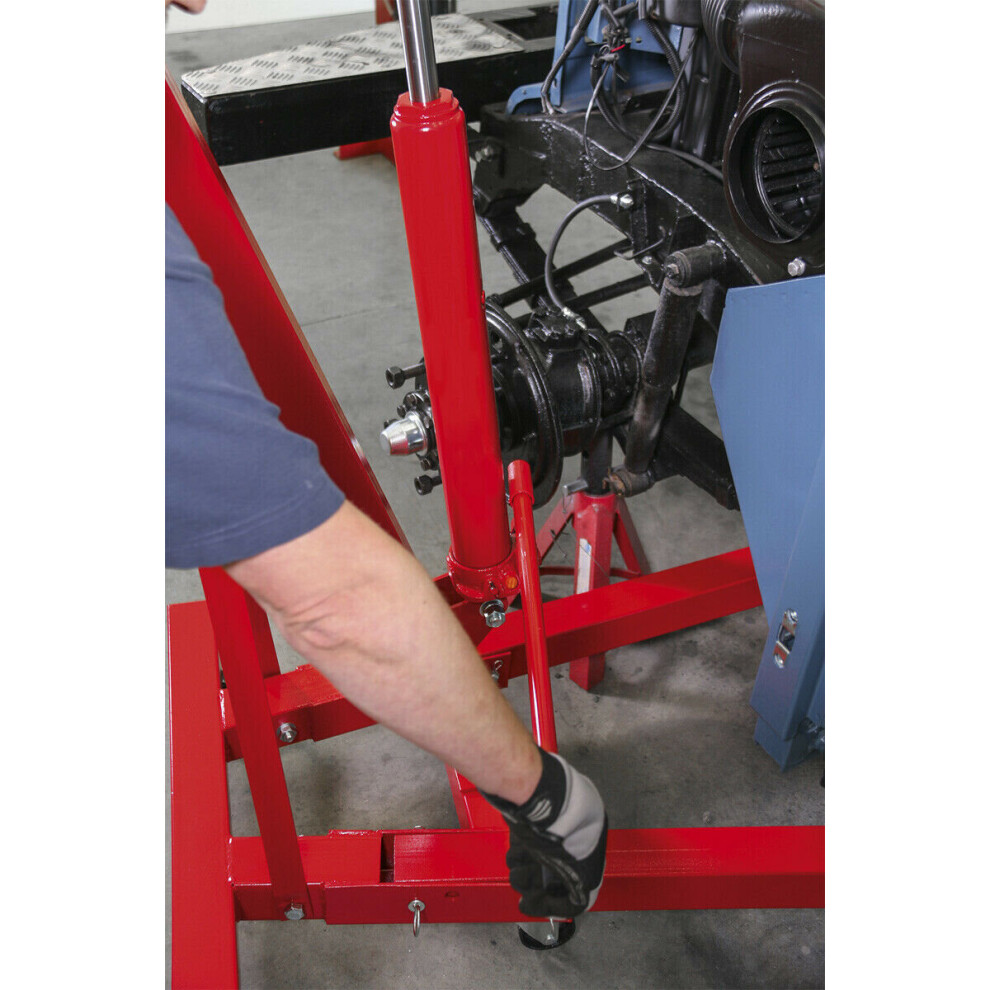

• Side pump as with removable handle.
• Delivered in knock-down form.
• Some self-assembly required.

Specification:

• Height Jib Down - 1390mm
• Height Legs Folded - 1440mm
• Height of Frame - 185mm
• Length Legs Extended - 1620mm
• Length of Jib Position 1 - 830mm
• Length of Jib Position 2 - 950mm
• Length of Jib Position 3 - 1070mm
• Length of Jib Position 4 - 1190mm
• Length - 1620mm
• Lifting Capacity in Position 1 - 1000kg
• Lifting Capacity in Position 2 - 750kg
• Lifting Capacity in Position 3 - 500kg
• Lifting Capacity in Position 4 - 250kg
• Max. Lift Ht at Jib Position 1 - 1820mm
• Max. Lift Ht at Jib Position 2 - 1935mm
• Max. Lift Ht at Jib Position 3 - 2030mm
• Max. Lift Ht at Jib Position 4 - 2150mm
• Net Weight - 75kg
• Rear Width - 700mm
• Width Front Frame - 920mm
• Width Inside Front Frame - 780mm

Further Information:
