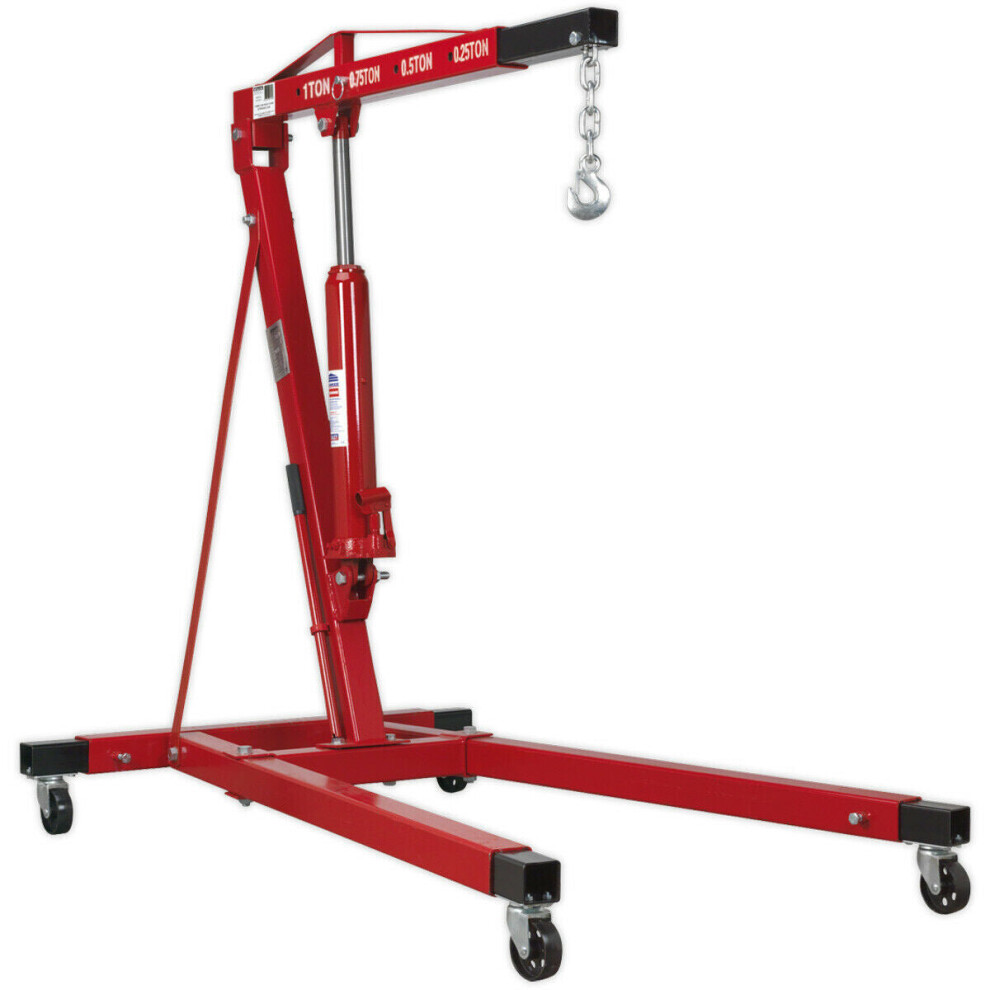

1 Tonne Long Reach Engine Crane with Extendable Legs - Heavy Duty Castors

1 Tonne Long Reach Engine Crane with Extendable Legs - Heavy Duty Castors Description

1 Tonne Long Reach Engine Crane with Extendable Legs - Heavy Duty Castors

Overview:

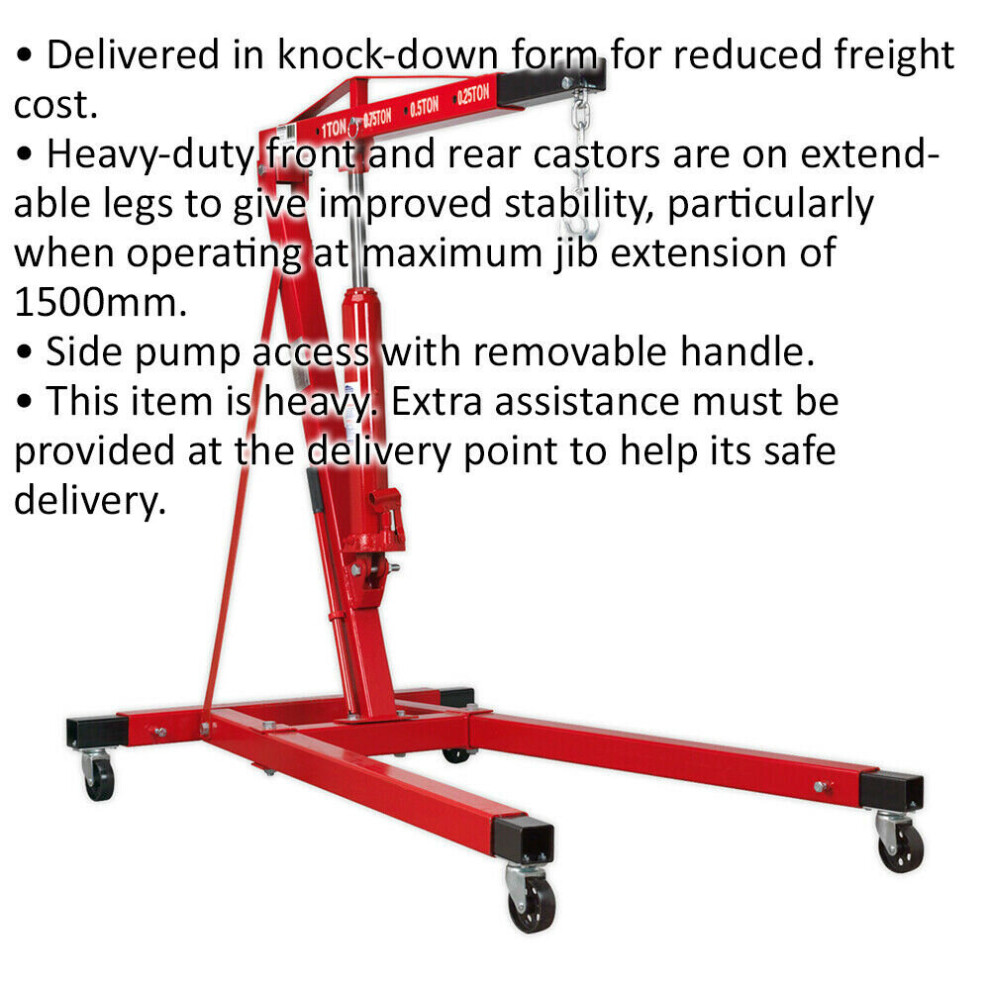

Delivered in knock-down form for reduced freight cost. Heavy-duty front and rear castors are on extendable legs to give improved stability, particularly when operating at maximum jib extension of 1500mm. Side pump as with removable handle.

Features:

• Economy model - requires self-assembly.

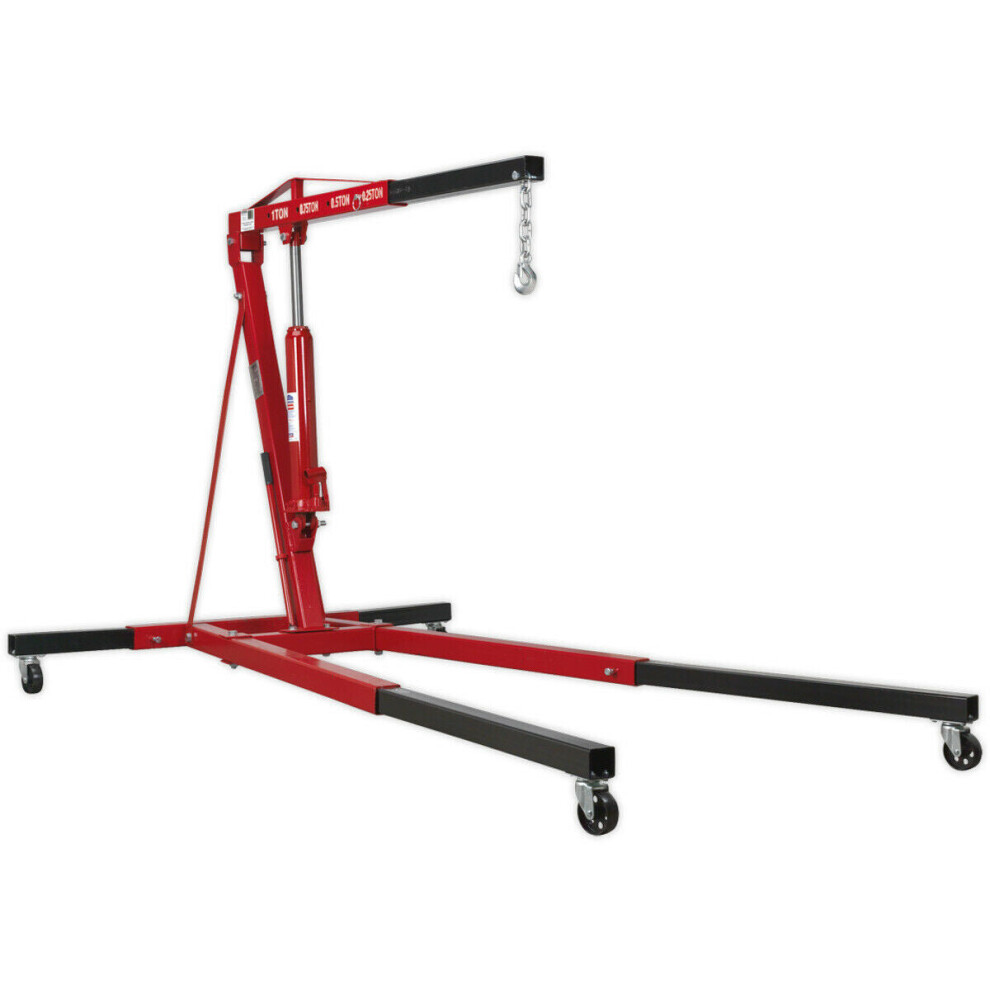

• Heavy-duty castors on extendable legs for improved stability.
• Lifts 1000kg at 960mm and 250kg at 1500mm jib extension.
• Side pump as with removable handle.
• This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.

Specification:

• Height Jib Down - 1460mm
• Height of Frame - 180mm
• Length Legs Extended - 2130mm
• Length of Jib Position 1 - 960mm
• Length of Jib Position 2 - 1040mm
• Length of Jib Position 3 - 1320mm
• Length of Jib Position 4 - 1500mm
• Length - 1575mm
• Lifting Capacity in Position 1 - 1000kg
• Lifting Capacity in Position 2 - 750kg
• Lifting Capacity in Position 3 - 500kg
• Lifting Capacity in Position 4 - 250kg
• Max. Lift Ht at Jib Position 1 - 1850mm
• Max. Lift Ht at Jib Position 2 - 1990mm
• Max. Lift Ht at Jib Position 3 - 2130mm
• Max. Lift Ht at Jib Position 4 - 2270mm
• Net Weight - 103.5kg
• Rear Width - 1000/1500mm
• Width Front Frame - 920/1030mm
• Width Inside Front Frame - 660/1010mm

Further Information:
