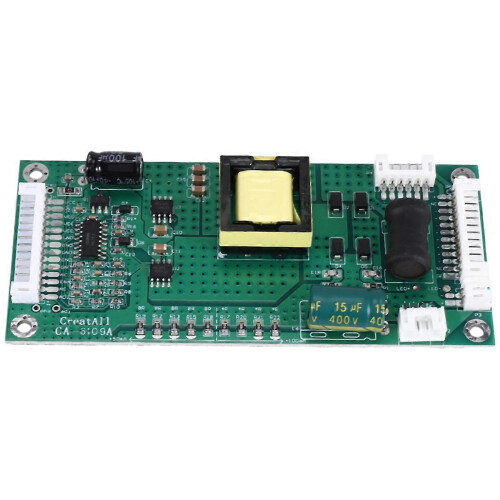

10-65 inch LED LCD TV Universal Boost Constant Current Driver Board Full Bridge Converter

10-65 inch LED LCD TV Universal Boost Constant Current Driver Board Full Bridge Converter Description

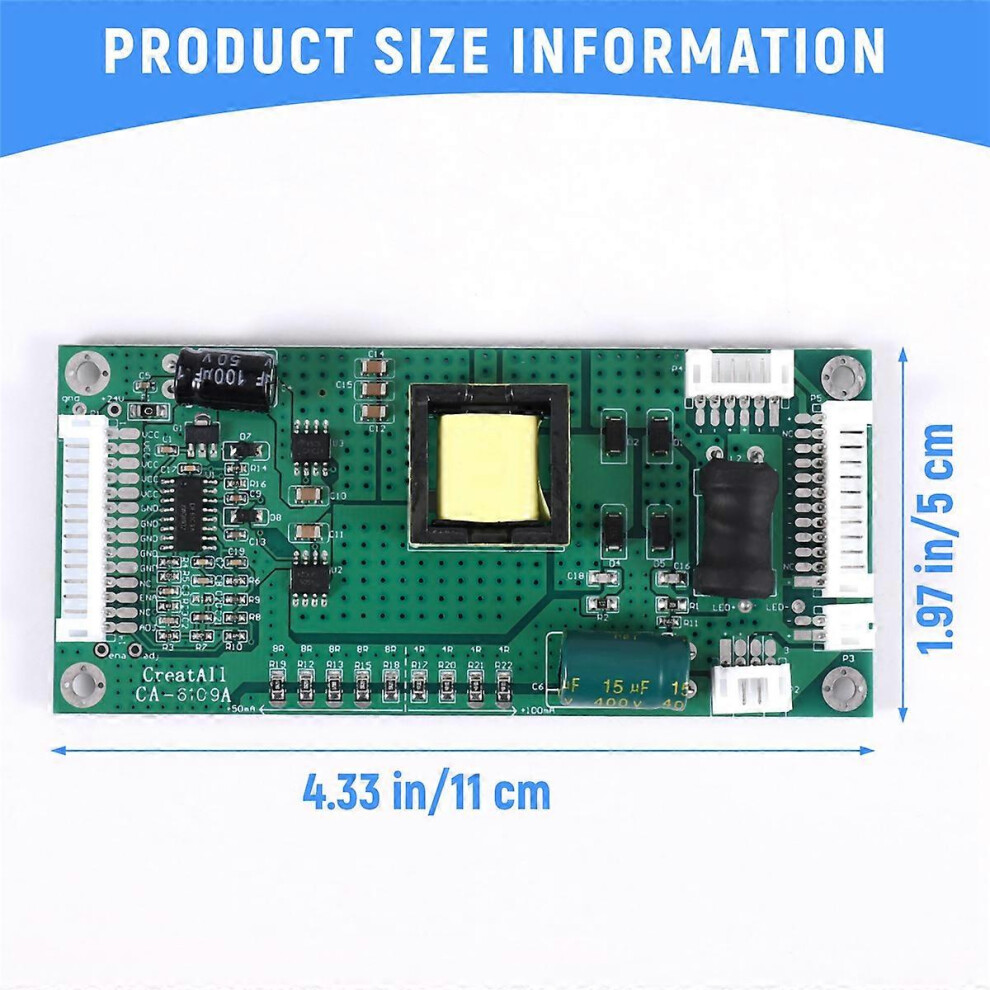

1. Good quality. 2. Input voltage 12V-28V; boost ratio 1:7.5, 12V can be increased to 80V, 24V to 160V. 3. The LED current is 248mA by default, can be set to 600mA via a short circuit on the board. 4. Maximum output power is 40W or less. 5. Optimized operating efficiency: At a temperature of 40C, the previous efficiency temperature of 85C has been increased by 30C. In reverse dimming mode, ADJ is the dimming port; ground corresponds to the brightest setting, high voltage dims until off. ADJ must not be left open; if not connected, it is connected directly to ground. 6. According to the markings on the board: Connect VCC, GND, IN (enable), ADJ (dimming) - a total of four input ports. The output selects the positive and negative output ports of the LED. ⑦ Specifications: ⑧ Model: CA-6019 ⑨ Input Voltage: 10-28V ⑩ Output Voltage: 5-165V ⑪ Color: Green ⑫ Material: Plastic ⑬ Size: 110x50mm ⑭ Package Contents: ⑮ 1 x Constant Current Driver Board ⑯ Note: ⑰ 1. The start has a soft start and other protection functions. Therefore, the shutdown port should not be used when connected to ground. Disconnecting it is not recommended. ⑱ 2. The opaque gate setting is 0-3V: 0V is the brightest, 2-2.5V is very dim, and near 3V it is practically off (output 0V). ⑲ Only the above package contents are included; other products are not included. ⑳ Note: Photography and different displays may cause the color of the item in the picture to differ slightly from the actual color. The measurement error is +/- 1-3cm.
