10 Pcs 5.08Mm Pitch PCB Terminal Block Connector Right Angle

10 Pcs 5.08Mm Pitch PCB Terminal Block Connector Right Angle Description

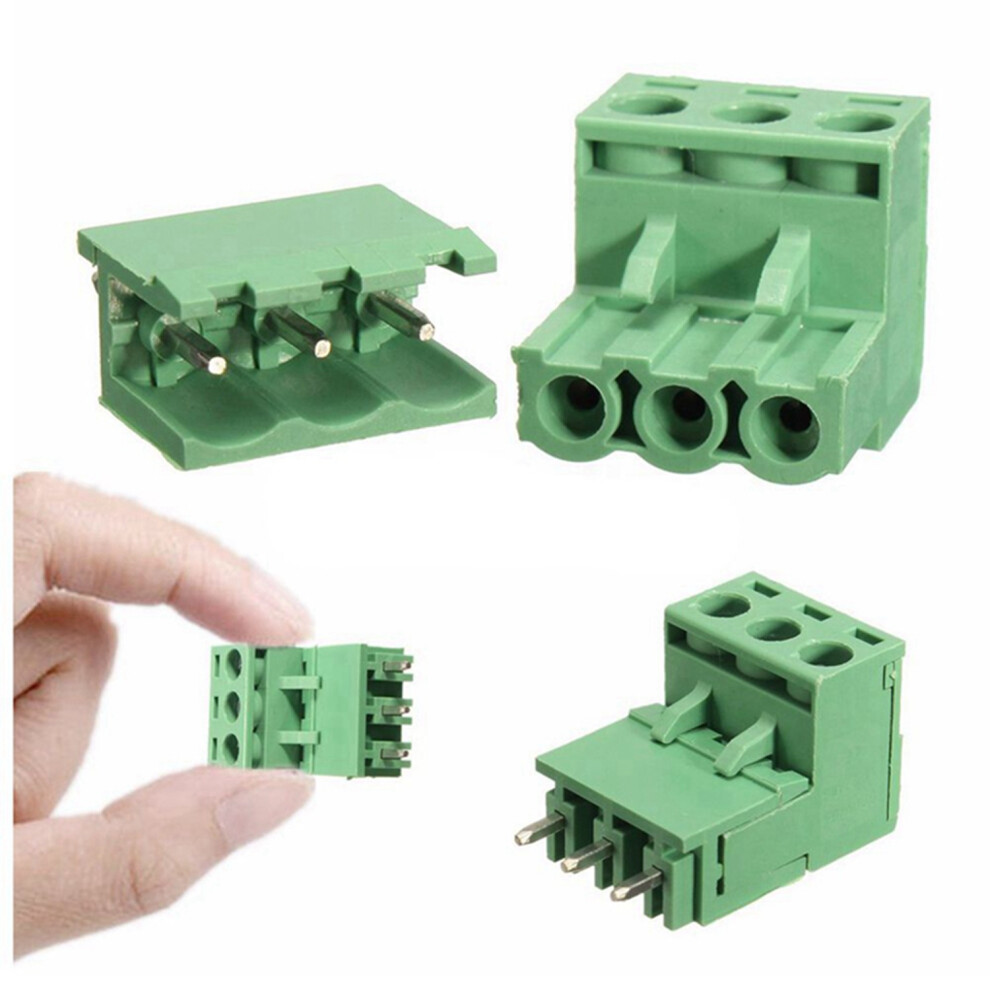

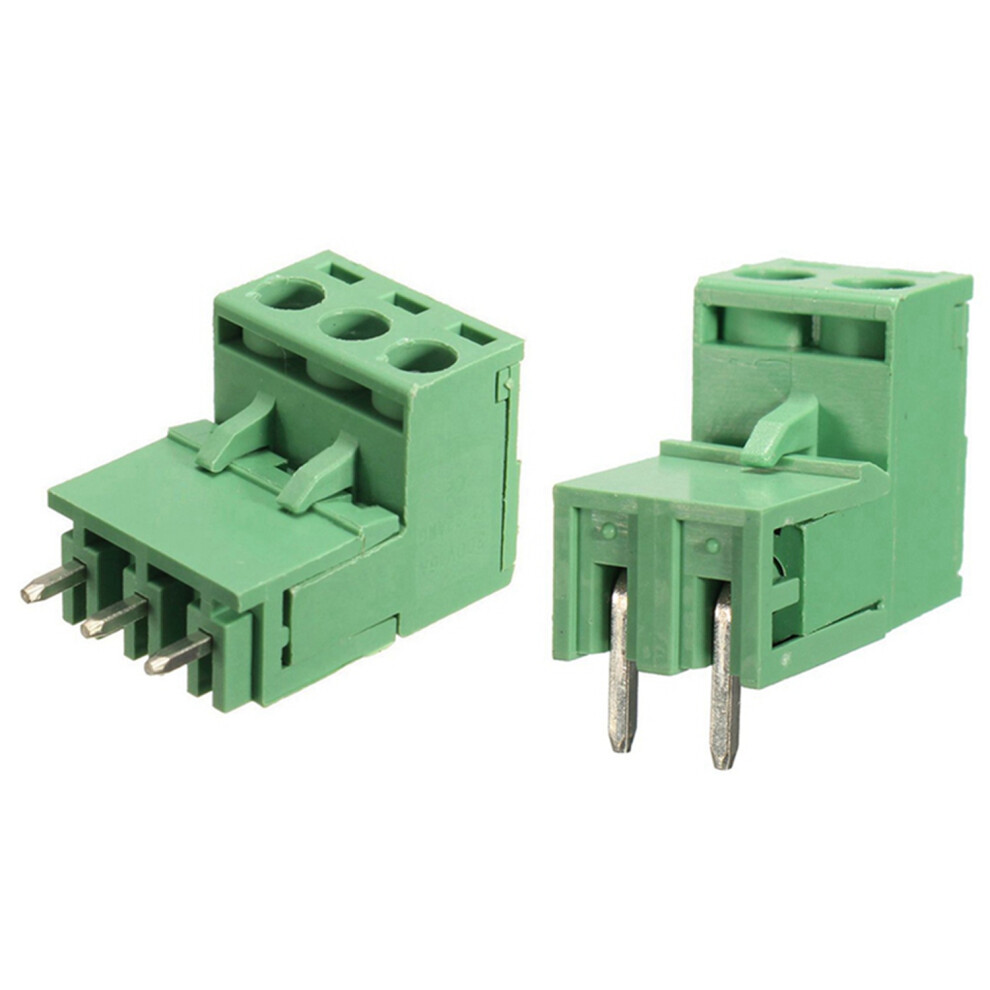

10 pcs 3Pin Pluggable Terminal Block & 10 pcs 2Pin Pluggable Terminal Block
It is used in PCB for connecting power source or other wires.
90 degrees angle design, suitable for PCB space shortage or in need of using 90 degrees angle.
Good insulating property, never worried about an , safe and reliable.

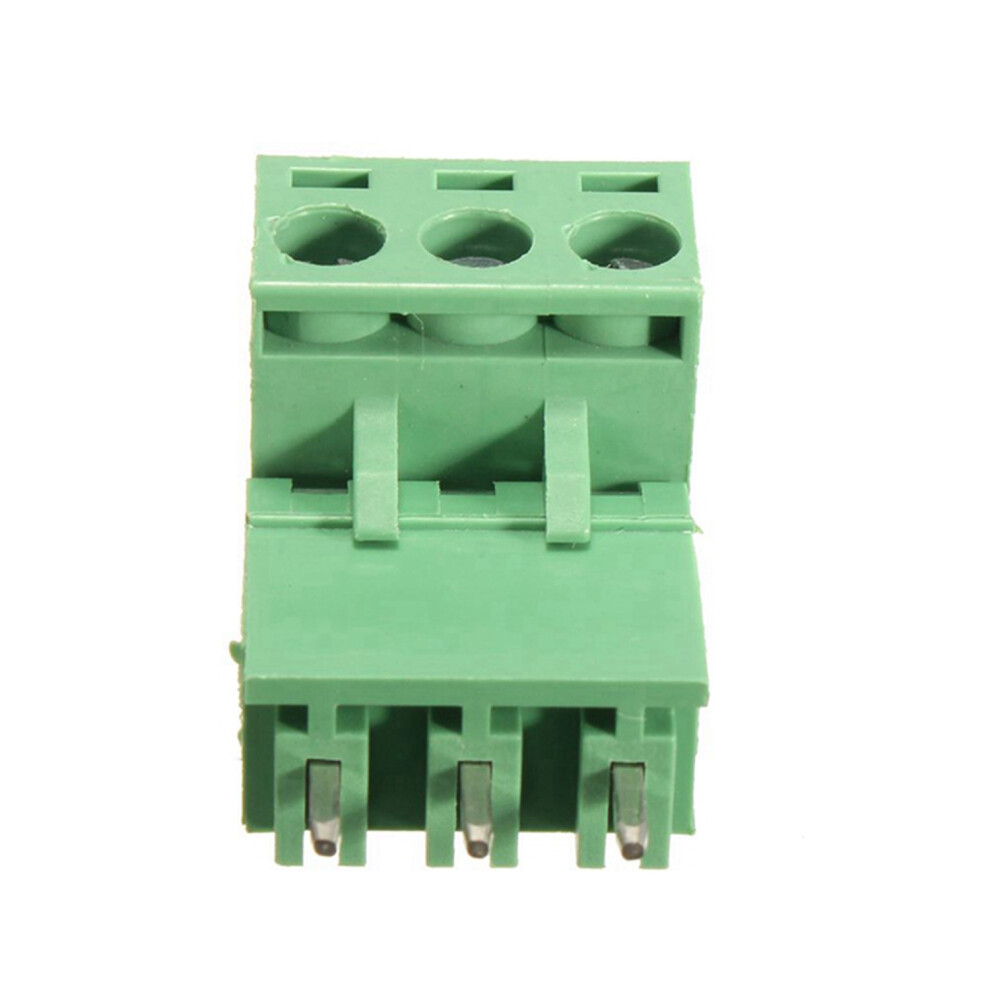

3Pin Pluggable Terminal Block:
1. Product Name: Screw Terminal Block
2. Model: 2EDG
3. Pitch: 5.08mm
4. Pin header: Brass Tin plated
5. Poles: 3 Pin
6. Rated voltage: 300V 10A

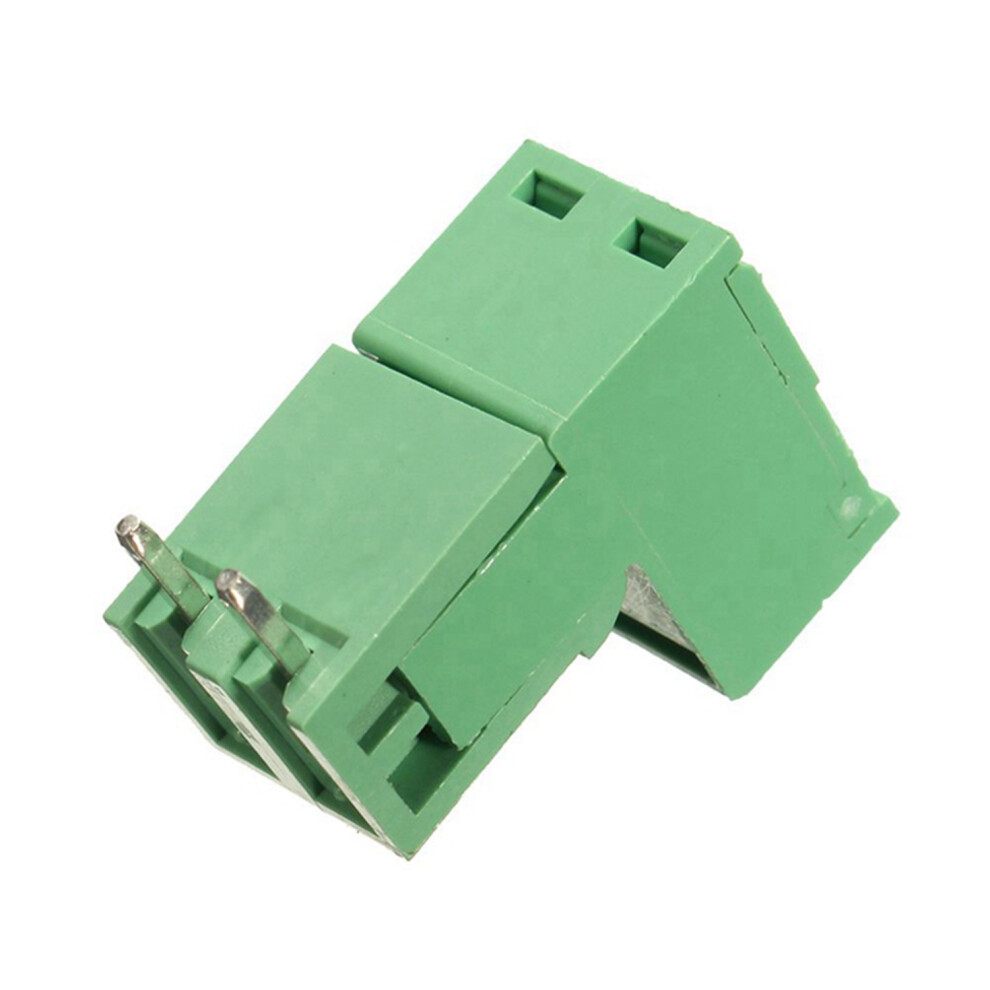

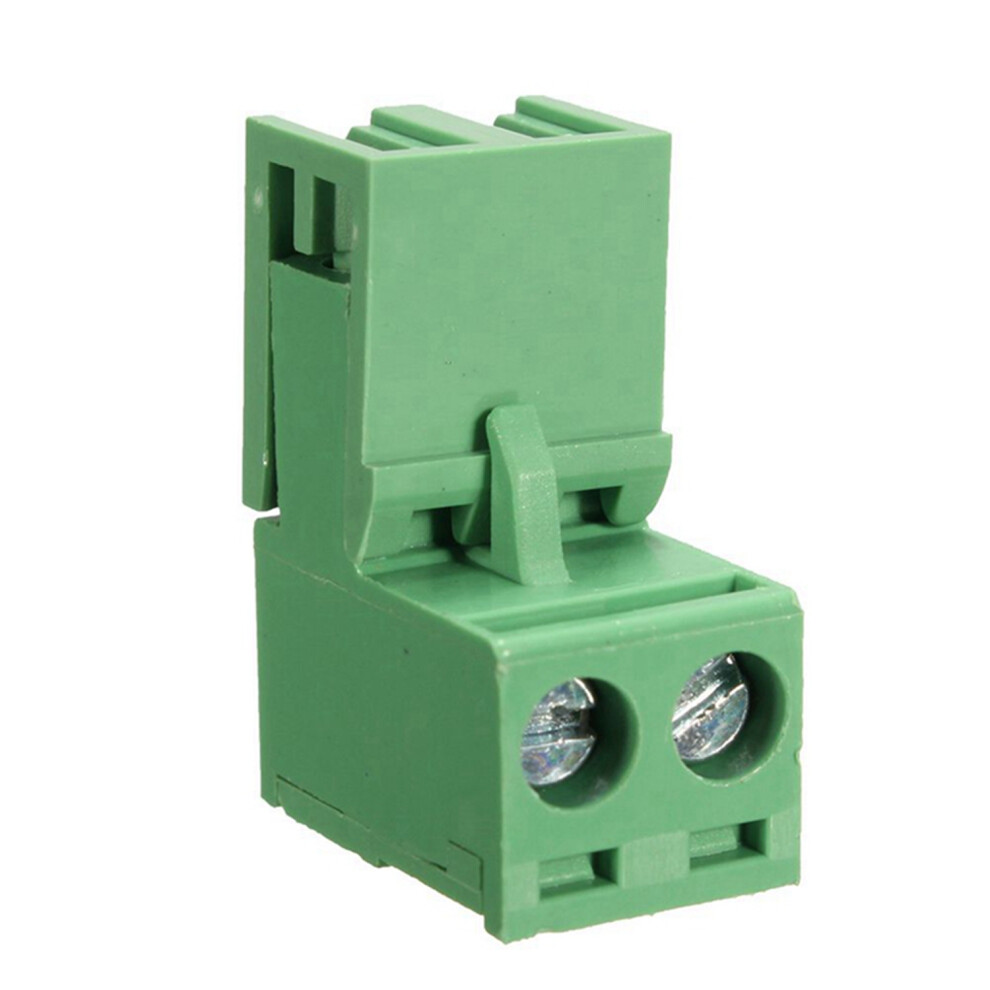

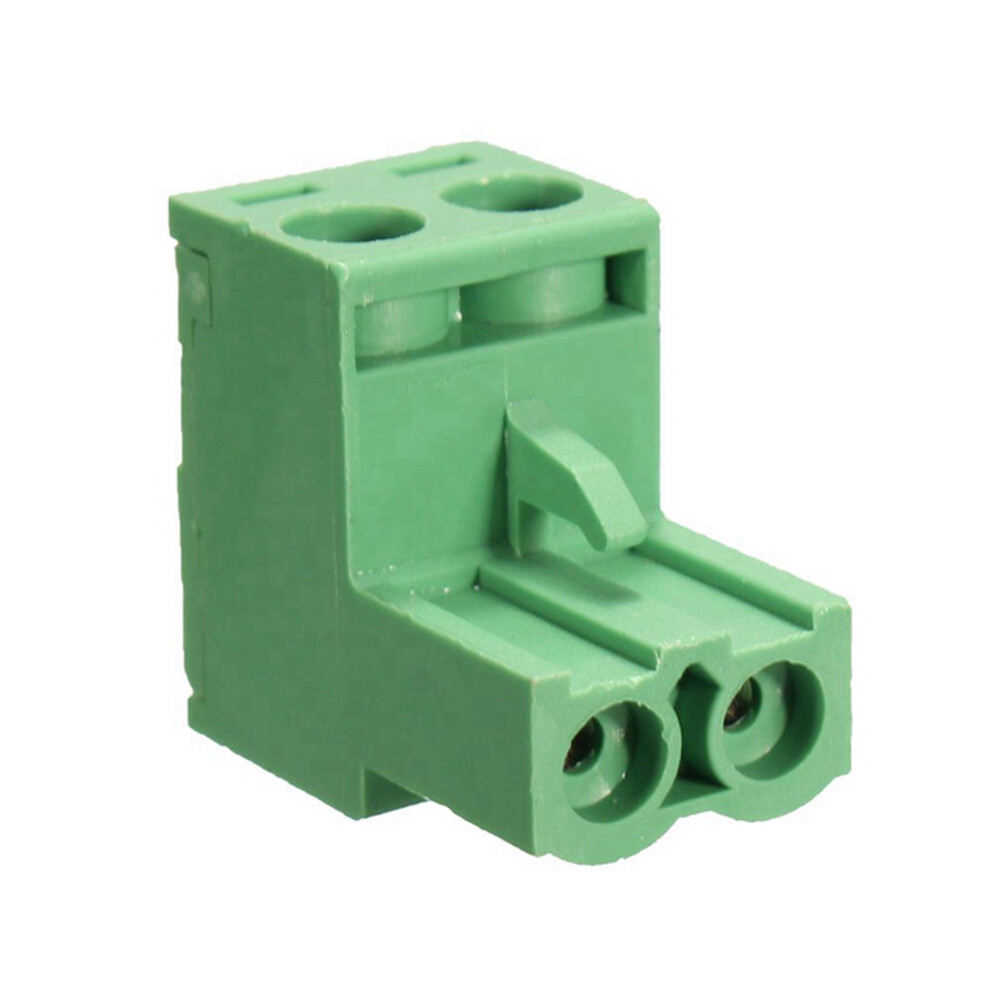

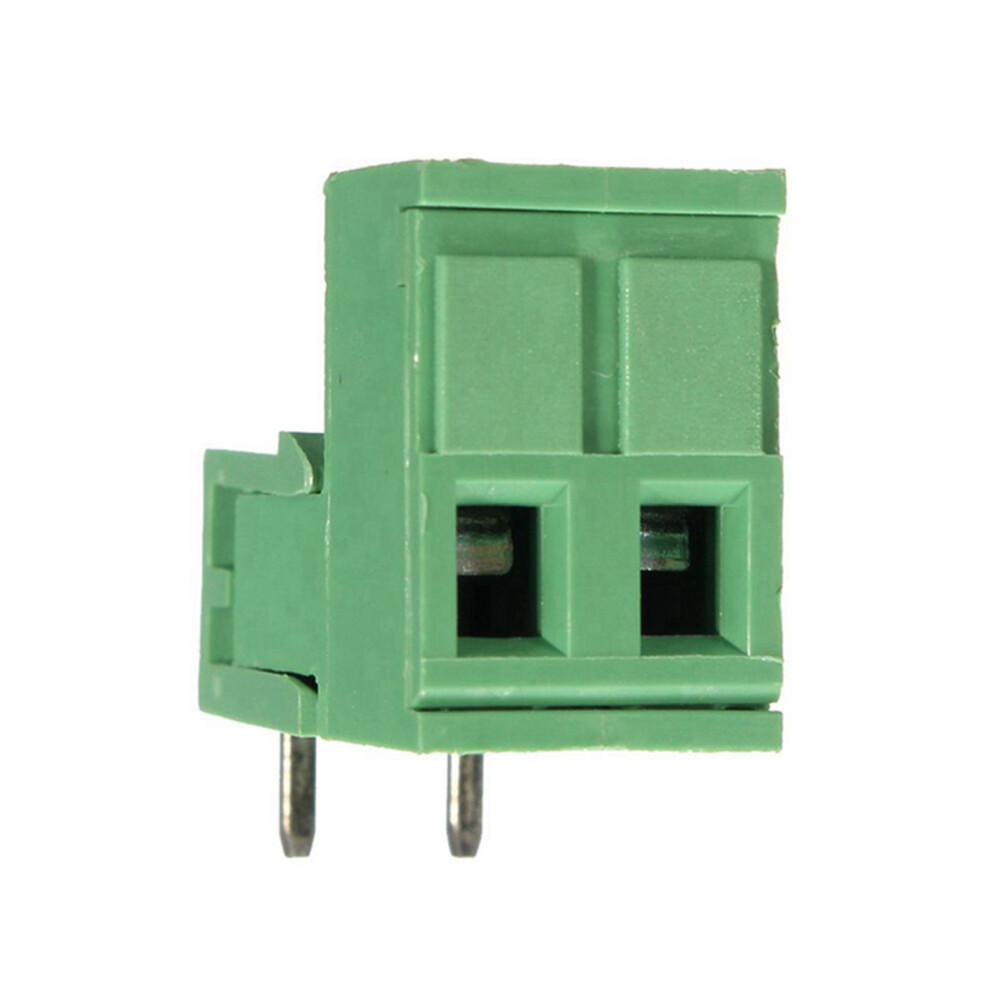

2Pin Pluggable Terminal Block:
1. Pitch: 5.08mm
2. Pin header: Brass Tin plated
3. Housing: PA66.UL94V-0
4. Poles: 2 Pin
5. Rated voltage: 300V 10A
6. Model: 2EDGKA
7. Rated current: IEC:15A; UL:10A
8. Withstanding voltage: AC2500V/Min
9. Temperature range: -40 degrees Celsius~105 degrees Celsius
10. MAX soldering: +250 degrees Celsius for 5 sec.
color:Green
Material: Brass Tin plated & metal

Package Contents:
10 x 3Pin Pluggable Terminal Block
10 x 2Pin Pluggable Terminal Block
Only the above package content, other products are not included.
Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
