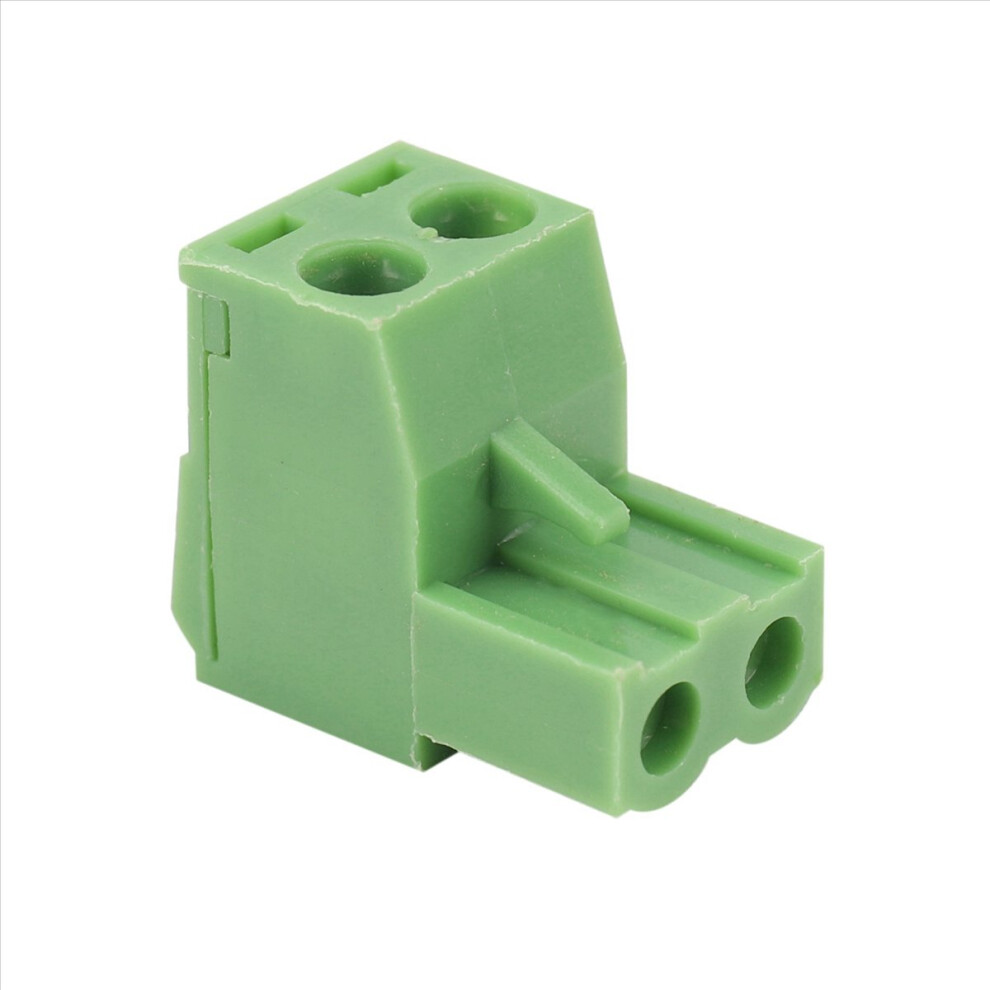

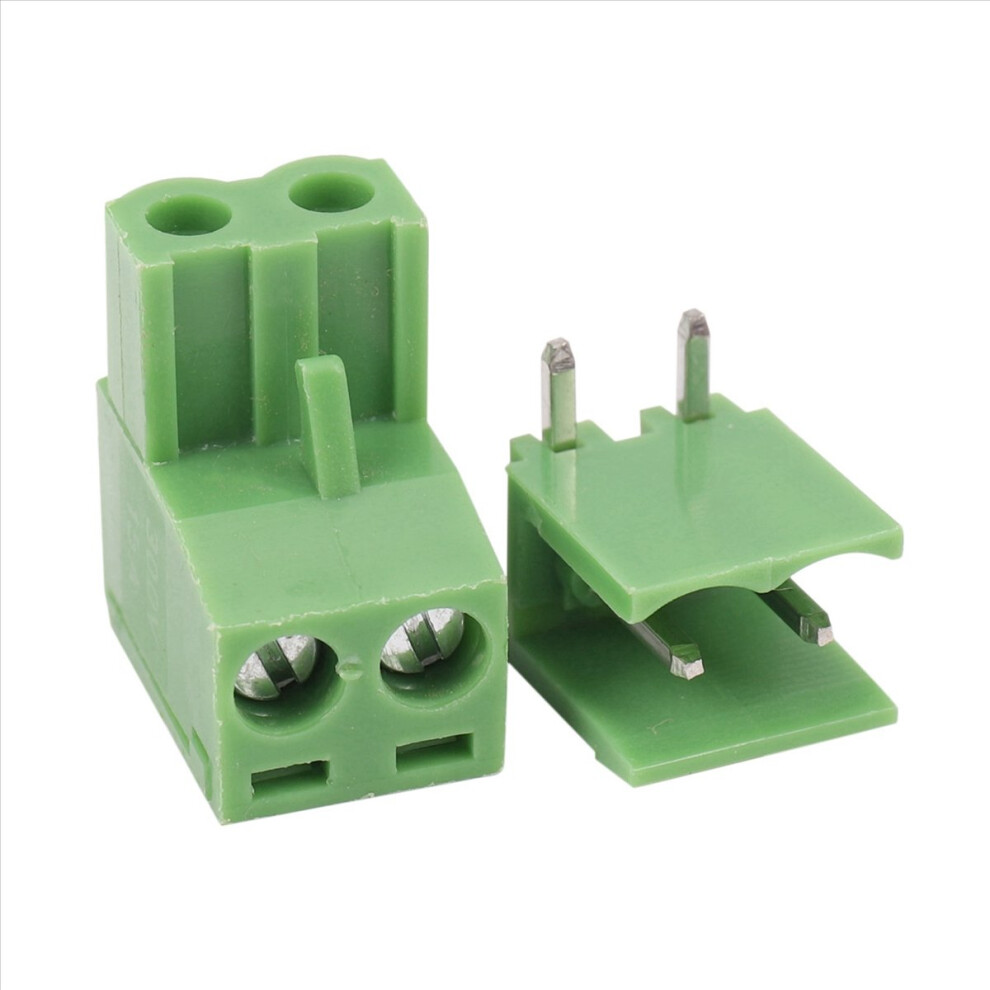

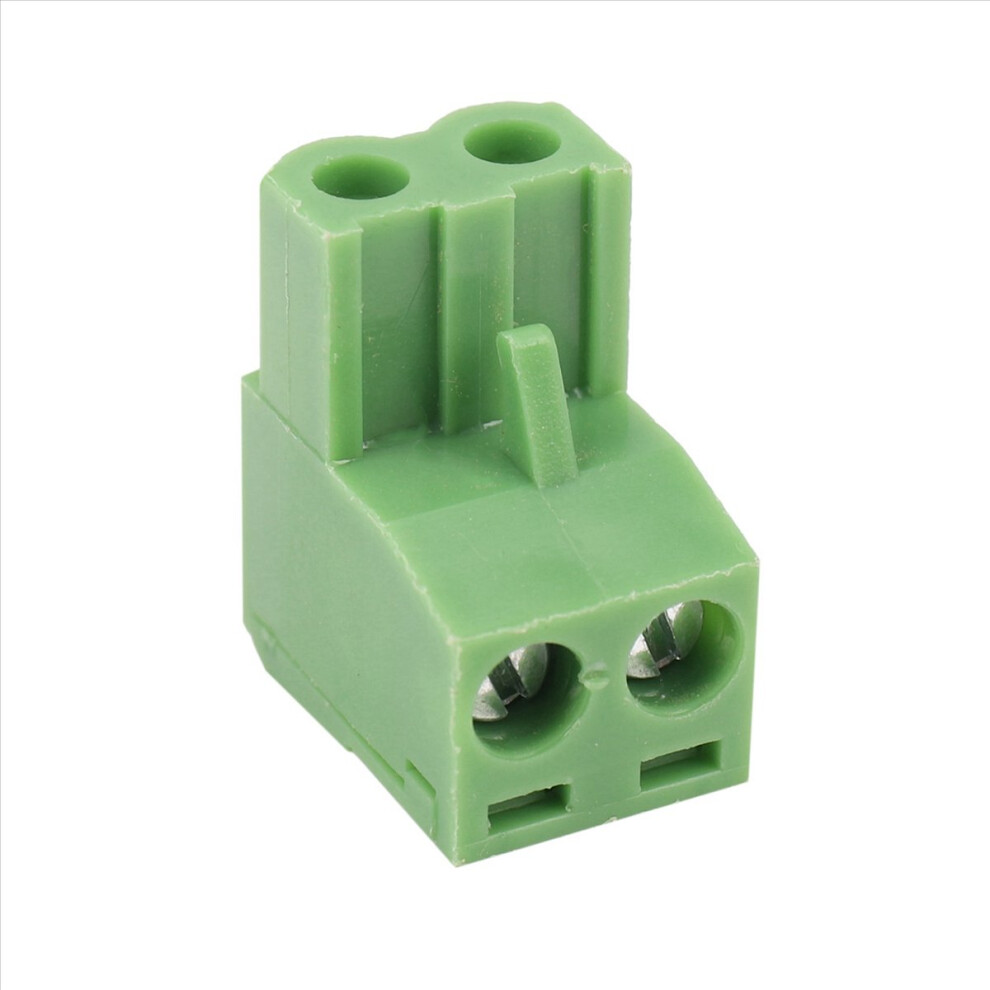

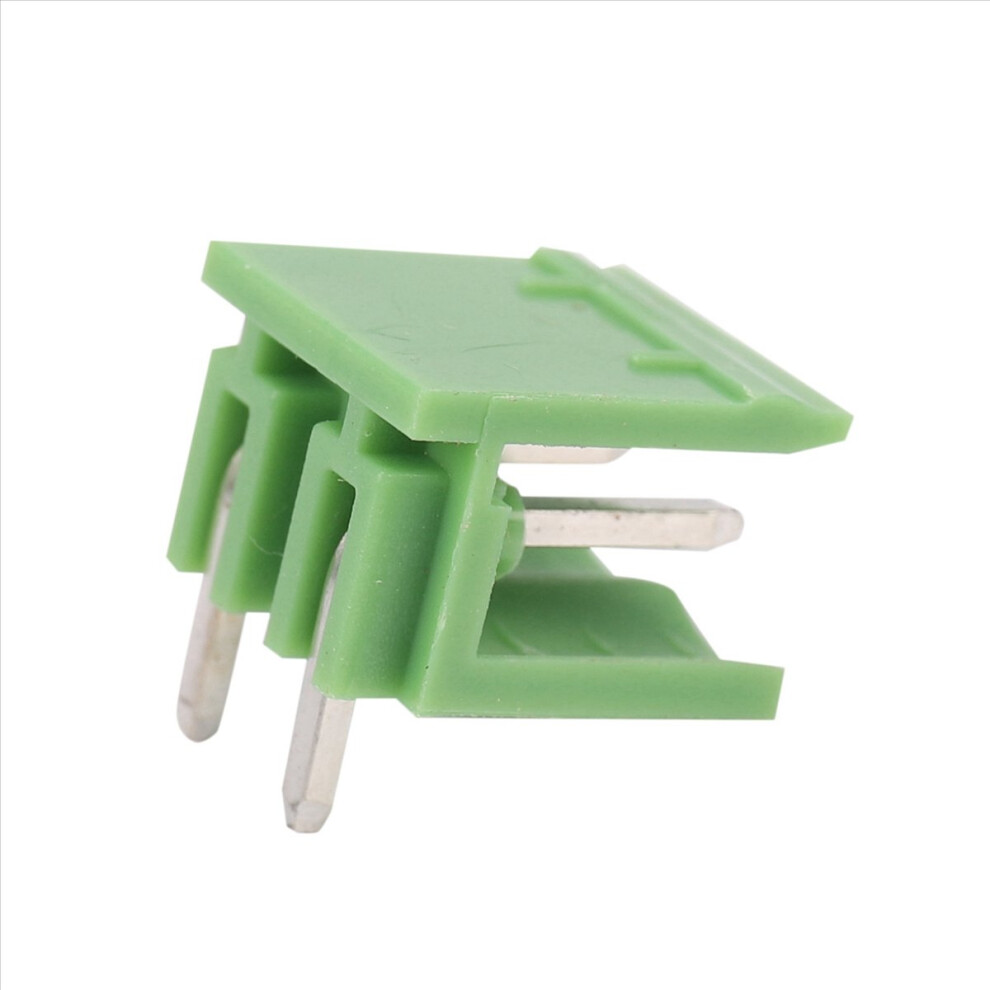

10 pcs 5.08mm Pitch PCB Terminal Block Connector Right Angle

10 pcs 5.08mm Pitch PCB Terminal Block Connector Right Angle Description

100% new and high quality.
It is used in PCB for connecting power source or other wires.
90 degrees angle design, suitable for PCB space shortage or in need of using 90 degrees angle.
Good insulating property, never worried about an , safe and reliable.

1. Pitch: 5.08mm
2. Pin header: Brass Tin plated
3. Housing: PA66.UL94V-0
4. Poles: 2 Pin
5. Rated voltage: 300V 10A
6. Model: 2EDGKA
7. Rated current: IEC: 15A; UL: 10A
8. Withstanding voltage: AC2500V/Min
9. Temperature range: -40 degrees Celsius~105 degrees Celsius
10. MAX soldering: +250 degrees Celsius for 5 sec.

Package included:

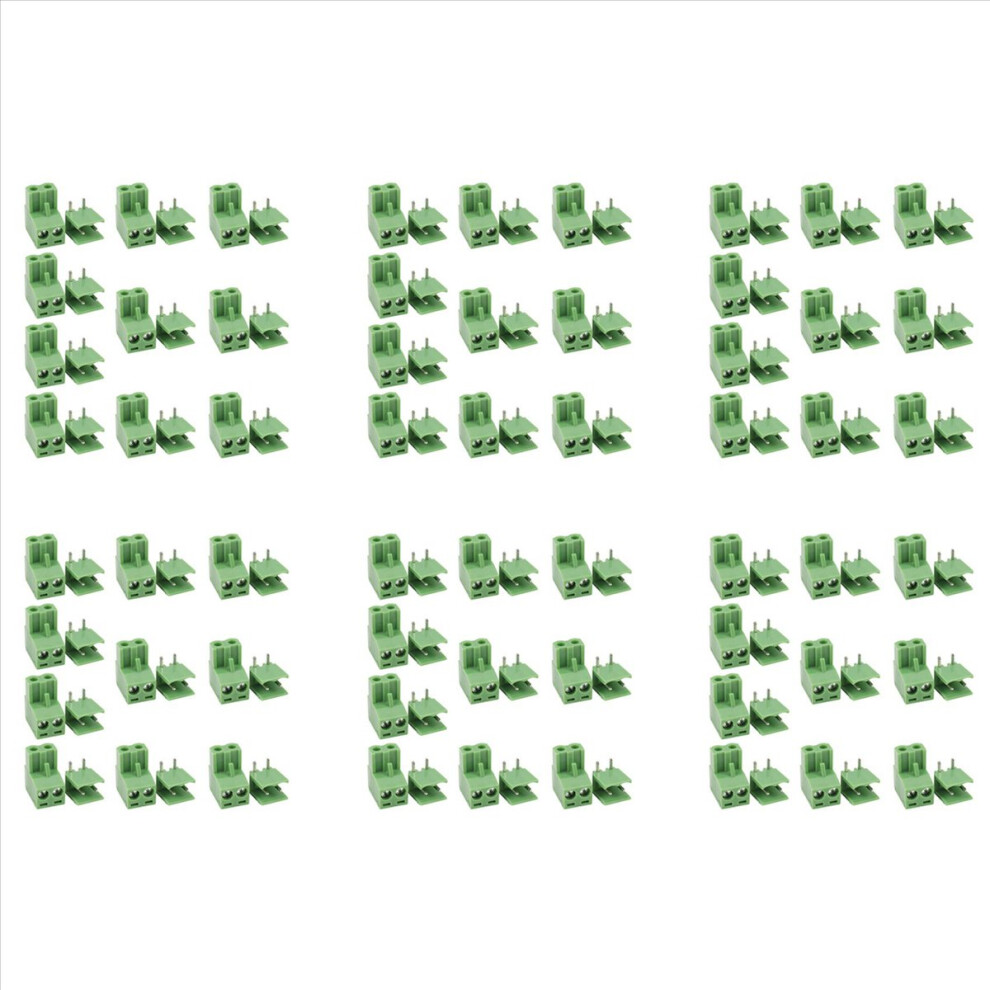

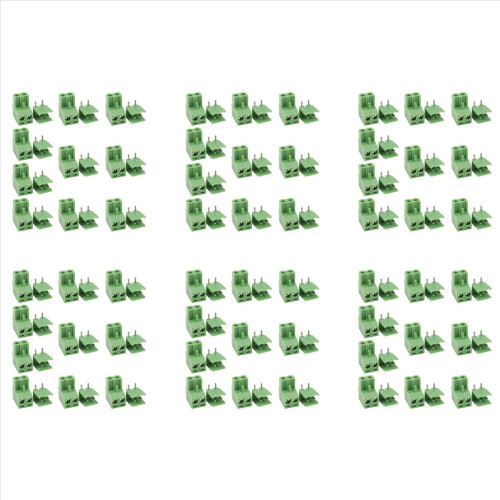

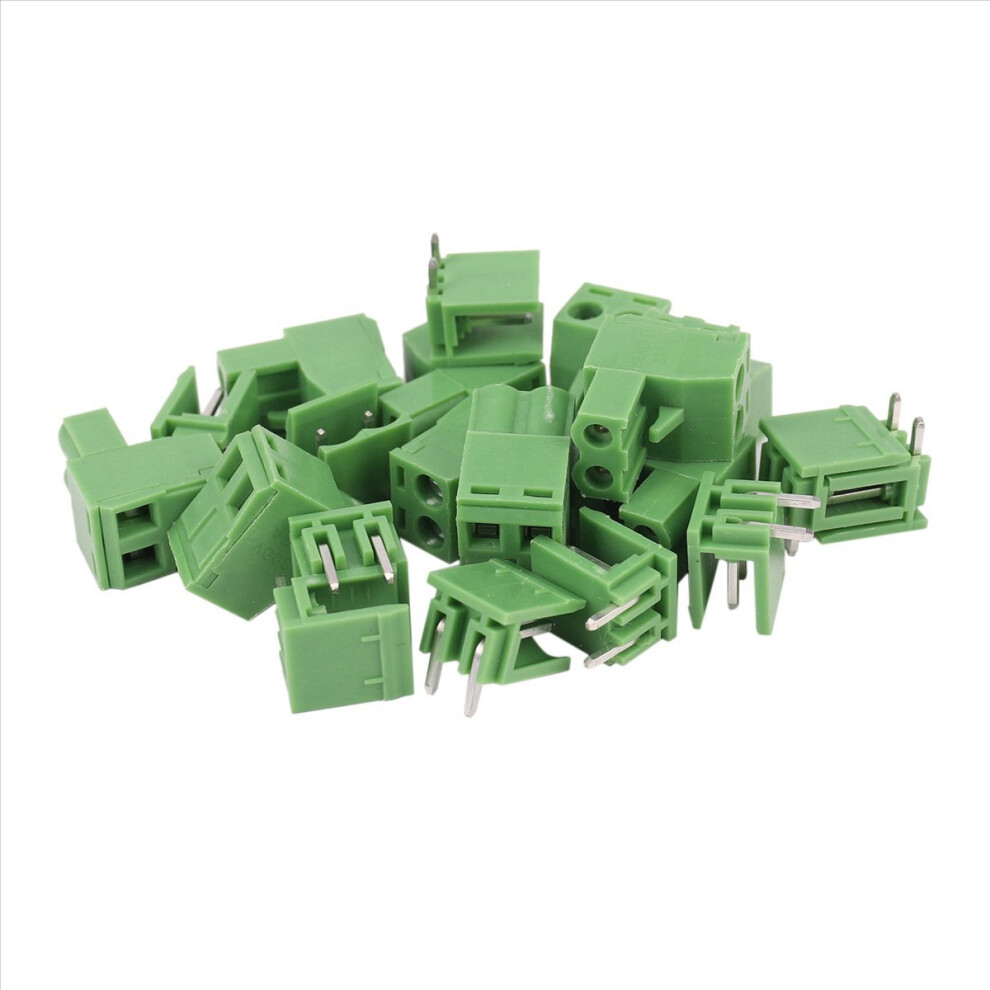

60 x 2Pin Pluggable Terminal Block

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
