10-piece Mini Micro Limit Switch Roller Lever Arm SPDT Quick Action Switch Set

10-piece Mini Micro Limit Switch Roller Lever Arm SPDT Quick Action Switch Set Description

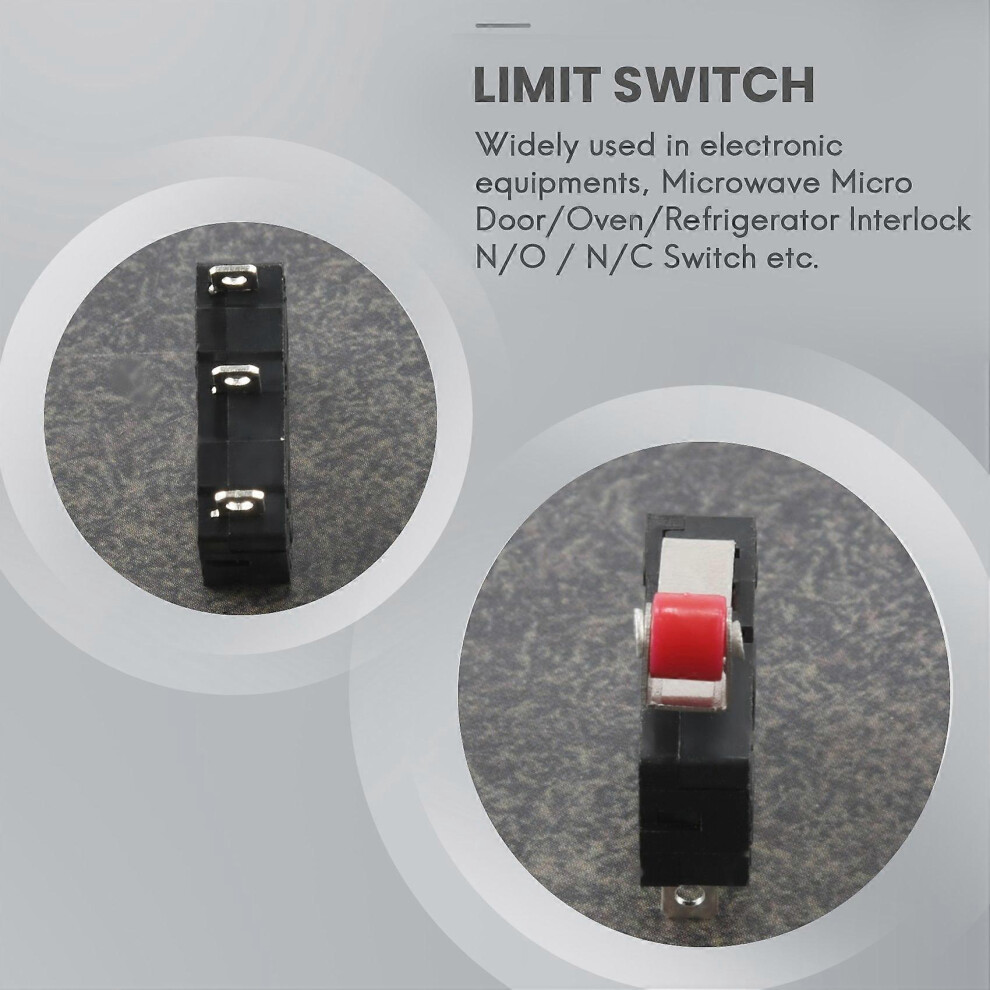

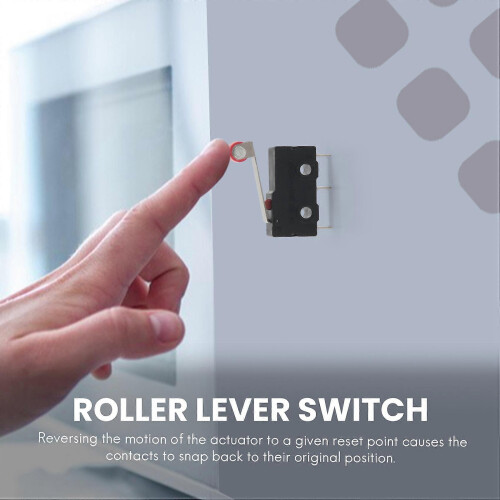

① Product Name: Micro Switch; Voltage and Current: AC 125V 5A; Contact Type: SPDT 1NO 1NC 1COM ② Action Type: Momentary; Actuator Type: Hinge Roller Lever; Terminal Type: 3 Pins ③ Overall Size (Pin Not Included): 20 x 6 x 10mm / 0.8" x 0.2" x 0.4" (L x W x H); Hinge Roller Lever Length: 18mm / 0.7"; Roller Diameter: 4.5mm / 0.2" ④ Mounting Hole Diameter: 2mm / 0.08"; Mounting Hole Spacing: 9mm / 0.35"; Material: Plastic, Metal ⑤ Color: Black, Red, Silver Tone; Weight: 22g ⑥ These micro switches feature single pole double throw (SPDT) type, 1NO + 1NC contact, momentary action, hinge roller lever actuator, 3-pin terminals, etc. ⑦ Easy installation and long service life. ⑧ Widely used in electronic devices, microwave/microwave door/oven/refrigerator interlock N/O/N/C switches, etc. ⑨ In snap contacts, the actuator's movement exerts a force on an over-centering mechanism. ⑩ This mechanism causes a rapid change in contact state when the actuation point is reached. ⑪ Reversing the actuator's movement to a specific reset point causes the contacts to snap back and return to their original position. ⑫ Snap contacts have distinct actuation and reset points. ⑬ The distance between the actuation and reset points is called the reset path, hysteresis, or differential. ⑭ A limited reset path helps prevent multiple state changes when the The object that actuates the switch is subject to vibrations. Snap contacts ensure repeatable performance in applications with slow-moving actuators. The contact travel length is also independent of the actuator travel length. Package contents: 10 x micro switches. Note: Shooting effects and different displays may cause the color of the item in the picture to differ slightly from the real color. The measurement error is +/- 1-3cm.
