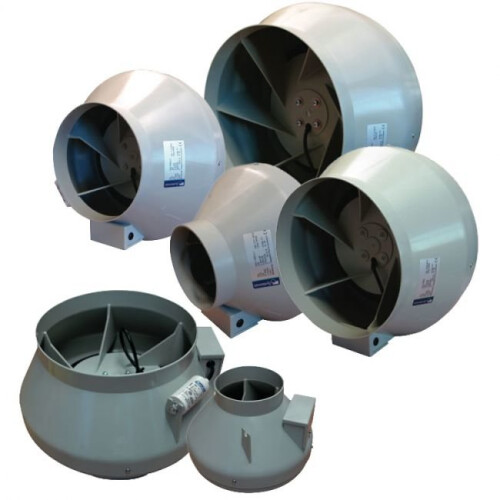

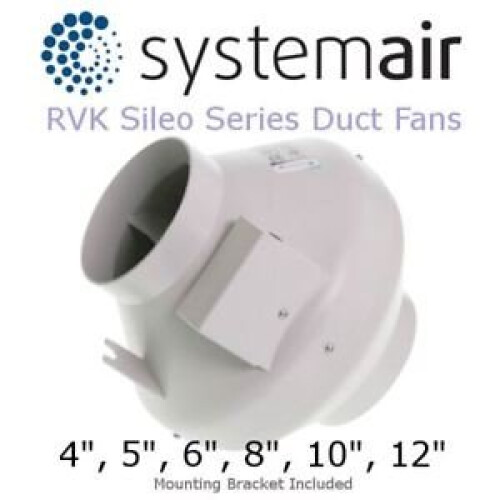

(100 ML ) RVK FAN SYSTEM AIR SILEO INLINE INTAKE OR EXTRACTOR FAN

(100 ML ) RVK FAN SYSTEM AIR SILEO INLINE INTAKE OR EXTRACTOR FAN Description

100mm (4") RVK100 A1 Extractor Fan - 184m3/hour

• Max. airflow: 184m3/h
• Flange size: 99mm
• Max power consumption: 29W
• Sound pressure level at 3 m: 34.5 dB(A)
• Voltage: 230V
• Frequency: 50Hz
• Phase: 1~
• Input power: (P1) 29.1 W
• Current: 0.171 A
• R.p.m: 2482
• Weight: 1.8kg
• Max. temperature of transported air: 70°C
• Max. temperature of transported air when speed-controlled: 70°C
• Insulation class: B
• Enclosure class, motor: IP44

125mm (5") RVK125 A1 Extractor Fan - 220m3/hour

• Max. airflow: 220 m3/h
• Flange size: 124mm
• Max power consumption: 29W
• Sound pressure level at 3m: 37.5 dB(A)
• Voltage: 230V
• Frequency: 50Hz
• Phase: 1 ~
• Input power (P1): 29.2W
• Current: 0.172 A
• R.p.m: 2469
• Weight: 1.8kg
• Max. temperature of transported air 70°C
• Max. temperature of transported air when speed-controlled 70°C
• Insulation class: B
• Insulation class: B
• Enclosure class, motor :IP44

150mm (6") RVK150 A1 Extractor Fan - 430m3/hour

• Max. airflow: 430 m3/h
• Flange size: 149mm
• Max power consumption: 60W
• Sound pressure level at 3m: 40.6 dB(A)
• Voltage: 230V
• Frequency: 50 Hz
• Phase: 1 ~
• Input power (P1): 59.6W
• Current: 0.262 A
• R.p.m.: 2437
• Capacitor: 2 µF
• Weight: 2.7kg
• Max. temperature of transported air: 70°C
• Max. temperature of transported air when speed-controlled: 70°C
• Insulation class: B
• Enclosure class, motor: IP44

150mm (6") RVK150 L1 Extractor Fan - 720m3/hour

• Max. airflow: 720m3/h
• Flange size: 149mm
• Max power consumption: 109W
• Sound pressure level at 3 m: 44.8 dB(A)
• Voltage: 230V
• Frequency: 50 Hz
• Phase: 1 ~
• Input power (P1): 109W
• Current: 0.48 A
• R.p.m.: 2527
• Capacitor: 3 µF
• Weight : 3.2kg
• Max. temperature of transported air: 70°C
• Max. temperature of transported air when speed-controlled: 70°C
• Insulation class: F
• Enclosure class, motor: IP44 IP
• Energy class, basic unit: E
• Energy class, basic unit option: C
• ErP ready: ErP 2016/ErP 2018

200mm (8") RVK200 A1 Extractor Fan - 796m3/hour

• Max. airflow: 796 m3/h
• Flange size: 199mm
• Max power consumption: 104W
• Sound pressure level at 3 m: 42 dB(A)
• Voltage: 230V
• Frequency: 50 Hz
• Phase: 1 ~
• Input power (P1): 104W
• Current: 0.46 A
• R.p.m.: 2495
• Capacitor: 3 µF
• Weight : 3.3kg
• Max. temperature of transported air: 70°C
• Max. temperature of transported air when speed-controlled: 70°C
• Insulation class: F
• Enclosure class, motor: IP44
• Energy class, basic unit: E
• Energy class, basic unit option: B
• ErP ready: ErP 2016/ErP 2018

250mm (10") RVK250 L1 Extractor Fan - 1100m3/hour

• Max. airflow: 1100 m3/h
• Flange size: 249mm
• Max power consumption: 159W
• Sound pressure level at 3 m: 41.9 dB(A)
• Voltage: 230V
• Frequency: 50 Hz
• Phase: 1 ~
• Input power (P1): 159 W
• Current: 0.691 A
• R.p.m: 2531
• Capacitor: 4 µF
• Weight: 3.9kg
• Max. temperature of transported air: 70°C
• Max. temperature of transported air when speed-controlled: 70°C
• Insulation class: F
• Enclosure class, motor: IP44 IP
• Energy class, basic unit: E
• Energy class, basic unit option: B
• ErP ready: ErP 2016/ErP 2018

315mm (12.5") RVK315 A1 Extractor Fan - 1346m3/hour

• Max. airflow: 1346 m3/h
• Flange size: 314mm
• Max power consumption: 222W
• Sound pressure level at 3 m: 45 dB(A)
• Voltage: 230V
• Frequency: 50 Hz
• Phase: 1 ~
• Input power (P1): 222W
• Current: 0.971 A
• R.p.m.: 2696
• Capacitor: 5 µF
• Weight : 5.2 kg
• Max. temperature of transported air: 70°C
• Max. temperature of transported air when speed-controlled: 70°C
• Insulation class: B
• Enclosure class, motor: IP44 IP
• ErP ready: ErP 2018/ErP 2016
