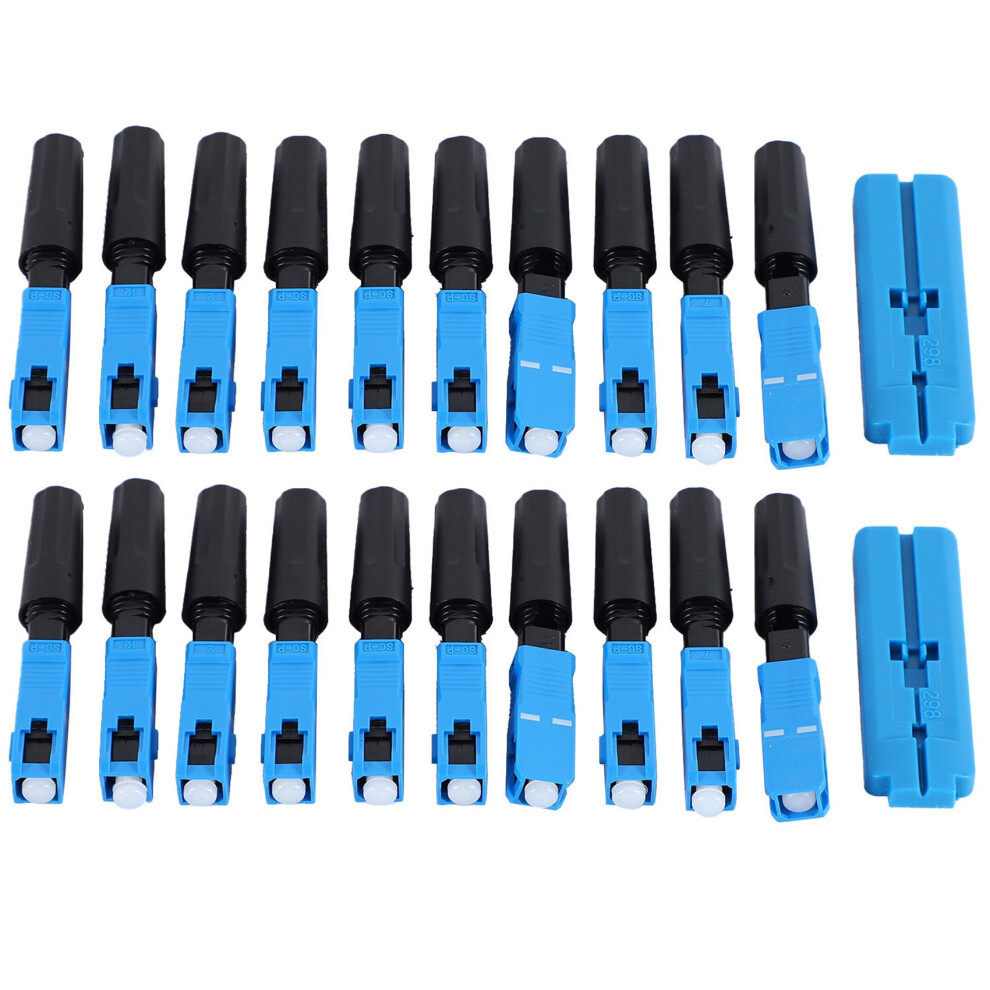

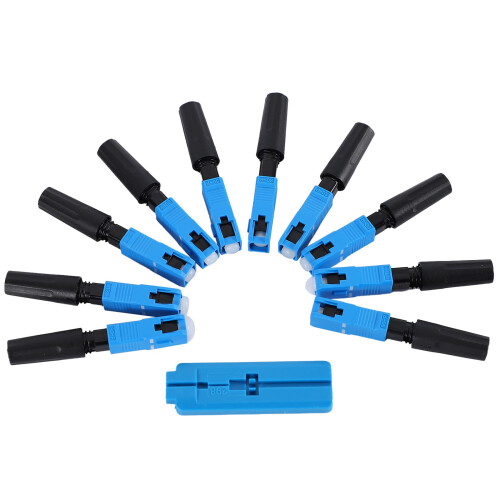

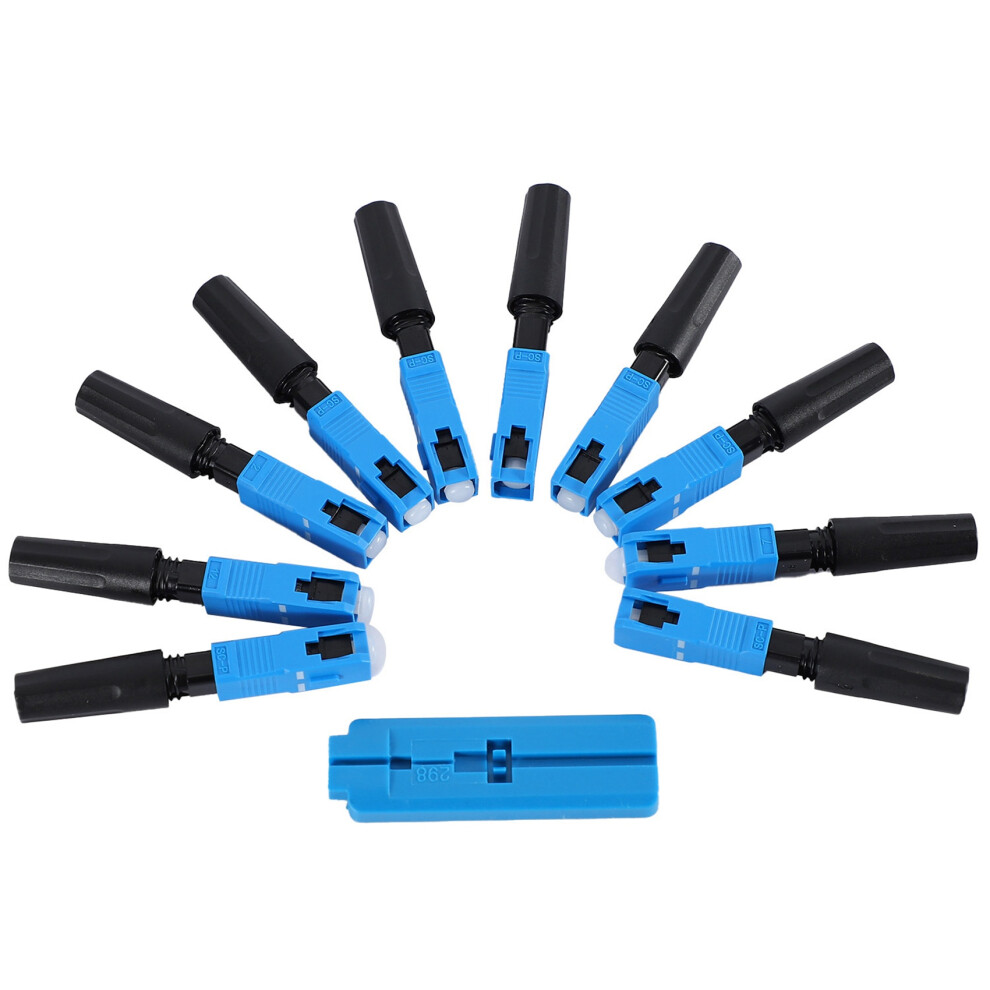

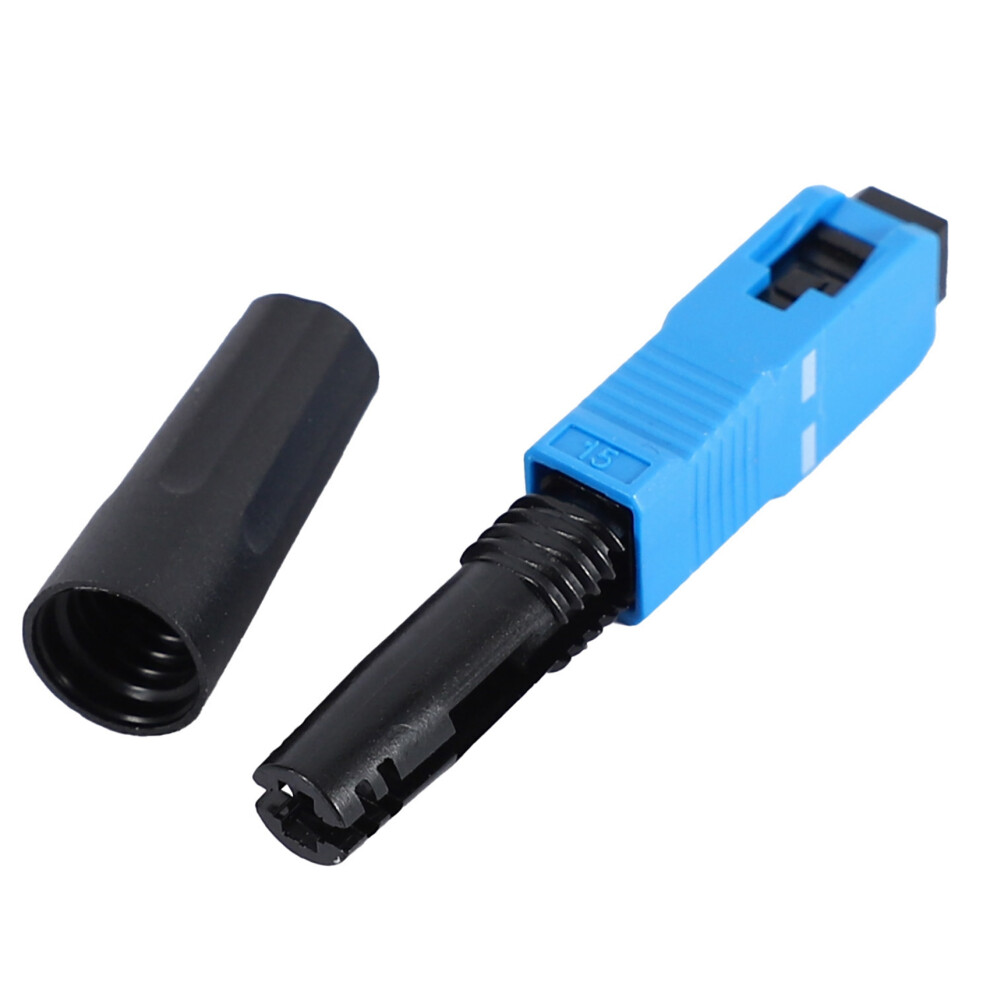

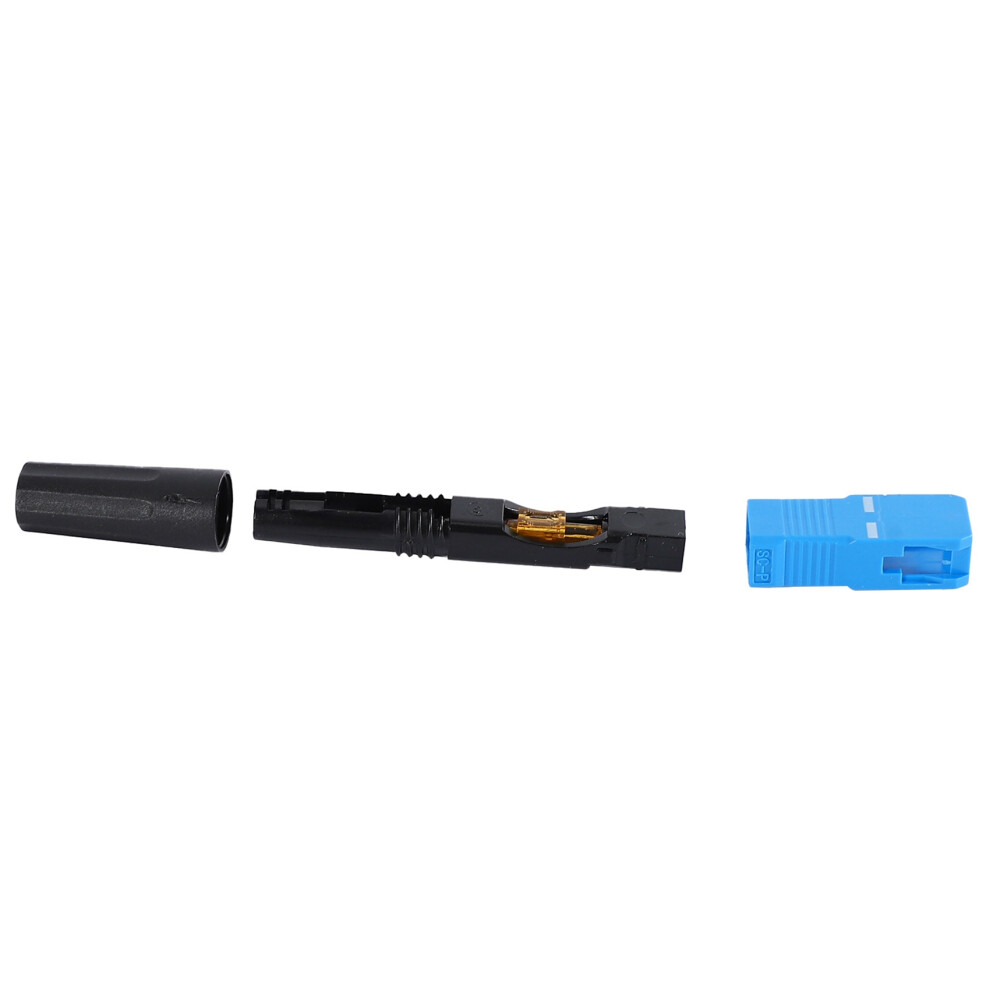

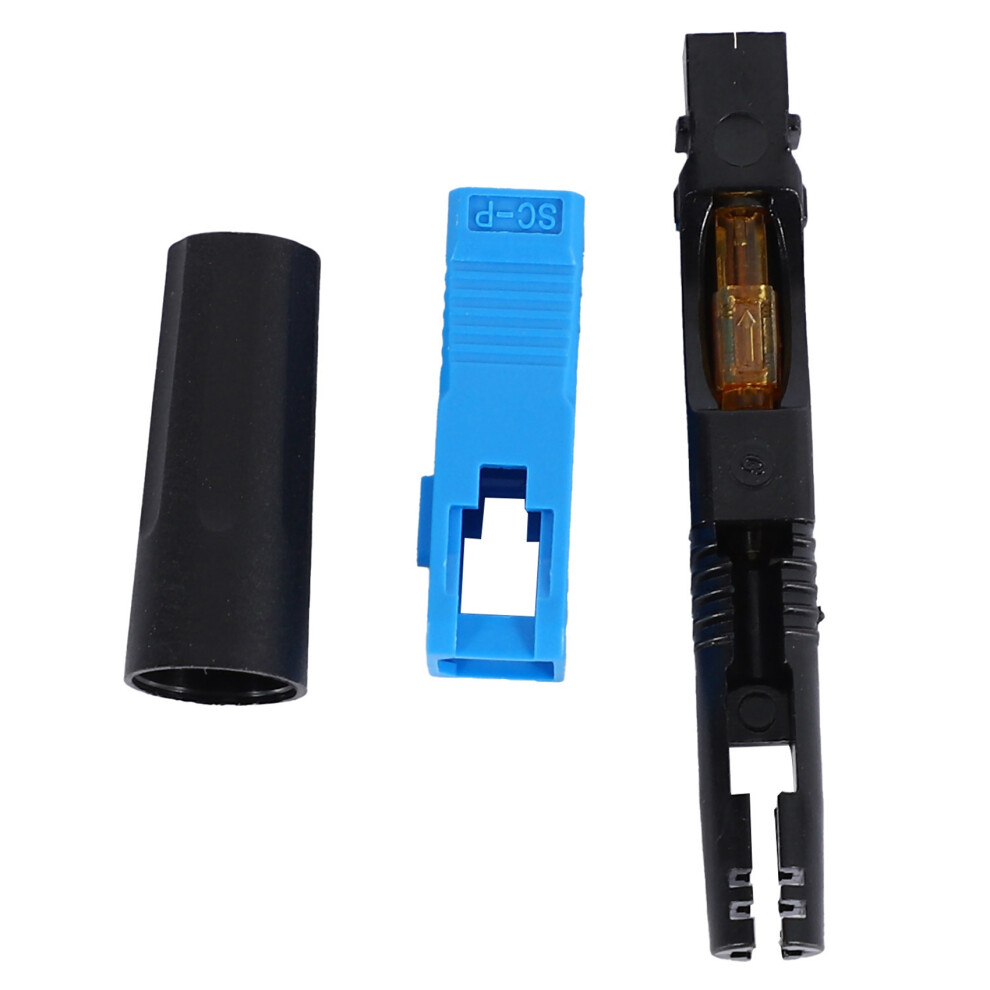

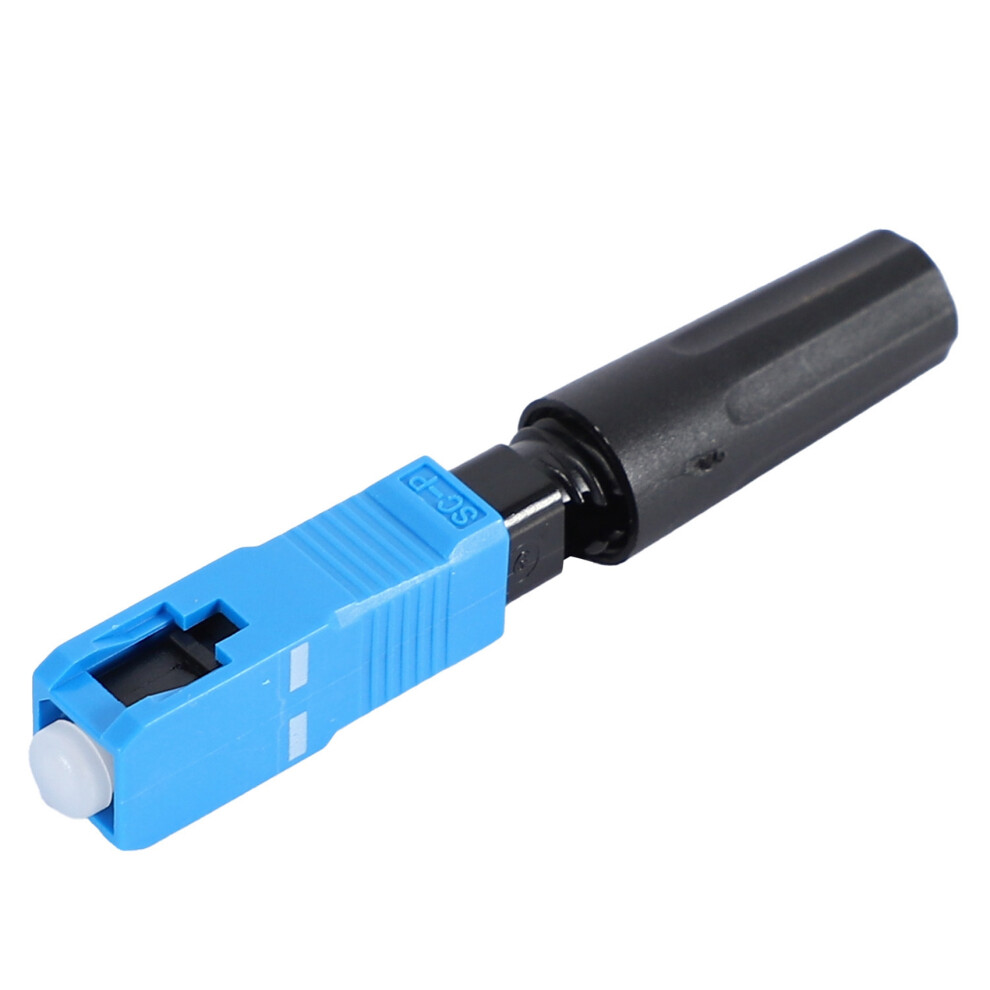

100 Pcs Embedded Sc Upc Fiber Optic Fast Connector

100 Pcs Embedded Sc Upc Fiber Optic Fast Connector Description

Fiber Optic Fast Connector SC Connector Field Assembly
Field installable
Insert loss less than 0.2dB
Metal V-shape cavity work well in high and low temperature
Installation less than 1 minutes

Reliable and superior optical performance
Cable Tensile test complies with Telcordia -326-COR
Application:
1. Distribution frames
2. Maintenance or emergency restoration of fiber networks
3. Patch panels
4. FTTH Outlets
5. Field word
Connector Type: SC/UPC
Compatible: Ericsson
Compatible: Brocade
Compatible: Mellanox
Compatible: Enterasys
Compatible:
Fiber Type: Single Mode
Applicable Cable: 0.9mm, 2.0mm, 3.0mm Cable; 2.0x3.0mm FTTH Drop Cable
Fiber Diameter: 125um
Coating Diameter: 250um
Insertion Loss: 0.2dB (max. 0.5dB)
Return Loss: Over 50dB
Tensile Strength: Over 30N
Temperature Cycling: IL Less than 0.3dB; RL Less than 5dB
Assembly Repeatability: 5 times
Installation Durability: Over 500 times
Atmospheric Pressure: 60kpa~160kpa
Operating Temperature: -40 to 85 degree Celsius
Storage Temperature: -40 to 85 degree Celsius
colour:blue
Material:plastic
size:60*9mm

Package Contents:
100 * Embedded SC UPC Fiber Optic Fast Connector

Only the above package content, other products are not included.
Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
