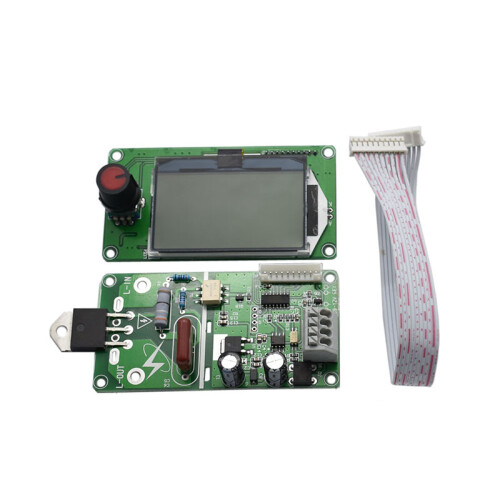

(100A) LCD Digital Pulse Encoder Spot Welder Controller Module 100A 40A for Lithium Battery / Battery Group Spot Welding Machine

(100A) LCD Digital Pulse Encoder Spot Welder Controller Module 100A 40A for Lithium Battery / Battery Group Spot Welding Machine Description

Feature:
Can be set to save the last operation, the module double pulse trigger, turn off any set of trigger time, you can change double pulse to single pulse trigger.
Multi-group data 12864 visual display, intuitive operation, convenient, single encoder parameter adjustment can make the operation simple and fast.
With grid voltage compensation, the output of compensation can be automatically adjusted according to the change of power supply, and the electric voltage of about 1 second can be displayed when triggered, so that the effective heat of welding is consistent with the welding parameters, and the welding spot is uniform.
With 0-9999 welding counting function, with 5 groups of sample storage parameters, can be stored even the electricity power is off, the number of wleding could be seen just by a glance.
Time input 0-99 cycle(1 cycle is 20ms, for example, the adjustment value is 50, which is the welding time 1 second.), the stop time between 2 weldings is 0-99 cycles(1 cycle is 20ms, such as interval value 50, It is the interval of 1 second.) adjustable. Welding strength 30%-99% is adjustable.
The module can isolate the strong and weak electricity by optical coupling, and design a reliable circuit for zero-crossing detection and voltage detection to ensure the accurate phase shift of silicon control rectifier (SCR), which can be compatible with 40A-100A bidirectional silicon control rectifier(SCR).

Scope of Use:
1. DIY or simple battery welder development welding.
2. Welding of a single battery or battery pack.

Specification:
Current: 40A/100A(Optional)
Display: 12864 LCD Display
Main Board Size: about 85 * 45mm

Package Included:
1 * Main Board
1 * Display Board
1 * Cable
