100m 2 Core DMX Lighting Slave Cable Reel Drum Shielded Lead Twisted Pair Stage

100m 2 Core DMX Lighting Slave Cable Reel Drum Shielded Lead Twisted Pair Stage Description

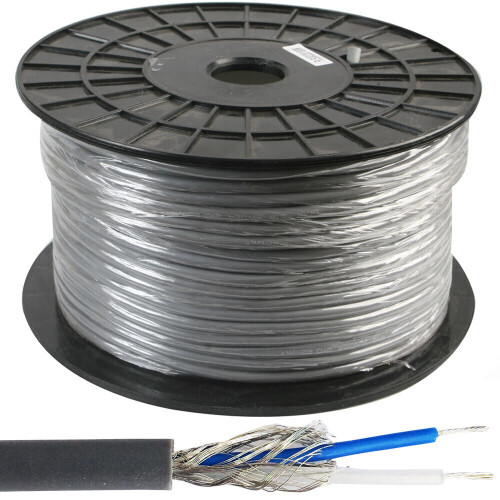

100m DMX Cable - 2 Core Screened

PLEASE NOTE â" Lengths of 50m & 25m may not be supplied on a reel as pictured.

Overview:

Commonly used for making up (soldering) DMX cables. You will also require 3 or 5 pin DMX connectors. Once made in your desired length, they can be used for connecting a lighting console to slave devices. A lighting console is the controller for a network of slave devices, such as floodlights, moving lights, strobes and fog machines. This cable is designed for 120ohm as per the DMX specification. Quite often people will use audio cable instead of DMX cable for DMX applications, this can cause irregularities in the digital waveforms.

This is not microphone cable. If you want to make XLR cables, not DMX cables, please search our shop for microphone cable or get in touch.

Specification:

External diameter - 7mm
Area per conductor - 0.22mm² - AWG24
Conductor make up - 7 Strands @ 0.2mm
High coverage braid shield - 86 Strands @ 0.11mm
Resistance - 120ohm
Tinned copper - Tin resists corrosion & does not oxidise protecting the copper underneath.
Low memory cable - therefore can be coiled and uncoiled easily without retaining its coil when laid across a stage for example.
