100m CAT7a S/FTP LSZH Cable Low Smoke Shielded Pure Copper 23 AWG Data

100m CAT7a S/FTP LSZH Cable Low Smoke Shielded Pure Copper 23 AWG Data Description

Uses - This premium cable is commonly used for networking, AV installations & POE applications. It can be cut to length and fitted with 8P8C FTP connectors (also called RJ45 FTP), the standard PC networking connector. Depending on the type of connector you're using, you may need a crimping tool. The cable has an aluminium-magnesium alloy braid and each twisted pair within has its own foil shield which helps in areas where there is a lot of interference. To make sure the shield is utilised, please make sure your RJ45 sockets are shielded too.

Available in the following lengths – 25m, 50m, 100m, 200m, 300m, 500m & 1000m*

*1000m lengths aren't advertised on any of our stores, but if you get in contact with us, we'll be able to quote you on a 1000m reel.

PLEASE NOTE – 25m, 50m & 100m lengths may not be supplied on a reel.

Colour – Orange

Low Smoke Zero Halogen (LSZH) - Low smoke zero halogen cable is made of thermoplastic that emits a limited amount of smoke and no halogen when exposed to high heat sources such as fire. In a fire, a halogen-containing plastic material releases hydrogen chloride, a poisonous gas that forms hydrochloric acid when it comes in contact with water. Commonly used in buildings for safety in the event of a fire.

Ease of Use - To make measuring easy the cable is marked at 1 metre intervals.

Technical Features:

Conductor Area CSA: 0.58mm

Conductor Material: Pure Copper

Conductor Insulation: Skin-Foam-Skin HDPE

No. of Cores: 8

Quality CAT7A 4 Pair Network Cable

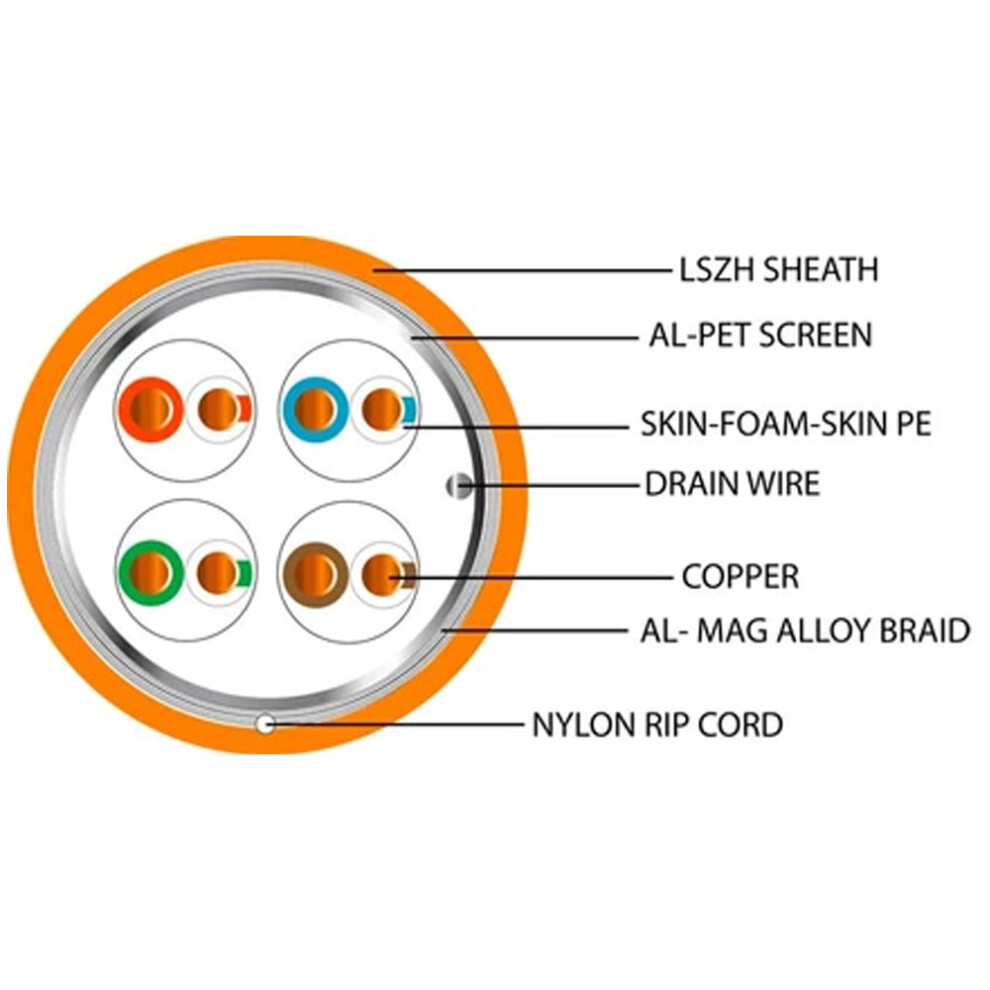

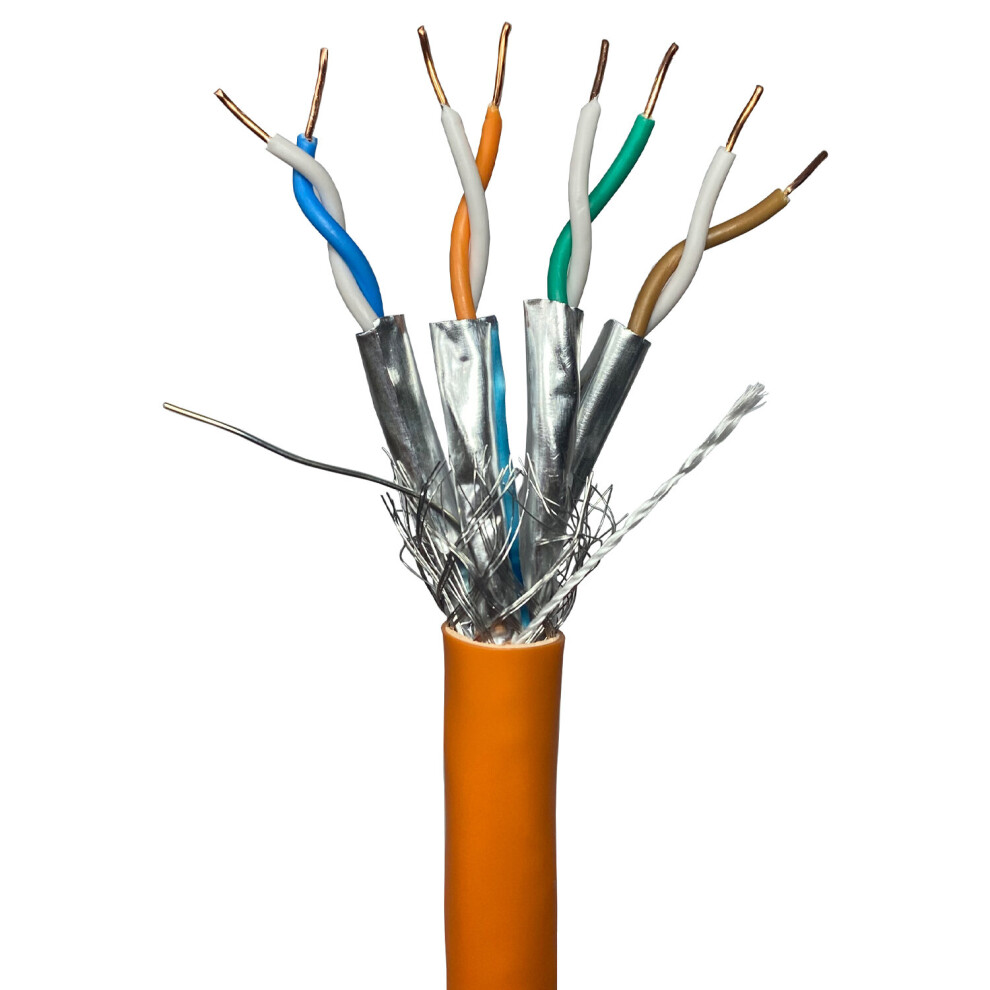

S/FTP – The cable has an aluminium-magnesium alloy braid & each twisted pair is wrapped in aluminium shielding foil.

Outer Diameter – 7.8mm

Outer Layer – LSZH rated & 0.55mm thick

Suitable for up to 1000 MHz

Speeds of 40 Gigabit @ 50 Metres.

Speeds of 10 Gigabit @ 100 Metres.

Tinned Copper Drain Wire

Nylon Rip-Cord

Wiring – Depending on the application in which you hope to use it, the cable can be wired in both the ‘straight through' or ‘cross-over' configurations.

'Cross over' cables are usually used for connecting 2 computers directly to one another, without the use of a Hub or Router. They use 568-A wiring at one end, and 568-B at the other.

'Straight through' cables can be used for connecting a PC or games console to a Hub/Router, or, in conjunction with AV extender devices, for audio and video distribution throughout a home or commercial project. To create a 'straight through' cable, it should be wired using the same wiring variant at both ends. Either ‘568-A to 568-A' or ‘568-B to 568-B'

Standards - ROHS Compliant

Product Code: 4235x100
