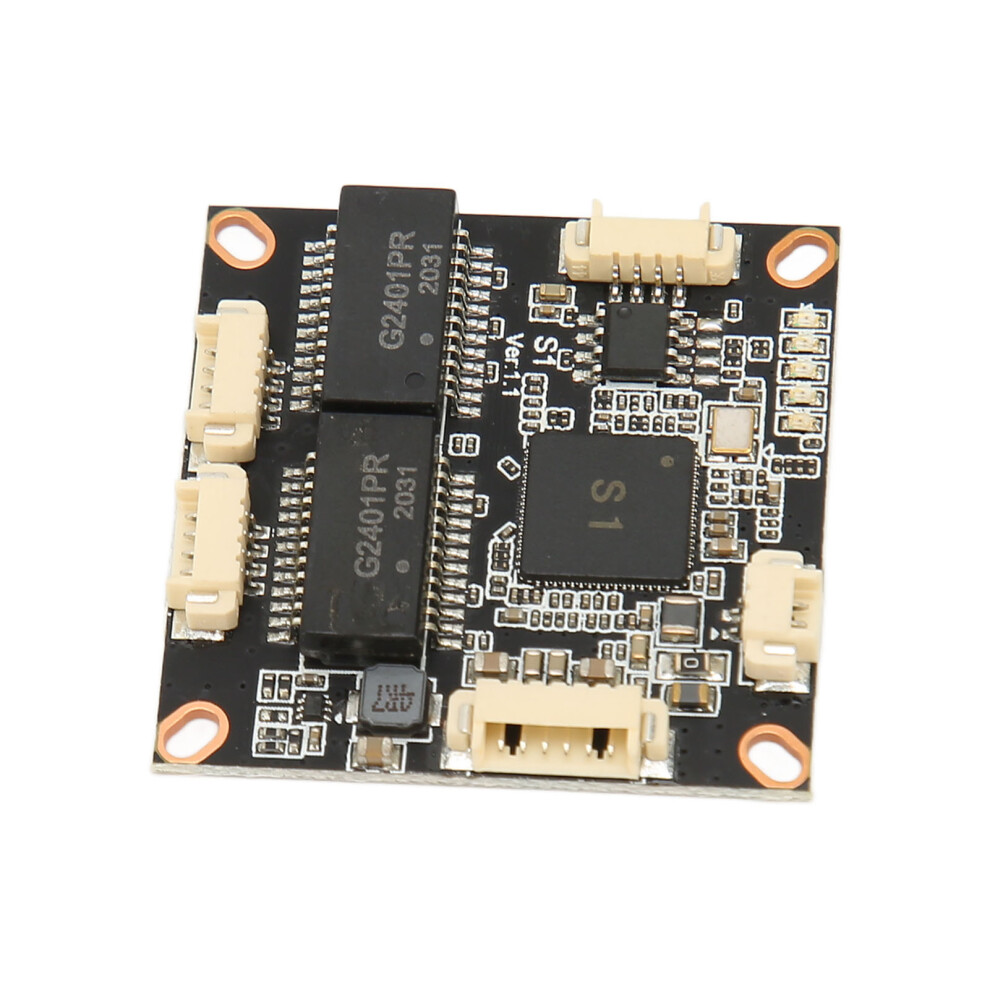

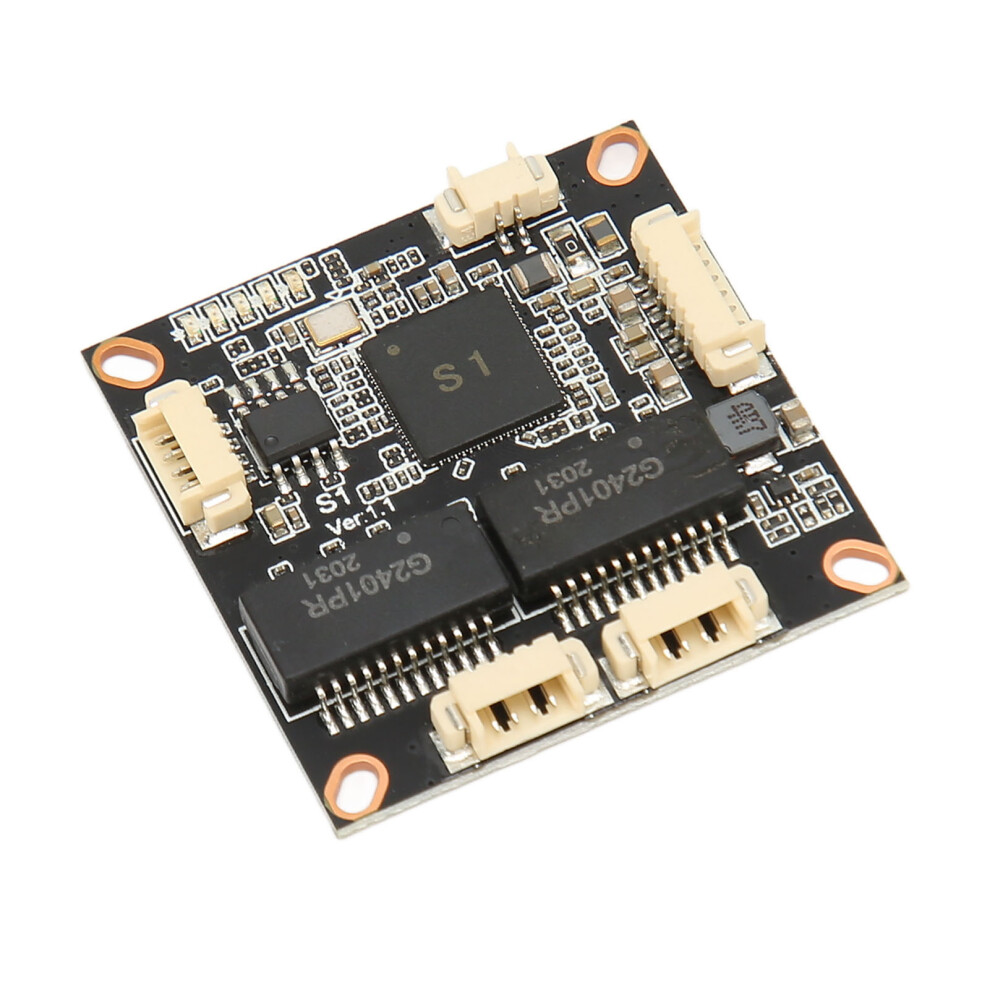

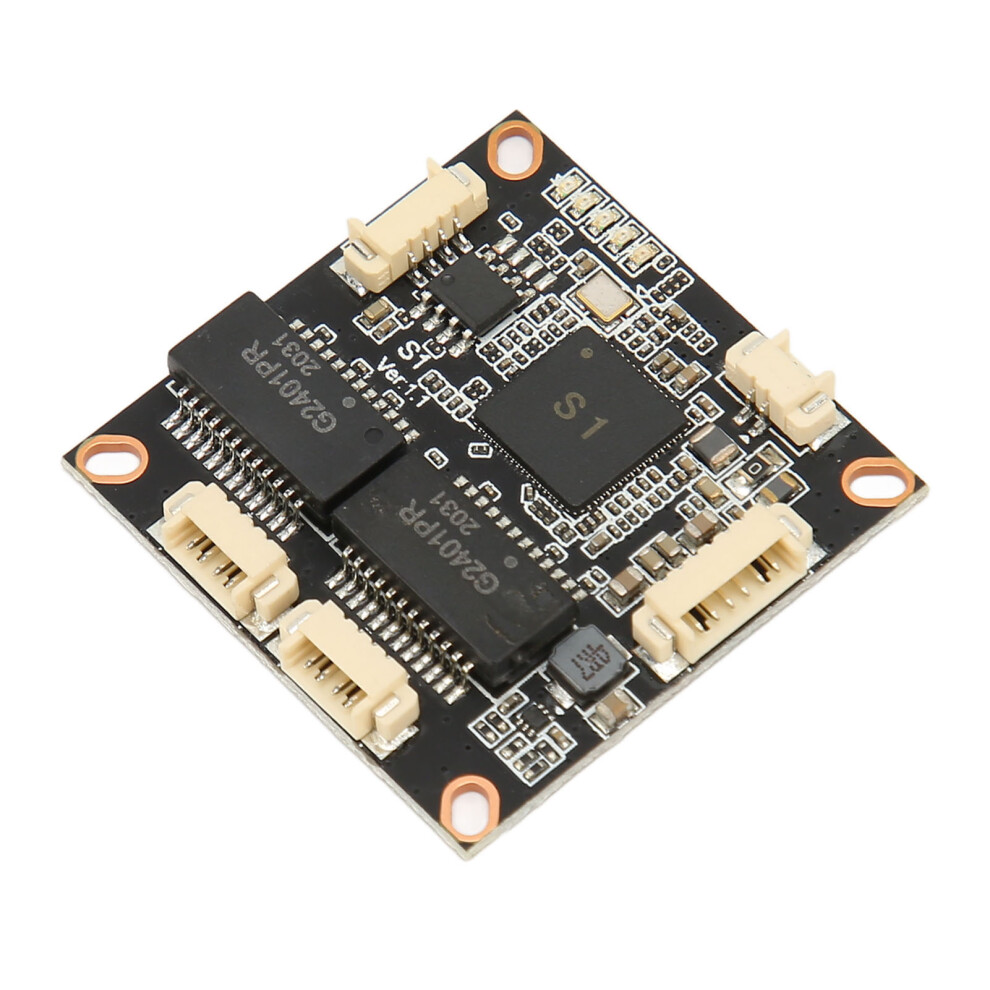

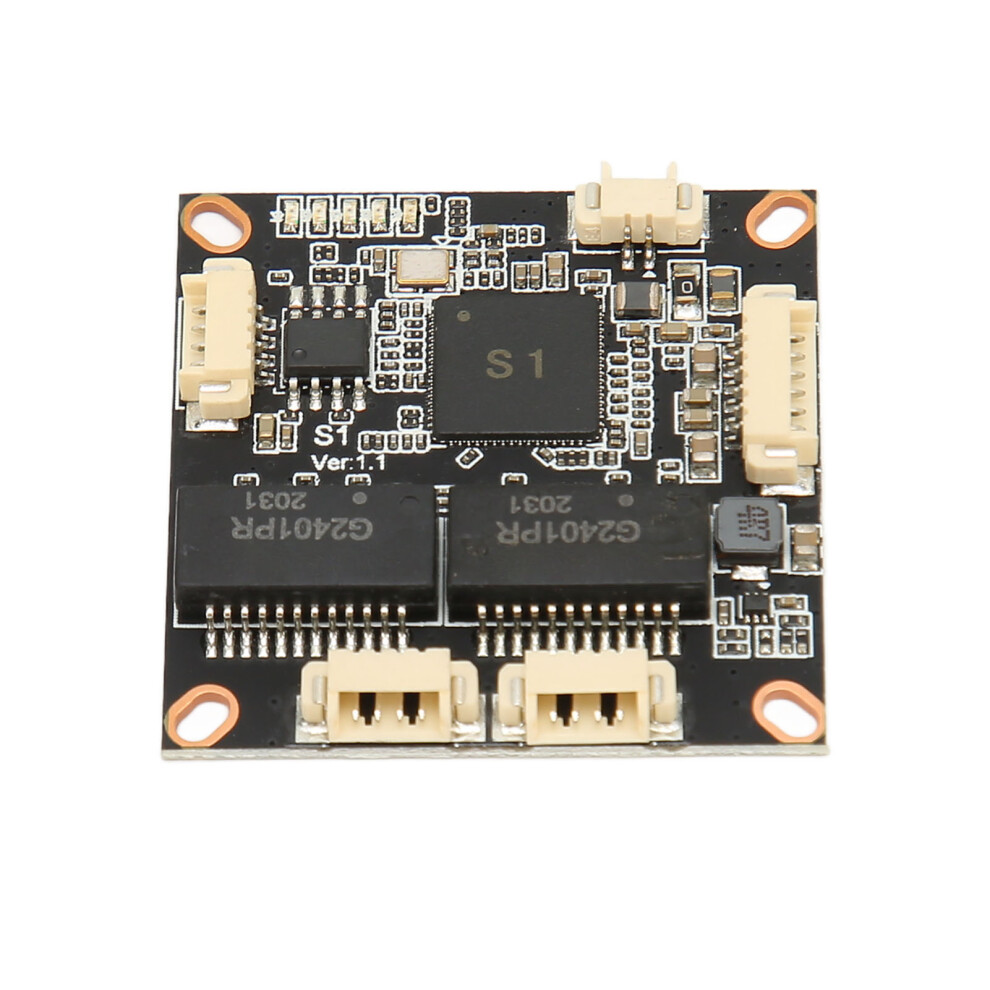

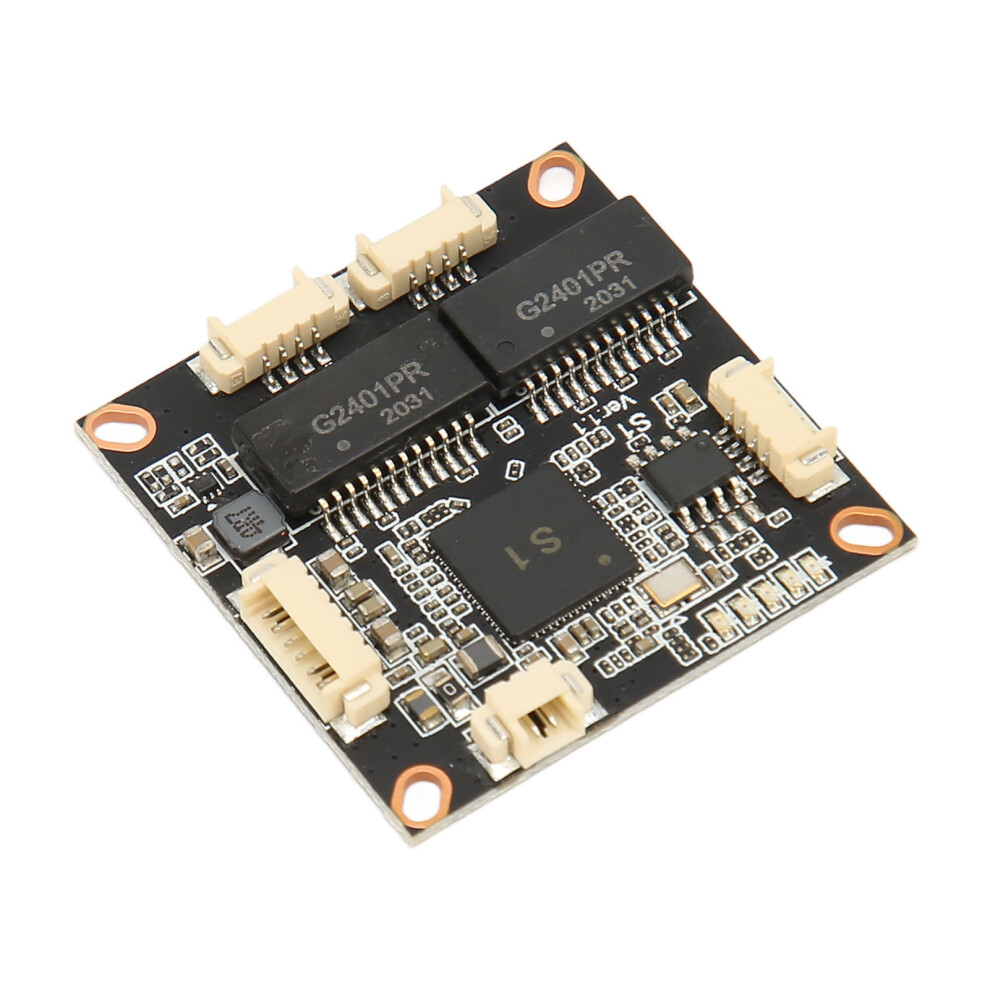

100M Switch Module 4 Ports Auto MDI MDIX Network Switch

100M Switch Module 4 Ports Auto MDI MDIX Network Switch Description

1、IEEE Standard: This 100M switch module meets IEEE 802.3, IEEE 802.3u, and IEEE 802.3ab standard. 2、Self Adaption: This network switch module has 4 10/100M self adaptive network interface, supports Auto MDI/MDIX. 3、Auto Negotiation: Each port of this Ethernet switch module supports auto negotiation function, automatically adjusts the transmission mode and rate. 4、Self Learning: This switch core module supports Media Access Control address self learning, clog free communication in full speed. 5、LED Indicator: This switch module board is designed with dynamic LED indicator, provide simple working status prompt and troubleshooting.
Item Type: 100M Switch Module
Material: Printed Circuit Board
Technical Standards: IEEE802.3, IEEE802.3u, IEEE802.3x
Interface: 100M Network Port: 10Base T/100Base TX Self Adaptation
Transmission Distance: Twisted Pair: 100 Meters / 109yd (Standard CAT5/CAT5e Cable)
Interface Indicator: 1 to 4 (LINK/ACT)
Power Indicator: PWR
System Switching Broadband: 1.0G
Cache Size: 1.0G
Media Access Control Address: 1K
Operating Temperature: Minus 5 to +55
Storage Temperature: Minus 40 to +85
Humidity: 10% to 95% (No Condensation)
1 x
100M Switch Module
