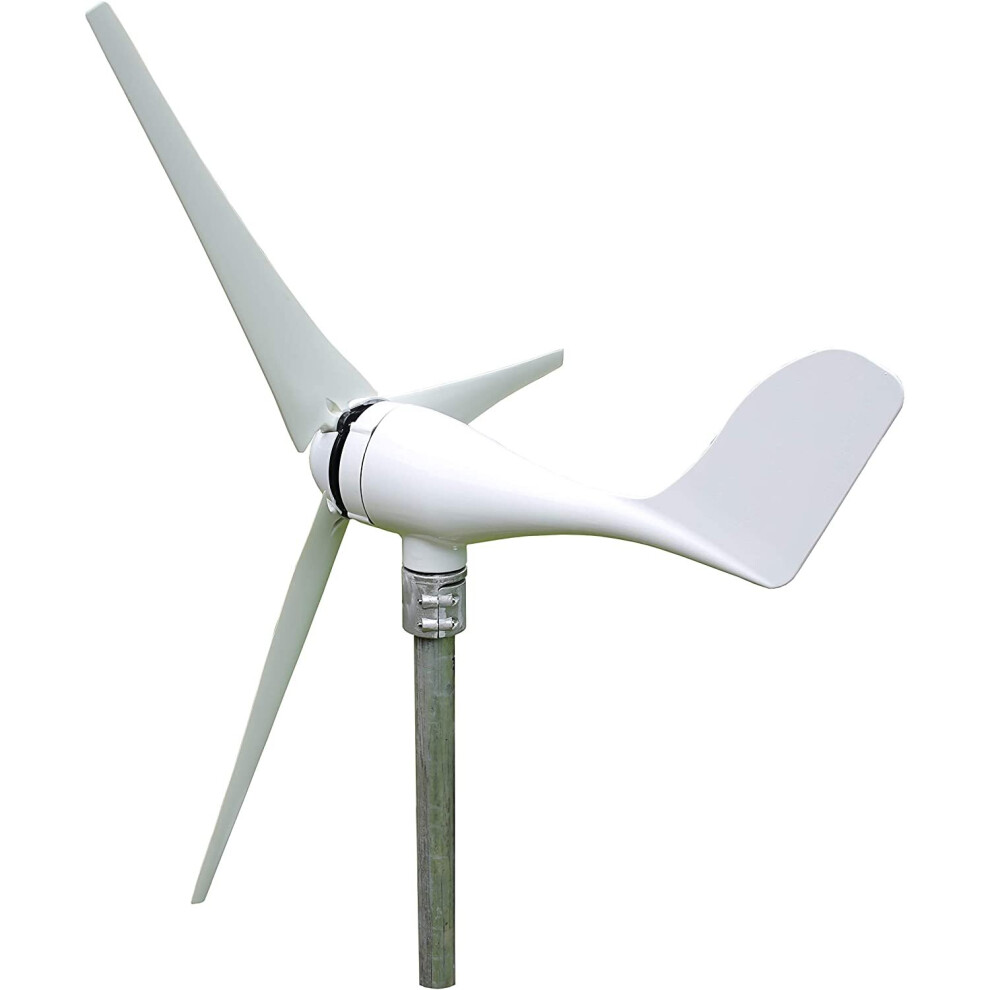

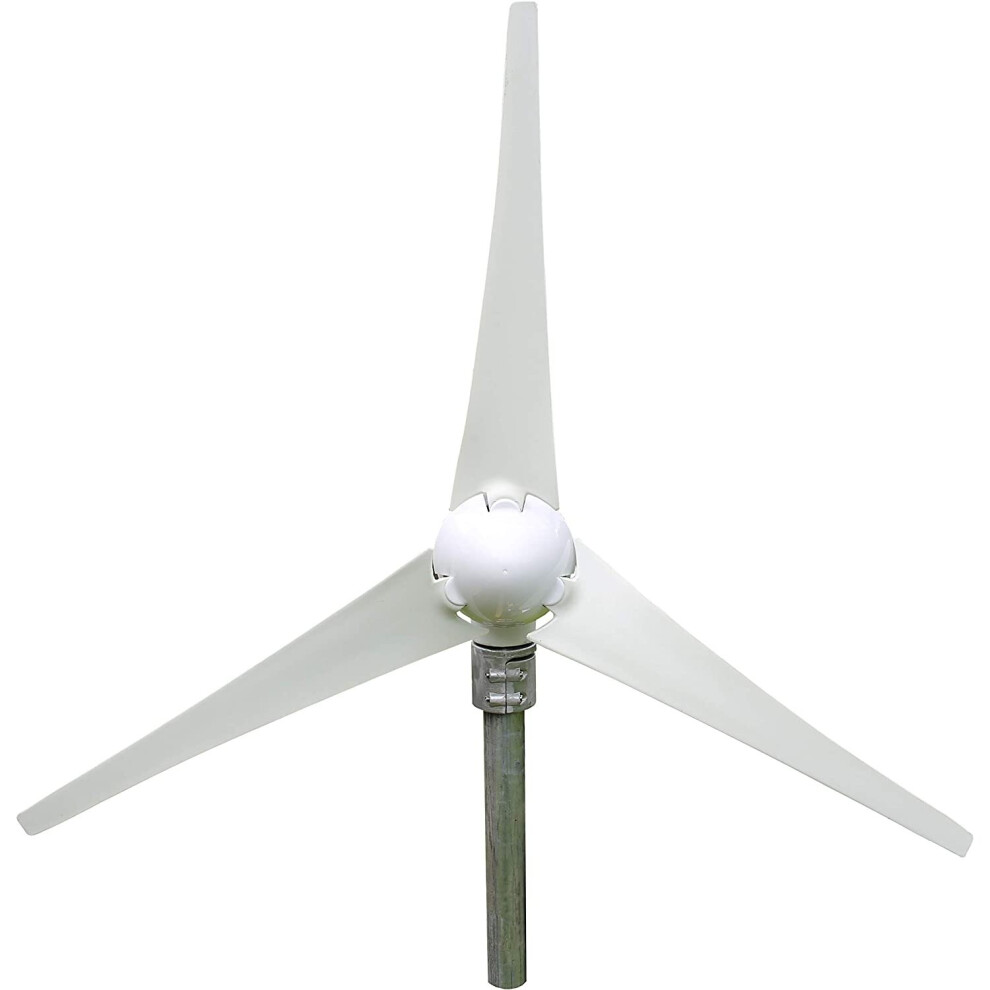

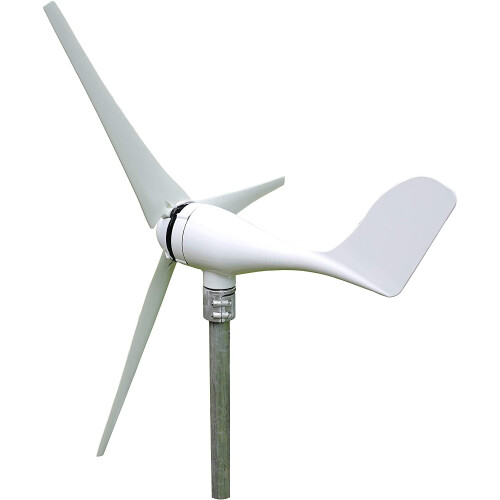

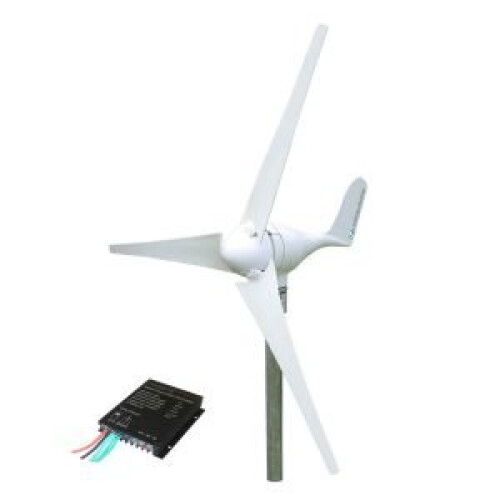

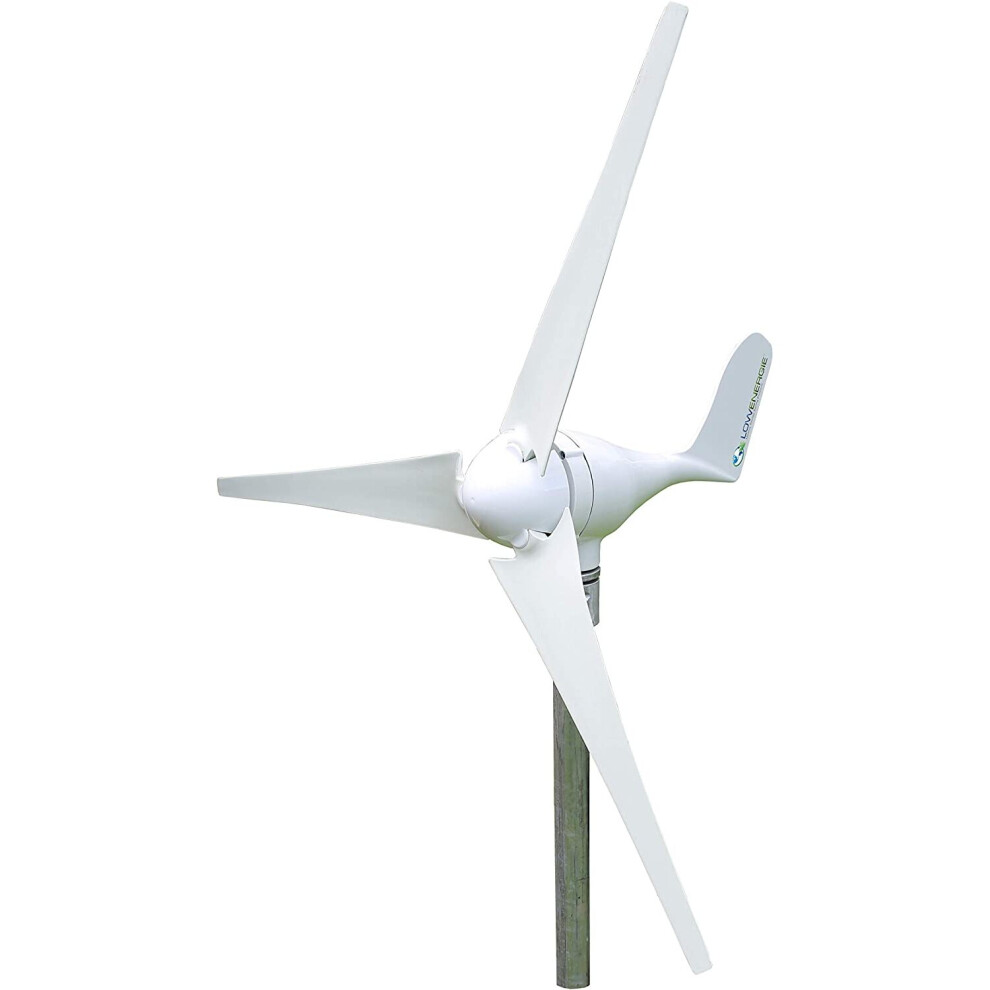

100W 12V Wind Turbine kit with charge controller

100W 12V Wind Turbine kit with charge controller Description

These Wind Turbines are made to our own spec to ensure the specified performance is long lasting from the outset. Our wind turbines have quiet operation & low rotation resistance so they have light breeze startup speeds of just a 4.5mph wind (2mps wind speed).

Our small wind turbines are usually considered to be permitted development when land based & do not require planning permission most situations (check with your local council first). Small wind turbines are an excellent source of power generation when they are positioned in a suitable location such as exposed coastal or rural areas. Wind turbines should be positioned in clean wind which is strong & laminar, which means it flows in smooth streamlines & is not disrupted by nearby obstacles.

Suitable for saltwater marine environment.

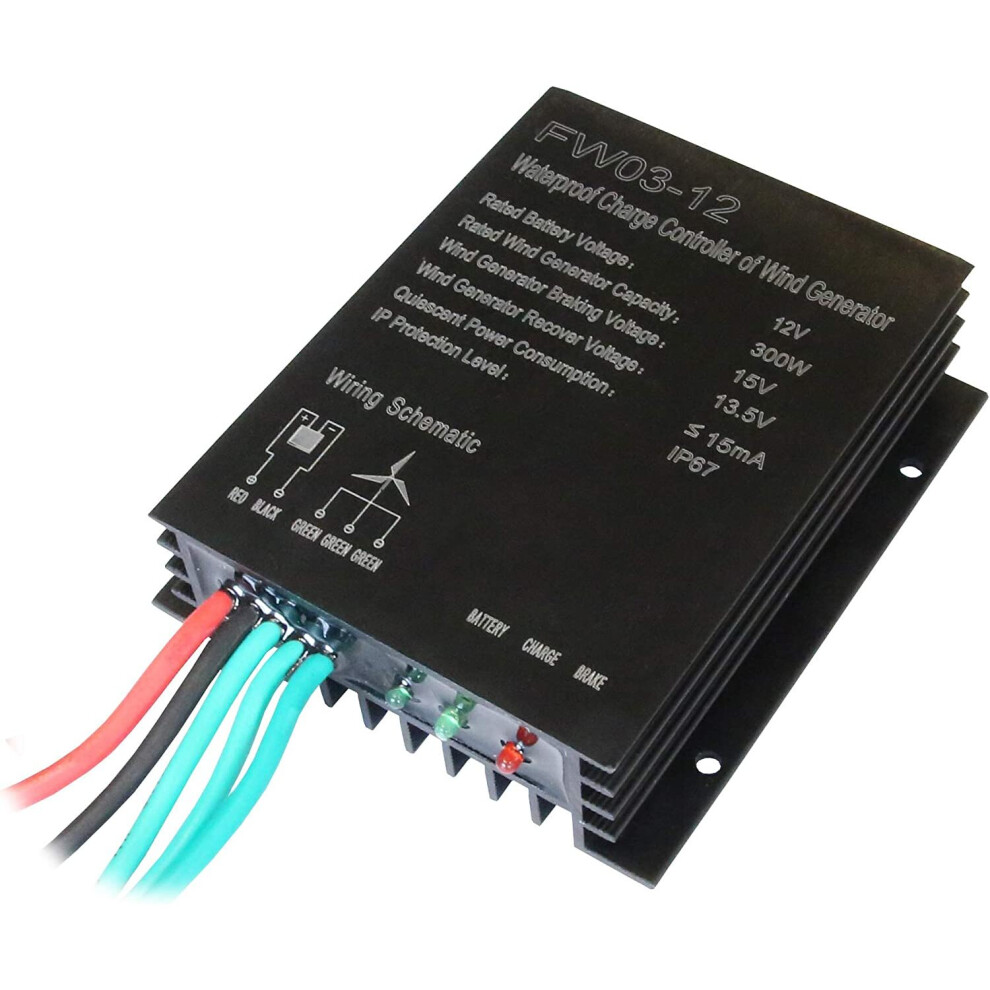

Turbine includes PWM 12v charge controller IP67 Waterproof 12V Controller to match up to 300W rated turbine.

• Overspeed protection braking voltage - 15V
• Self power consumption - <15mA
• Wiring - 3 phase AC from turbine (green wires), Red/black +/- battery connections
• LED indicator lights - Battery/Charge/Brake
• Product Specification - 100W Model Start-up wind speed - 2.0 m/s (4.5mph)
• Survival Wind Speed - 50 m/s (112mph)
• Voltage Output - 12 DC
• Blade Diameter - 1.2M (4ft)
• Number of Blades - 3
• Weight - 9Kg
• Overspeed Protection - Electronic Stalling to slow rotation
• Blade Material - Nylon Fibre
• Body Material - diecast aluminium alloy, powder coated for weather & corrosion protection
• Turbine generator type - brushless low friction 3-phase permanent magnet AC synchronous
• Mounting - Simple clamp mounting onto a 48mm external diameter steel pole (not included)
• Operating temperature -40 to 80°C Certifications - CE, TUV, ISO

All of our wind turbines use an ISO 9001 manufacturer (Factory quality management) & comply with ISO14001 (Environmental Management)
