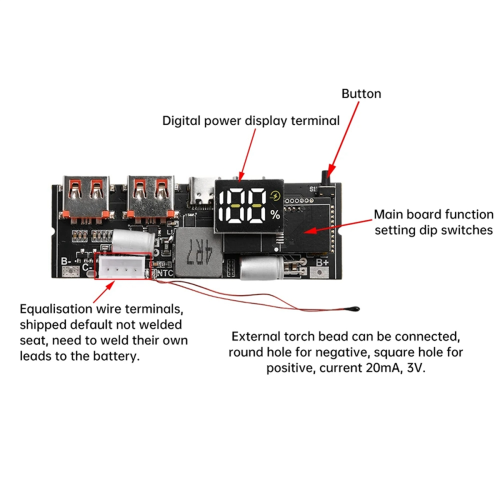

100W Bidirectional Fast Charge Mobile Power Module PD QC SCP VOOC 4S

100W Bidirectional Fast Charge Mobile Power Module PD QC SCP VOOC 4S Description

1. Fully compatible with QC, PD, SCP, VOOC and other fast charging protocols, meeting the charging needs of most electronic devices on the market, and realizing worry-free charging with one board in hand!
2. Support MPPT function, can be connected to solar panels for charging.
3. Efficient buck-boost automatic switching, no need to worry about the battery voltage being too high and damaging the mobile phone, automatic PWM and mode switching to achieve efficient buck-boost.
4. The product supports a variety of protection mechanisms, overcurrent/overvoltage/short circuit/overtemperature protection, and more to use.
5. Not only output fast charging, but also fast charging itself, supporting PD bidirectional fast charging, greatly shortening the self-charging time and improving the convenience of use.

Large-capacity solid-state capacitor filtering, low ripple output, C port Vpp as low as 6-9mV, more effective protection of electronic devices
Parameters:
The motherboard comes with 4 USB ports by default, Type-C1, Type-C2, Type-A1, Type-A2
Type-C1, Type-C2 support AFC/FCP/SCP/PD3.1 input protocols.
Support /PD3.1/UFCS/PE1.1/PE2.0/QC3+/QC3.0/QC2.0/AFC/FCP/SCP/SFCP output protocols Type-A1/Type-A2 Support UFCS/PE1.1/PE2.0/QC3+/0C3.0/QC2.0/AFC/FCP/SCP/SFCP output protocols
Voltage, current and power:
/PD3.1: 20V@5A, 3.3V-21V@5A, Maxin100W/Maxout60W
UFCS: 3.4-21V@5A, Maxin100W/Maxout60W
QC2.0: 5V3A/9V3A/12V2.8A/20V1.5A
QC3.0: 3.6V-20V@200mV/step!5V@3A/9V@3A/[email protected]/[email protected] AFC:5V3A/9V3A/12V2.8A FCP:5V3A/9V3A/12V2.8A SCP:OUT3.3V-12V,IN5V/9V/10V/12V,support 10V4A PE1.1:5V/7V/9V/12VPE2.0:5V-12V@500mV/step SFCP:5V/9V/12V
Note:Due to different production batches, the style and color of the wire are random and cannot be specified.
Type:100W,4S
Colour:Black
Material:PCB

Package Contents:
1 * Fast charging power module

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
