100W Bluetooth Wall Mounted Amplifier & 4x 80W Stereo Ceiling Speaker Kit

100W Bluetooth Wall Mounted Amplifier & 4x 80W Stereo Ceiling Speaker Kit Description

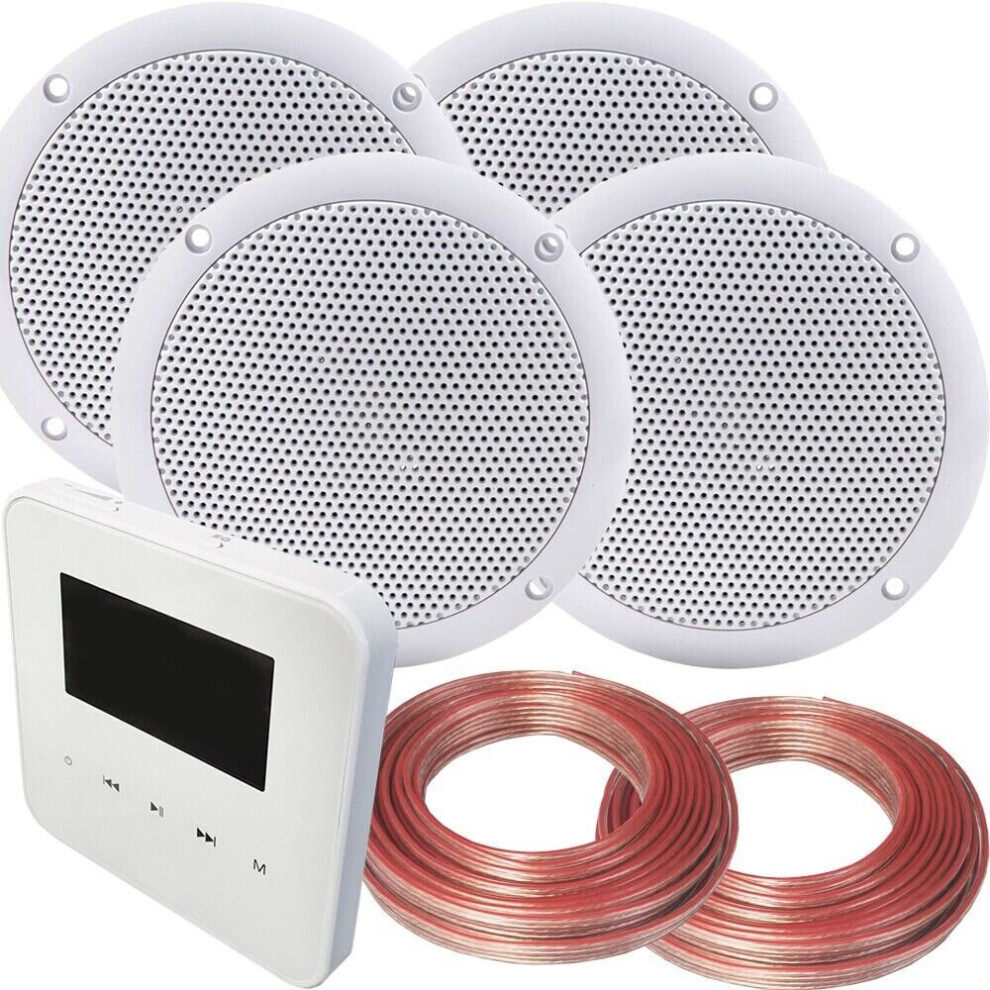

Contents:

1x 100W (2x 50W Max) Wall Mounted Wi-Fi & Bluetooth Amplifier
4x 80W White Moisture Resistant Ceiling Speakers
2x 10m Speaker Cable
Instruction Manual

The amplifier is the same size as a single UK plug socket / light switch – Requires a 47mm deep back box.

Amplifier Overview:

Overview:

Connectivity – This amplifier has a built in Bluetooth receiver allowing you to connect any devices you have with Bluetooth (a smart phone with Spotify for example) wirelessly. Your device would not need line of sight to play music through the connected speakers.

As well as the Bluetooth wireless connection, this wall amplifier has a hard-wired auxiliary input. Perfect if you'd like a hardwired connection to your TV. As well as an aux input, it also accepts Micro SD cards.

Range – If you are connected via Bluetooth, the range is around 10 meters.

Power – The amplifier may be small, but it packs a punch, at peak, this small unit will pump out an impressive 100W max @ 4 Ohm (2x 50W). However, thanks to the latest, CLASS-D DIGITAL sound reproduction technology, this little stereo amplifier sounds much louder than the figures suggest… It really is impressive! The amp can handle any domestic environment and most commercial environments (depending on the nature of the install).

Size – Our most compact amplifier yet, this incredibly clever unit can be recess or surface mounted to a wall using a 47mm back box.  The bezel has an extremely slim design & will only protrude 10mm once installed.

Features:

1x Auxiliary Input Screw Terminals

1x MicroSD Card Slot

4x Screw Terminals for connecting speaker cable

Wired Connections:

Screw Fit Speaker Terminals: Labelled; (R- & R+) for negative and positive connections to the right speaker(s), (L- & L+) for negative and positive connections to the left speaker(s).

Screw Fit Auxiliary Input:  For a direct wired connection to a source device such as a smartphone.

Micro SD Card: The amplifier can also play MP3 tracks stored on a Micro SD Card. Simply insert card at the bottom of the panel.

Technical Specification:

Output Impedance: 4 to 8 Ohms

Output Power RMS: 2 x 30W @ 8 Ohms (60W)

Output Power MAX: 2 x 40W @ 8 Ohms (80W)

Output Power RMS: 2 x 50W @ 4 Ohms (100W)

Output Power MAX: 2 x 70W @ 4 Ohms (140W)

Operating Voltage: 90 – 220V AC

Frequency Response: 20Hz to 20 KHz

Dimensions (HxWxD): 86x86x53mm

Weight: 190g

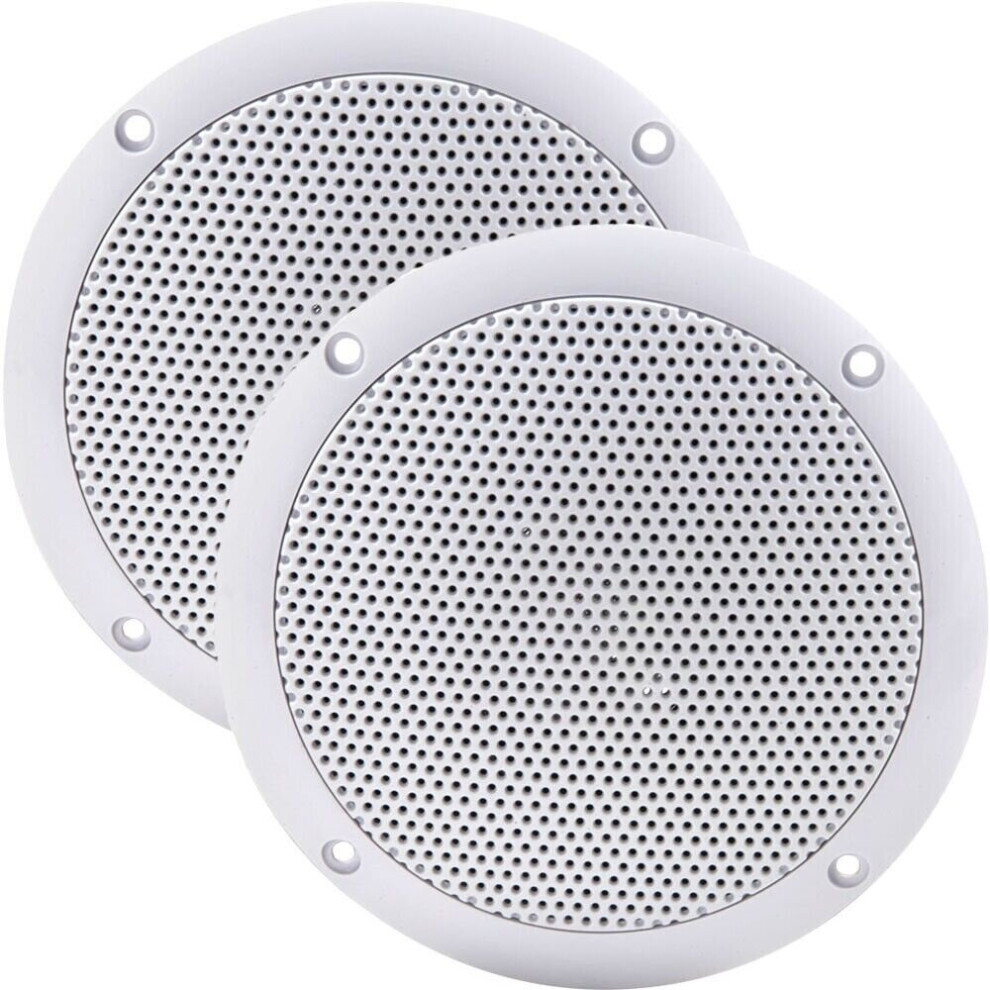

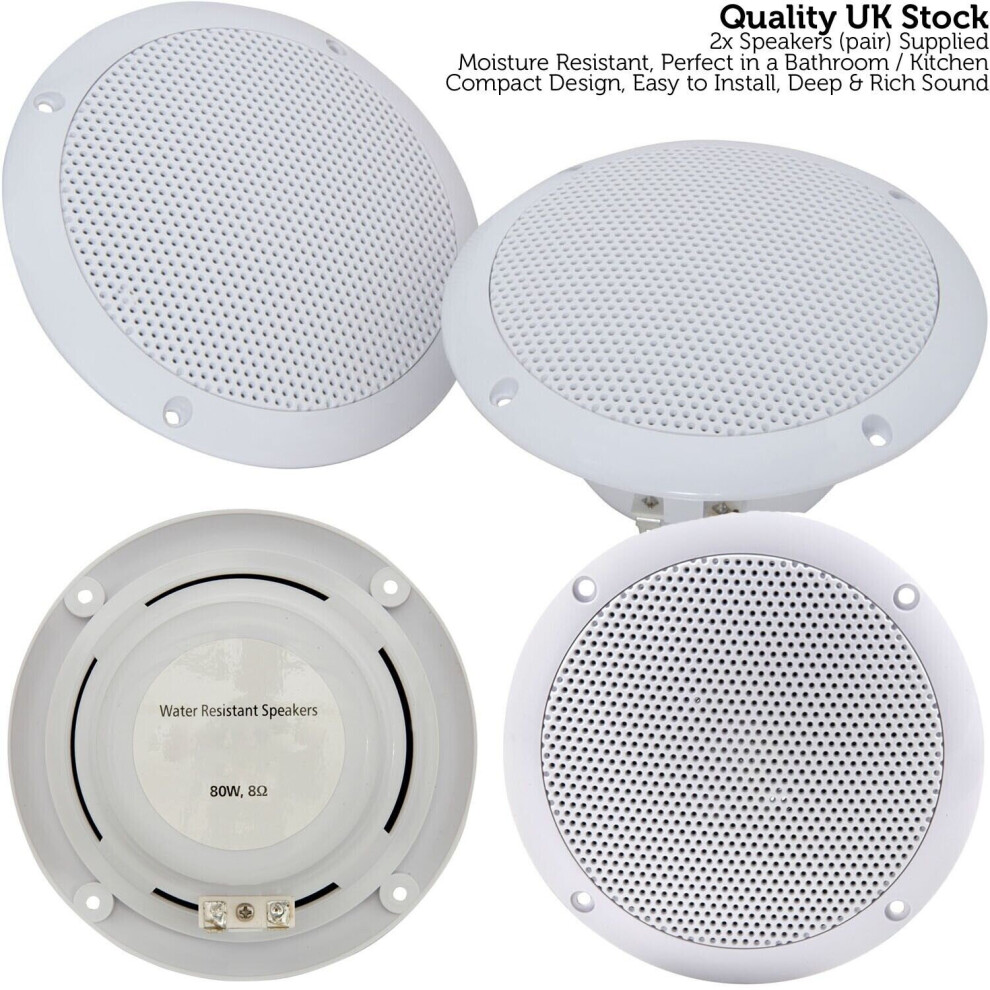

Speakers Technical Specification:

13cm / 5 Inch
5cm (2 Inch) Tweet with Mylar Cone
Woofer with Polypropylene cone
6mm Spade terminal connectors
Built-In Crossover
All Fixings supplied.

2-Way Speakers
Max Power - 80w
Power RMS - 40w
Frequency Response - 80Hz-18kHz
Impedance - 8 Ohms
Moisture resistant
Dual Cone Speaker

130mm diameter, for fitting to a 114mm cut-out / Depth - 65mm

HOW TO INSTALL:

1) - Run all of the cables you need to run before starting the install, this includes mains power cables, speaker cables and any other audio cables (for AUX ports). PLEASE ENSURE THAT ELECTRICITY IS TURNED OFF WHEN INSTALLING.

2) - You now need to prepare your wall for the amplifier to be mounted, you will need to cut a hole for this to be recess mounted or use a surface mounted back box (please see supplied instruction manual for full details).

3) - Wire the mains power cable and speaker cables to rear of the amplifier via the screw terminal connections. Connect the other end of the speaker cables to the speakers ensuring that you wire positive to positive & negative to negative.

4) - You can now power up the unit, select a source and listen to your chosen music.

BLUETOOTH:

Simply turn Bluetooth on, on your device (make sure your device is visible under its Bluetooth settings). Then search for compatible devices and your device (phone for example) will find the amplifier. Follow the instructions given to you and you will then be able to play your music wirelessly.

Further Information:

We sell the amplifier in this bundles with various styles & numbers of speakers. If this isn't quite what you are looking for and you can't find what you need, please feel to get in touch and we will be more than happy to help you.

We can build bespoke systems for any install and no sound system install is too big or small!

Product Code: LPK0005B-2
