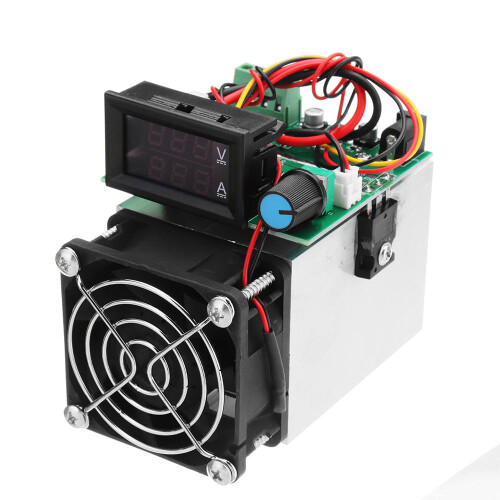

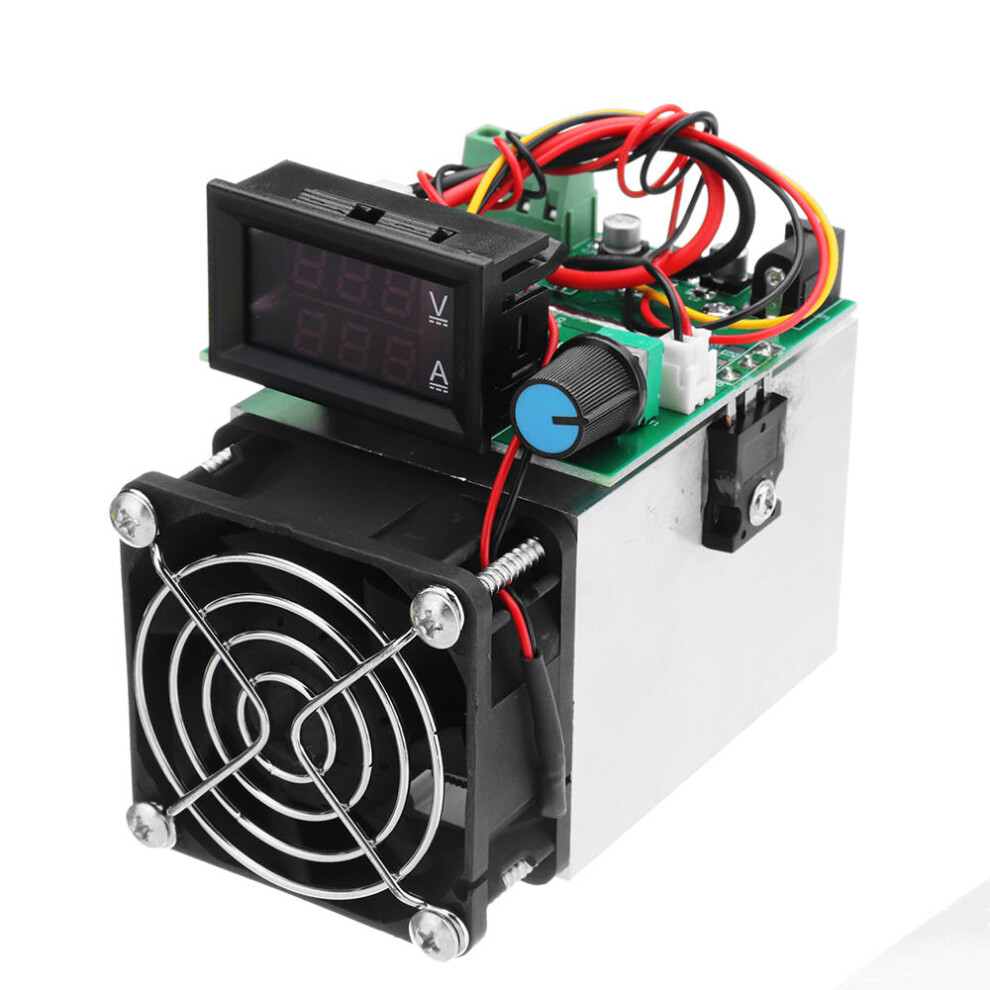

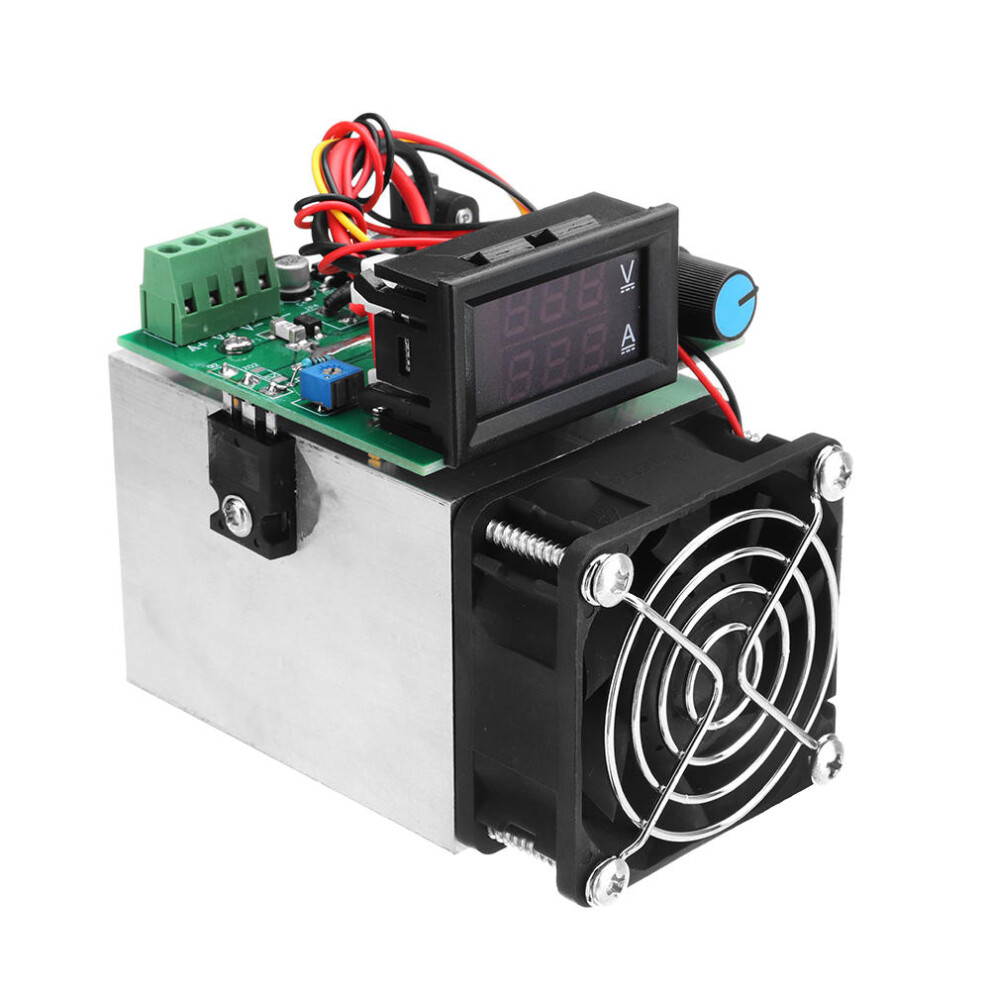

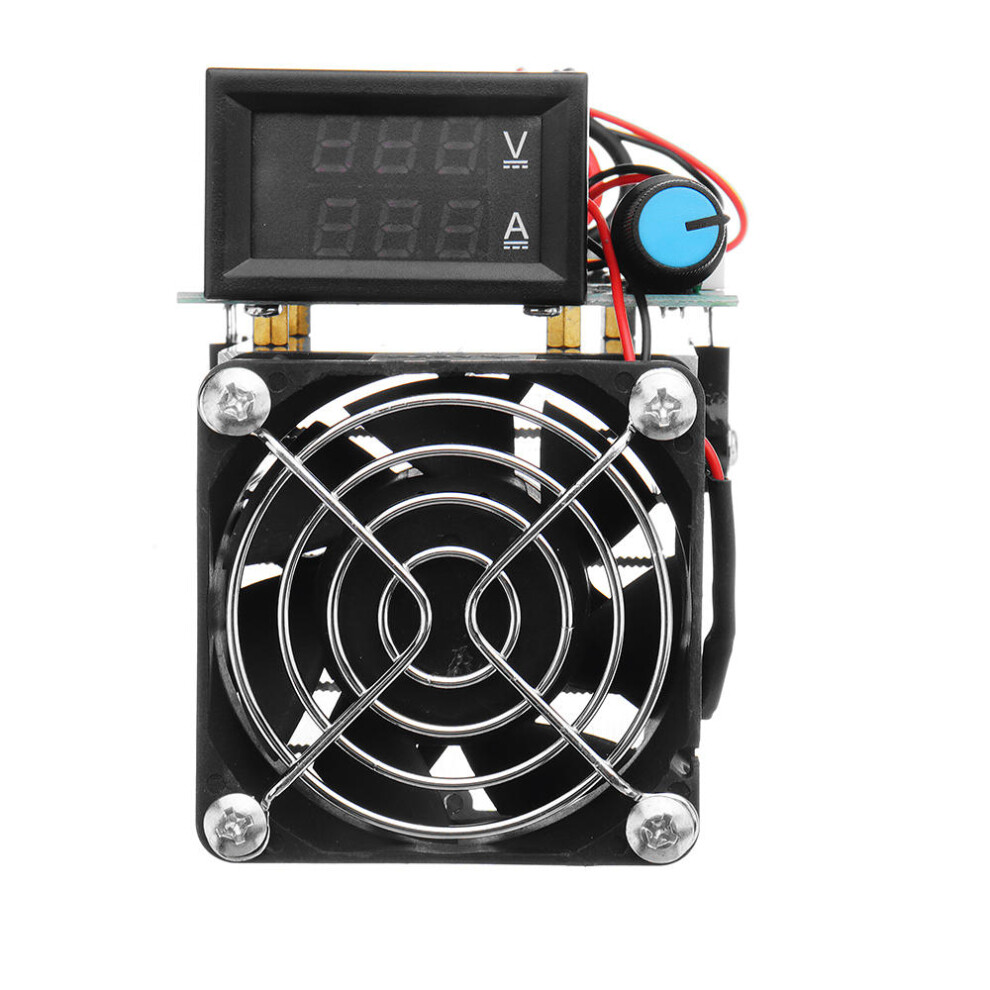

100W DC 12V Discharge Battery Capacity Tester Module With DC Electronic Load Digital Battery Tester

100W DC 12V Discharge Battery Capacity Tester Module With DC Electronic Load Digital Battery Tester Description

Description:
This Electronic Load has the high speed fan, which can automatically change the speed. High quality heat sink can serve a long time performance. It supports multiple protections of overheat, overpower, over-voltage, reserve polarity, and power supply voltage abnormity.

Features:
The high speed of the fan can change according to the heat sink temperature.
Protection of over-heating, overpower, over voltage, reserve polarity, and power supply voltage abnormity.

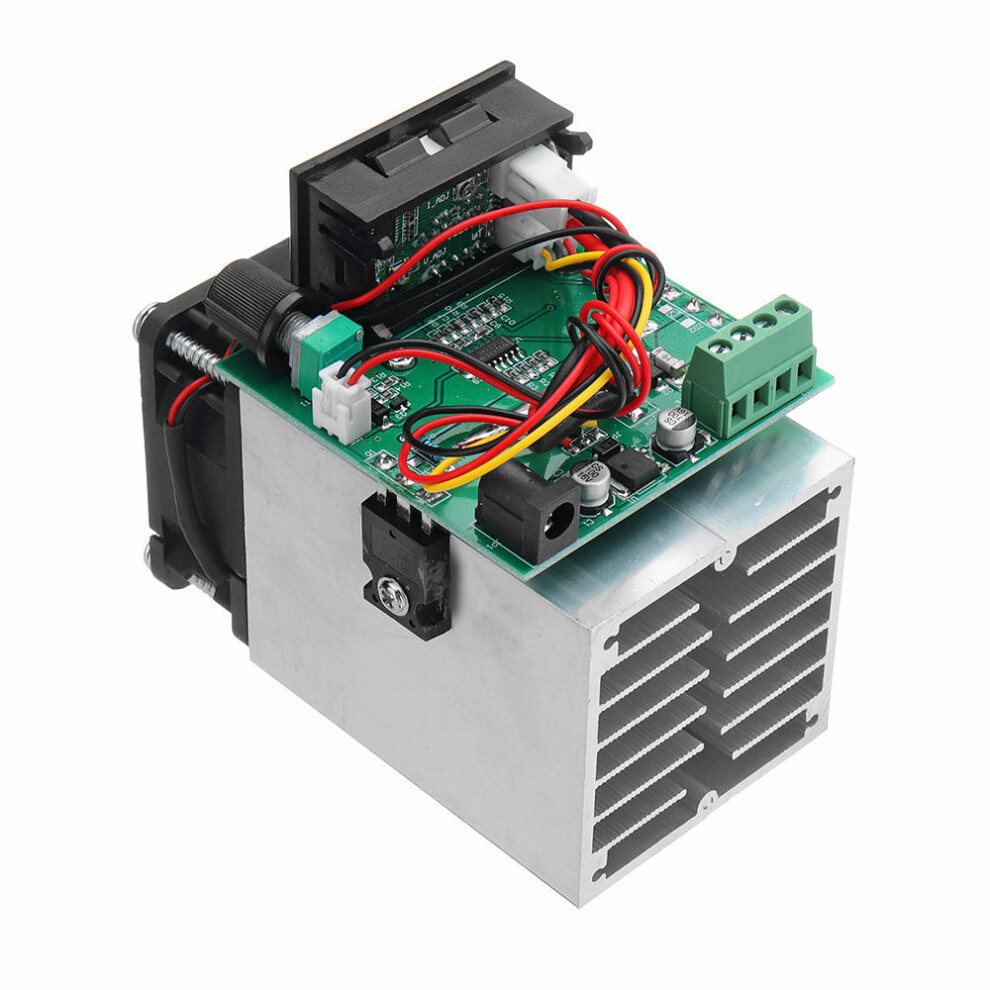

Equipped with industrial large tooth heat sink, dust-resistant, which can run for a long time.
Durable construction for long-lasting performance.
Professional test module for detecting discharge battery capacity.

Specification:
Power Supply: DC12V5%.
Fan Current: 0.72A.
Constant Discharge Current Range: 0-10A(whole machine).
Working Mode: Single Mode Constant Current(CC).
Discharge Current Max. Error: 0.7%-0.01A.
Max. Capacity Test Error: 0.5A 2.5%, 2A 1.5%, 5A and above 1.2%.
Max. Power: 100W.
Input Interface: 5.5 x 2.5mm.

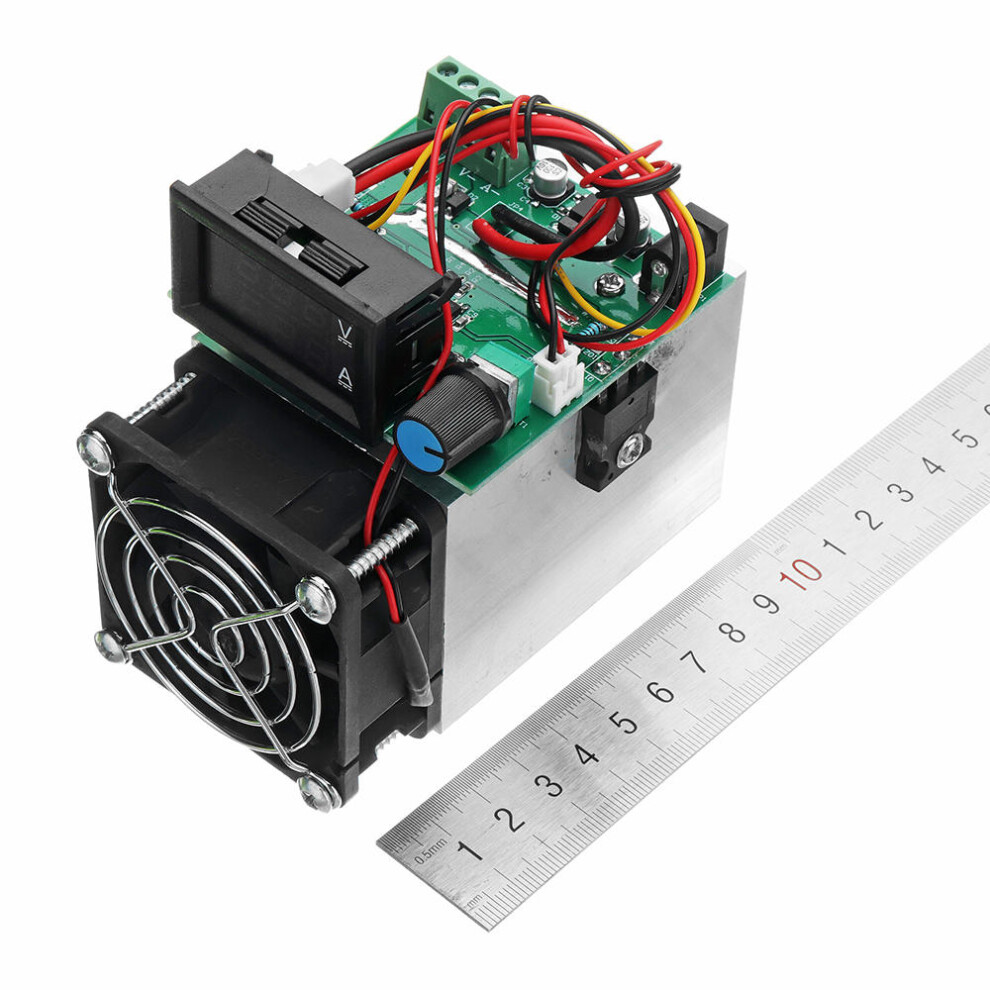

Size: Approx. 11 x 9.5 x 7cm / 4.3 x 3.7 x 2.7inch.
Weight: 385g.

Operation Instructions:
Connect with DC 12V power supply and enter electronic load mode, ensuring in a stopping state, connect the power supply under test to the test input port. Please pay attention to connect the right polarity!

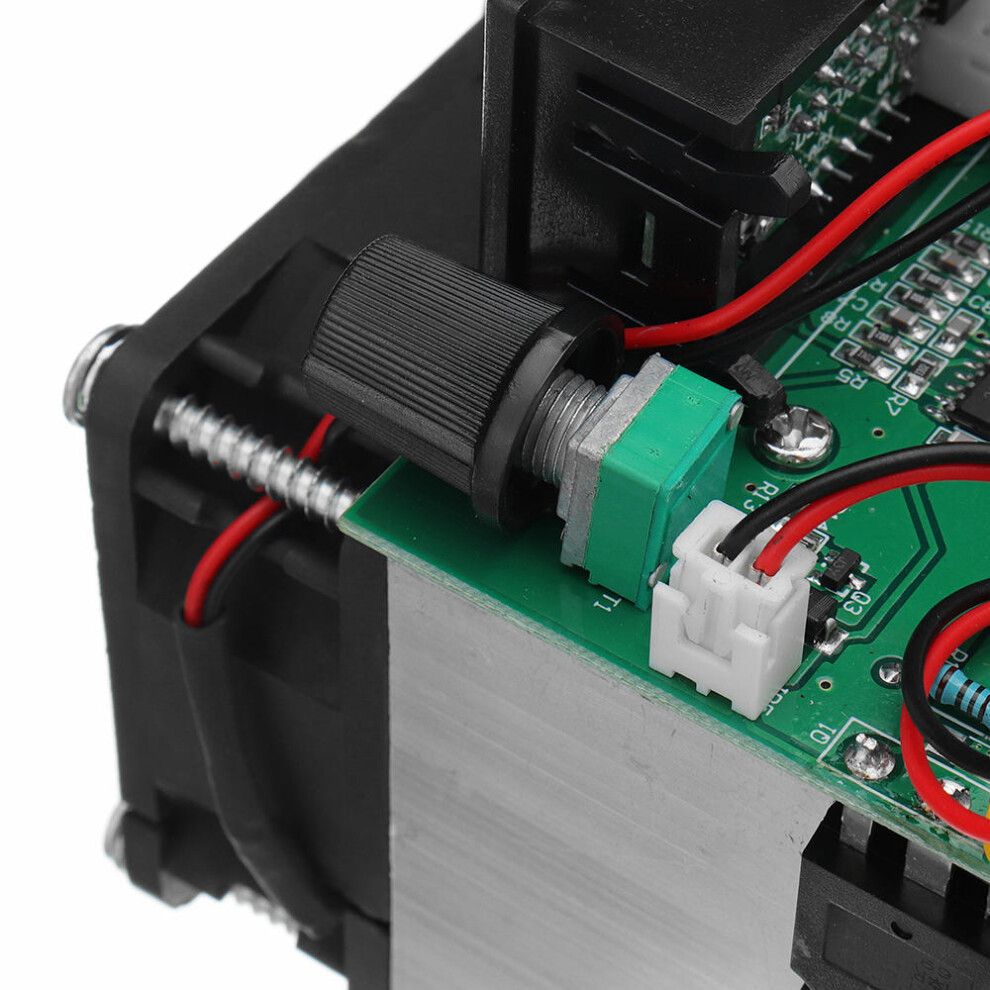

Set constant current through knobs.
Note: Since it works openly, there is no voltage and power limitation, but normal work should be below 100V, 100W.

Package Included:
1 xBattery Capacity Tester Module
