100W WiFi & Bluetooth Wall Mounted Amplifier & 4x 60W White Wall Speakers System

100W WiFi & Bluetooth Wall Mounted Amplifier & 4x 60W White Wall Speakers System Description

100W Wi-Fi & Bluetooth Wall Mounted Amp & Wall Mounted Speaker Kit

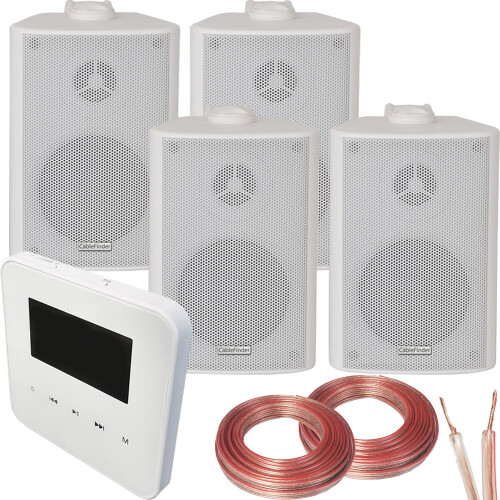

Contents:

1x 100W (2x 50W Max) Wall Mounted Wi-Fi & Bluetooth Amplifier
4x 60W 3” White Wall Mounted Speakers (Wall Brackets Supplied)

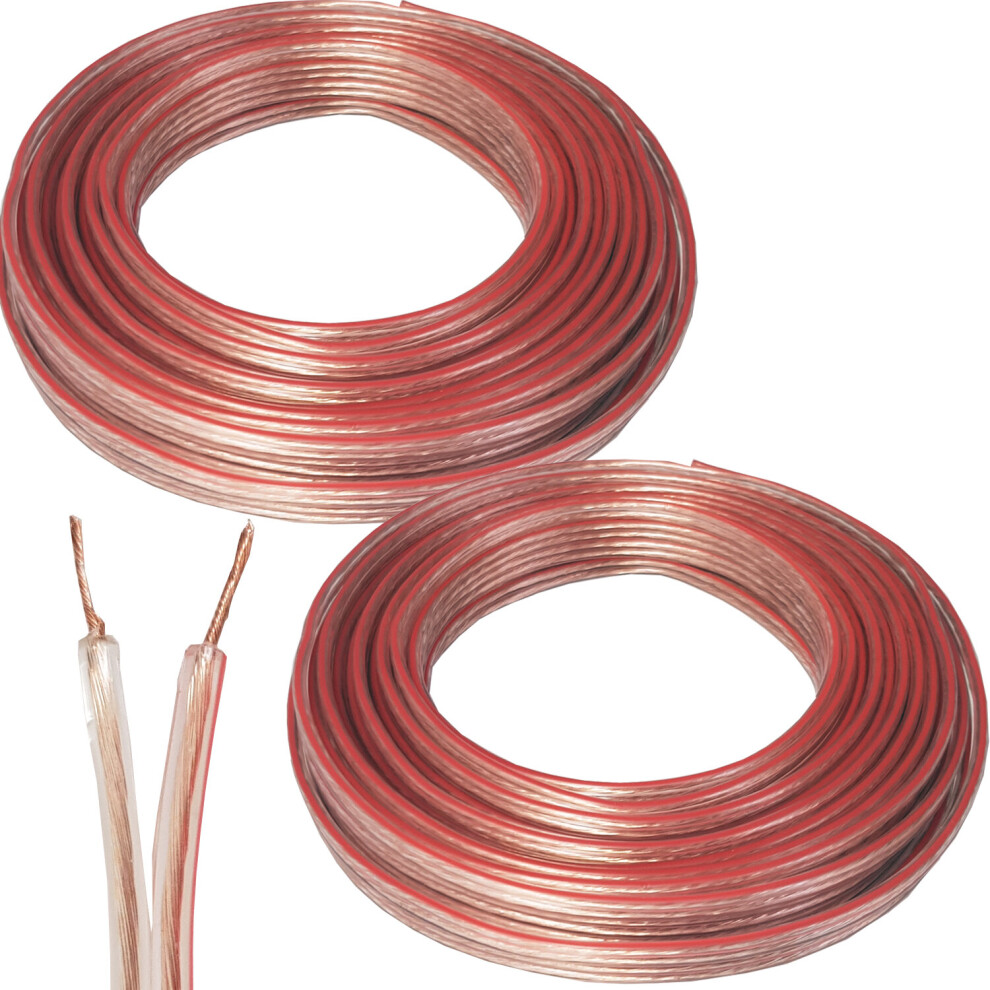

2x 10m Speaker Cable
Instruction Manual

The amplifier is the same size as a single UK plug socket / light switch – Requires a 47mm deep back box.

Amplifier Overview:

Connectivity – This amplifier offers both Wi-Fi & Bluetooth connectivity. This is great if you are regularly switching between devices. You would be able to keep the main device connected via Wi-Fi at all times & allow other devices to connect via Bluetooth when required. This is great if you're having a party or have friends' round and they want to connect to the amplifier.

As well as the Wi-Fi and Bluetooth wireless connections, this wall amplifier has a hard-wired auxiliary input. Perfect if you'd like a hardwired connection to your TV. As well as an aux input, it also accepts Micro SD cards.

Range – If you are connected via Bluetooth, the range is around 10 meters. If you're using Wi-Fi, you will be able to control this amplifier as long as you have a connection to the internet, no matter the range.

App Control – This amplifier has its own (FREE) Phone / Tablet app that allows you to link your Spotify / Amazon Music / Apple Music / Digital Radio all through one simple app.

App is Compatible with ANDROID & iOS

Multi-Room / Zoning – The clever app allows you to set-up and control multiple amplifiers from a single device (app). This is perfect for multi-room / multi-zone applications where you would like to control the volume of each system separately / combine zones into 1, all from your phone / tablet.

Depending on the level of music streaming service you use, you can also play different things in different zones at the same time and control all volumes separately. This is an incredibly versatile piece of kit and a fantastic alternative to SONOS.

Power – The amplifier may be small, but it packs a punch, at peak, this small unit will pump out an impressive 100W max @ 4 Ohm (2x 50W). However, thanks to the latest, CLASS-D DIGITAL sound reproduction technology, this little stereo amplifier sounds much louder than the figures suggest… It really is impressive! The amp can handle any domestic environment and most commercial environments (depending on the nature of the install).

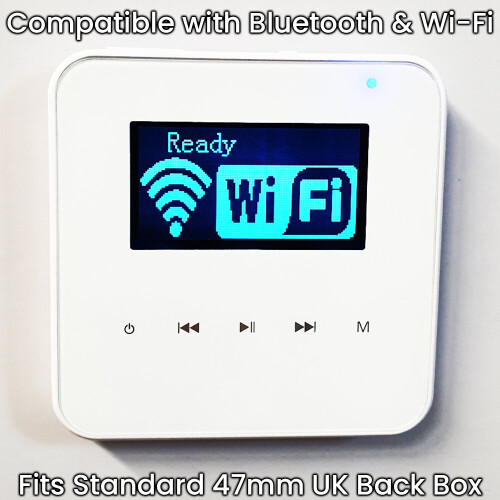

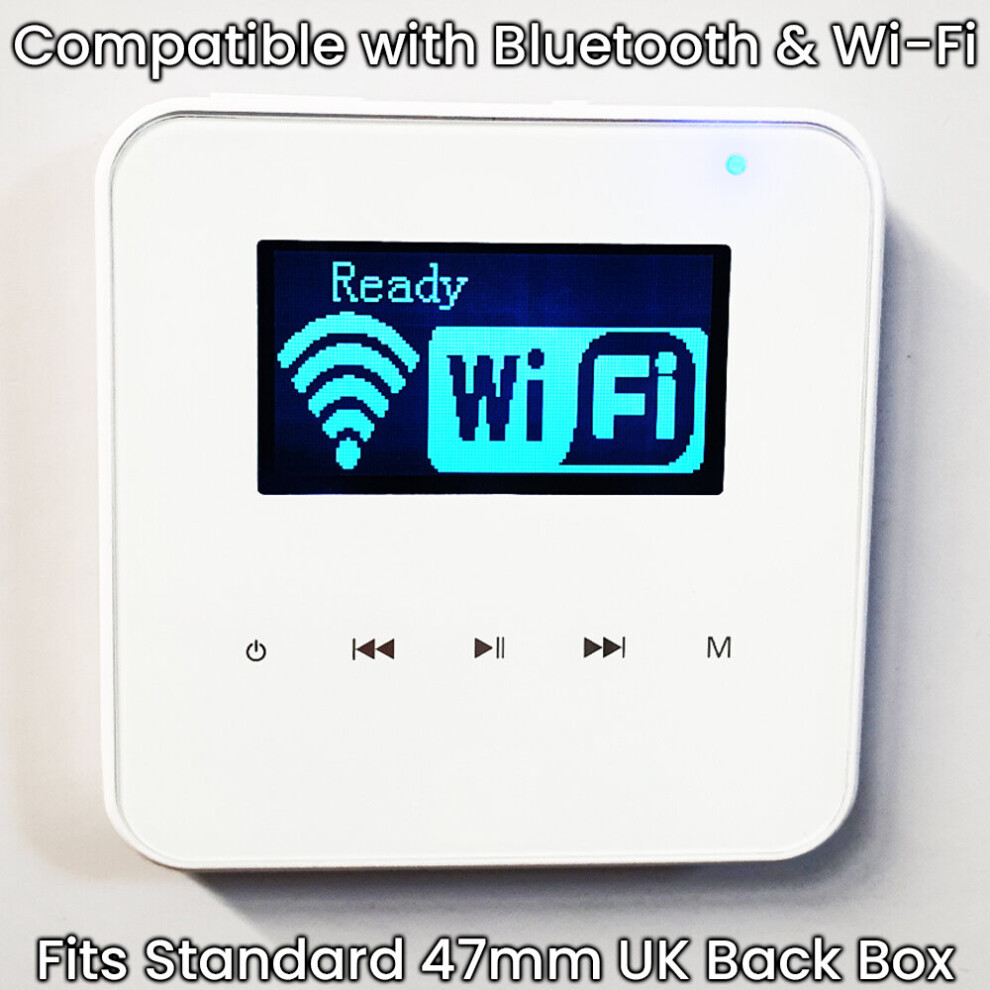

Size – Our most compact amplifier yet, this incredibly clever unit can be recess or surface mounted to a wall using a 47mm back box.  The bezel has an extremely slim design & will only protrude 10mm once installed.

Amplifier Features:

1x Wi-Fi Module
1x Auxiliary Input Screw Terminals
1x MicroSD Card Slot
4x Screw Terminals for connecting speaker cable
1x 15V 2A Power Supply Connector

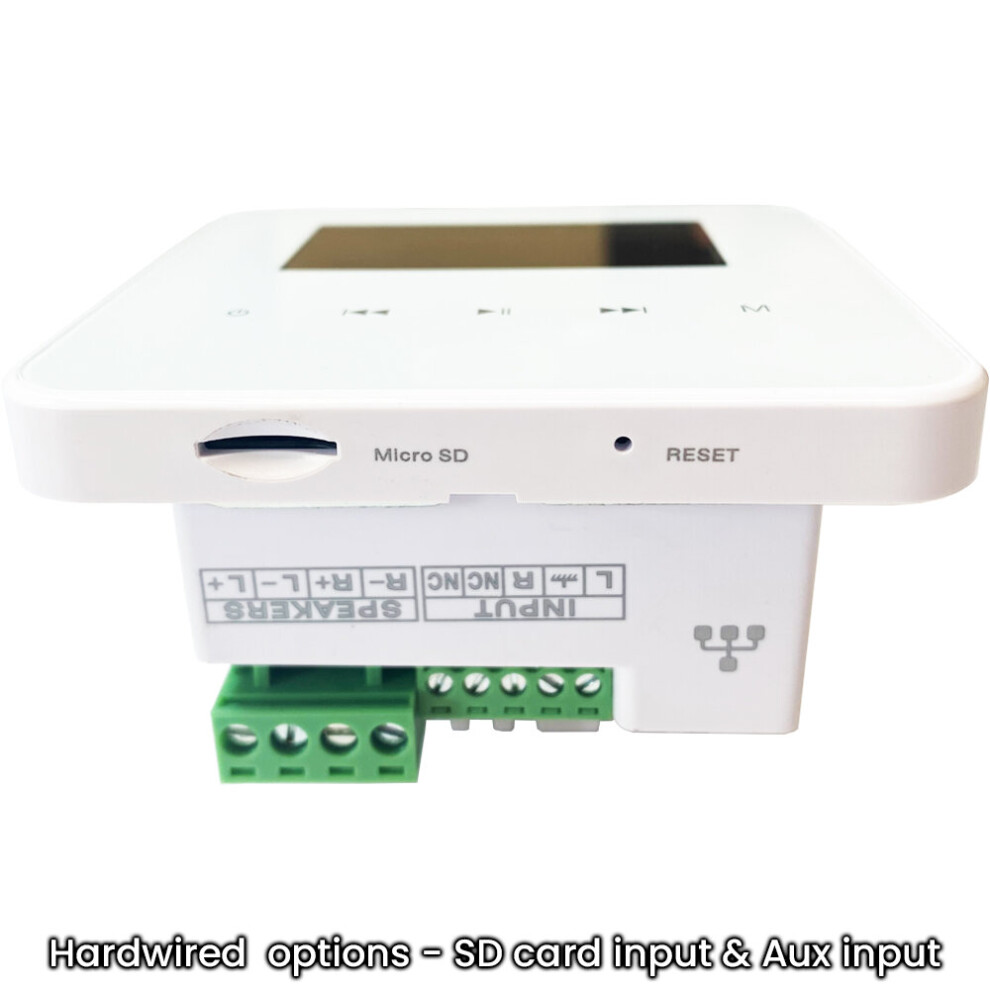

Wired Connections:

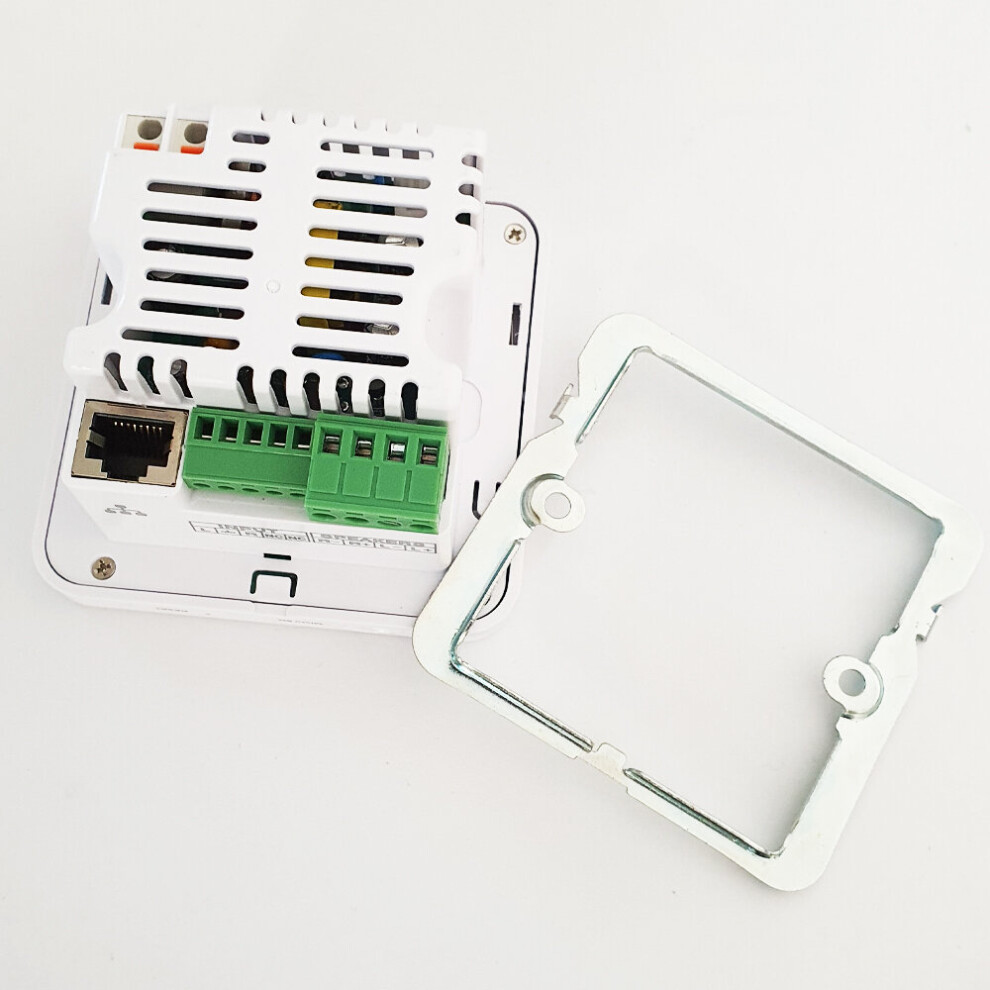

Screw Fit Speaker Terminals: Labelled; (R- & R+) for negative and positive connections to the right speaker(s), (L- & L+) for negative and positive connections to the left speaker(s).

Screw Fit Auxiliary Input:  For a direct wired connection to a source device such as a smartphone.

Micro SD Card: The amplifier can also play MP3 tracks stored on a Micro SD Card. Simply insert card at the bottom of the panel.

Amplifier Technical Specification:

Output Impedance: 4-8 Ohms

Output Power RMS: 2 x 30W @ 8 Ohms (60W)
Output Power MAX: 2 x 40W @ 8 Ohms (80W)
Output Power RMS: 2 x 50W @ 4 Ohms (100W)
Output Power MAX: 2 x 70W @ 4 Ohms (140W)

Operating Voltage: 90 – 220V AC
Frequency Response: 20Hz to 20 KHz
Dimensions (HxWxD): 86x86x53mm
Weight: 190g

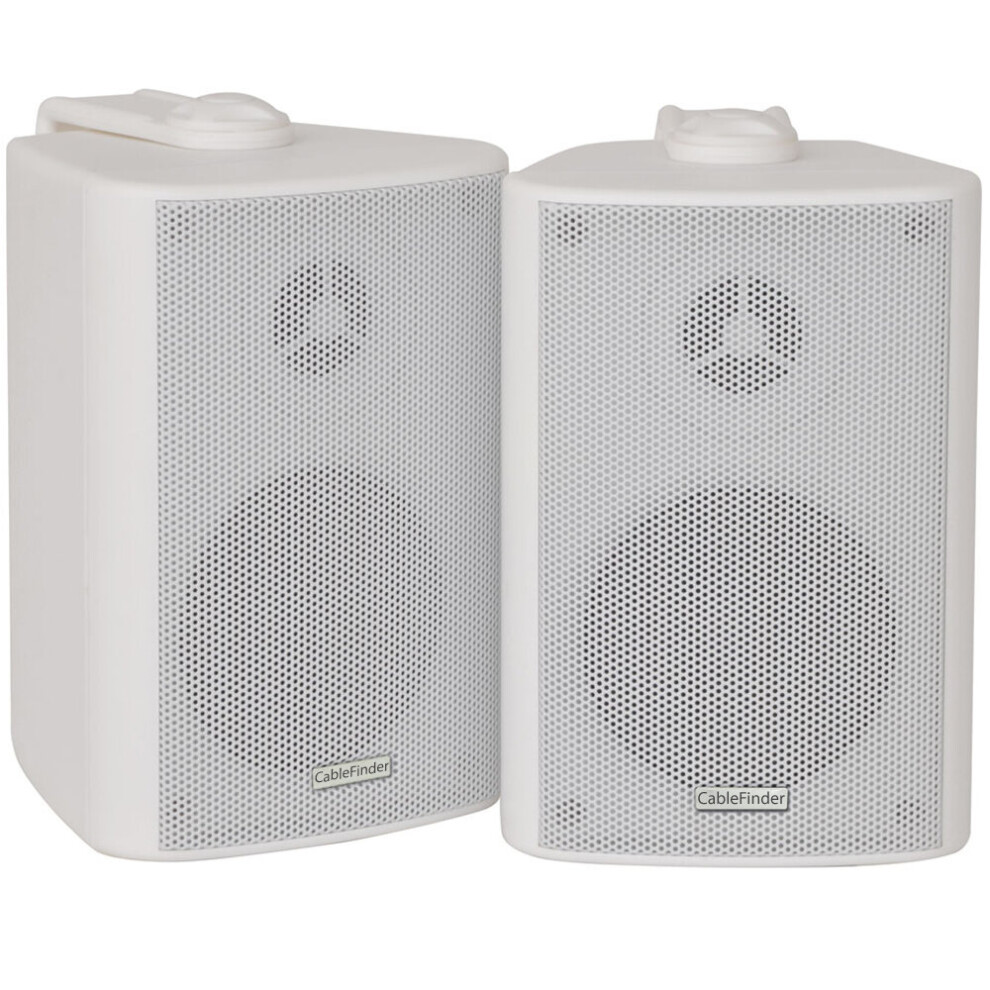

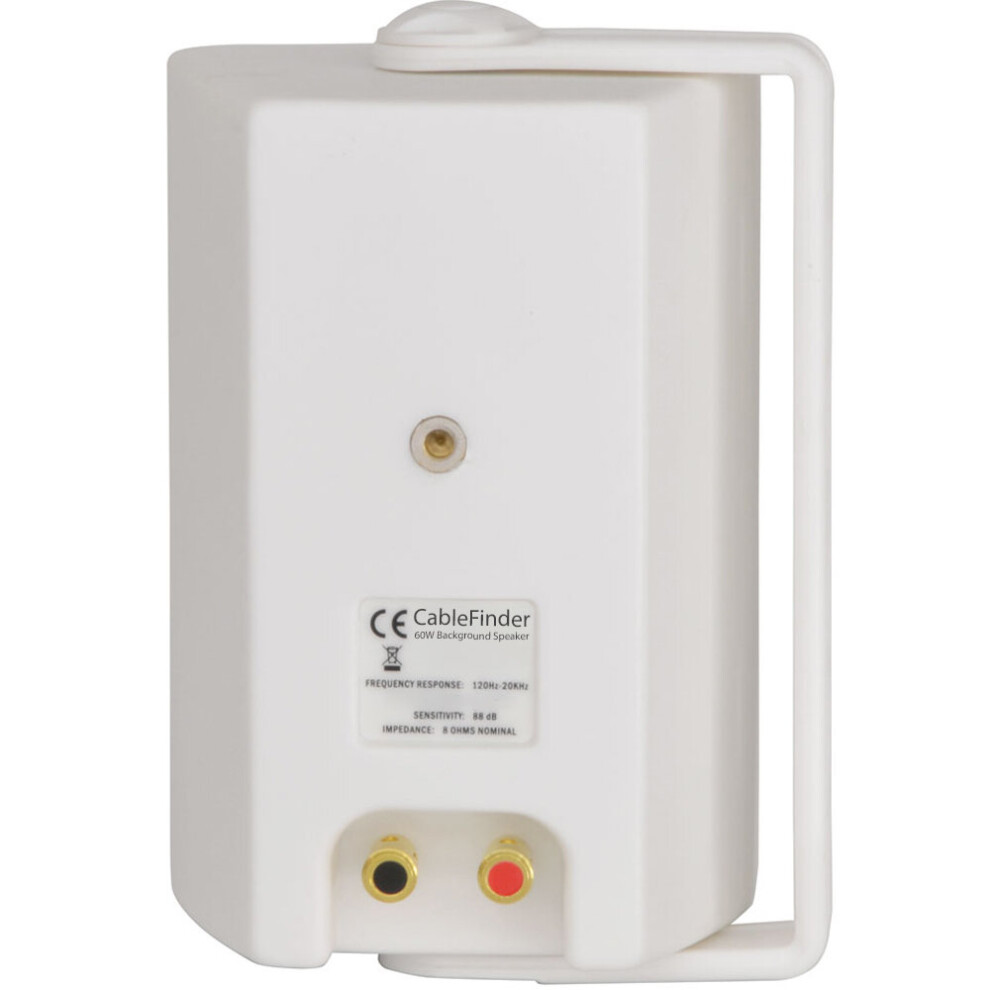

Speakers Technical Specification:

2-Way Speakers
Speaker Cable Connections
Power Max 8 Ohm – 60w
Power RMS 8 Ohm – 30w
Sensitivity (1m, 1W) – 88DB
Frequency Response – 120Hz-20kHz
Impedance – 8 ohms

Dimensions:

Height 150mm, Width 105mm, Depth 105mm (Per Speaker)

HOW TO INSTALL:

1) - Run all of the cables you need to run before starting the install, this includes mains power cables, speaker cables and any other audio cables (for AUX ports). PLEASE ENSURE THAT ELECTRICITY IS TURNED OFF WHEN INSTALLING.

2) - You now need to prepare your wall for the amplifier to be mounted, you will need to cut a hole for this to be recess mounted or use a surface mounted back box (please see supplied instruction manual for full details).

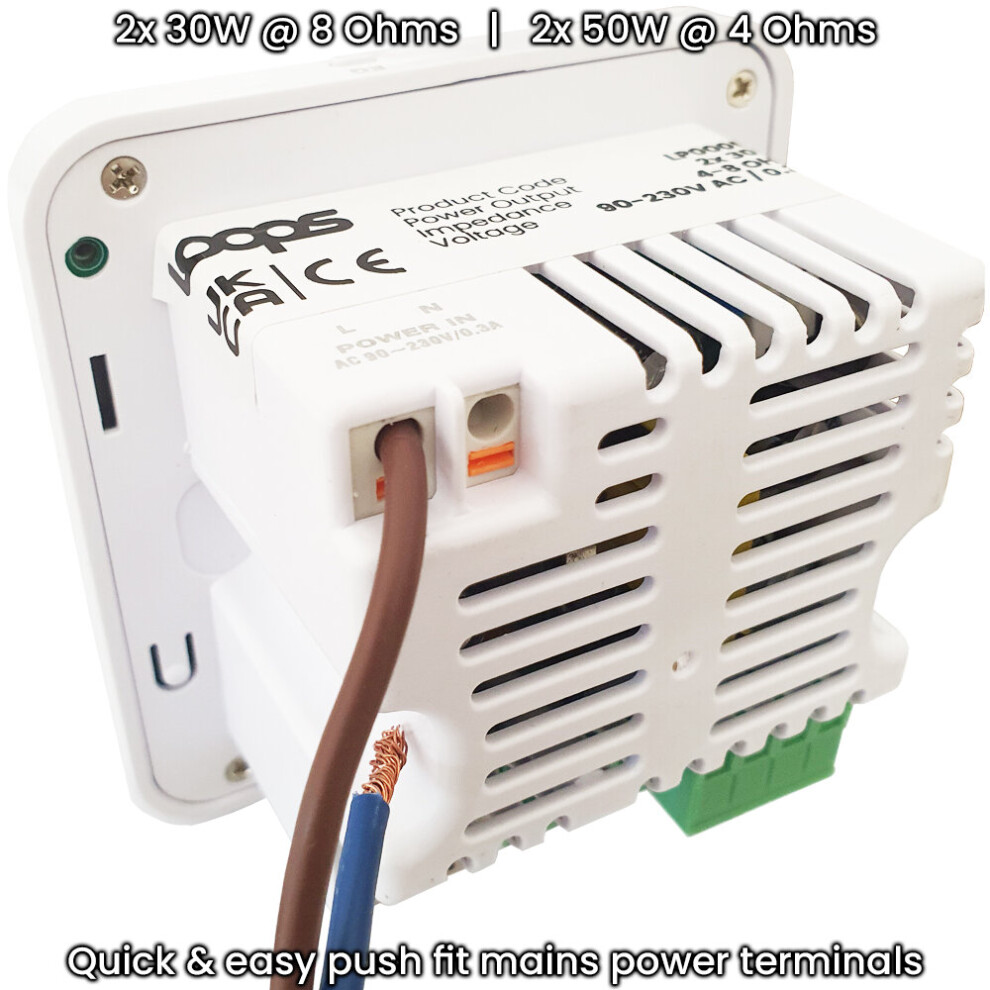

3) - Wire the mains power cable and speaker cables to rear of the amplifier via the screw terminal connections. Connect the other end of the speaker cables to the speakers ensuring that you wire positive to positive & negative to negative.

4) - You can now power up the unit, select a source and listen to your chosen music.

BLUETOOTH:

Simply turn Bluetooth on, on your device (make sure your device is visible under its Bluetooth settings). Then search for compatible devices and your device (phone for example) will find the amplifier. Follow the instructions given to you and you will then be able to play your music wirelessly.

Wi-Fi:

1) On your smartphone / tablet, download the WiiM Legacy Player application by Linkplay Tech. For iOS devices, download the Legacy Player app from the App Store. For android devices, download the Legacy Player App from the Google Play Store.

2) Upon opening the Legacy Player app, a searching screen will be shown with an option to “Add Device” at the bottom of the screen. If the amplifier has already been connected to Wi-Fi network in the past, the searching screen will confirm it has found 1 or more devices.

3) Go to the Wi-Fi settings on your device to search for available networks, the amplifiers name will start with “smart audio”. Connect your device to the amplifier.

4) The next page on the app will ask you to select the Wi-Fi network that you would like to connect the amplifier too. Select your network and enter the password to connect the device.

5) Once connected you will be able to name the new device.

6) You can now connect your device back to your local Wi-Fi network & start playing music via the Legacy Player Application

Further Information:

We sell the amplifier in this bundle with various styles & numbers of speakers. If this isn't quite what you are looking for and you can't find what you need, please feel to get in touch and we will be more than happy to help you.

Product Code – lpk0005b-6
