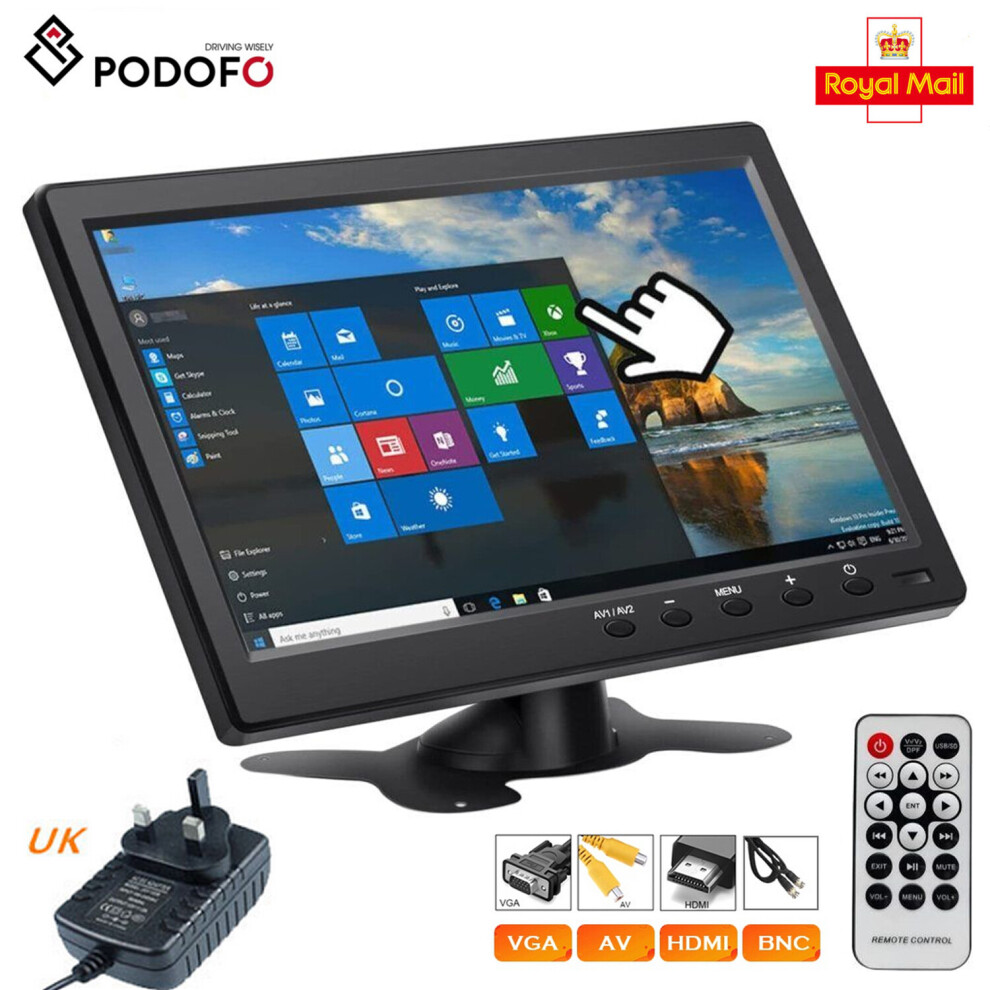

10.1 inch LCD CCTV HD PC Display Screen HDMI/VGA/AV/RCA Input w/ Speaker

10.1 inch LCD CCTV HD PC Display Screen HDMI/VGA/AV/RCA Input w/ Speaker Description

10.1 inch LCD CCTV Monitor HD PC Display Screen HDMI/VGA/AV/RCA Input w/ Speaker Description

Please read following info before placing an order or installation

• 10.1 monitor needs to use original power adapter to power on.
• The bracket of video monitor need to detach the screws first then install.
• Simple fashion design, support a variety of stent fixed mode, using 10.1 inches high brightness LCD screen, resolution 1024*600.
• Specification
• Maximum resolution supported: 1024*600
• Aspect ratio: 16: 9
• Viewing angle: 85/85 (left / right), 85/85 (up / down)
• HDMI support format: 480i (60Hz), 480p (60Hz), 576i (50Hz), 576p (50Hz), 720p (50 / 60Hz)
• NTSC / PAL video color system, brightness, contrast, color, and hue adjustments
• Supply voltage: DC7.9V to 13.5V
• Power consumption: up to 8W
• Standby current: up to 35 mA
• Support four video input: VGA, BNC, USB, HDMI, AV input, DC 12V
• Languages: French, English, Italian, Spanish, German, Chinese, Turkish, Russian

Wall mount bracket available, but no screws

Wall mount 10.1" monitor with mounting holes on the back that you can also mount elsewhere

Easily save workstation space and keep your desk tidy by allowing wires to move freely.

Note: To protect the screen, it is not recommended to remove the protective film. Because there is no influence on the use of the product.

• Any PC with a VGA port can be connected to this monitor and it can be used as a mini PC monitor
• Switch the input mode and the corresponding mode by pressing AV1/AV2.

• 10 inch HDMI monitor can be connected to PC/TV/Camera which has HDMI port
• The HDMI version is 1.1, it can't support the device with later version

• AV input for car rear view camera monitor, also for DVD, VCD, TV-Box, etc.

• If you intend to use this monitor for security monitoring purposes, the BNC interface can meet your requirements

• The 10-inch display shows 1024*600 content and supports LCD color screen technology, providing a wider color range and 500:1 contrast ratio, 16:9 aspect ratio.

• Built-in speaker with output power up to 1 W / 8 ohms; supports multi-format video input, including: VGA, HDMI, AV, USB, BNC, etc.

• This small monitor is with 170 wide view angle, which is convenient for your work and life. Please not it's not an IPS panel.
