1.02 Inch E-Ink Display Module Option Black/White Dual-Color 128x80 SPI Interface

1.02 Inch E-Ink Display Module Option Black/White Dual-Color 128x80 SPI Interface Description

Features
No backlight, keeps displaying last content for a long time even when power down
Ultra low power consumption, basically power is only required for refreshing
SPI control interface, for working with host boards such as for / Nano/for /Nucleo
Onboard voltage translator, compatible with 3.3V/5V MCUs

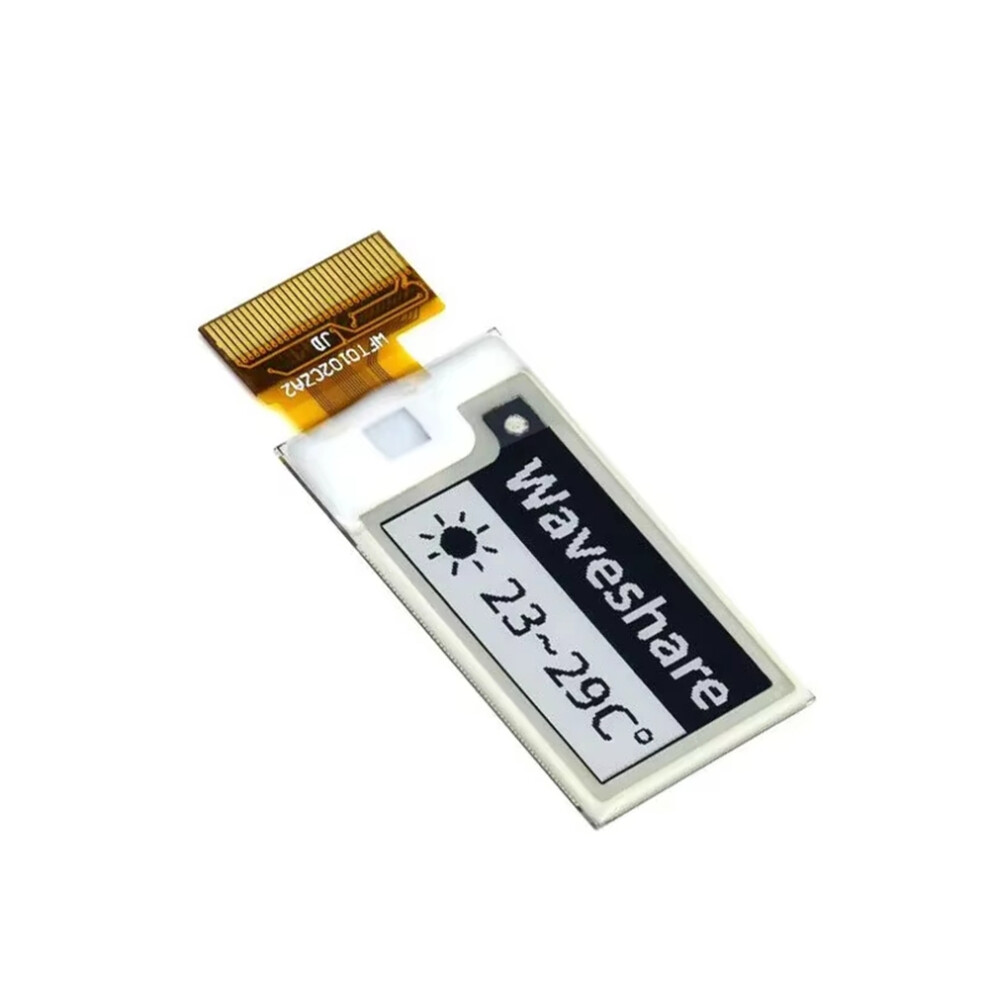

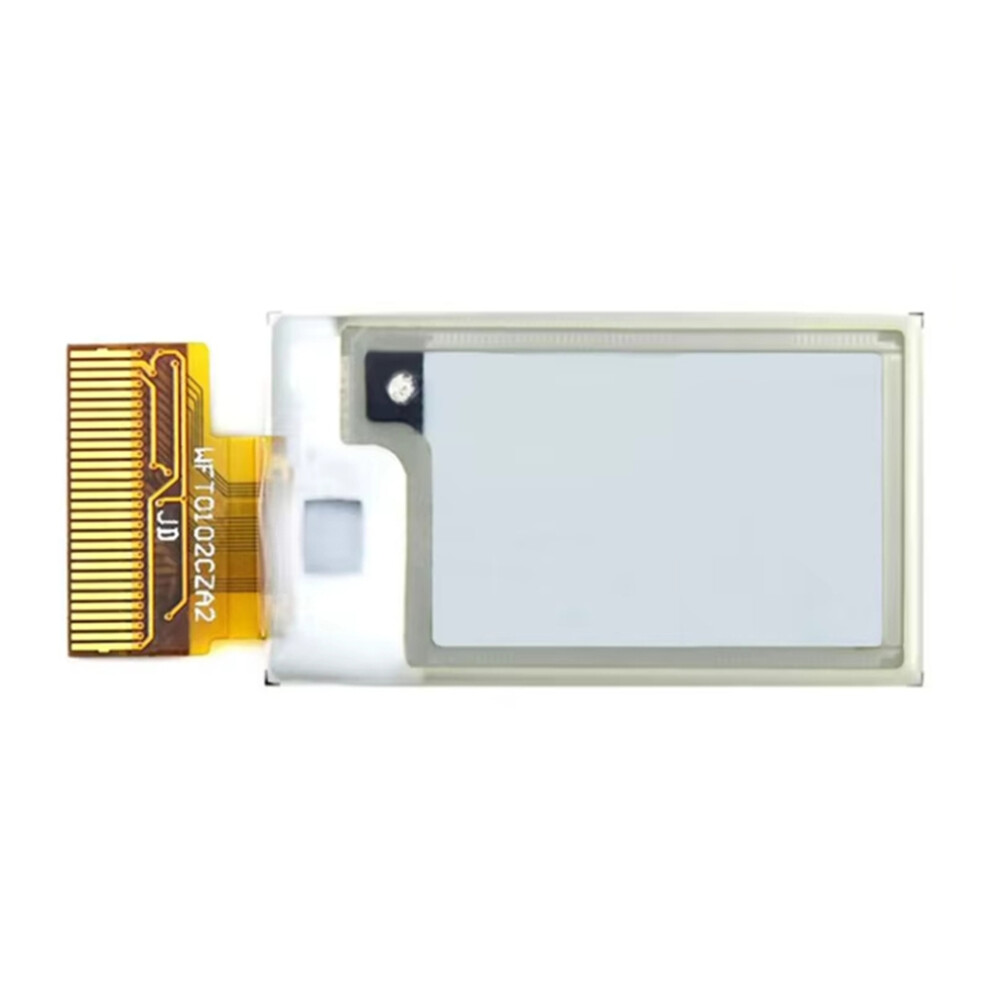

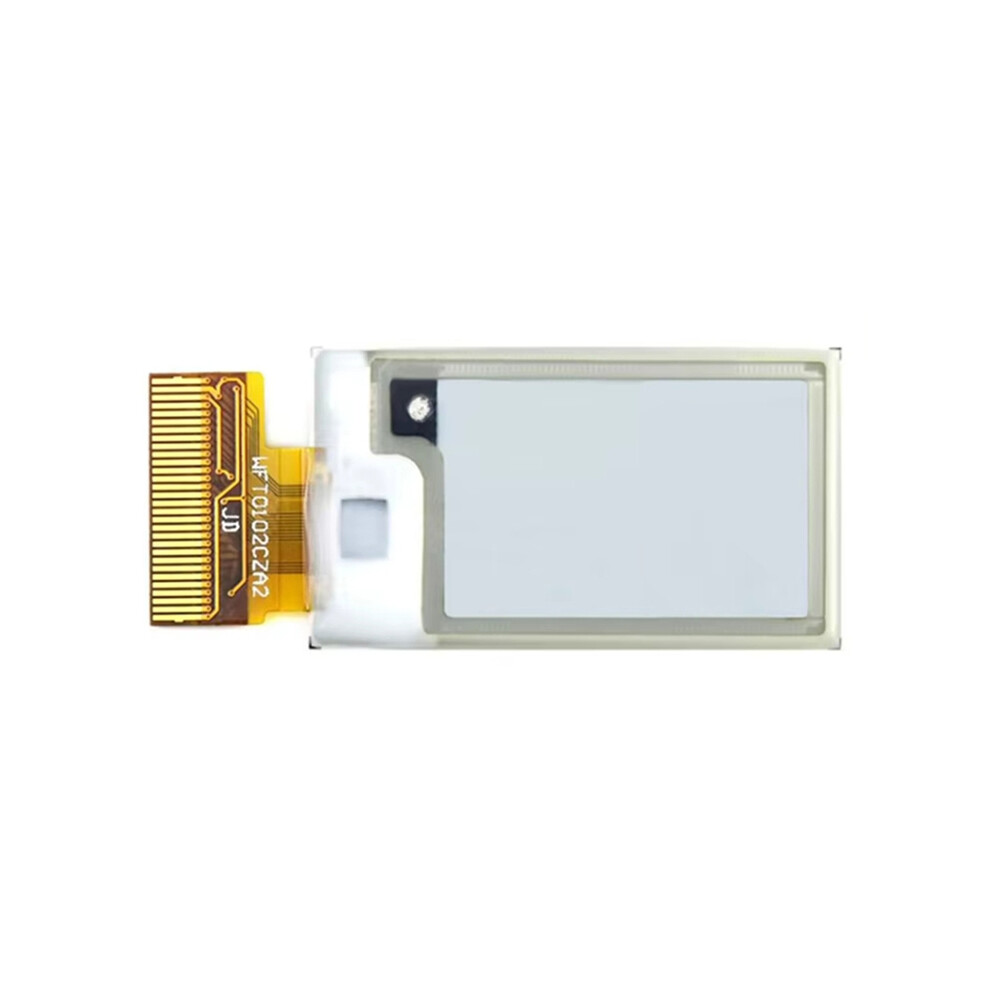

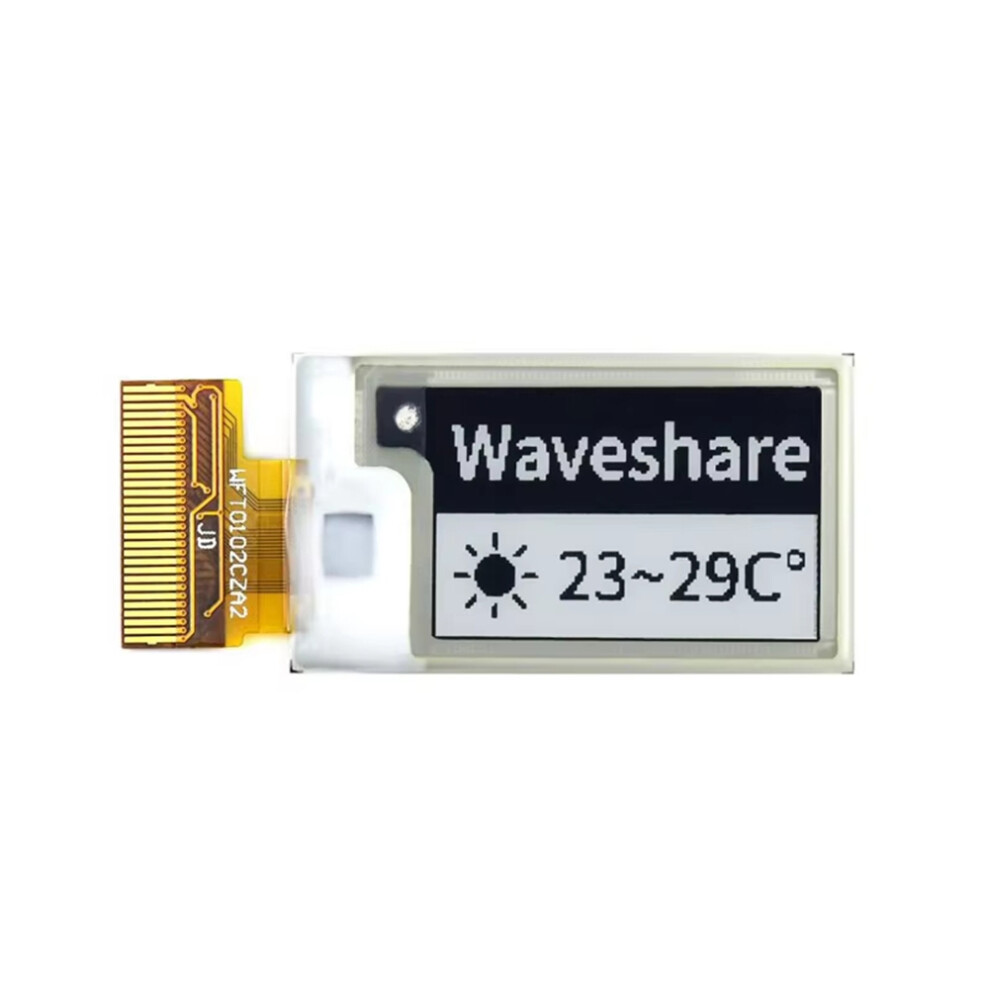

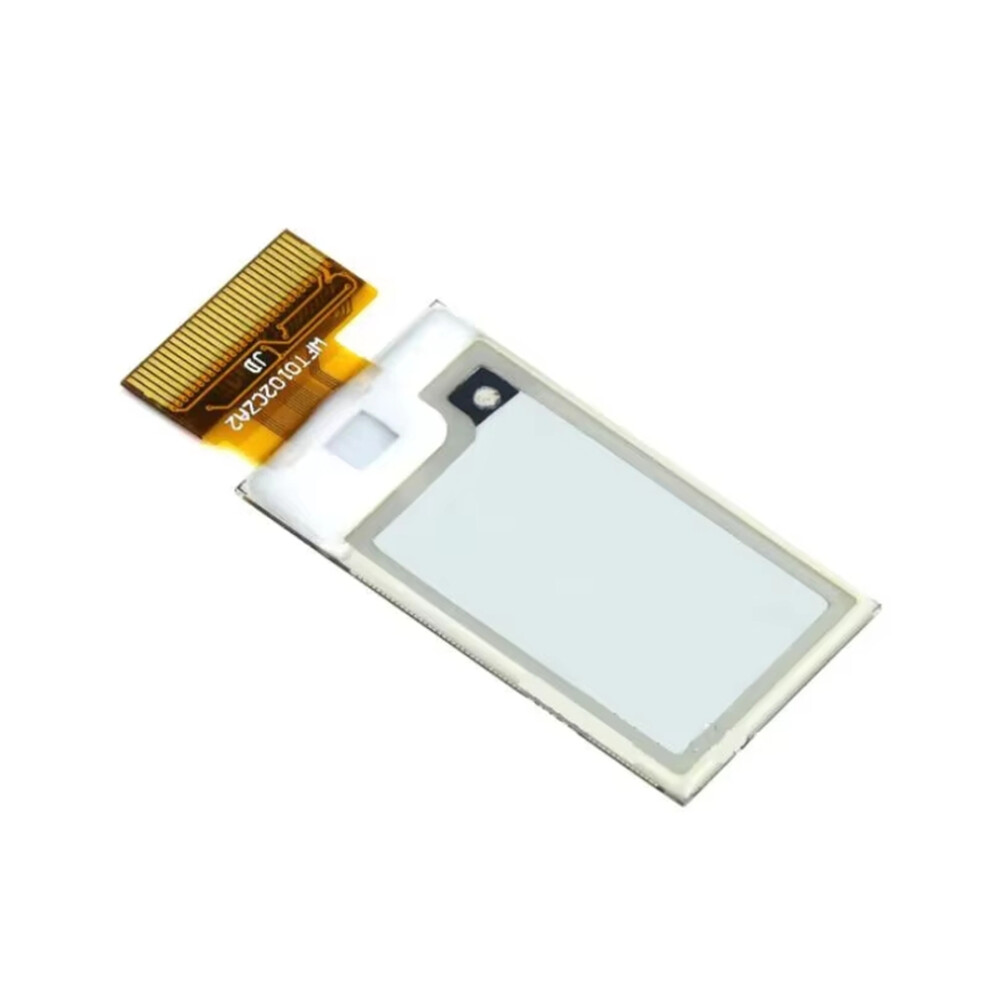

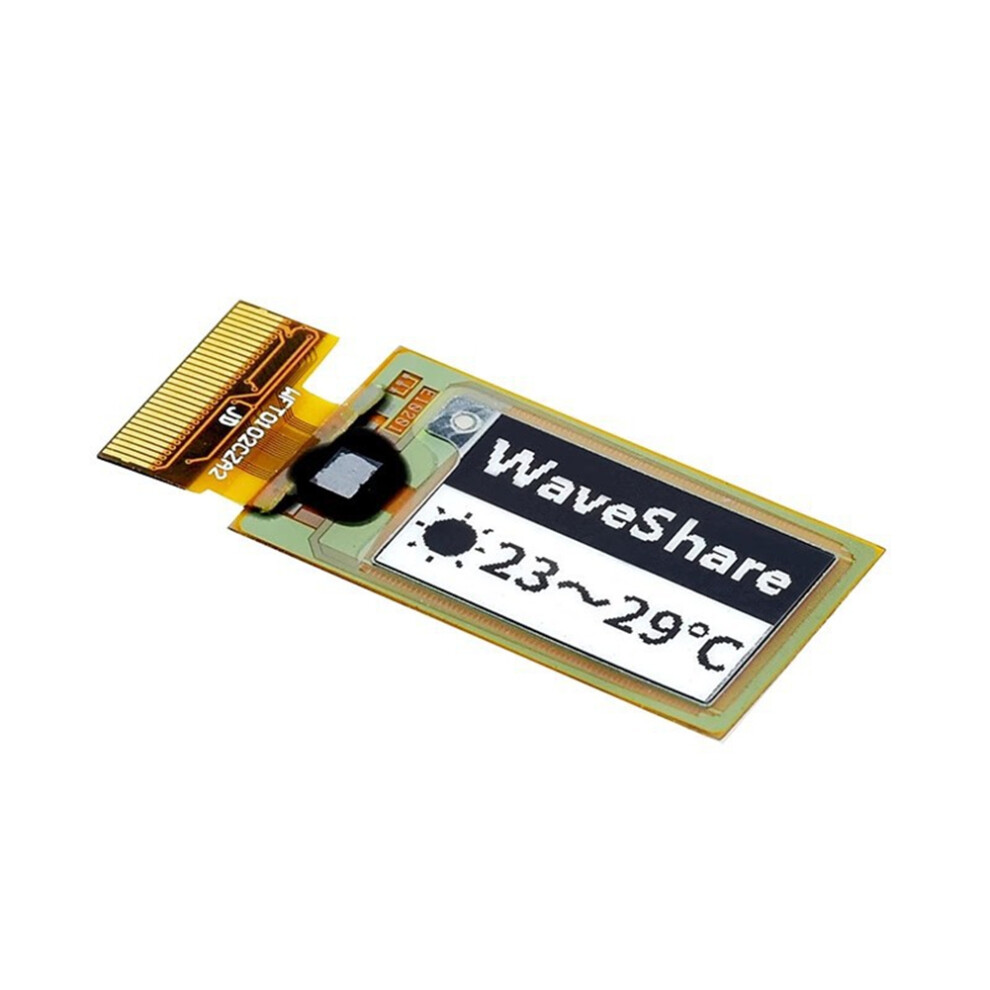

This is an E-Ink display module, 1.02inch, 128x80 resolution, with embedded controller, communicating via SPI interface, supports partial refresh.
Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.
Specifications
Operating voltage: 3.3V / 5V
Interface: 3-wire SPI, 4-wire SPI
Outline dimension: 42mm x 27mm
Display size: 21.76mm x 14mm
Dot pitch: 0.175 x 0.17
Resolution: 128 x 80
Display color: black, white
Grey scale: 2
Full refresh time: 2s
Refresh power: 26.4mW(typ.)
Standby power: Less than 0.017mW
Viewing angle: 170
Color: As Shown
Material: Plastic+Metal
Different batches may have different printed characters, but it not affect the use

Package Contents:
1 x module

Only the above package content, other products are not included.
