1080P AHD Car Backup Camera Waterproof Night Vision Car Rear View Reverse Camera

1080P AHD Car Backup Camera Waterproof Night Vision Car Rear View Reverse Camera Description

Features:

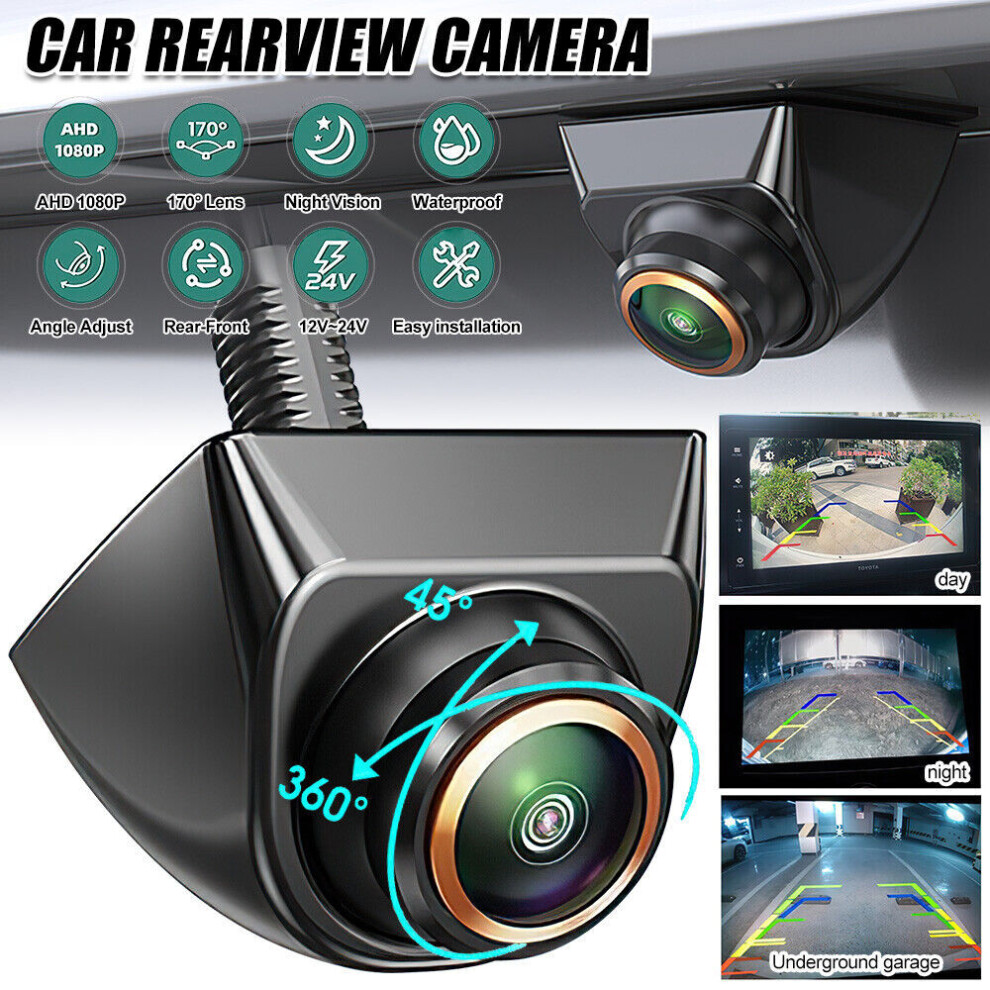

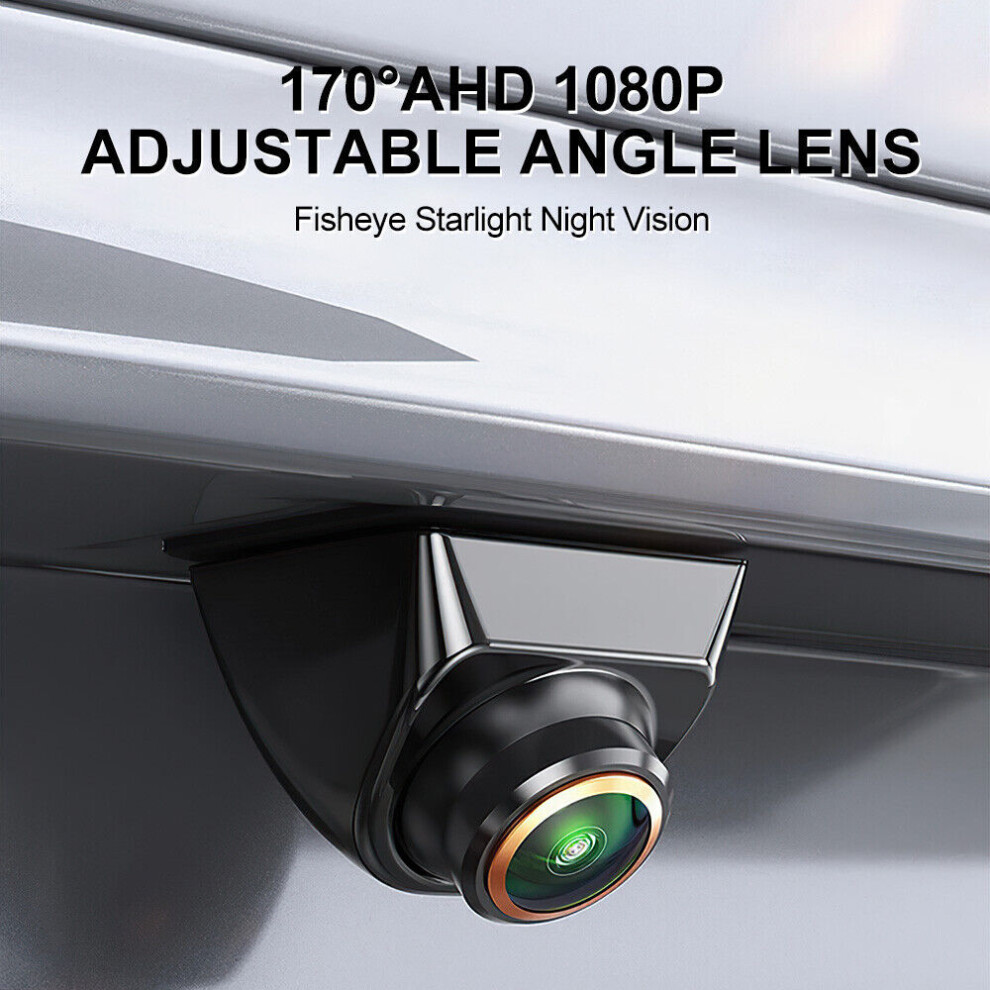

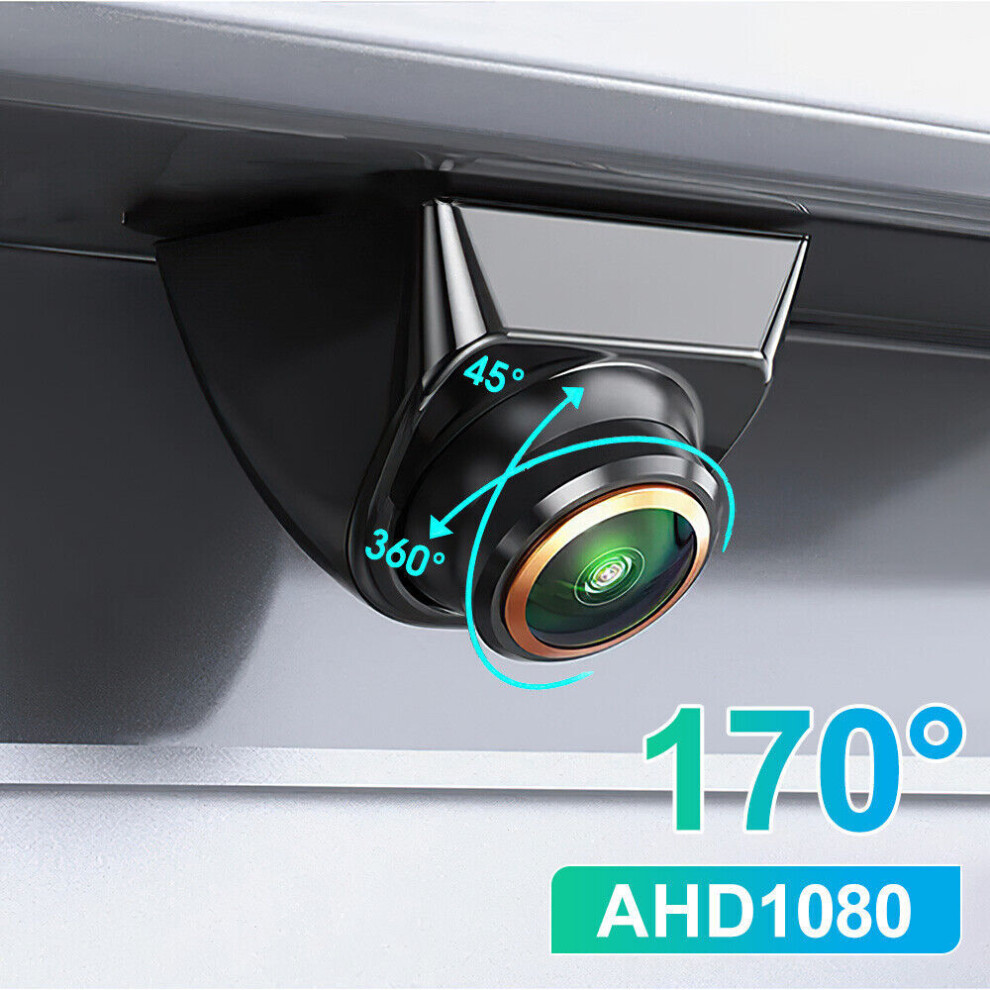

Real 170 wide viewing angle,Adjustable Angle.Gold Fisheye Lens

Pixel: AHD 1920*1080P,CVBS 1280*720P

Support parking reference line switch on/off

Support Mirror control (RearFront）

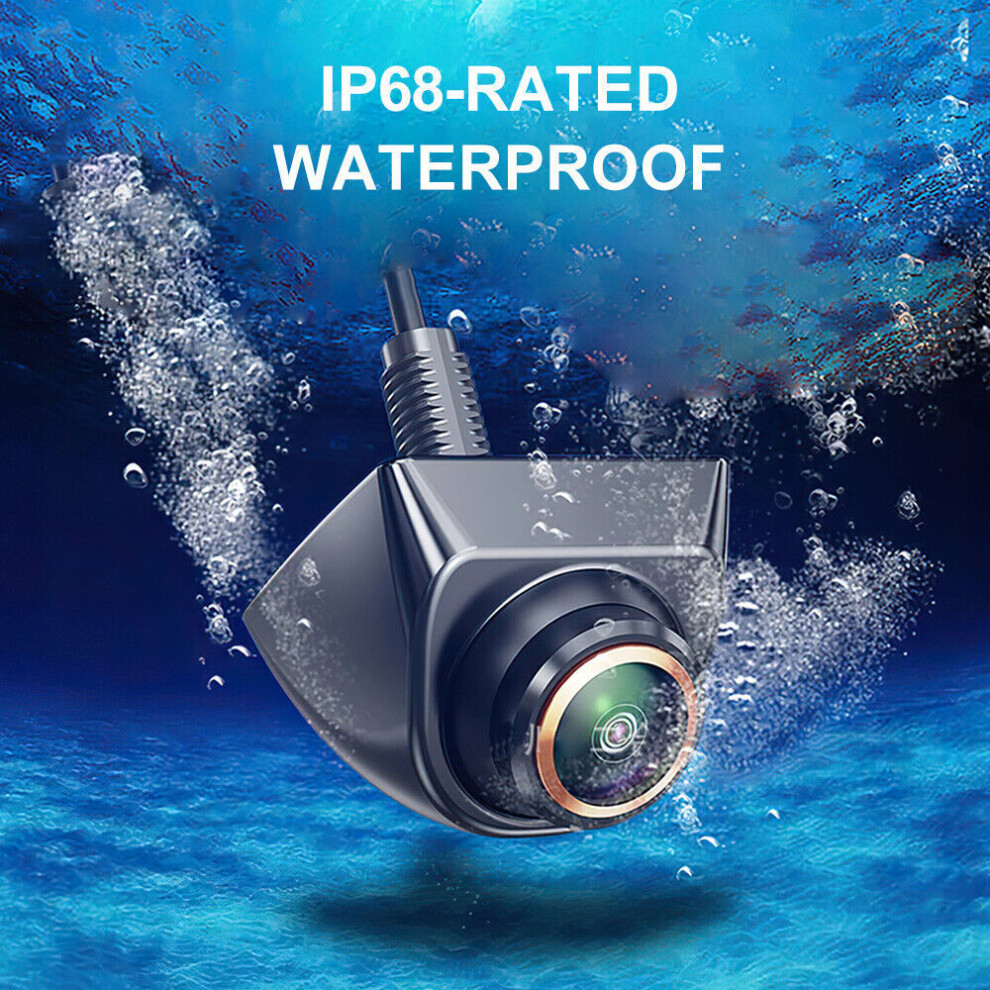

High grade of waterproofing: IP67.

Low-light Level Night Vision, 15m visible distance for night.

Tips, About AHD1080P Style:

Please check whether the Android unit supports AHD1080P camera!

If AHD1080P cannot be selected, AHD1080P cameras are not supported!

Go to Car settings >> Factory settings >> Reverse (picture) settings >> Select AHD1080P

CVBS video cameras are universal for all monitors, but AHD will only work with an AHD monitor!

Package Include:

1 x Camera

1 x Video Cable

1X power cable

After connecting the rear view camera, the screen shows no signal, black screen and no picture, what should I do?

A) Please check your signal format (AHD/CVBS), choose right signal to run the camera.

B) Please check your connection, red trigger line should connect to your reverse light and monitor reverse-in cable.

C) If your monitor has AUX-IN function, you can connect to the AUX-IN.

Tip: CVBS cameras can test the performance on the TV.

After connecting the rear view camera, the screen shows black and white, what should I do if there is no color?

A) Choose wrong camera system(such as PAL/NTSC) will cause the screen to be black and white. Please select the right system to run the camera and restart the camera power. CVBS camera is NTSC system, AHD1080P camera is PAL system.

B) Please check whether the 6M line is normal, please replace with another 6M cable to test the camera.

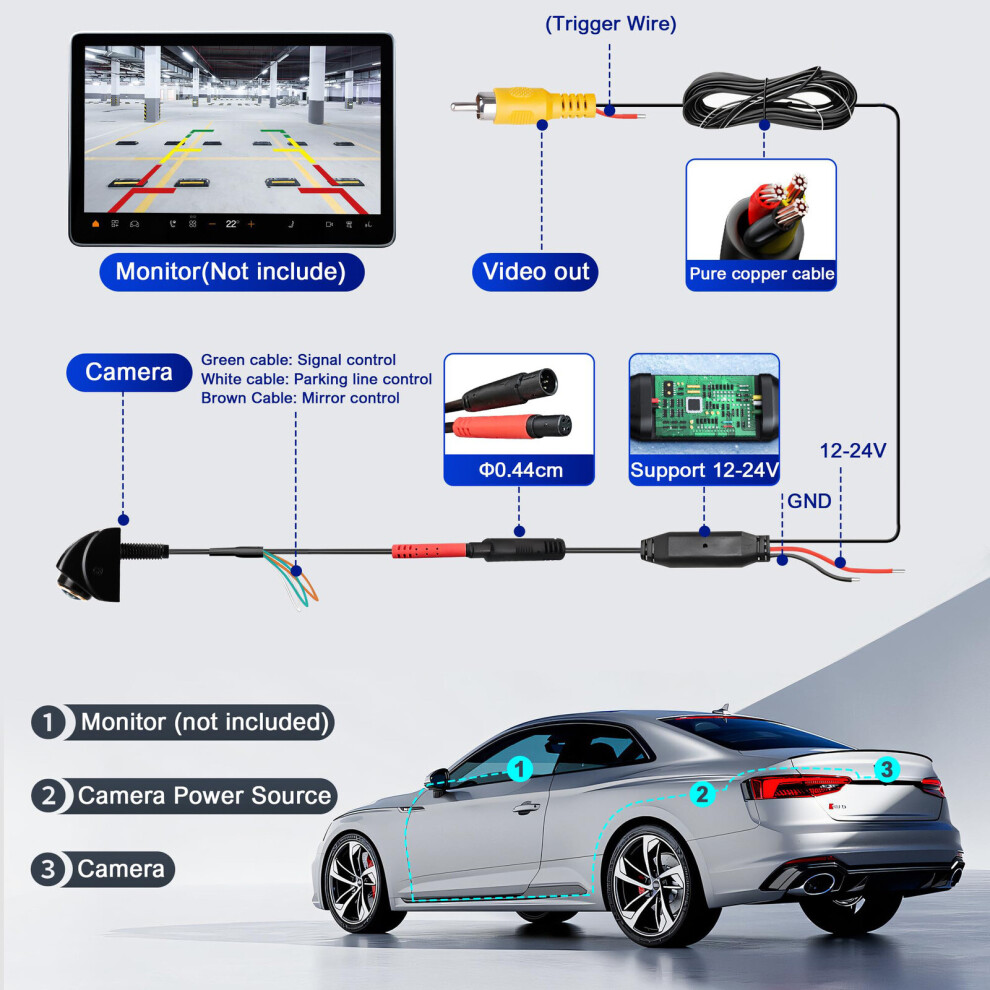

What functions are controlled by each of the 3 cables of the rear view camera?

White Cable: Parking Line Control

• Camera with parking line, you can cut the White cable, then without parking line.

Brown Cable: Video Signal Control (CVBS or AHD)

Green Cable: Mirror Control
