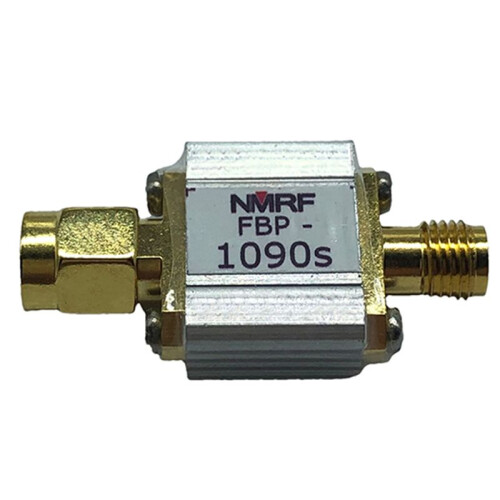

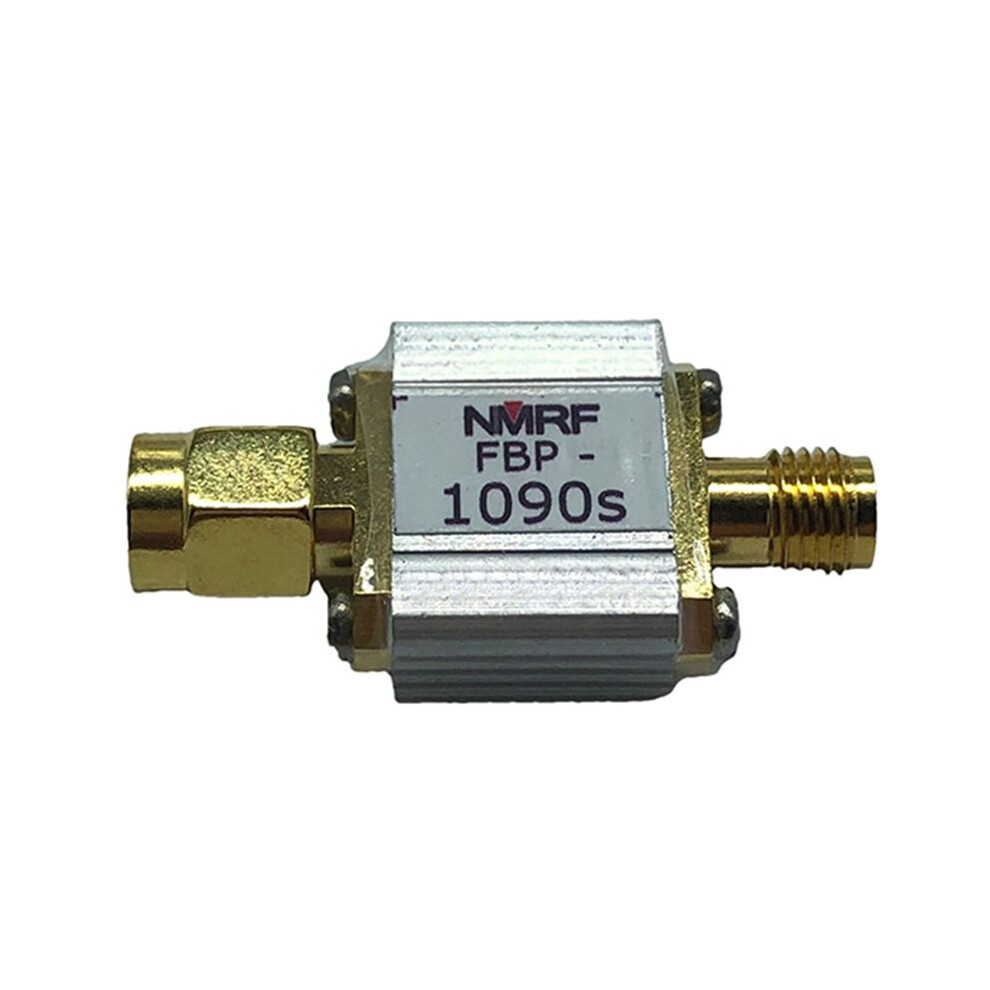

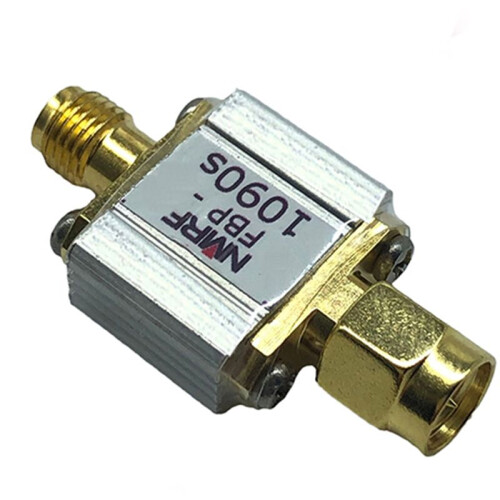

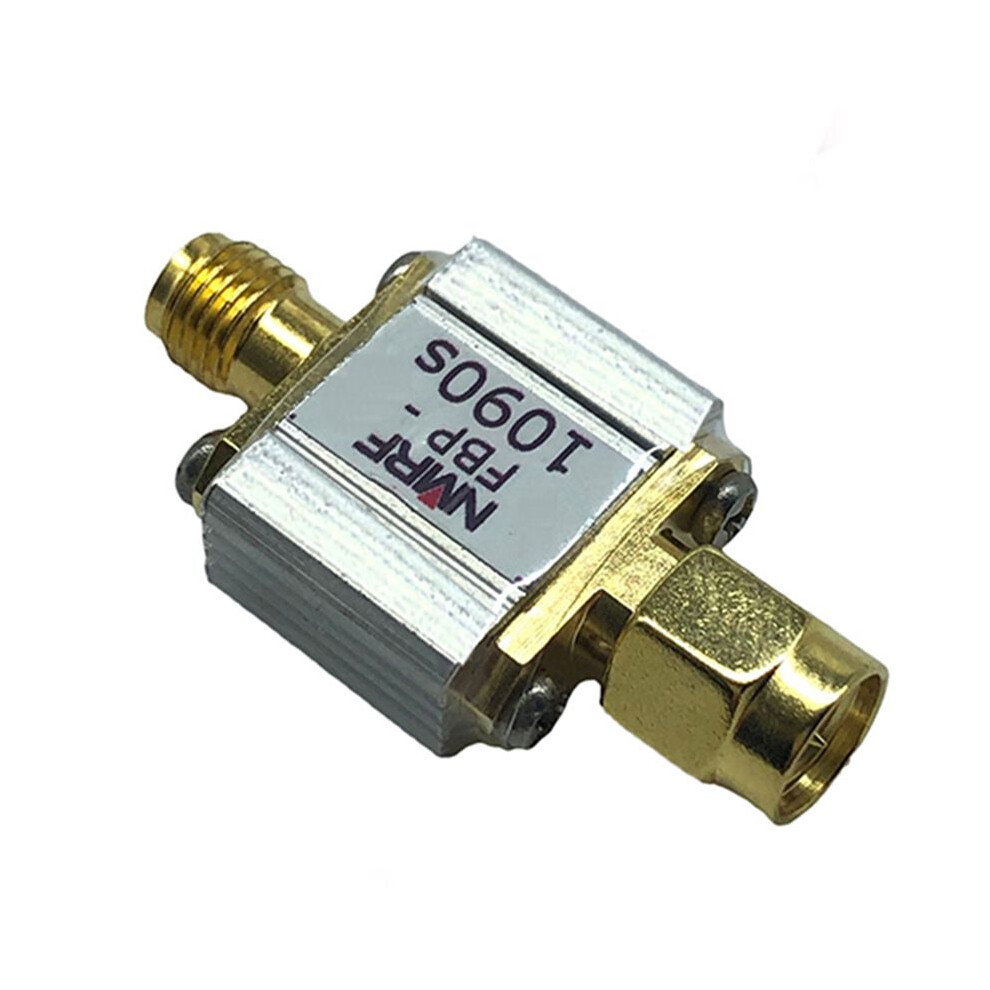

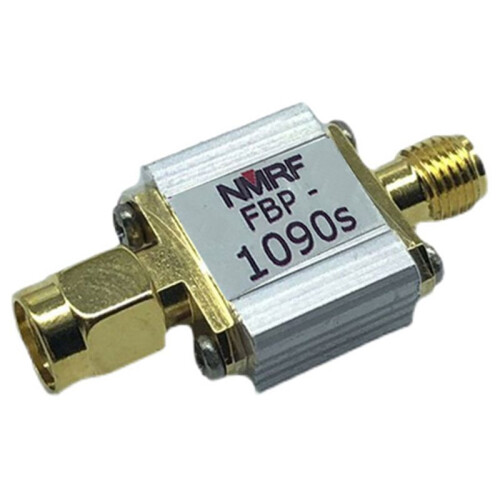

1090MHz ADS-B Bandpass SAW Filter SMA Interface 1090S Bandpass Filter
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 129,000 Trustpilot reviews and an 'Excellent' rating
£15.72
£22.71
31% off!
+£1.50 Delivery
1%
What is instant Cashback?
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (£1.50) | Mon 3rd - Sat 8th Aug
Returns: 30 days
180-day payment protection
Most Popular in Radio Filters
Hot
Description & Details
Summary
- This filter can guarantee a passband bandwidth of 30MHz, low insertion loss, and a steep cut-off characteristic.
- Performance optimization of ADS-B receivers for 1090MHz to effectively filter out-of-band signals, reduce noise, and increase dynamic range.
- The device is ultra-small and easy to use.
- bandpass filter
- SMA interface 1090S bandpass
1090MHz ADS-B Bandpass SAW Filter SMA Interface 1090S Bandpass Filter Description
This filter can guarantee a passband bandwidth of 30MHz, low insertion loss, and a steep cut-off characteristic.
Performance optimization of ADS-B receivers for 1090MHz to effectively filter out-of-band signals, reduce noise, and increase dynamic range.
The device is ultra-small and easy to use.
Model: FBP-1090s
Impedance: 50 Ohms
Center frequency: 1090 MHz
Passband (1 dB bandwidth): 30 MHz (see measured frequency response diagram for details)
30 dB bandwidth: Less than 80 MHz
In-band insertion loss: 1.7 to 2.2 dB
Maximum Carrying Power: 100 mW (20 dBm)

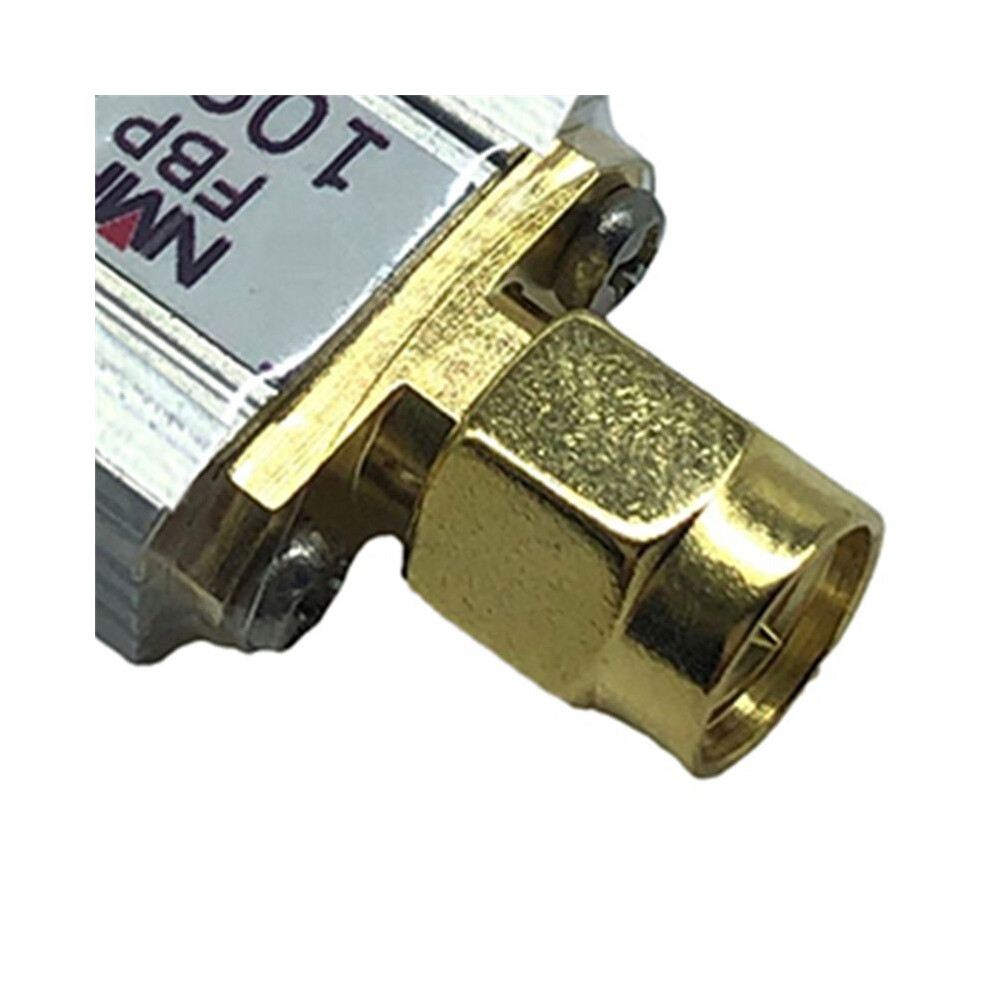

Interface: SMA-M, SMA-F
Material: Metal
colour: As shown
Package Contents:
1 x 1090S bandpass filter
Details
| OPC | PQNMHNN |
|---|---|
| Codes | 6031269476477 (EAN) |
Product Data
| Height | 1cm |
|---|---|
| Width | 6cm |
| Length | 10cm |
| Weight | 0.01kg |
| Colour | As Shown |
| Material | Metal |
