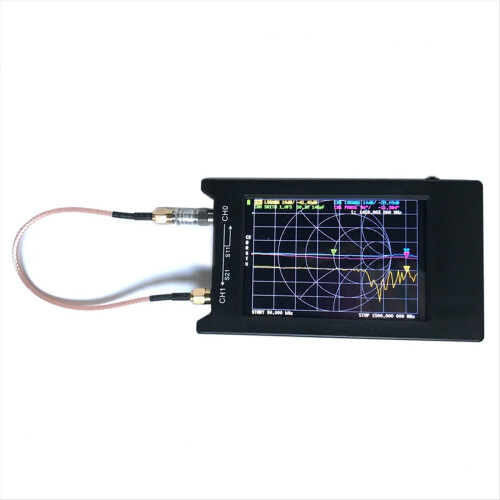

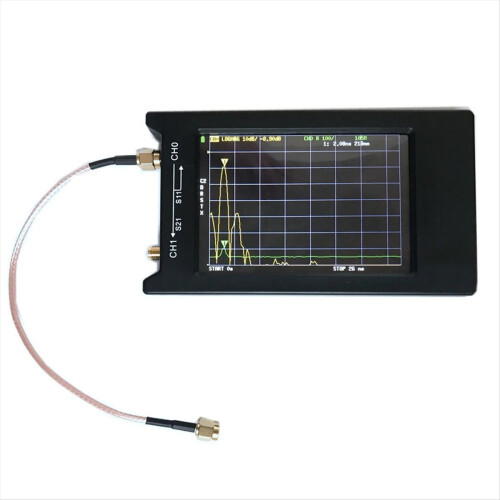

10KHz -1.5GHz -H4 4 Inch Touchscreen Network Analyzer Digital Touching Screen Antenna

10KHz -1.5GHz -H4 4 Inch Touchscreen Network Analyzer Digital Touching Screen Antenna Description

4 inch LCD touch screen
1950mAh battery
Support time domain analysis function (TDR)
The battery usage can be displayed on the interface.
The spectrum analyzer serial number is attached to the back

-H4(4-inch):
Size:75mm x 133mm x 18mm (excluding protrusions)
Measurement frequency: 10KHz -1.5GHz
output: 0dbm (2dbm)
Measurement range: 70dB (50kHz-300MHz), 60dB (300M-900MHz), 40dB(0.9G-1.5GHz));
There may be errors caused by nonlinear transformation of fundamental wave when using harmonic measurement.
Port SWR:Less than 1.1
Display: 4 inch TFT (320 x 480)
USB interface: USB type-C communication mode: CDC (serial)
Power: USB 5V 200mA, built-in 1950mAh battery, maximum charging current 1A
Number of scanning points: 101 (fixed)
Display Tracking: 4, Marking: 4, Setting Save: 5
Frequency Tolerance:Less than 2.5ppm
Frequency Stability:Less than 0.5ppm
Weight:365g
Color:Black
Material:ABS

Package Contents:
1 * Vector Network Analyzer
1 * Charging Cable
1 * English instruction manual
1 Set * Accessories

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
