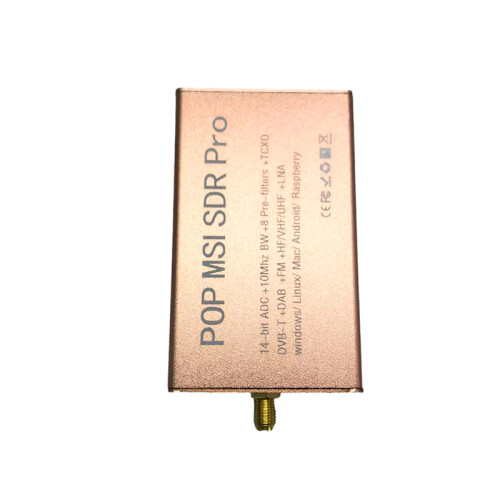

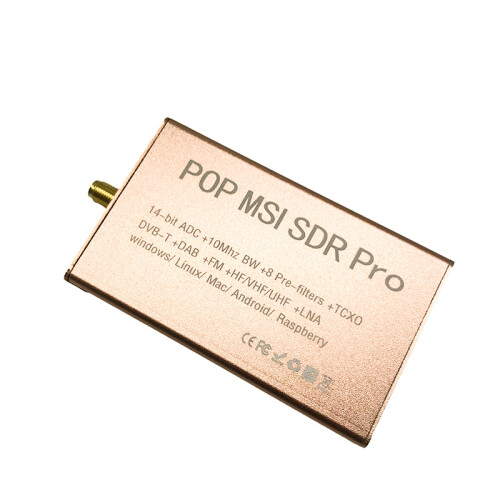

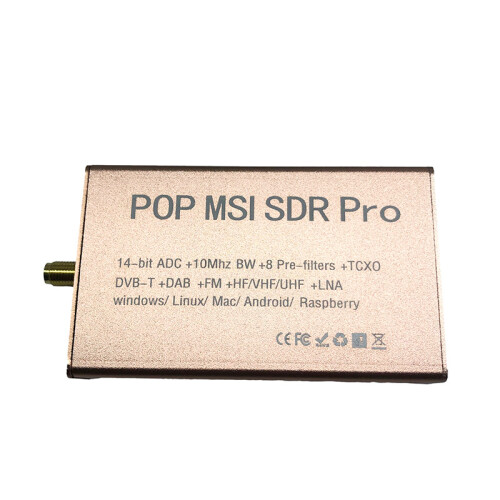

10KHz-2GHz Wideband 14bit Software Defined Radios SDR Receiver Compatible-SDRplay driver

10KHz-2GHz Wideband 14bit Software Defined Radios SDR Receiver Compatible-SDRplay driver Description

Features:

Key Benefits

-Portable surgical ldeal

-No need for upconverter

-ldeal for monitoring ISM/loT/telemetry bands<2 GHz

-Covers all frequencies from experimental LF to HF,VHF and UHF

-Applicable to all popular SDR software(including HDSDR,SDR Console,Cubic SDR and SDRuno)

-Compatible with existing open source radio software

-Compatible with Mirics radio and TV software

-Software upgradeable to accommodate future standards

-Strong and growing software support network

-Provides APIs to allow demodulator or application development

-Multi-platform support

For Windows,Linux,Mac,Android and Raspberry Pi 2/3

Key Features

Continuous coverage from 10 kHz to 2 GHz

Up to 10 MHz visible bandwidth

Powered via USB cable using a simple C-type socket

8 Built-in front-end preselection filters

Software selectable(on/off)LNA(low noise preamplifier)

Compatible with SDRunoSDR software

Open API for new application development

Rugged metal housing,best RF shielded enclosure/case

Single 50?? RF connector(SMA)

USB 3.0(Hi-Speed)Type C socket

Specification:

Chip:MSI 001+MSI 2500 chip

Model:FSP1A Pro

Frequency range:10KHz-2GHz

Antenna Connector:SMA

Antenna Impedance:50??

Current consumption(typical):185mA

Case Size:80mm*50mm*20mm

USB Connector:USB Type C

Reference:0.5PPm 24Mhz TCXO

Package includes:

1*Host

1*USB antenna

Note:

Only the above package includes

Specifications are manually tested and are for reference only

Please refer to the actual situation,thank you
